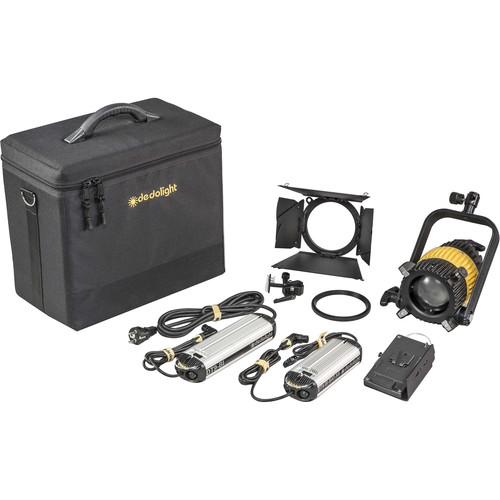

User Manual for Dedolight DLED9-D Daylight LED 1-Light Kit Click to enlarge the picture
Contents of the user manual for the Dedolight DLED9-D Daylight LED 1-Light Kit
- Product category: LED Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight LED Lights
|
User manual for the Dedolight DLED9-D Daylight LED 1-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description A versatile one-point setup for both location and studio applications, the DLED9-D Daylight LED 1-Light Kit from Dedolight bundles a focusable daylight-balanced LED fixture with both AC and DC ballasts for flexible power options, as well as a soft case to protect all the kit contents during travel or storage. - DLED9.1-D Daylight LED Light Head The DLED9.1-D Daylight LED Light Head from Dedolight is a capable 5600K LED light source with quality color reproduction due to a CRI of >91. The DLED9.1 is focusable from 50 to 4° and can be continuously dimmed from 100-0%. Additionally, it can output up to 60,000 lux at 3' when set to spot and has a low power draw of 90W.
The compact light head is designed for passive cooling as well, meaning that there are no fans that can add unwanted noise to the scene. It can operate in any position and has a holder for 5.1" diameter accessories such as a wide-angle attachment for expanding the focus range. The light features Protection Class III, SELV, and IP40 ratings for safety and requires and optional universal power supply for operation. - Control your light remotely with the DMX compatible power supply
- Optional aspheric wide-angle attachment widens beam angle range to 75 to 44°
- Accepts Series 400 accessories and imagers
- Focus control is handled through one complete turn on the focus ring
- Tilt control features permanent friction
- Protection Class III, SELV, and IP40 rated
- Can run on universal 90-264 VAC power source with required optional power supply
- DT9.1 AC Power Supply for DLED9.1 LED Lights The Dedolight DT9.1 AC Power Supply for DLED9.1 LED Lights is a multi-voltage, dimming power source for both the tungsten and daylight versions of the DLED9.1 lamp head. It comes with an 8.2' mains cable and a 4.6' head cable. It weighs 3.1 lb.
- DC Power Supply for DLED9 Daylight and Tungsten Lamp Heads with Anton Bauer D-Tap Connector This dimming Dedolight DC Power Supply for DLED9 Daylight and Tungsten Lamp Heads with Anton Bauer D-Tap Connector is rated for 11-18VDC batteries. It weighs 3.1 lb.
- Soft Case for DLED9 Light Head
In the Box Bundle Items DLED9.1-D Daylight LED Light Head sutxscetzbxbtctezvyxvzsscyeadbt DT9.1 AC Power Supply for DLED9.1 LED Lights DC Power Supply for DLED9 Daylight and Tungsten Lamp Heads with Anton Bauer D-Tap Connector Soft Case for DLED9 Light Head Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight DLED9-D Daylight LED 1-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DLED9.1-D Daylight LED Light Head
| | | Beam Angle | 4 to 50° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 91 | | Cooling System | None | | Dimming | Yes, 0 to 100% (Continuous) | | Display | None | | Fixture Dimensions | 9.4 x 15.0 x 9.2" / 23.9 x 38.1 x 23.4 cm | | Fixture Weight | 8.2 lb / 3.7 kg | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Power Source | AC Adapter | | Max Power Consumption | 90 W | | | | IP Rating | IP40 | | Protection Class | III | | | | Box Dimensions (LxWxH) | 13.4 x 8.5 x 6.4" | - DT9.1 AC Power Supply for DLED9.1 LED Lights
| | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Current | 1 A | | Output Voltage | 40 VDC | | Power Draw | 90.00 W | | | | Mount Fixture | Cable Loop | | IP Rating | IP40 | | | | Dimensions | 14.3 x 2.8 x 1.9" / 363 x 71.75 x 50 mm | | Weight | 3.1 lb / 1.4 kg | | | | Box Dimensions (LxWxH) | 13.1 x 6.8 x 2.4" | - DC Power Supply for DLED9 Daylight and Tungsten Lamp Heads with Anton Bauer D-Tap Connector
| Type | Electronic DC ballast | | Controls | On/Off switch, dimming knob | | IP Rating | IP40 | | DMX | No | | Connector | Anton Bauer D-Tap | | Cable | Not specified by manufacturer | | Mounting | Cable loop | | Voltage | 11 - 18 VDC, with optional battery | | Dimensions | 10.35 x 2.8 x 2.0" (263 x 72 x 50 mm) | | Weight | 3.1 lb (1.4 kg) | | | | Box Dimensions (LxWxH) | 14.3 x 13.1 x 2.5" | - Soft Case for DLED9 Light Head
| | | Box Dimensions (LxWxH) | 17.2 x 17.0 x 10.7" |
