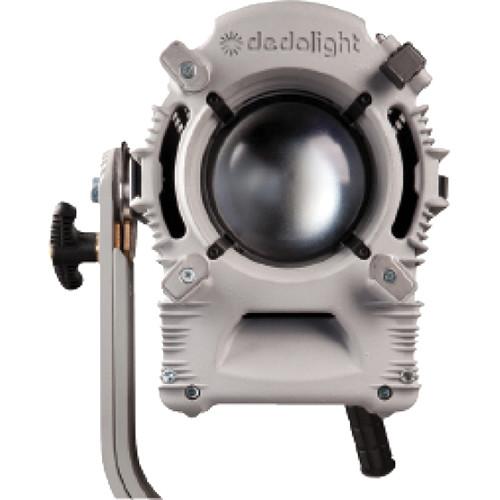

User Manual for Dedolight DLH1000T Tungsten Lamp Head Click to enlarge the picture
Contents of the user manual for the Dedolight DLH1000T Tungsten Lamp Head
- Product category: Tungsten Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight Tungsten Lights
|
User manual for the Dedolight DLH1000T Tungsten Lamp Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description Offering a high tungsten light output with fine-tuned focusing, the Dedolight DLH1000T is a mains operated lamp head capable of accepting G22 halogen bulbs up to 1000W. A refined optical system utilizes a two-lens configuration combined with unique mirror and lens movement that effectively suppresses spill light while yielding a wide 1:18 focusing range. This dual lens system also helps to produce smooth and consistent color and light output, with even distribution at each focus position for greater control.
A durable, rainproof construction further complements reliable use, which pairs well with an efficient convection cooling system to maintain a constant and stable working temperature. Its design also permits easy opening of the light for servicing and changing lamps. A yoke is integrated into the lamp head's design, too, and incorporates a 5/8" receptacle and a 1 1/8" stud for mounting versatility. - Tungsten Model
- As the tungsten version of the DLH1200D, this model is a mains operated lamp house designed to accept G22 halogen bulbs up to 1000W, as well as 750W, 650W, and 500W options from 120-240VAC.
- Attributes and Benefits
-
- The high light output is benefitted by a 1:18 focusing range, which can be further extended to 1:50 with the aspherical wide-angle attachment.
- Unique dual-lens system maintains accurate output and color while also helping to avoid spill light.
- Rainproof design permits assured use on location.
- Easy-open design, along with a single leg yoke, provides quick access to the interior of the housing for changing lamps or servicing.
- Extremely low UV values, approx. 1/20 the value shown by other lights, offer greater consistency and accuracy in color.
- High Efficiency Convection Cooling
-
- Full air intake on the bottom of the light
- Extra air intakes between the inner and outer housings
- Air gap around the front lens
- Low front air intake provides airflow between the two lenses (important in flood position)
- Constant working temperature of the lamp provides stability of color temperature and intensity.
In the Box Dedolight DLH1000T Tungsten Lamp Head (1000W, 120-240V) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight DLH1000T Tungsten Lamp Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLH1000T Specs | Rating | 1000 W, 120-240 VAC | | Socket (Lampholder) | G22 | | Lens (Condenser) | Dual aspherical lens system | | Reflector (Mirror) | Not specified by manufacturer | | Mounting | Dual: 5/8" (16 mm), 1 1/8" (28 mm) | | Yoke | Attached | | Cable | Not specified by manufacturer | | Focusing | Standard: 1:18
With optional aspherical attachment: 1:50 | | Weight | 23.1 lb / 10.5 kg | | Dimensions | 11.5 x 12.9 x 10.7" / 29.2 x 32.8 x 27.1 cm (without yoke extended) |
