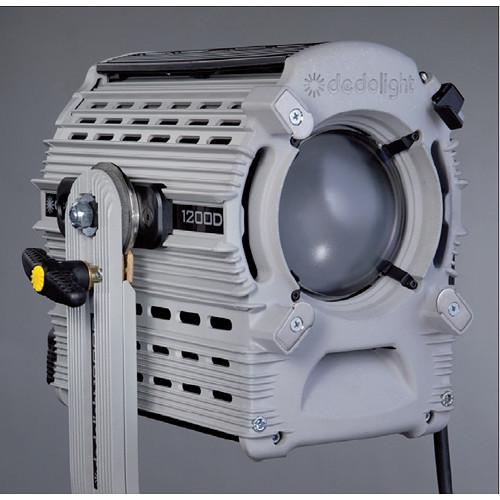

User Manual for Dedolight DLH1200D HMI Lamp Head Click to enlarge the picture
Contents of the user manual for the Dedolight DLH1200D HMI Lamp Head
- Product category: HMI & Plasma Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight HMI & Plasma Lights
|
User manual for the Dedolight DLH1200D HMI Lamp Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description The DLH1200D HMI Lamp Head from Dedolight provides impressive output backed with the advanced features that you'd expect from a manufacturer of Dedo's stature. The finely tuned optical system uses a patented two-lens configuration combined with unique mirror and lens movement that effectively suppresses spill light while yielding a wide 1:18 focusing range that can be increased to 1:50 with an optional aspherical wide angle lens attachment. Channels on the front of the fixture accept barn doors and other accessories including a condenser back-end module that permits use of all projection attachments and lenses from Series 400 lights. Available for separate purchase, the DLH1200D's required dedicated ballast allows use of the fixture with 90-264 VAC mains power, DMX control and 50-100% dimming. Both the head and the optional ballast offer rainproof construction. - Attributes and Benefits
-
- High light output
- Wide focus range
- Highly accurate color rendering
- Rainproof - high IP rating
- Swing away side lamping
- On/Off on both head and optional ballast
- High Efficiency Convection Cooling
-
- Full air intake on the bottom of the light
- Extra air intakes between the inner and outer housings
- Air gap around the front lens
- Low front air intake provides airflow between the two lenses (important in flood position)
- High Range of Intensity Change While Maintaining Color
-
- Calculated boosting of output without noticeably affecting lifetime of the lamp while maintaining color stability
- Continuous dimming only to the point beyond which color change would occur (with optional ballast)
- Low UV
- Extremely low UV values, approx. 1/20 the value shown by other lights
In the Box Dedolight DLH1200D HMI Lamp Head Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight DLH1200D HMI Lamp Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLH1200D Specs | Light Source | HMI | | Rating | 1,200 W | | Lamp | Optional DL1200DHR, 1200 W, G22 Base | | Lens (Condenser) | Aspherical | | Focus Adjustment | Standard: 1:18
With aspherical attachment: 1:50 | | Mounting | Dual: 5/8" (16 mm), 1 1/8" (28 mm) | | Weight | 23 lb (10.5 kg) | | Dimensions | 11.5 x 12.9 x 10.7" (292 x 328 x 270.5 mm) Without yoke extended |
