User Manual for Dedolight DLH400D Basic HMI 1 Light Kit, Hard Case Click to enlarge the picture
Contents of the user manual for the Dedolight DLH400D Basic HMI 1 Light
- Product category: HMI & Plasma Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight HMI & Plasma Lights
|
User manual for the Dedolight DLH400D Basic HMI 1 Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description At the heart of this Dedolight Basic HMI 400 watt 1 light kit is the DLH400D - a 400 - 575 watt daylight fixture for single ended HMI lamps. Used in conjunction with the Dedolight DEB400D electronic ballast, the 400D brings the same level of superior, sophisticated performance to the world of HMI, as the 436 and 650 provide for tungsten.The head is powered by the DEB400D electronic, flicker free ballast. It has automatic input adjustment from 90 - 260 VAC and dual power adjustment from 400 to 575 watts. It is dimmable to 40% of full power. Its active power factor correction assures constant Kelvin temperature throughout dimming range, and with different line current voltage.Included in this kit are light shaping devices, an HMI bulb, and a heavy duty, yet lightweight kit case. Add a light stand and gel filters of your choice to complete this basic kit. - Superior Range
- Dual Lens Optics and patented focus mechanism provides 17:1 spot-to-flood focusing range - far more than any convention Fresnel fixture.
- Clean Beam
- Even distribution and no stray light, due to the optics in construction, and the design of the HMI bulb itself.
- Super Flood
- Provided by a unique second lens which moves toward the lamp and mirror when going "wide" to produce an enhanced flood angle.
- Super Spot
- Simultaneous movement of the second lens, moving in the opposite direction, away from the lamp and mirror, producing a tighter spot and enhanced light output.
- Light Shaping Tools
- This kit includes a 4 leaf barndoor and scrim set, which aid in altering the shape and intensity of the light emitted from the fixture.
- Multi-Voltage Ballast
- Over-voltage, overheat and short circuit protection. Hot-Restrike - Auto start mode on request.
- Hard Kit Case
- Compact, lightweight, high impact polyethylene shell. Molded interior holds all kit components.

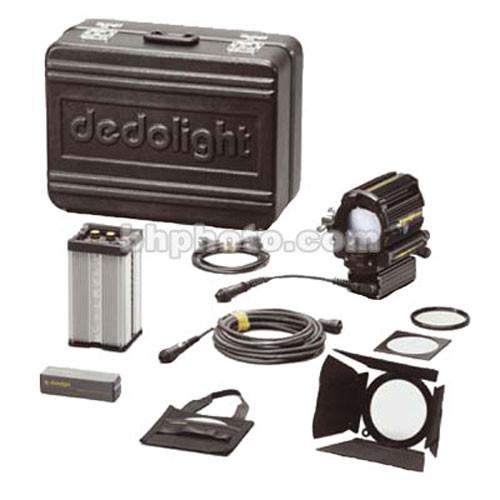

Exterior: 22.5 x 17 x 10.3" (57 x 43 x 26cm). In the Box Dedolight DLH400D Basic HMI 1 Light Kit, Hard Case (90-260 VAC) 400/575W HMI Head (DLH400D) Electronic Ballast (DEB400D) Head to Ballast Cable (DPOW400D) 4 Leaf Barndoor Set (DBD400) Light Shield Ring (DLS400) 400W HMI Bulb (DD400HR) 4 Piece Scrim Set, 1 each:
Full Single, Double Scrim
Half Single, Double Scrim (DSCK400) Scrim Pouch (DSCP400) Hard Transport Case (DCHD400) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight DLH400D Basic HMI 1 Light Kit, Hard Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLH400D Specs | | | Rating | 400-575 Watts | | Socket (Lampholder) | 2 Pin, single ended, hot restrike | | Lens (Condenser) | 5" | | Mounting | 5/8" (16 mm) Stand Mount | | Weight | 9.7 lb (4 kg) | | Dimensions | 9.7 x 8.8 x 16" (24.7 x 21.8 x 40.4cm) including yoke | | | | Rating | 400-575 watts, 90-260 VAC, auto sensing | | Cable | 23' (7m) | | Weight | 7.5 lb (3.4 kg) | | Dimensions | 9.3 x 5.1 x 5.1" (23.7 x 12.9 x 12.9 cm) | | Kit Weight | 32.9 lb (14.9 kg) | | | | Package Weight | 36.6 lb | | Box Dimensions (LxWxH) | 24.0 x 18.4 x 12.7" |
