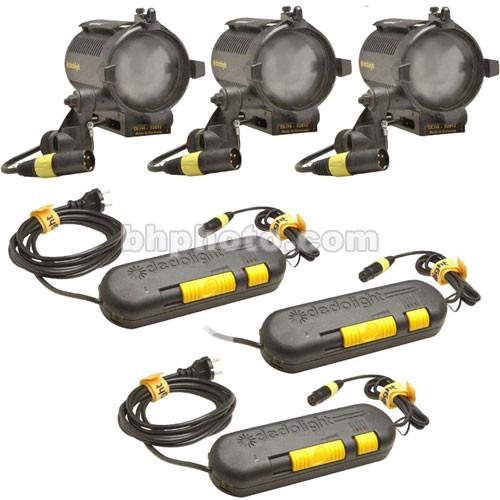

User Manual for Dedolight Master 3-Light Kit Click to enlarge the picture
Contents of the user manual for the Dedolight Master 3-Light Kit
- Product category: Tungsten Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight Tungsten Lights
|
User manual for the Dedolight Master 3-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description The DLH4 light head forms the core of the Dedolight Master 3-Light Kit. It's extremely compact, yet (with its dual-lens concept) provides high light output. With a 150W lamp in the flood position, its light output is greater than a 300W Fresnel studio fixture. In the spot position, it equals or exceeds a 1000W Fresnel studio fixture. The inexpensive, specially designed lamps provide precision beam aim, coupled with long life expectancy. Each light head is equipped with a power supply/control unit, and a 150W lamp at a nominal voltage of 24V. Its AC power input is set for 230-240 AC voltage. Also included are stands, barndoors, bulbs, clamp, flexible stand extension, accessory box, clamps, wall holder, and a hard, compartment divided case. Additional accessories include: projection attachment, gobo holder, shutter blades, iris, glass and gel filters for creative lighting effects. - Projection Attachment with Lens
- Allows precise control over the spread of the light, with the iris and framing shutter blades
- Gobo Holder
- Accepts size "M" (66 mm) steel gobos (available separately), for projecting patterns onto your background or subject
- Light Shaping Devices
- Kit includes barndoors, gel and glass conversion and graduated neutral density filters, to enable altering the shape, color and intensity of the lights
- Mounting Options
- Wallholders, clamps, stand extensions, and vacuum mount
- Powering Options
- The DLH4 offers a wide range of powering options, from battery to AC power, with color temperature control
- Mirror
- A high quality mirror reflects light through meniscus and condenser lenses, providing a much higher light output than would be expected
- Advanced Optical Design
- Due to an advanced optical design, these heads create a flat, even bright light, with a narrow beam spread
- Clean Beam
- Precision lighting by a clean beam means practically no stray light
- Compact
- The hard, compartmentalized case measures only 22.5 x 17 x 10.25" (57 x 43 x 26 cm).
In the Box Dedolight Master 3-Light Kit 3 x Universal 100-150W Spotlight frdczdbruq 3 x Power Supply with In-Line Dimmer (220-240V) 3 x 8-Leaf Barndoor Set with Gel Clips (5.5") Projection Attachment w/85mm f/2.8 Lens Framing Shutter - 4 Leaves 18 Leaf Iris for DP-1 & DP1-0 Proj Attch Dedo Gobo Holder for DP-1, Holds "M" Size Gobos 4 x Gel Filter Holder 3x3" 20-Piece 3x3" Filter Set 24-Piece 3 x 3" Warm Tone Filter Set 3 x Light Shield Ring 3 x Dichroic Daylight Conversion Filter for DLH4 - 3" (7.6cm) 0.6 Graduated Neutral Density Filter for DLH400, 650, 436 3 x Compact Light Stand (7') 10 x DL150 Lamp (150W/24V) 2 x Flexible Light Stand Extension 2 x Plastic Accessory Boxes (DLBOX) 2 x Mounting Plate with 5/8" Stud Vacuum Mount frdczdbruq 2 x Light Clamp DCHDKA1 Heavy-Duty Transport Case One-Year Manufacturer's Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight Master 3-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLH4 Specs | Rating | Each Head: 150 watts max. | | Socket (Lampholder) | GY6.35 2-pin glass base | | Lens (Condenser) | Dual lens concept | | Reflector (Mirror) | High quality mirror | | Mounting | Fits any standard 5/8" stand or stud | | Yoke | Not applicable | | Cable | Integral to each power supply | | Focusing | Continuously variable | | Weight | Each Head: 1.2 lb (0.54 kg)
Each Power Supply: 1.5 lbs (0.7 kg) | | Dimensions | Each Head: 6.75 x 4.9 x 4.25" (17.1 x 12.4 x 10 cm)
Each Power Supply: 9.2 x 2.8 x 1.8" (23.4 x 7.2 x 4.5 cm) | | Kit Dimensions | 22.5 x 17 x 8.75" (57 x 43 x 22 cm) | | Kit Weight | 32.1 lbs (14.5 kg) | | | | Package Weight | 39.95 lb | | Box Dimensions (LxWxH) | 24.0 x 18.7 x 12.8" |
