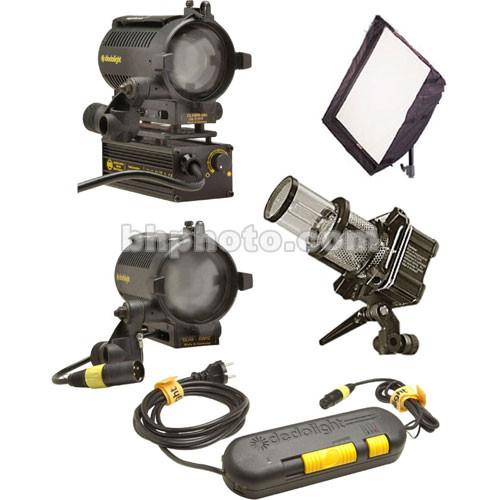

User Manual for Dedolight Master Compact 3-Light Kit Click to enlarge the picture
Contents of the user manual for the Dedolight Master Compact 3-Light Kit
- Product category: Tungsten Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight Tungsten Lights
|
User manual for the Dedolight Master Compact 3-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description The Dedolight Master Compact 3-Light Kit features two dimmable focusing lights and one softbox light, along with light-shaping devices such as filter holders, gel and conversion filters, barndoors, grids, scrims, and a projection attachment. The DLHM4-300E is a 150W fixture with an on-board dimmer. The DLH4 is a fixture with an external dimmer that may run from AC, or your car's battery with the included cigarette adapter cable. The DLH1000S is an open-face fixture with integral speed ring adapter that accepts the included small (16 x 22") silver-interior softbox. This kit is designed for operation on 120 VAC.Ideal for the very small, mobile video crew. - Lighting Control
- Barndoor sets, scrims, filter holders, and conversion filters to control the shape, intensity, and color of the lights
- Even More Lighting Control
- The projection attachment, gobo holder, and framing shutter blades offer precise control over the light, and allow creative and dramatic lighting effects
- Place Lights in Tight Places
- Use the clamp and light stand extension to position lights more easily in inaccesible places
- Easy Transport and Storage
- The padded soft case provides protection of the kit components during transport and storage.
It measures: 23.6 x 9.5 x 10" (60 x 24 x 25.5 cm) - All Bulbs Included
- All necessary bulbs are provided, plus extras for the DLH4 and DLH400-3
In the Box Dedolight Master Compact 3-Light Kit Universal 100-150W Spotlight abtycswvruvywxwqcadcvwzsvebefxtdesvsu 150W Focusing Light Head with Dimmable Power Supply (120V) DLH1000S 1K Soft Light Head (120-230V) Power Supply with In-Line Dimmer (120V) Dedoflex Small Softbox (Silver, 16 x 22") Nylon Fabric Grid for Small Softbox (16 x 22") Battery Cable, XLR to 4 Pin for DLH4 - 4' Cigarette Lighter Cable for DLH3, 4 Projection Attachment w/85mm f/2.8 Lens Framing Shutter - 4 Leaves Dedo Gobo Holder for DP-1, Holds "M" Size Gobos 2 x 8-Leaf Barndoor Set with Gel Clips (5.5") 2 x Gel Filter Holder 3x3" 2 x Light Shield Ring 2 x Dichroic Daylight Conversion Filter for DLH4 - 3" (7.6cm) 4-Piece Scrim Set for DLH4 and 4P Scrim Pouch 20-Piece 3x3" Filter Set 3 x Compact Light Stand (7') Flexible Light Stand Extension 2 x Light Clamp 6 x DL150 Lamp (150W/24V) 2 x Lamp - 100 watts/12 volts 2 x HX800 Lamp - 800W/230V DSC1 Soft Case Plastic Accessory Box (DLBOX) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight Master Compact 3-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight S1-M-U Specs | Rating | DLH4: 100-150 W, 12 or 24 V
DLHM4-300U: 150 W, 24 V
DLH1000S: 1000 W, maximum | | Socket (Lampholder) | DLH4: GY6.35
DLHM4-300U: GY6.35
DLH1000S: G9.5 | | Lens (Condenser) | DLH4, DLHM4-300U: Dual lens optical concept
DLH1000S: Not applicable | | Reflector (Mirror) | DLH4, DLHM4-300U: Polished
DLH1000S: Silver softbox interior | | Mounting | 5/8" 2-axis Baby receptor | | Yoke | Not applicable | | Cable | DLH4: 26.2' / 8 m
DLHM4-300U: 10' / 3 m
DLH1000S: 23' / 7 m
Battery: 4' / 1.2 m, 4-pin XLR
Cigarette Lighter Adapter: 8.2' / 2.5 m | | Focusing | DLH4, DLHM4-300U: Rear focus knob, continuously variable
DLH1000S: Not applicable | | Weight | DLH4: 2.4 lb / 1.1 kg
DLHM4-300U: 2.2 lb / 1.02 kg
DLH1000S: ~3 lb / 1.3 kg
DT24-1U Dimmer: 1.5 lb / 0.68 kg | | Dimensions | DLH4: 6.75 x 5 x 5" / 17 x 12.4 x 12.7 cm (including mount)
DLHM4-300U: 6.75 x 5 x 6.75" / 17 x 12.4 x 16 cm
DLH1000S: ~8.7 x 11 x 7.7" / 22 x 28 x 19.5 cm
DT24-1U Dimmer: 9.2 x 2.8 x 1.8" / 23.4 x 7.2 x 4.5 cm
Kit in Case: 23.6 x 9.5 x 10" / 60 x 24 x 25.5 cm | | Kit Weight | 24.7 lb / 11.2 kg |
