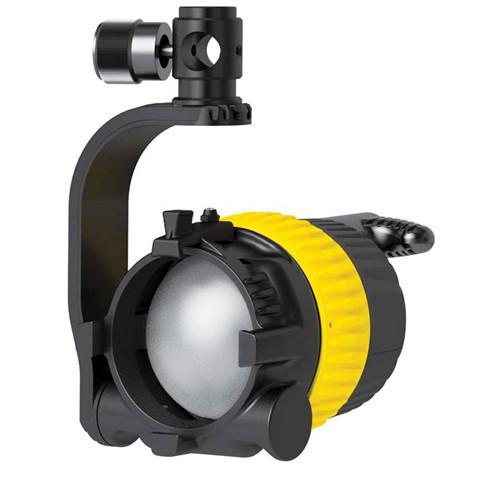

User Manual for Dedolight Mobile DLED4.1-BI LED Light Head Click to enlarge the picture
Contents of the user manual for the Dedolight Mobile DLED4.1-BI LED Light Head
- Product category: LED Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight LED Lights
|
User manual for the Dedolight Mobile DLED4.1-BI LED Light Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description Having paved the way with the on-camera Ledzilla LED and the 1x1' stand-mounted Felloni Dedolight continues to forge ahead with the introduction of the Mobile Mobile DLED4.1-BI LED Light Head . Again using aspherical lens elements results in an impressive 1:20 flood to spot ratio with a beam angle of 4-60 degrees that delivers 18,360 Lux in spot mode at 3.0' with no UV radiation emitted. A wide angle attachment increases coverage 54-85 degrees.Color balance, always a problem especially when working in mixed lighting, is no problem at all with the DLED4.1-BI. Set your color temperature to 3200K or 5600K or anywhere in between. The 5600K setting is great outdoors or for use with HMI and flash sources. The 3200K setting is perfect for areas with dominant ambient light emitted by architectural fixtures as well as night scenes involving candle light or fire light. As is characteristic of LED sources, the DLED4.1-BI generates negligible heat. The head is powered by the 100 to 260 VAC DT4.1-BI-BAT-XLR or the DT4.1-BI-BAT-AB. A full line of accessories from scrims and filters to Dedolight Imager projection attachments is available. Note: Requires purchase of power supply - State-of-the-art LED light source with features exclusively developed by Dedolight
- The continuously variable 3200-5600K LEDs make matching existing light sources a snap
- Dedolight patented aspherical optics
- Provides astoundingly high efficiency in output
- Unprecedented wider and tighter focusing range
- Dedolight clean beam concept. Controlled precision beam with no stray light outside the fixture and perfectly even light distribution within the beam
- Complete light-shaping control:
Scrims, graduated gray filters, aspherical wide-angle attachments with rotating barndoor leaves - Dedolight imager projection attachments for light framing, soft edge light framing with eye filters, gobo projection, background effect projection, slide projection
In the Box Dedolight Mobile DLED4.1-BI LED Light Head Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight Mobile DLED4.1-BI LED Light Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLED4.1 Specs | | | Beam Angle | 4 to 60° | | Color Temperature | 3200 to 5600K | | Cooling System | Passive | | Dimming | Yes, 20 to 100% | | Display | None | | Fixture Dimensions | Flood: 6.4 x 4.3 x 3.9" / 16.2 x 11.0 x 10.0 cm
Spot: 7.9 x 4.3 x 3.9" / 20.0 x 11.0 x 10.0 cm | | Fixture Weight | 3.0 lb / 1.36 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 10.2 to 18 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 47 W | | | | IP Rating | IP40 | | Protection Class | III | | | | Package Weight | 3.275 lb | | Box Dimensions (LxWxH) | 15.35 x 11.7 x 5.3" |
