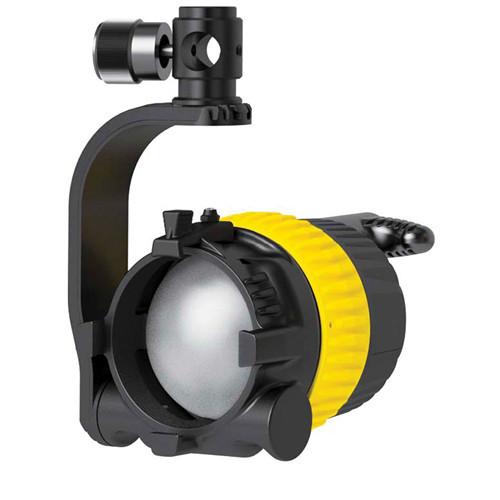

User Manual for Dedolight Mobile DLED4.1-D LED Light Head without Power Supply Click to enlarge the picture
Contents of the user manual for the Dedolight Mobile DLED4.1-D LED Light Head
- Product category: LED Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight LED Lights
|
User manual for the Dedolight Mobile DLED4.1-D LED Light Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description Having paved the way with the on-camera Ledzilla LED and the 1 x 1' stand-mounted Felloni Dedolight continues to forge ahead with the introduction of the Mobile DLED4.1-D LED Light Head (Daylight). Again using aspheric lens elements results in an amazing 1:20 flood to spot ratio with a beam angle of 60-4 degrees that delivers 27,000 lux in spot mode at 3.0' with no UV radiation emitted. A wide angle attachment increases coverage 85-54 degrees. The 5600K daylight balance blends in seamlessly in outdoor situations and is ideal for location and ENG work, and as is characteristic of LED sources, generates negligible heat. The DLED4.1-D is powered by the 100 to 260 VAC DT4.0-1 or DT4.0-1-DMX which offers remote control of the light's 100-20% dimmable light intensity. A DC power supply is also available for battery power sources up 18V. A full line of accessories from scrims and filters to Dedolight Imager projection attachments is available. Note: Requires purchase of power supply - State-of-the-art LED light source with features exclusively developed by Dedolight
- Dedolight patented aspherical optics
- Daylight color balance is ideal for location work, guaranteeing maximum output and minimum time spent fumbling with filters
- Provides astoundingly high efficiency in output
- Unprecedented wider and tighter focusing range
- Dedolight clean beam concept. Controlled precision beam with no stray light outside the fixture and perfectly even light distribution within the beam
- Complete light-shaping control:
Scrims, graduated gray filters, aspherical wide-angle attachments with rotating barndoor leaves - Dedolight imager projection attachments for light framing, soft edge light framing with eye filters, gobo projection, background effect projection, slide projection
In the Box Dedolight Mobile DLED4.1-D LED Light Head (Daylight) without Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight Mobile DLED4.1-D LED Light Head without Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLED4.1 Specs | | | Beam Angle | 4 to 60° | | Color Temperature | 5600K | | Cooling System | Passive | | Dimming | Yes, 20 to 100% | | Display | None | | Fixture Dimensions | Flood: 6.4 x 4.3 x 3.9" / 16.2 x 11.0 x 10.0 cm
Spot: 7.9 x 4.3 x 3.9" / 20.0 x 11.0 x 10.0 cm | | Fixture Weight | 3.0 lb / 1.36 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 260 VAC, 50 / 60 Hz | | DC Input Power | 10.2 to 18 VDC | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 45 W | | | | IP Rating | IP40 | | Protection Class | III | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 8.25 x 4.6 x 4.0" |
