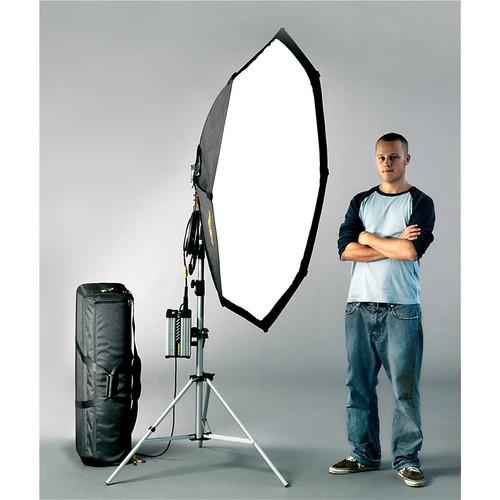

Dedolight PanAura Octodome 5 Daylight Tungsten

User Manual for Dedolight PanAura Octodome 5 Daylight Tungsten and Tungsten Light Kit

• Product category: Tungsten Lights Dedolight
• Brand: Dedolight
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Dedolight Tungsten Lights

Product description

• 400W HMI Soft Light Head The Dedolight DLH400S is is a dedicated 400/575-watt HMI soft light. When used with a Dedoflex, Photoflex, or Chimera softbox, it provides two times the light output when compared to any softbox mounted to a Fresnel fixture. It provides perfectly even light distribution. It is designed to work with the Dedolight ballast (DEB400), which is available separately. Included, is an integral Speed Ring for Dedoflex medium, and Octadome softboxes. HMI bulb is not included.
  • Hot-restrike socket; fixture has auto-cut-off when protective tube is missing or damaged.
  • Compatible with Chimera Video Pro Series (NOT Pro II or Pro Plus), Photoflex Small and Medium White, or Silver Domes (NOT Lite Domes).
    Compatible with Photoflex Medium Octodome, with optional D8CLIP.
• Hi-Temp Pouch for DLH400S This is a Dedolight Hi-Temp Pouch for storing a DLH400S fixture. Hi-Temp Pouches are made from Supersil -- a space technology textile which can withstand temperatures up to 2000°F (1100°C). Use the pouch to pack a hot soft light on the run, and to protect the soft light's glass tube.
  • This pouch is large enough to store a DLH1X300 fixture,
    which measures 5.4 x 3.2 x 3.8" (13.5 x 8.2 x 9.6 cm).
• Electronic Ballast for DLH400D Electronic, flicker free ballast to power the Dedolight 400D HMI light. It has automatic input adjustment from 90 - 260 volts AC and dual power adjustment from 400 to 575 watts.
  • Dimmable to 40% of full power.
  • Active power factor correction assures constant Kelvin temperature throughout dimming range, and with different line current voltage..
  • Over voltage, overheat and short circuit protection.
  • Auto start mode on request.
• Power Cable for DLH400D This is a 23' power cable that connects a Dedolight DLH400D HMI head to its electronic ballast.
• Mounting Bracket for 400D Ballast The Dedolight DEB400H is a mounting bracket, complete with Super Clamp for the DEB400 electronic ballast. This allows the ballast to be mounted to your light stand.
• 400 Watt HMI Bulb for DLH400S This Dedolight 400 Watt HMI Bulb for DLH400S is a single ended HMI bulb, optimized for use with the Dedolight DLH400S and DedoPAR.
• DLH1000SPLUS Tungsten Soft Light (120-230V) A versatile, single-function 1000W halogen soft light designed for use with large softboxes, the 120-230V DLH1000SPLUS Tungsten Soft Light from Dedolight incorporates a four-step adjustable speed ring to hold a variety of light modifiers. The larger mounting yoke supports various-sized softboxes, and the built-in speed ring has eight receptacles to enable direct attachment of octagonal modifiers, such as the Dedolight PanAura or Octodome 5. Its diameter can be adjusted between 5.9 to 8.3". The light also incorporates a 9.8' power cable, has a two-axis adjustable mount with 5/8" receptacle and 1-1/8" stud. An included, removable protective glass tube facilitates G9.5-socket lamps.
• Hi-Temp Pouch for DLH1000SP This is a Dedolight Hi-Temp Pouch for storing a DLH1000S fixture. Hi-Temp Pouches are made from Supersil -- a space technology textile material which can withstand temperatures up to 2000°F (1100°C). Use the pouch to pack a hot soft light on the run, and to protect the soft light's glass tube.
  • This pouch is large enough to store a DLH1000S fixture, which measures ~9 x 7.7 x 12" (22.8 x 19.5 x 30.8 cm).
• FEL Lamp (1,000W/120V) The Dedolight FEL Lamp (1,000W/120V) is 2-pin metal-ceramic base bulb for Dedolight and various brands of light fixtures. For a suitable alternative see # IMFELM2
• PanAura Octodome (5') The 5' Dedolight PanAura Octodome features a very large diffusion surface area that produces a flattering wrap-around, soft light. The PanAura is extremely flat, making it ideal for work in confined spaces.
• DST400S Stackable Light Stand for 400 Series (8') The 8' Dedolight DST400S Stackable Light Stand for 400 Series is a small, light stand suitable for supporting a 400 Series fixture. Each stand's legs fold flat, so you can pack 7 stands in a lighting kit in the same space as 4 traditional units. A built-in catch lets you clip 2, 3 or 4 stands together.
  Quick Set Up
  • Sets up easily in the matter of seconds.
  Very Stable
  • Engineered to be stable under recommended loads.
  Aluminum Locking Collars
  • Pressure die cast aluminum.
• Soft Case for PanAura 5 This Dedolight Soft Case is designed to hold the PanAura 5 softbox for protection during transport and storage.

• Integral Speed Ring Adapter

• 23' AC Power Cable

• 1 Year Manufacturer's Warranty Note: HMI Bulb and softbox not included

• One Year Manufacturer's Warranty

• 1 Year Manufacturer's Warranty

• Bracket

• Super Clamp

• Protective Glass Tube

• Limited 1-Year Warranty

• One Year Manufacturer's Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 90-Day Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 400W HMI Soft Light Head

  Rating	400 - 575W
  Socket (Lampholder)	GZZ9.5 hot restrike
  Lens (Condenser)	Not applicable
  Mounting	Baby receptor (5/8") and Junior stud (1-1/8")
  Weight	3.4 lbs (1.6 kg)
  Dimensions	12.1 x 7.7 x 8.9" (30.8 x 19.5 x 22.7 cm) including yoke

  Box Dimensions (LxWxH)	16.1 x 12.4 x 10.6"

• Electronic Ballast for DLH400D

  Lamp Power	400 - 575 watts
  Input Voltage	90 - 260V AC
  Dimmer	To 40% of full power
  Weight	7.5 lbs (3.4 kg)
  Dimensions	9.3 x 5.1 x 5.1" (23.7 x 12.9 x 12.9 cm)

• Power Cable for DLH400D

  Box Dimensions (LxWxH)	6.5 x 4.8 x 1.8"

• 400 Watt HMI Bulb for DLH400S

  Code	DL400HR
  Application	Dedolight HMI Softlight, DedoPAR fixtures
  Watts	400
  Volts	Not specified by manufacturer
  Color Temperature	5600°K
  Average Life Hours	700
  Approx. Lumens	645, with medium silver dome @ 9'
  Base Type	GZZ9.5 single ended, bi-pin
  Filament Type	Not specified by manufacturer
  Length	Not specified by manufacturer

  Box Dimensions (LxWxH)	6.1 x 1.8 x 1.7"

• DLH1000SPLUS Tungsten Soft Light (120-230V)

  Rating	1000 W maximum
  Socket (Lampholder)	GX9.5 bi-pin
  Lens (Condenser)	N/A
  Reflector (Mirror)	N/A
  Mounting	5/8" Baby mount, on two axes 1-1/8" stud
  Yoke	Built-in Adjustable Speed Ring Diameters: 5.9" / 150 mm 6.7" / 170 mm 7.5" / 190 mm 8.3" / 210 mm
  Cable	9.8' / 3 m, with inline on/off switch
  Focusing	N/A
  Dimensions	12.1 x 8.8 x 7.6" / 308 x 224 x 193 mm
  Weight	2.6 lb / 1.2 kg

  Box Dimensions (LxWxH)	14.0 x 9.0 x 8.5"

• Hi-Temp Pouch for DLH1000SP

  Box Dimensions (LxWxH)	7.3 x 6.2 x 1.2"

• FEL Lamp (1,000W/120V)

  Code	FEL-120
  Application	Stage and studio fixtures
  Watts	1000
  Volts	120
  Color Temperature	3200°K
  Average Life Hours	300
  Approx. Lumens	27,500
  Base Type	G9.5 2-pin metal-ceramic
  Filament Type	CC8
  Length	4" (101mm)

  Box Dimensions (LxWxH)	5.2 x 1.7 x 1.4"

• PanAura Octodome (5')

  Shape	Octagonal
  Compatibility	Dedolight DLH400SDT, DLH1000SPLUS, and DLH4x150S light heads
  Removable Front Face	Not specified by manufacturer
  Removable Interior Baffle	Not specified by manufacturer
  Accepts Grids	Yes
  Requires Speed Ring	No
  Dimensions	Assembled: 4.9 x 4.9 x 1.3' / 150 x 150 x 40.5 cm Packed: 33.5 x 7.9 x 3.9" / 85 x 20 x 10 cm Diffuser: 4.9 x 4.9' 150 x 150 cm
  Weight	3.3 lb / 1.5 kg

  Box Dimensions (LxWxH)	34.8 x 8.5 x 5.8"

• DST400S Stackable Light Stand for 400 Series (8')

  Load Capacity	11 lb / 5 kg
  Mounting Options	5/8" Stud
  Maximum Working Height	8.2' / 2.5 m
  Minimum Working Height	2.9' / 0.9 m
  Collapsed Height	2.9' / 0.9 m
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	No
  Leveling Leg	No
  Reverse Legs	No
  Finish	Chrome
  Weight	2.9 lb / 1.3 kg

  Box Dimensions (LxWxH)	35.6 x 5.0 x 2.3"

• Hi-Temp Pouch for DLH400S
• Mounting Bracket for 400D Ballast
• Soft Case for PanAura 5
