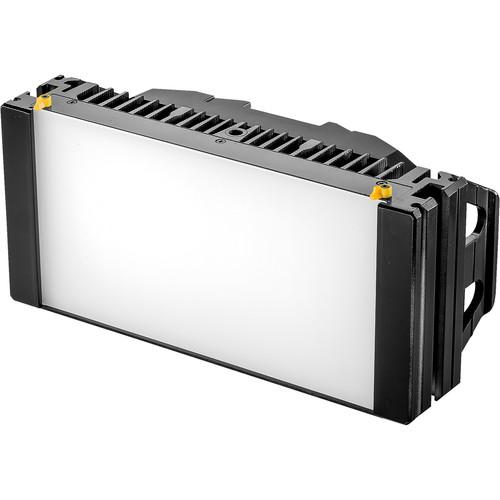

User Manual for Dedolight Pocket LEDRAMA Bi-Color On-Camera Light with Removable Diffusion Click to enlarge the picture
Contents of the user manual for the Dedolight Pocket LEDRAMA Bi-Color On-Camera Light
- Product category: On Camera Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight On Camera Lights
|
User manual for the Dedolight Pocket LEDRAMA Bi-Color On-Camera Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description The Pocket LEDRAMA Bi-Color On-Camera Light with Removable Diffusion is a powerful light suitable for use mounted on a camera, stand, or hung from a grid. It features a variable color temperature from 3200 to 5600K and dimming from 100 to 0% brightness. With a flexible input voltage range of 6 to 18 VDC, the light draws a maximum of 17.4W at 15 volts. It can be powered by an AC to DC adapter via the 2.5mm mini jack, or by an L-series type battery via the built-in L-series battery plate.
An integrated display screen shows you the color temperature and brightness of the light, so you know exactly what the fixture is outputting. The integrated 1/4"-20 threaded mounting hole provides for a wide variety of mounting options, while the including mounting adapter enables mounting the light via a cold shoe or a light stand with a Baby Pin. - An integrated on/off switch enables powering the light on or off without impacting your settings
- The fixture includes a removable diffusion filter
- Please note the fixture does not come with either a battery or power supply (DLPS12-30), both of which are available separately
In the Box Dedolight Pocket LEDRAMA Bi-Color On-Camera Light with Removable Diffusion Mounting Device Removable Diffusion Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight Pocket LEDRAMA Bi-Color On-Camera Light with Removable Diffusion in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLRPKT-BI Specs | | | Beam Angle | 45° | | Color Temperature | 3200 to 5600K | | Color Accuracy Standard | CRI 93
TLCI 94 | | Photometrics | 3200K:
117 fc / 1258.9 lux at 3' / 0.91 m
29 fc / 312 lux at 6' / 1.83 m
13 fc / 139.9 lux at 9' / 2.74 m
5600K:
119 fc / 1280.4 lux at 3' / 0.91 m
29 fc / 312 lux at 6' / 1.83 m
13 fc / 139.9 lux at 9' / 2.74 m | | Dimming | Yes, 0 to 100% (Continuous) | | Number of LEDs | 144 | | | | Battery Plate | 1 x Sony L-Series (NP-F) | | DC Input Power | 6 to 18 VDC
6 VDC at 2.9 A
15 VDC at 0.97 A | | Max Power Consumption | 17.4 W | | Power Input Connector | PowerPlug | | Power Source | AC Adapter, External Battery | | | | Mount Type | 1/4"-20 Female Thread | | IP Rating | IP20 | | Operating Temperature | -4 to 113°F / -20 to 45°C | | Dimensions | 8 x 3.9 x 3.1" / 20.3 x 9.9 x 7.9 cm | | Weight | 38.8 oz / 1100 g |
