User Manual for Dedolight Portable Studio 5-Light Tungsten Kit Click to enlarge the picture
Contents of the user manual for the Dedolight Portable Studio 5-Light Tungsten Kit
- Product category: Tungsten Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight Tungsten Lights
 |
User manual for the Dedolight Portable Studio 5-Light Tungsten Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|

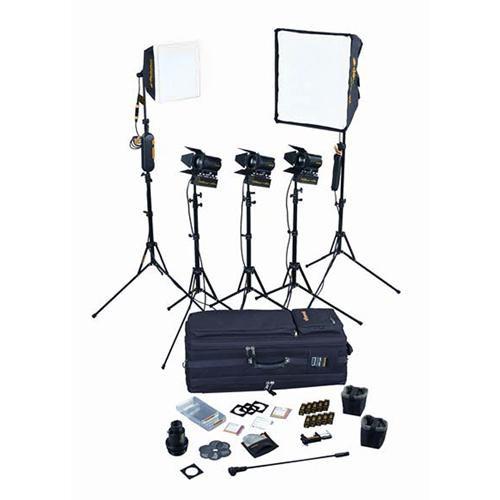

Product description The Dedolight Portable Studio 5-Light Tungsten Kit combines two pieces of lighting technology in a highly portable kit. The Dedolight DLH1x150 Soft Light Head is a technical expression of evenness of illumination in a lamphead. Intended for use in Dedo softboxes up to medium size (a 12 x 12" DSBSXS is included in this kit), the 150-watt, vertically burning lamp produces output that exceeds its nominal rating, while filling the softbox edge-to-edge without hot spots. At the other end of the spectrum from the softlight is the crisp, articulate DLHM4-300 tungsten head with built-in transformer power supply (120 VAC). The original design which won Dedo a technical Oscar has been enhanced to drastically improve output via Aspherics2 lens design producing more than 4x the intensity of a standard 150-watt Fresnel at minimum spot. The kit includes two DLH1x150 soft light heads with 1 XXS soft box and power supplies, three DLHM4-300 heads, barndoors, filters, bulbs, head and grip accessories, stands, and a lightweight, soft case. The DP1 Imager Attachment with a set of stainless gobos for projecting background patterns is also included. - DLH1x150 Soft Light Head
- Benchmark evenness of illumination in a lamphead. Intended for use in Dedo softboxes up to medium size (a 12 x 12" DSBSXS is included in this kit), the 150 watt, vertically burning lamp produces output 3x its nominal rating, while filling the softbox edge-to-edge without hot spots.

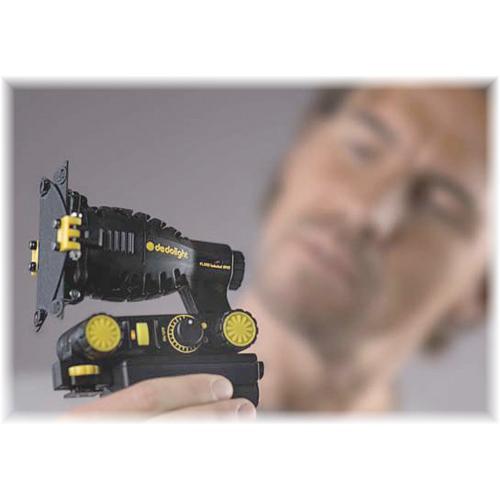

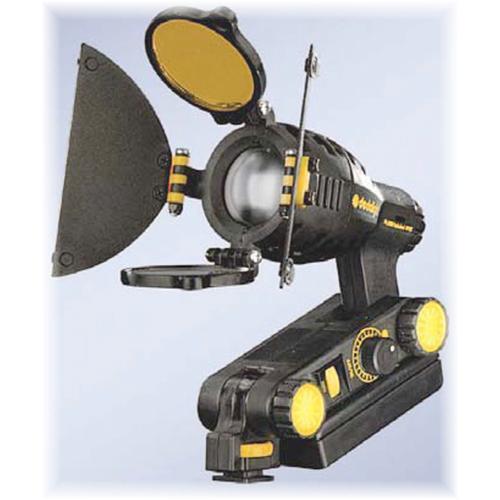

- DLHM4-300 Lamphead
- Crisp and highly articulate DLHM4-300 tungsten head with built-in transformer power supply (120 VAC). The original design which won Dedo a technical Oscar has been enhanced to drastically improve output via Aspherics2 lens design producing more that 4x the intensity of a standard 150 watt Fresnel at minimum spot. The DP1 Imager Attachment with an 85mm lens and a set of stainless steel gobos for projecting background patterns is also included. Among the accessory options for the DP1 are wide and telephoto lenses, an 18-leaf iris, and shutter blades for the selective lighting of details.
In the Box Dedolight Portable Studio 5-Light Tungsten Kit 2 x DLH1X150 Soft Light Head asdsxxrqdvzrvecrsduxewdqaxuabuesrdbc 2 x Hi-Temp Pouch for DLH1X150 2 x DLH4 150W Spotlight with DT24-1 (230V) 3 x 150W Focusing Light Head with Dimmable Power Supply (120V) 3 x Light Shield Ring 3 x 8-Leaf Barndoor Set with Gel Clips (5.5") 5 x Compact Light Stand (7') 6 x DL150 Lamp (150W/24V) Dedoflex Mini Softbox (Silver, 12 x 12") Light Clamp 40° Fabric Grid for DSBSXS Mini Softbox 40° Fabric Grid for Small DSBSS Softbox (16 x 22") Dedoflex Small Softbox (Silver, 16 x 22") 40° Fabric Grid for Small DSBSS Softbox (16 x 22") 3 x Gel Filter Holder 3x3" 24-Piece 3 x 3" Warm Tone Filter Set 20-Piece Mixed Blue Filter Set (3 x 3") 20-Piece 3x3" Filter Set Filter Set 3x3" 4-Piece Scrim Set for DLH4 and 4P Scrim Pouch Projection Attachment w/85mm f/2.8 Lens asdsxxrqdvzrvecrsduxewdqaxuabuesrdbc Dedo Gobo Holder for DP-1, Holds "M" Size Gobos Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight Portable Studio 5-Light Tungsten Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight SPS5-U Specs | Rating | 150 W | | Socket (Lampholder) | GY6.35 2-pin base | | Lens (Condenser) | DLH1x150S: Not applicable
DLHM4-300: Aspherics2 lenses | | Reflector (Mirror) | DLH1x150S: Not applicable
DLHM4-300: Yes, composition not specified | | Mounting | Fold-away 5/8" / 16 mm | | Yoke | DLH1x150S: Stand mount
DLHM4-300: Side mount | | Cable | 16.4' / 5 m | | Focusing | DLH1x150S: Not applicable
DLM4-300: Slide with locking knob
Focus Angle: 48-5 degrees
Spot-to-Flood Ratio: 1:20 | | Weight | DLH1x150S: 1.3 lb / 600 g
DLM4-300: 2.2 lb / 1020 g | | Dimensions | DLH1x150S: 4.9 x 3.2 x 3.7" / 12.4 x 8.2 x 9.3 cm
DLM4-300: 6.7 x 6.9 x 5.2" / 17 x 17.4 x 13.2 cm | | Kit Weight | Not Specified by Manufacturer | | | | Package Weight | 48.3 lb | | Box Dimensions (LxWxH) | 32.0 x 12.0 x 11.0" |
