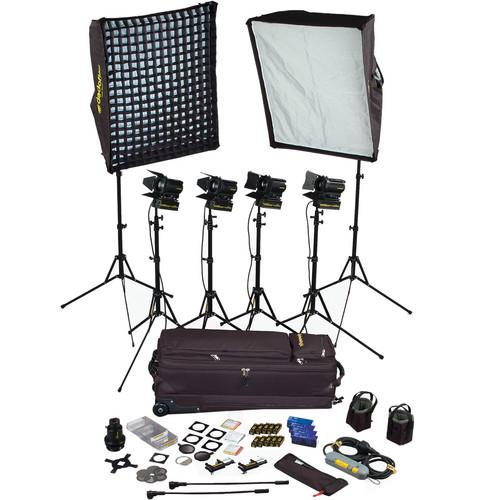

User Manual for Dedolight SPS6E 6-Light Portable Kit Click to enlarge the picture
Contents of the user manual for the Dedolight SPS6E 6-Light Portable Kit
- Product category: Tungsten Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight Tungsten Lights
|
User manual for the Dedolight SPS6E 6-Light Portable Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description The Dedolight SPS6E 6-Light Portable Kit combines two pieces of lighting technology in a highly portable kit. The Dedolight DLH1000S 1K Soft Light is a benchmark technical expression of evenness of illumination in a lamp head. The DLH1000S is intended for use in Dedo or popular brand softboxes (two 24 x 32" Dedoflex softboxes are included). As a result of efficient design, the head uses 500-1000W vertically burning lamps that produce twice the output as a Fresnel used in the same box, while filling the softbox edge-to-edge without hot spots. At the other end of the spectrum from the softlight is the crisp DLHM4-300 tungsten head with built-in transformer power supply (230 VAC). The original design which won Dedo a technical Oscar has been enhanced to drastically improve output via Aspherics2 lens design, producing more intensity than a standard 150W Fresnel at minimum spot. The kit includes two DLH1000S soft light heads with two medium softboxes, four DLHM4-300 heads with power supplies, barndoors, filters, bulbs, head and grip accessories, stands, and a wheeled case. The DP1 Projection Attachment with a set of stainless gobos for projecting background patterns is also included. - DLH1000S 1K Soft Light Head
- Intended for use with softboxes capable of handling the heat of a 500 to 1000W fixture. A variable-size mounting ring accepts Dedoflex, Chimera, Photoflex, Westcott, or any other brand of heat-resistant softbox (two Dedoflex medium softboxes are included). Thanks to efficient design, the head accepts 500-1000W vertically burning lamps that render twice the output of typical Fresnel fixtures used in a similar soft box, while filling the box edge-to-edge without hot spots.
- DLHM4-300 Lamp Head
- The DLHM4-300 tungsten head with built-in transformer power supply (230 VAC) uses the original design which won Dedo a technical Oscar, and has been enhanced to drastically improve output via Aspherics2 lens design producing more intensity than a standard 150W Fresnel at minimum spot. The DP1 Projection Attachment with an 85mm lens and a set of stainless steel gobos for projecting background patterns is also included. Among the accessory options for the DP1 are wide and telephoto lenses, an 18-leaf iris, and shutter blades for the selective lighting of details.
In the Box Dedolight SPS6E 6-Light Portable Kit (230V) 2 x DLH1000S 1K Soft Light Head (120-230V) 2 x Hi-Temp Pouch for DLH1000SP 2 x Dedoflex Medium Softbox (Silver, 24 x 32") 2 x 40° Collapsible Fabric Grid for Medium Softbox (24 x 32") 4 x DLHM4-300E 150W Light Head (230 VAC) 4 x Light Shield Ring 4 x 8-Leaf Barndoor Set with Gel Clips (5.5") 4 x Gel Filter Holder 3x3" 24-Piece 3 x 3" Warm Tone Filter Set 20-Piece 3x3" Filter Set Filter Set 3x3" 4-Piece Scrim Set for DLH4 and 4P Scrim Pouch 2 x 0.6 Graduated Neutral Density Filter for DLH400, 650, 436 Projection Attachment w/85mm f/2.8 Lens Dedo Gobo Holder for DP-1, Holds "M" Size Gobos Framing Shutter - 4 Leaves Set of 6 Gobos 6 x Compact Light Stand (7') 2 x Light Clamp 2 x Flexible Light Stand Extension cytevrdqavrzvqtwxywawd 2 x Plastic Accessory Case 8 x DL150 Lamp (150W/24V) 4 x FEP Lamp - 1000W/230V cytevrdqavrzvqtwxywawd DSCXLW Wheeled Case Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight SPS6E 6-Light Portable Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight SPS6-E Specs | | | Package Weight | 70.15 lb | | Box Dimensions (LxWxH) | 42.5 x 21.0 x 20.5" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
