User Manual for Dedolight Standard 4-Light Kit Click to enlarge the picture
Contents of the user manual for the Dedolight Standard 4-Light Kit
- Product category: Tungsten Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight Tungsten Lights
|
User manual for the Dedolight Standard 4-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|

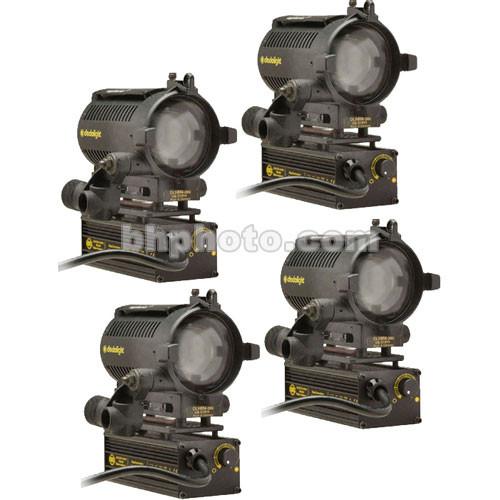

Product description The Dedolight Standard 4-Light Kit is based on the self-contained 150W, 120V DLHM4-300 Dedolight. The DLHM4-300 works with a built-in electronic transformer dimmer. Using 24 volt/150W lamps and powered directly from a 117 VAC power source, this version of the Dedolight head has a color temperature of 3000K. The DLHM light offers tremendous lamp economy and dependability with a typical 150W lamp lasting over 1000 hours. In contrast to the older DLH2, the DLHM should not be operated upside down for extended periods.This Standard Kit includes an assortment of accessories such as barndoor sets, glass daylight conversion filter, gel filters with holders, a clamp, wall holder, bulbs, light stand, plastic accessory boxes, and hard kit case. - Patented Focusing System
- Dedolight Aspherics2 optic system
- 20:1 Flood-to-Spot Ratio
- Equal to a beam spread of 4.5-40°
- More Light Control
- Barndoor sets, scrims, gel filters, and glass daylight conversion filters for more precise light control
- Even More Light Control
- Projection attachment with lens, framing shutter blades, and iris to pinpoint a fixture's beam exactly where you want it
- Project Patterns
- Use the gobo holder with any of the hundreds of available size "M" steel gobos, or your own custom-made gobos to project patterns onto your background or subject
- Place Lights in Tight Places
- Use the clamp, vacuum mount, flexible stand extension and wall holder to mount lights in tight places
- Lightweight, Hard Case
- Holds all the components, and measures 22.5 x 17 x 8.75" (57 x 43 x 22 cm)
In the Box Dedolight Standard 4-Light Kit 4 x 150W Focusing Light Head with Dimmable Power Supply (120V) xxvrazqwtdcyccudwcffst 4 x 8-Leaf Barndoor Set with Gel Clips (5.5") 2 x Light Shield Ring 4 x Dichroic Daylight Conversion Filter for DLH4 - 3" (7.6cm) 4 x Gel Filter Holder 3x3" 20-Piece 3x3" Filter Set Projection Attachment w/85mm f/2.8 Lens Dedo Gobo Holder for DP-1, Holds "M" Size Gobos Framing Shutter - 4 Leaves 18 Leaf Iris for DP-1 & DP1-0 Proj Attch Mounting Plate with 5/8" Stud Light Clamp 4 x Compact Light Stand (7') Flexible Light Stand Extension 8 x DL150 Lamp (150W/24V) 3 x Plastic Accessory Boxes (DLBOX) DCHDM4 Heavy Duty Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight Standard 4-Light Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLHM4-300 Specs | Rating | Each Fixture: 150 W, 120 V | | Socket (Lampholder) | 2-pin | | Lens (Condenser) | Dual lens optical concept | | Reflector (Mirror) | Mirror | | Mounting | Mounts to any 5/8" stand or stud | | Yoke | Not applicable | | Cable | 16.4' / 5 m cable with in-line power switch | | Focusing | Continuously variable 4.5-40° | | Weight | Each Fixture: 2.2 lb / 1.02 kg | | Dimensions | Each Fixture: 6.75 x 5 x 6.75" / 17 x 12.4 x 16 cm
Kit in Case: 22.5 x 17 x 8.75" / 57 x 43 x 22 cm | | Kit Weight | 34.9 lb / 15.8 kg |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
