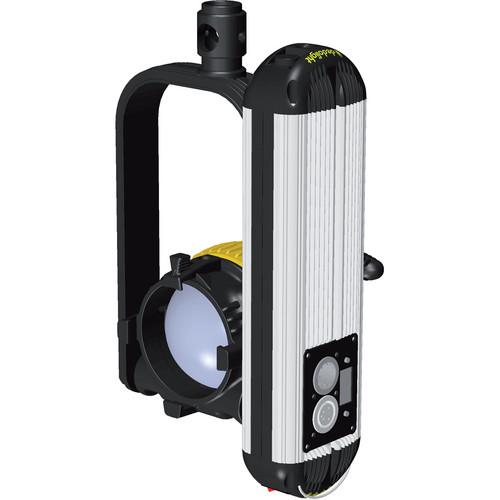

User Manual for Dedolight Studio DLED4.0SE-BI 40W Head with DMX Power Supply Click to enlarge the picture
Contents of the user manual for the Dedolight Studio DLED4.0SE-BI 40W Head with
- Product category: LED Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight LED Lights
|
User manual for the Dedolight Studio DLED4.0SE-BI 40W Head with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description Having paved the way with the on-camera Ledzilla LED and the 1x1' stand-mounted Felloni Dedolight continues to forge ahead with the introduction of the bi-color Studio DLED4.0SE-BI Head with DMX Power Supply. Again, using aspherical lens elements results in an amazing 1:20 flood to spot ratio with a beam angle of 60-4 degrees that delivers 7050 lux in spot mode at 3.0' (at 5600K) with no UV radiation emitted. A wide angle attachment increases coverage 85-54 degrees.Color balance, always a problem especially when working in mixed lighting, is no problem at all with the DLED4.0-BI. Set your color temperature to 3200 or 5600K or anywhere in between. The 5600K setting is great with HMI and flash sources. The 3200K setting is perfect for use in areas with dominant ambient light emitted by architectural fixtures and blends well with traditional tungsten hotlights. As is characteristic of LED sources, the DLED4.0-BI generates negligible heat. The DLED4.0SE-BI is powered by the included 100 to 260 VAC DT4.0-1BI-DMX power supply that is conveniently affixed to the yoke. The self-seeking voltage unit can be used virtually anywhere there's electricity and provides stable power that's dimmable from 100-20%. Light intensity can also be controlled remotely via DMX. A full line of accessories from scrims and filters to Dedolight Imager projection attachments is available. - State-of-the-art LED light source with features exclusively developed by Dedolight
- Dedolight patented aspherical optics
- The continuously variable 3200-5600K LEDs make matching existing light sources a snap
- Provides astoundingly high efficiency in output
- Unprecedented wider and tighter focusing range
- Dedolight clean beam concept. Controlled precision beam with no stray light outside the fixture and perfectly even light distribution within the beam
- Complete light-shaping control:
Scrims, graduated gray filters, aspherical wide-angle attachments with rotating barndoor leaves - Dedolight imager projection attachments for light framing, soft edge light framing with eye filters, gobo projection, background effect projection, slide projection
- Included DT4.0-1BI-DMX Power Supply (100-260 VAC) provides stable power that's dimmable from 100-20% and remote controllable via DMX
In the Box Dedolight Studio DLED4.0SE-BI 40W Head with DMX Power Supply (Bi-Color) DLED4.0 LED Daylight Light Head with U-Shaped Studio Yoke DT4-DMX Power Supply (90-260 VAC) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight Studio DLED4.0SE-BI 40W Head with DMX Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLED4.0SE Specs | | | Beam Angle | 4 to 60° | | Color Temperature | 3200 to 5600K | | Cooling System | Passive | | Dimming | Yes, 20 to 100% (Continuous) | | Display | None | | Fixture Dimensions | Flood: 6.4 x 4.3 x 3.9" / 16.2 x 11.0 x 10.0 cm
Spot: 7.9 x 4.3 x 3.9" / 20.0 x 11.0 x 10.0 cm | | Fixture Weight | 3.0 lb / 1.36 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 260 VAC, 50 / 60 Hz at 0.4 A | | DC Input Power | 40 VDC | | Power Source | AC Adapter | | | | Cable Length | 8.2' / 2.5 m | | | | Power Supply Dimensions | 10.3 x 2.8 x 2.0" / 26.3 x 7.1 x 5.0 cm | | Power Supply Weight | 2.2 lb / 1.0 kg |
