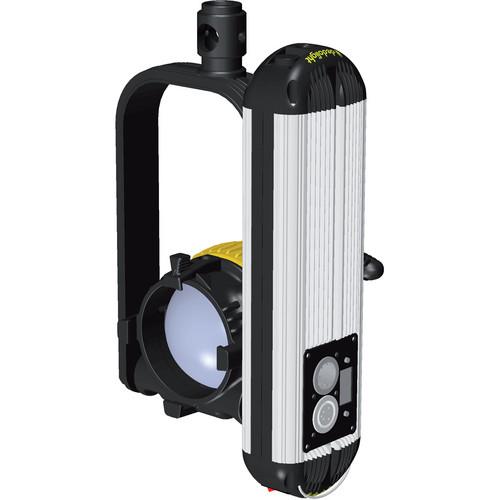

User Manual for Dedolight Studio DLED4.0SE-T 45W Head with DMX Power Supply Click to enlarge the picture
Contents of the user manual for the Dedolight Studio DLED4.0SE-T 45W Head with
- Product category: LED Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight LED Lights
|
User manual for the Dedolight Studio DLED4.0SE-T 45W Head with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description Having paved the way with the on-camera Ledzilla LED and the 1 x 1' stand-mounted Felloni, Dedolight continues to forge ahead with the introduction of the Studio DLED4.0SE-T 45W Head with DMX Power Supply (Tungsten) . Again, using aspherical lens elements results in an amazing 1:20 flood to spot ratio with a beam angle of 60-4 degrees that delivers 18,360 lux in spot mode at 3.0' with no UV radiation emitted. A wide-angle attachment increases coverage 85-54 degrees.The 3200K tungsten balance blends in seamlessly with architectural and traditional tungsten sources, and as is characteristic of LED sources, generates negligible heat. The DLED4.0SE-T is powered by the included 100 to 260 VAC DT4.0-1-DMX power supply that is conveniently affixed to the yoke. It provides stable power that's dimmable from 100-20% and remote controllable via DMX. A full line of accessories from scrims and filters to Dedolight Imager projection attachments is available. - State-of-the-art LED light source with features exclusively developed by Dedolight
- Dedolight patented aspherical optics
- Daylight color balance is ideal for location work, guaranteeing maximum output and minimum time spent fumbling with filters
- Provides high efficiency in output
- Unprecedented wider and tighter focusing range
- Dedolight clean beam concept: controlled precision beam with no stray light outside the fixture and perfectly even light distribution within the beam
- Complete light-shaping control:
Scrims, graduated gray filters, aspherical wide-angle attachments with rotating barndoor leaves - Dedolight imager projection attachments for light framing, soft edge light framing with eye filters, gobo projection, background effect projection, slide projection
- Included DT4.0-1-DMX Power Supply (100-260 VAC) provides stable power that's dimmable from 100-20% and remote controllable via DMX
In the Box Dedolight Studio DLED4.0SE-T 45W Head with DMX Power Supply (Tungsten) DLED4.0 LED Tungsten Light Head with U-Shaped Studio Yoke Mobile DT4.0-1-DMX Power Supply (90-260VAC) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight Studio DLED4.0SE-T 45W Head with DMX Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLED4.0SE Specs | | | Beam Angle | 4 to 60° | | Color Temperature | 3200K | | Cooling System | Passive | | Dimming | Yes, 20 to 100% (Continuous) | | Display | None | | Fixture Dimensions | Flood: 6.4 x 4.3 x 3.9" / 16.2 x 11.0 x 10.0 cm
Spot: 8.9 x 4.3 x 3.9" / 22.5 x 11.0 x 10.0 cm | | Fixture Weight | 3.0 lb / 1.36 kg | | | | Yoke Mount | TVMP/ Hex Bolt | | Fixture Mount | 5/8" Receiver | | Accessory Mount | None | | | | AC Input Power | 100 to 260 VAC, 50 / 60 Hz | | DC Input Power | 40 VDC | | Power Source | AC Adapter | | Max Power Consumption | 45 W | | | | Cable Length | 8.2' / 2.5 m | | | | Power Supply Dimensions | 10.3 x 2.8 x 2.0" / 26.3 x 7.1 x 5.0 cm | | Power Supply Weight | 2.2 lb / 1.0 kg |
