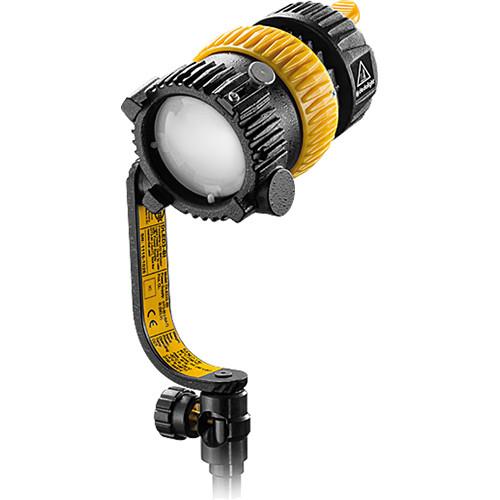

User Manual for Dedolight Turbo Series DLED3 Bi-Color Focusing LED Light Head Click to enlarge the picture
Contents of the user manual for the Dedolight Turbo Series DLED3 Bi-Color Focusing
- Product category: LED Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight LED Lights
|
User manual for the Dedolight Turbo Series DLED3 Bi-Color Focusing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description The Turbo Series DLED3 Bi-Color Focusing LED Light Head from Dedolight is a focusable LED light with a standard 5/8" receptacle. This model features an adjustable color temperature from 2700 to 6500K for providing a quality light that can be used in a wide range of situations. The light is dimmable without any color shift and offers tilt control with adjustable friction.
Being an LED fixture it has low power draw of just 40W with an output of 5650 lux at a distance of 3' with a spot beam angle. Accessories can easily be fitted on a 2.3" diameter holder and the light features active cooling, meaning it doesn't require noisy fans to run. It is also lightweight for effective use as an on-camera light. Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight Turbo Series DLED3 Bi-Color Focusing LED Light Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLED3 Specs | Focus Range | Intensity Range: 50° to 5° (1:7) | | Focus Control | 3/4 turn on focus ring | | Photometrics | Flood
3' (1 m): 1450 lux (135 fc)
6' (2 m): 363 lux (34 fc)
9' (3 m): 161 lux (15 fc)
12' (4 m): 91 lux (8.4 fc)
15' (5 m): 58 lux (5.4 fc)
Medium
3' (1 m): 2610 lux (243 fc)
6' (2 m): 653 lux (61 fc)
9' (3 m): 290 lux (27 fc)
12' (4 m): 163 lux (15.2 fc)
15' (5 m): 104 lux (10 fc)
Spot
3' (1 m): 5650 lux (525 fc)
6' (2 m): 1413 lux (131 fc)
9' (3 m): 628 lux (58 fc)
12' (4 m): 353 lux (33 fc)
15' (5 m): 226 lux (21 fc)
Color temperature continuously adjustable from 2700 to 6500K | | Tilt | Adjustable friction | | Cooling | Active silent cooling | | Mount | 5/8" (16 mm) receptacle | | Accessory Mounting | 2.3" (58 mm) in diameter | | Power Draw | 40 W | | Safety | Protection Class III, SELV, IP20 | | Dimensions | 6.3 x 5.4 x 3.3" (16 x 14 x 8 cm) | | Weight | 1.8 lb (0.8 kg) | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 10.0 x 7.0 x 4.0" |
