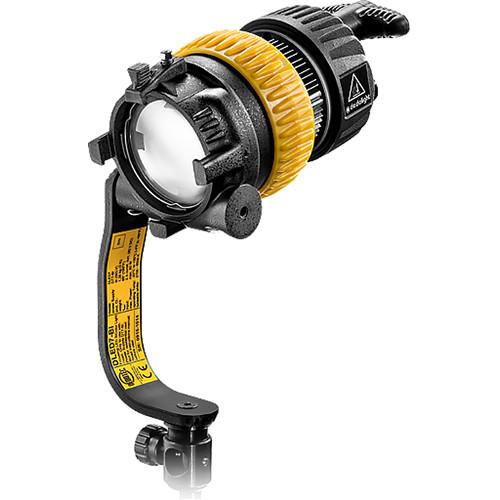

User Manual for Dedolight Turbo Series DLED7 Tungsten Focusing LED Light Head Click to enlarge the picture
Contents of the user manual for the Dedolight Turbo Series DLED7 Tungsten Focusing
- Product category: LED Lights Dedolight
- Brand: Dedolight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dedolight LED Lights
|
User manual for the Dedolight Turbo Series DLED7 Tungsten Focusing contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dedolight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dedolight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dedolight product will considerably shorten its lifespan!
|
Product description The Turbo Series DLED7 Tungsten Focusing LED Light Head from Dedolight is a focusable LED light with a standard 5/8" receptacle. This pure mono-color fixture features an adjustable color temperature of 3,200K for providing a quality light that can be used in a wide range of situations. The light is dimmable without any color shift and offers tilt control with adjustable friction.As an LED fixture, it has low power draw of just 40W with an output of 21,000 lux at a distance of 3’ with a spot beam angle. Accessories can easily be fitted on a 3” diameter holder and the light features active cooling, meaning it doesn't require noisy fans to run. It also is lightweight for effective use as an on-camera light. This small and compact light head with a double helical focusing mechanism provides enhanced light output. The fixture works as a highly focusable and tunable back light or accent light and is ideal for delicate and moody background projection. When such background projections are lifted slightly out of focus, you can easily create the illusion of a 3-dimensional world. In the Box Dedolight Turbo Series DLED7 Tungsten Focusing LED Light Head Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dedolight Turbo Series DLED7 Tungsten Focusing LED Light Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDedolight DLED7 Specs | Focus Range | Intensity Range: 60° to 4° (1:20) | | Focus Control | One complete turn on focus ring | | Photometrics | Flood
3' (1 m): 2600 lux (242 fc)
6' (2 m): 650 lux (60 fc)
9' (3 m): 289 lux (27 fc)
12' (4 m): 163 lux (15 fc)
15' (5 m): 104 lux (9.7 fc)
Medium
3' (1 m): 4875 lux (453 fc)
6' (2 m): 1219 lux (113 fc)
9' (3 m): 542 lux (50 fc)
12' (4 m): 305 lux (28 fc)
15' (5 m): 195 lux (18 fc)
Spot
3' (1 m): 21000 lux (1952 fc)
6' (2 m): 5250 lux (488 fc)
9' (3 m): 2333 lux (217 fc)
12' (4 m): 1313 lux (122 fc)
15' (5 m): 840 lux (78 fc) | | Tilt | Permanent friction | | Cooling | Active silent | | Mount | 0.6" (16 mm) receptacle and 1.1" (28 mm) stud | | Accessory Mounting | 3.0" (76 mm) diameter | | Power Draw | 90 W | | Safety | Protection Class III, SELV, IP20 | | Dimensions | Flood: 7.2 x 4.3 x 7.6" (18 x 11 x 19 cm)
Spot: 7.2 x 4.3 x 9.3" (18 x 11 x 24 cm) | | Weight | 2.9 lb (1.3 kg) |
