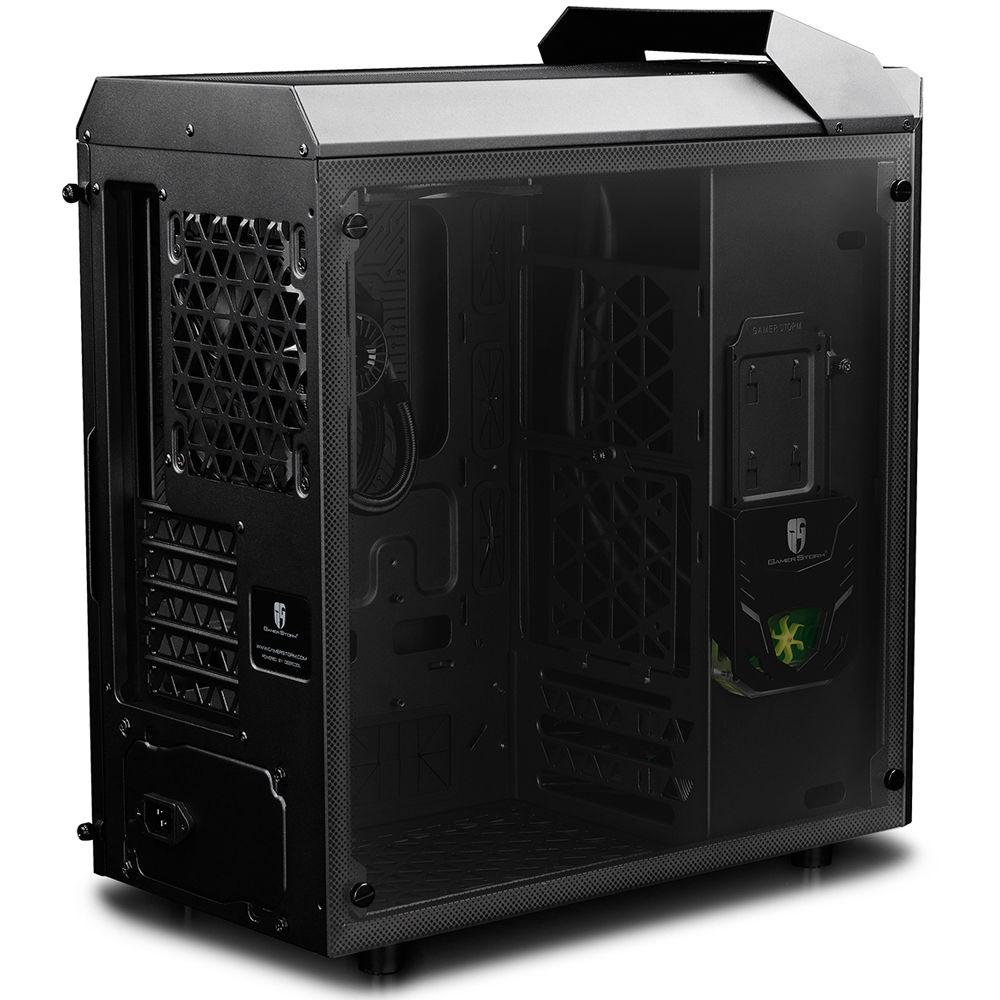

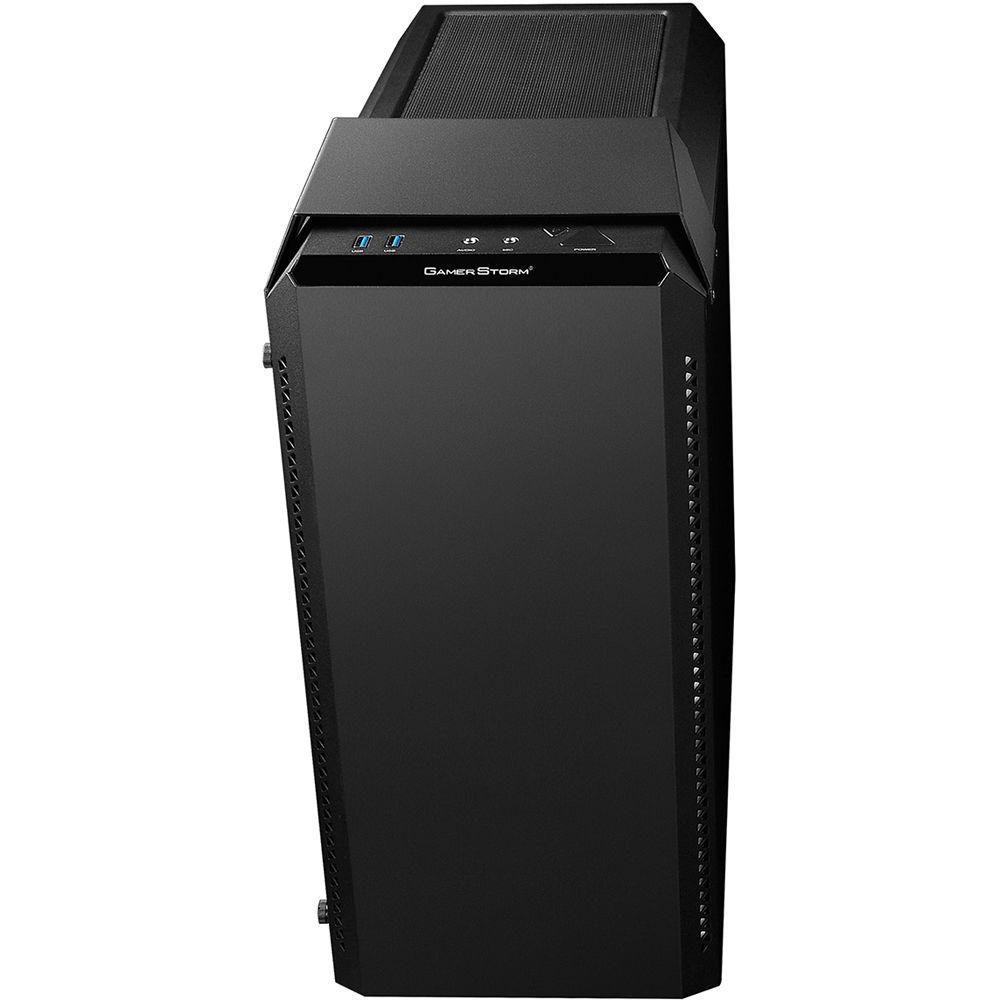

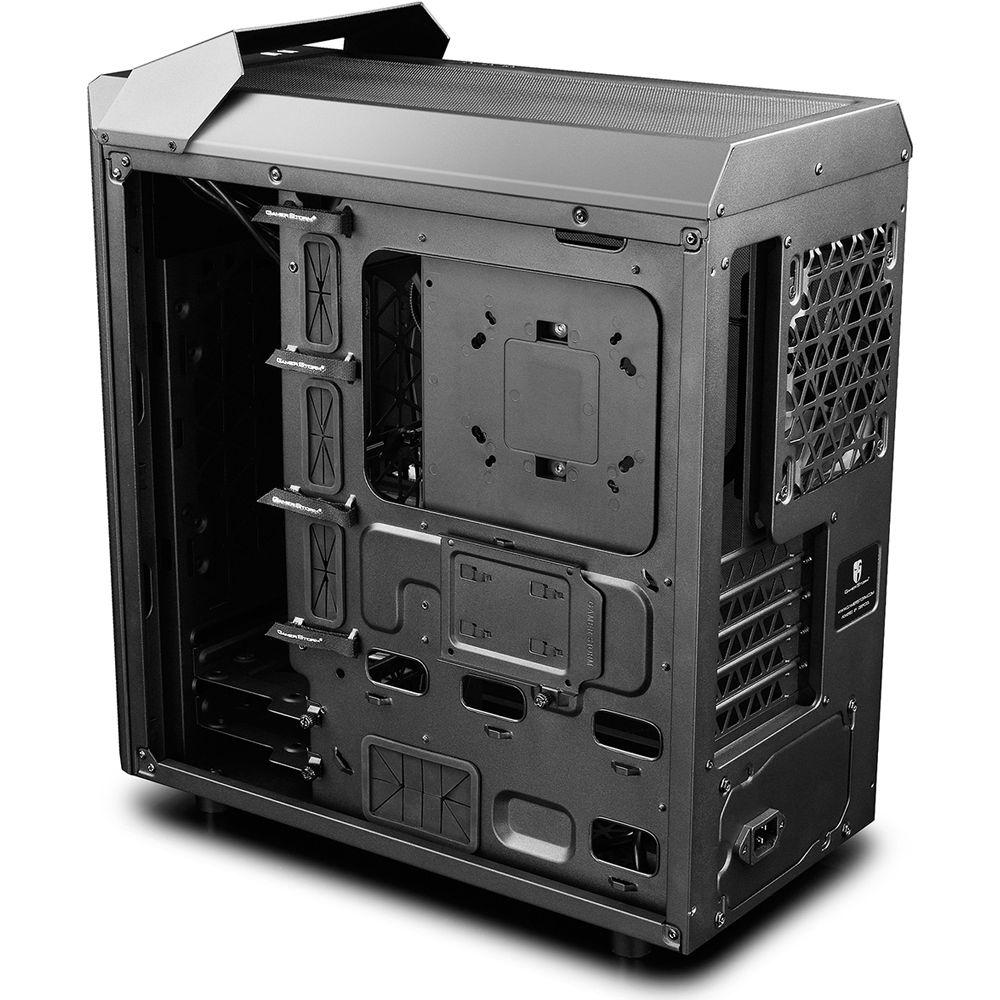

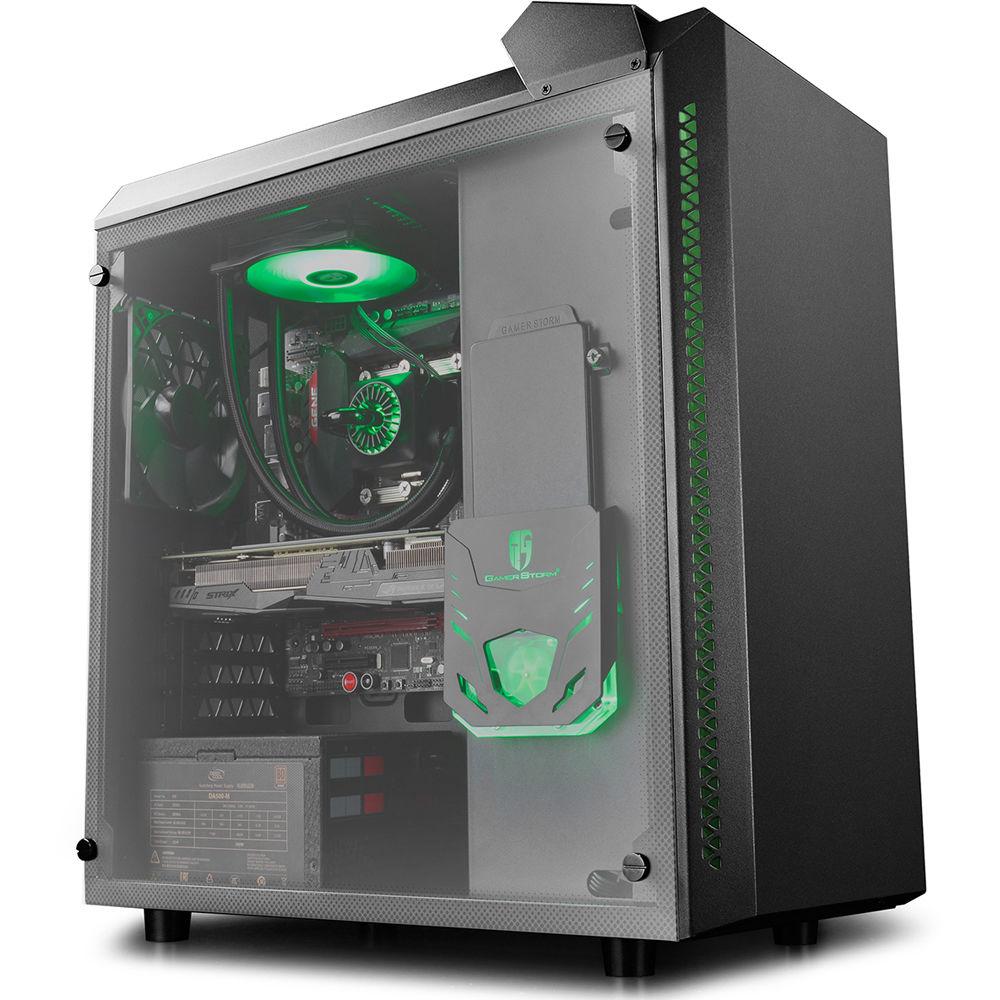

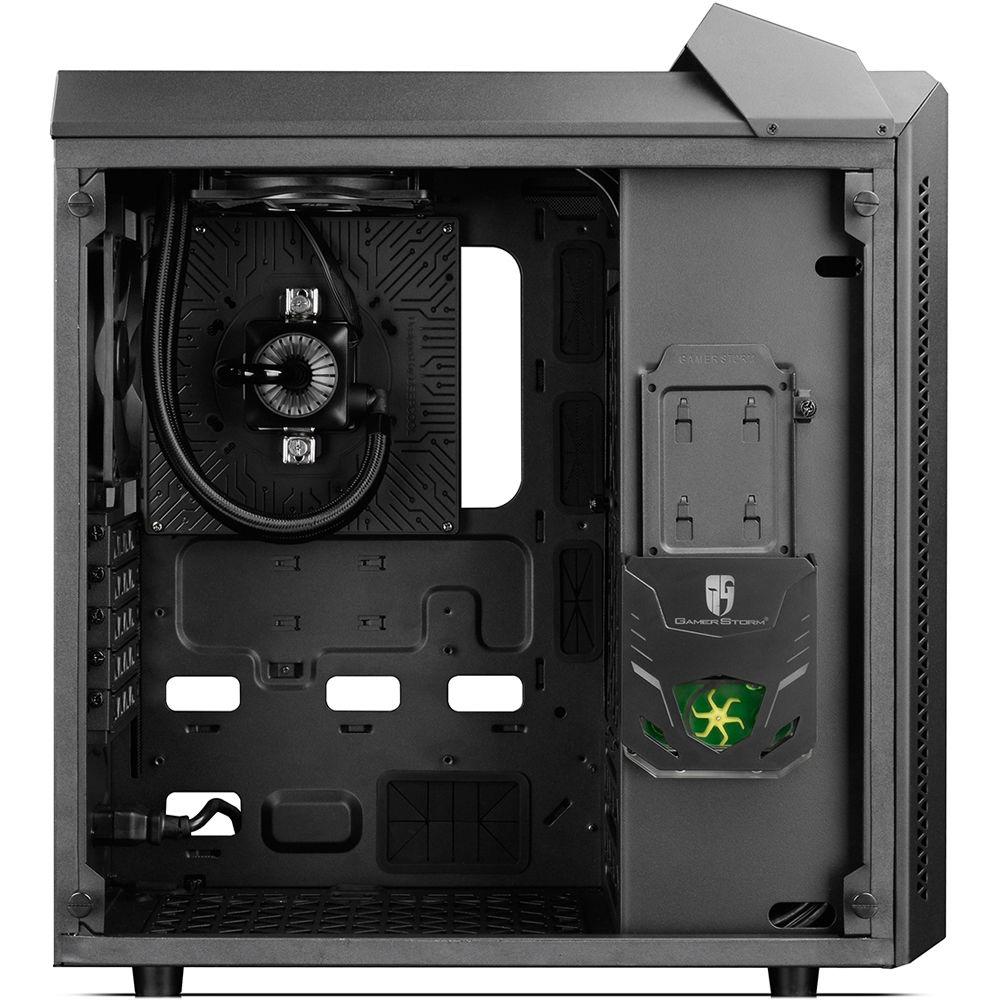

Product description The Baronkase Liquid Mid-Tower Case from Deepcool is an MATX-sized case that supports up to a full-sized ATX board by mounting the PSU at the top of the case towards the front. If you choose to do so, you'll then be able to mount two additional 120mm fans at the bottom. Furthermore, it comes with a pre-installed all-in-one liquid CPU cooler that's compatible with a majority of Intel and AMD processors. Inside the case is room for up to two dual-slot graphics cards, plenty of storage drives, as well as multiple fans. For customizability, it has a removable top carrying handle, replaceable front cover, and integrated RGB lighting. - Built-In Liquid Cooling

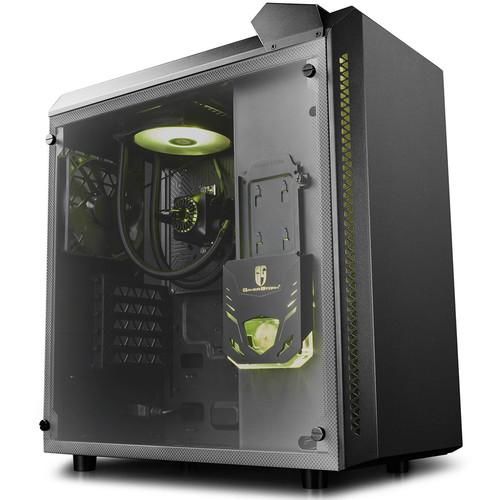

- An all-in-one liquid CPU cooler is already installed in this case. It features a 120mm radiator and fan, a flow-rotor unit, and RGB LED lighting.
-

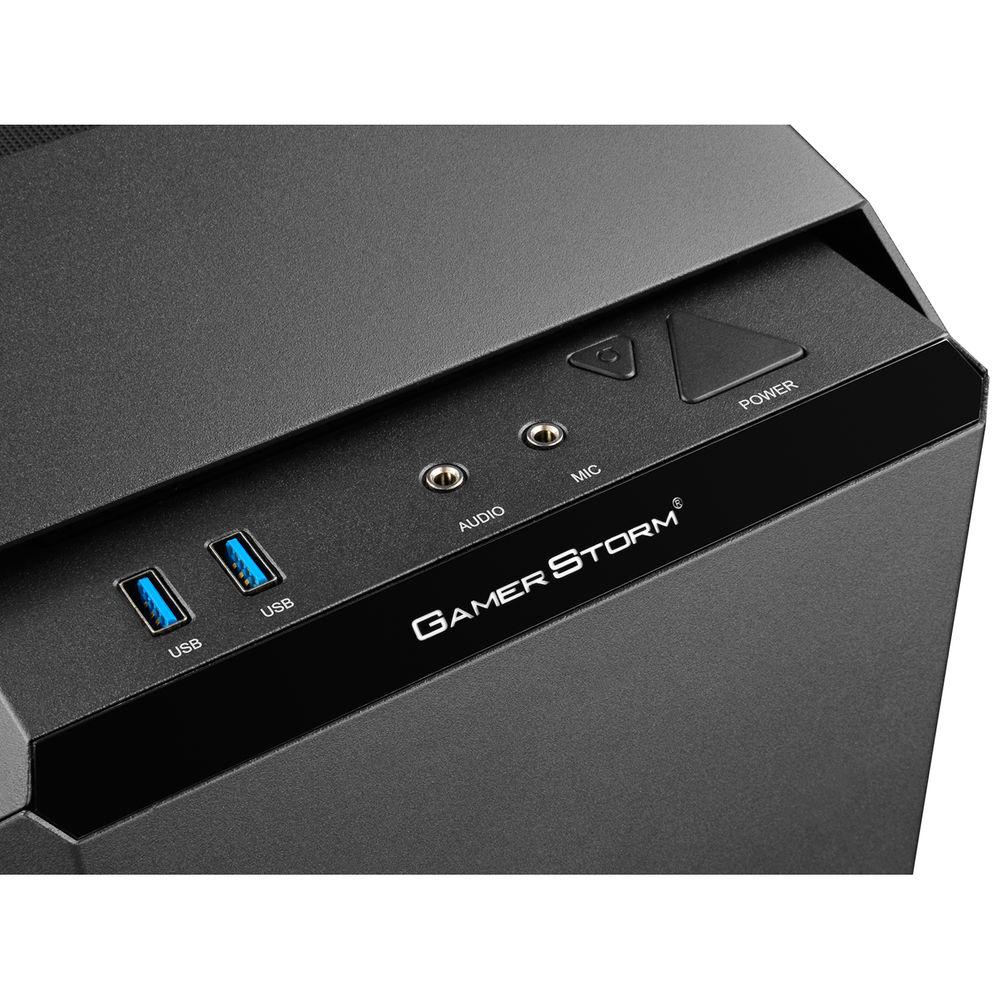

- Manual controller for RGB lighting located at the front I/O panel

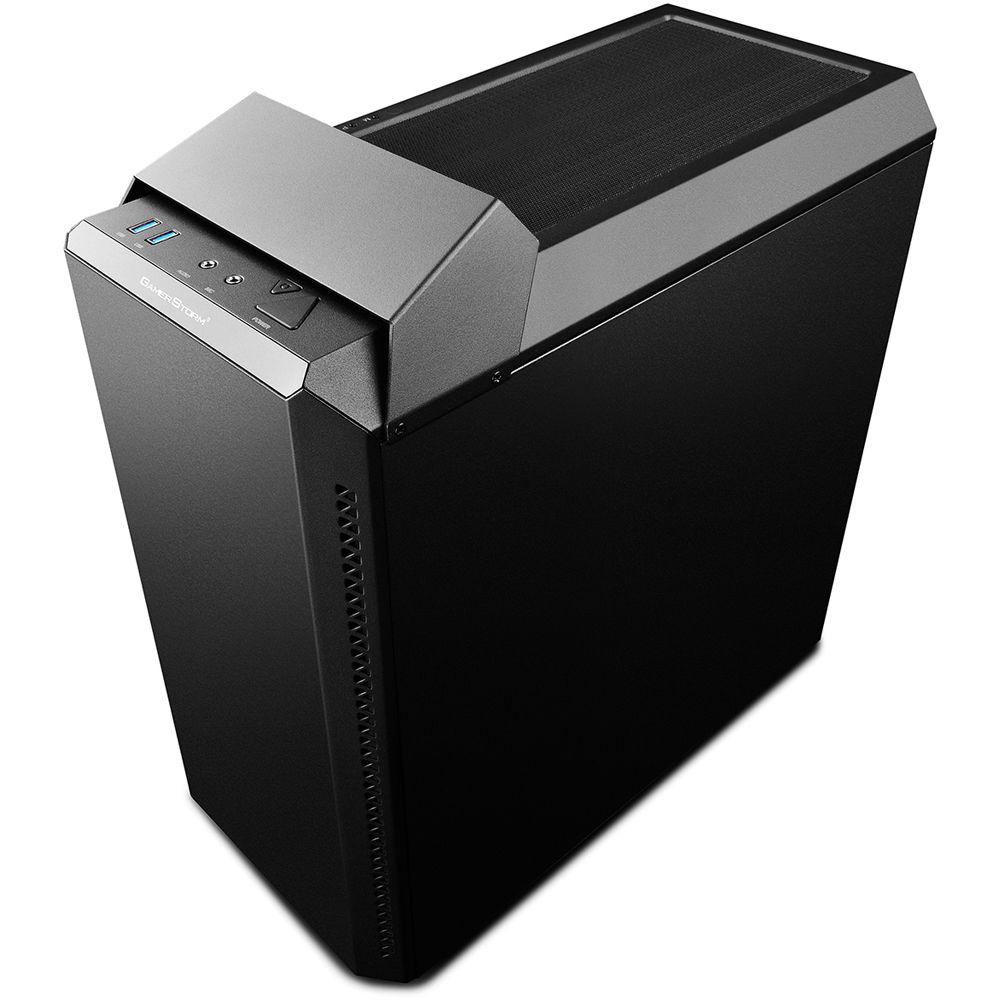

- Removable, all-metal handle for transport

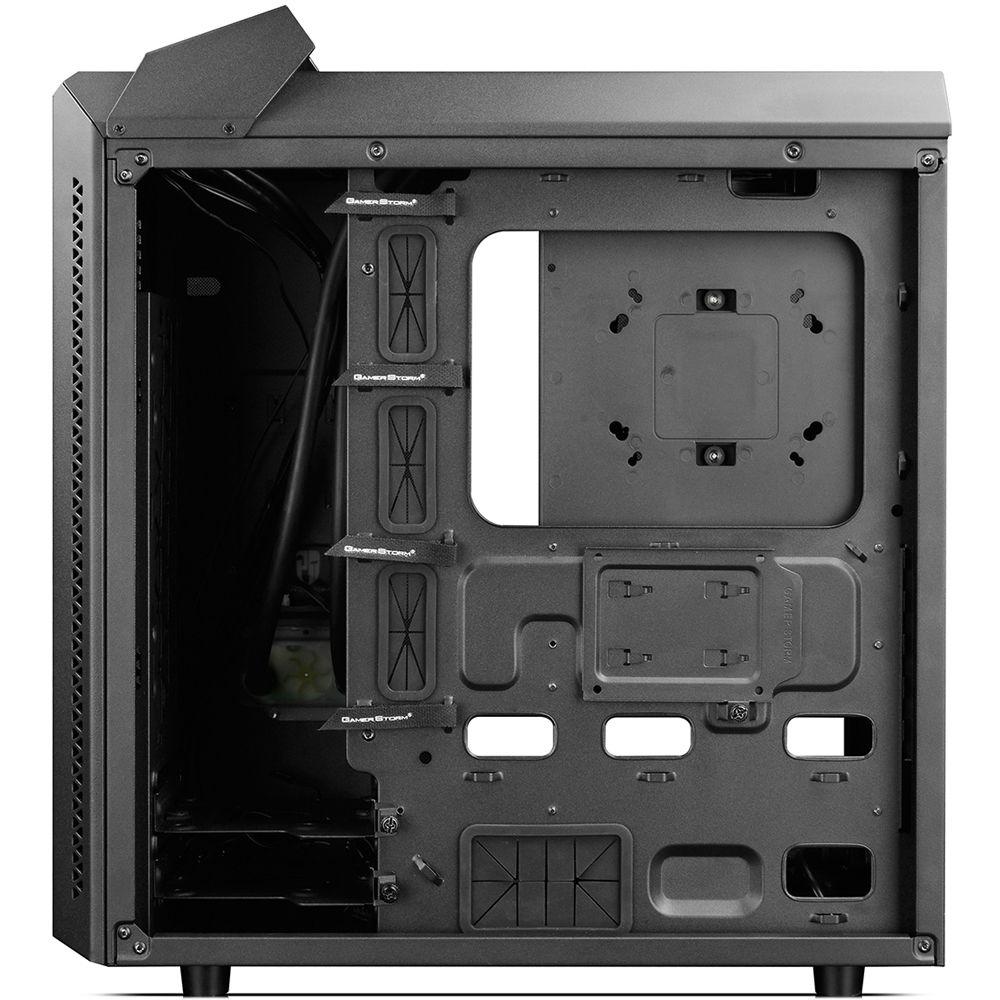

- Interior plate can be removed to accommodate longer graphics cards

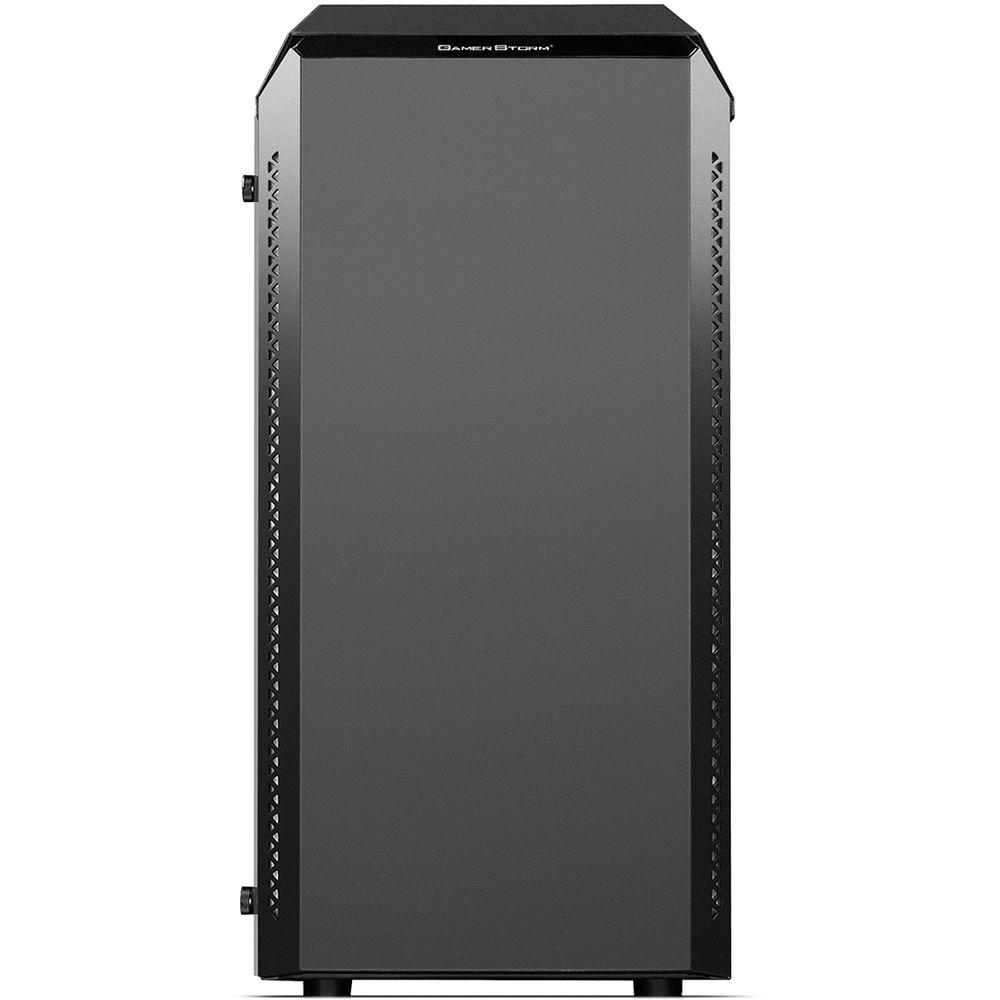

- Replaceable all-metal front panel
- Liquid CPU Cooler Support
- Intel Socket 150W
LGA20XX/LGA1366/LGA115X
High End Desktop i7
Core i7/i5/i3
Pentium G
Celeron G
AMD Socket 140W
AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1
Ryzen
APU A12/A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Athlon II X4/X3/X2
Athlon X4 Table of Contents
|
Upload User Manual
Have you got an user manual for the Deepcool Baronkase Liquid Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeepcool Baronkase Liquid Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | None | | Internal Drive Bays | 2 x 2.5/3.5"
3 x 2.5" | | Expansion Slots | 5 x Full Height | | Maximum GPU Length | 13.39" / 340 mm | | CPU Cooler Height | 6.61" / 168 mm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.87" / 200 mm | | | | Fan Mounting (Front) | 2 x 120 mm
Or
1 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 2 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Bottom) | 2 x 120 mm
| | Fans Included (Front) | None | | Fans Included (Rear) | 1 x 120 mm | | Fans Included (Top) | 1 x 120 mm LED | | Fans Included (Bottom) | None | | Maximum Radiator Size (Rear) | 1 x 120 mm | | Maximum Radiator Size (Top) | 1 x 280 mm | | Maximum Radiator Size (Bottom) | 1 x 240 mm | | Fan Mounting (Internal) | None | | Noise Level | 17.8 to 30 dBA | | Fan Controller Included | Yes | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel | | Built-In Lighting | Yes | | Dimensions (W x H x D) | 8.5 x 18.5 x 16.7" / 215.0 x 470.0 x 423.0 mm | | Weight | 22.0 lb / 10.0 kg | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 21.0 x 20.0 x 11.0" |
