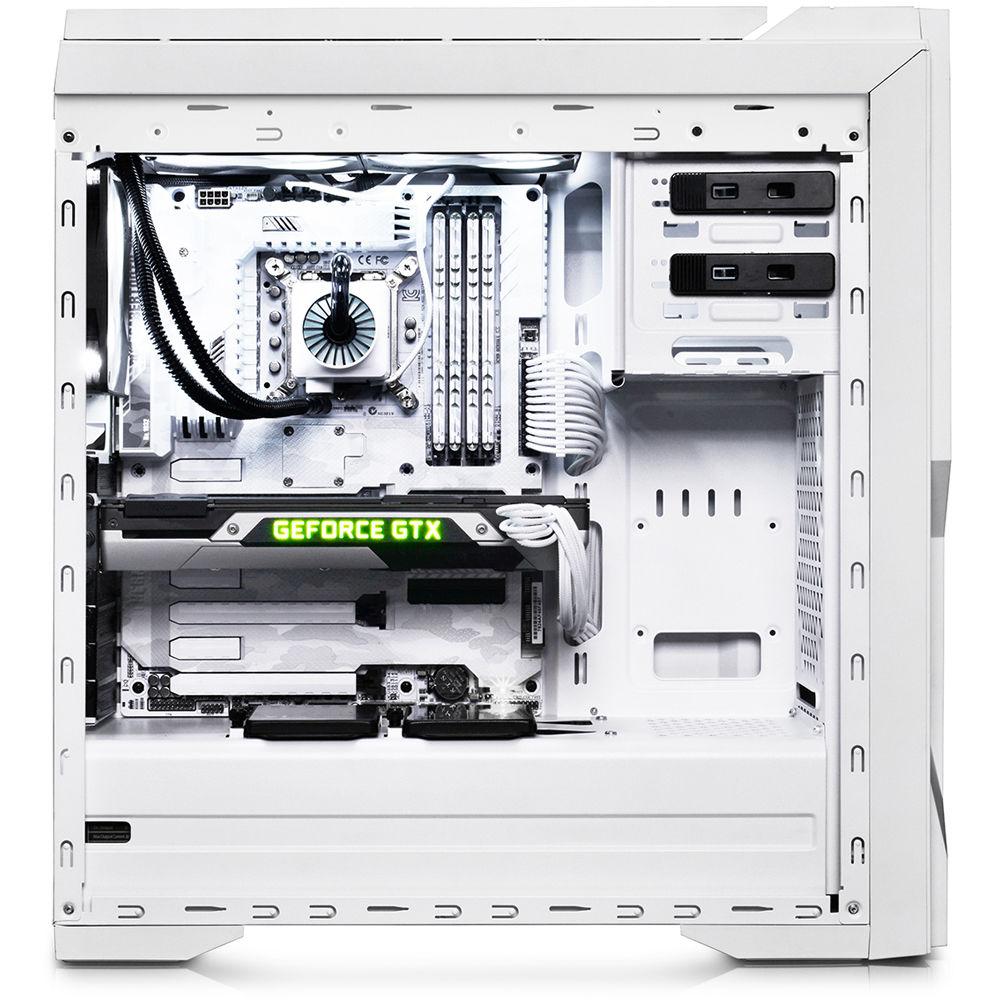

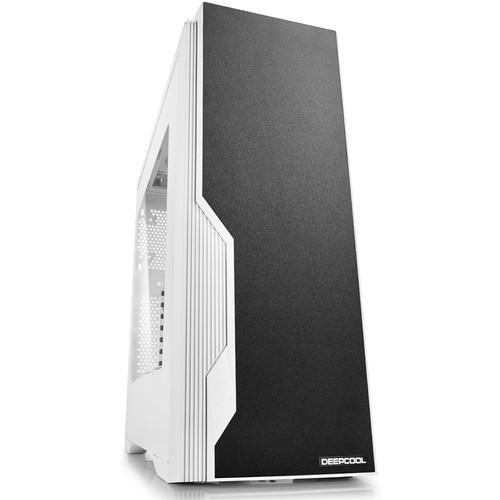

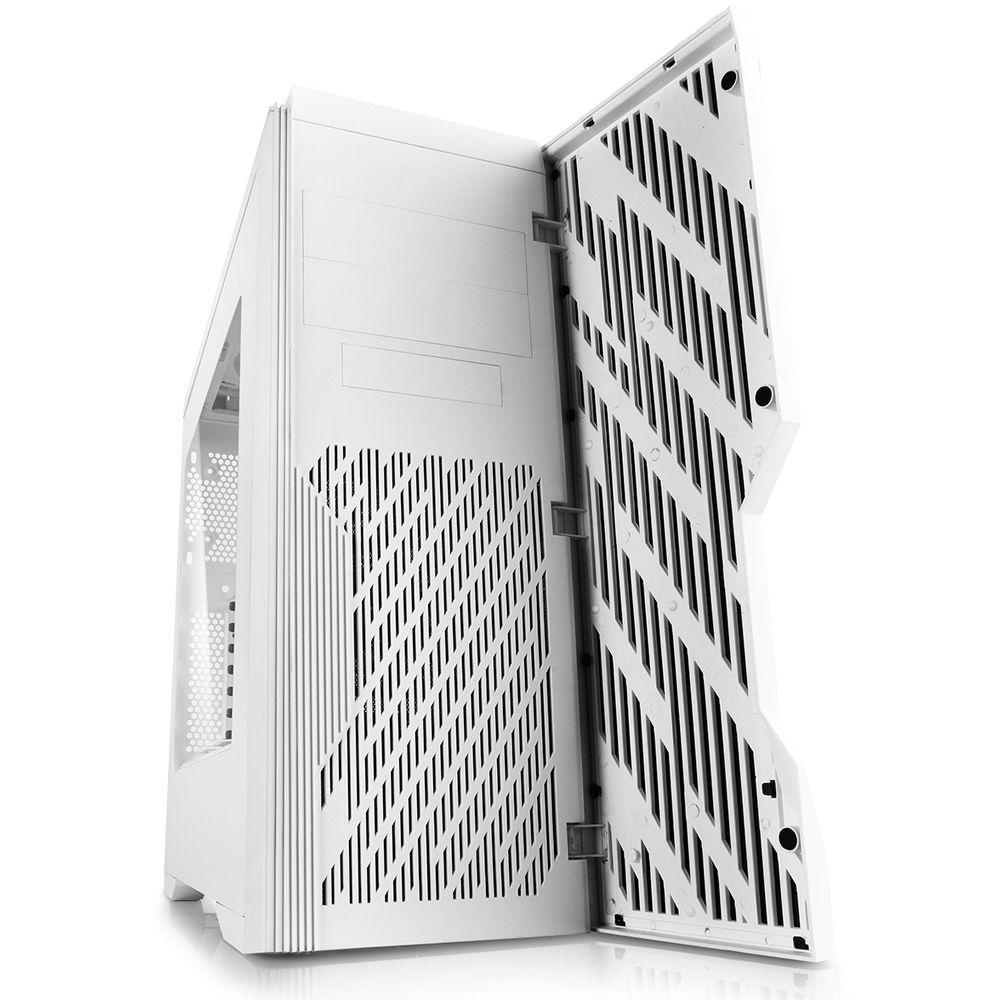

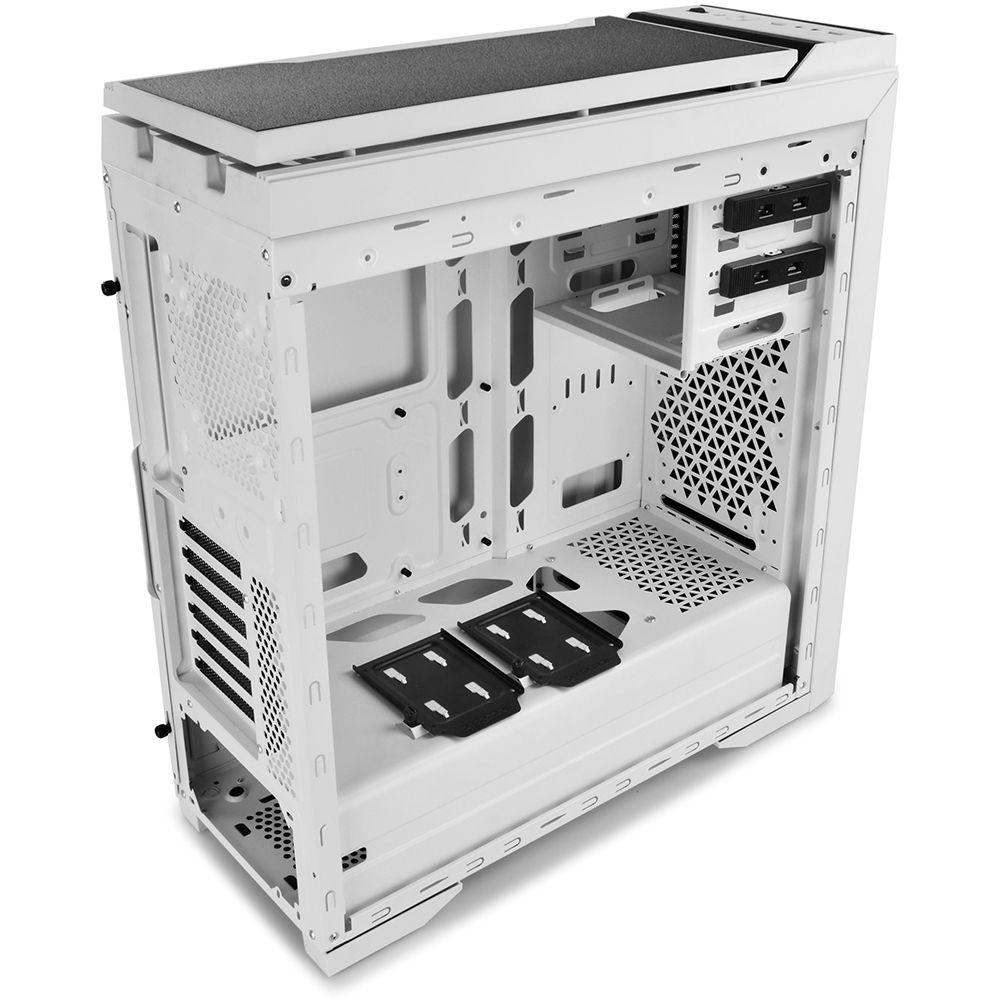

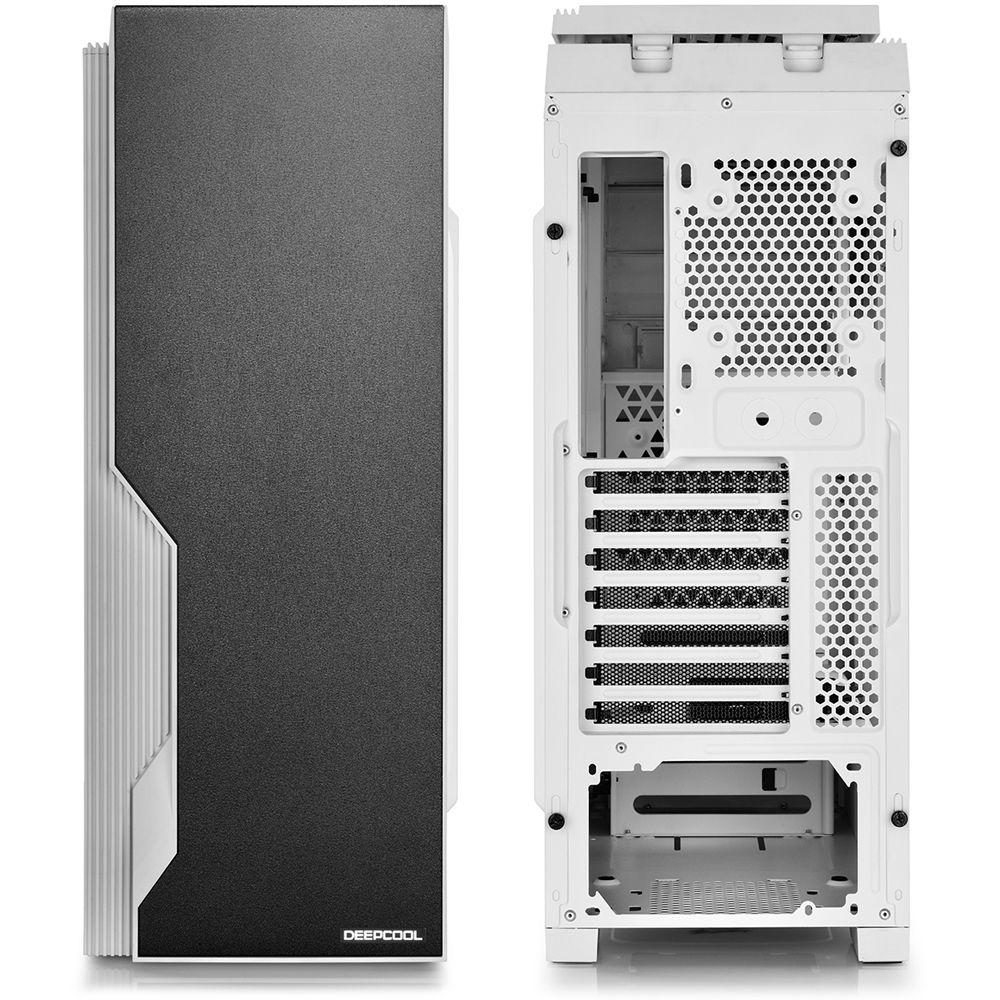

Product description The Dukase V2 Mid-Tower Case from Deepcool features a suspension-style design and an ODD-free front panel for a stylish yet well ventilated case. It can accommodate ATX, Micro-ATX, and Mini-ITX motherboards with room to spare for two 5.25", three 3.5", and three 2.5" drives. Furthermore, by not having any drive cages, the Dukase can fit graphics cards up to 15.35" long. At the front of the case you'll have access to a USB 3.0, USB 2.0, audio in/out jacks, as well as a built-in fan controller that supports up to three fans. Located at the bottom of the case is a PSU cover that hides the power supply for a stealthy, clean appearance and a specially designed LED strip mounting slot so you can light up your rig. Its large windowed side panel lets you show off your system hardware or quickly check on internal components. The Dukase has a few features to simplify hardware installation and maintenance, such as a large CPU cutout for easy cooler installation, large and multiple holes for cable management, rubber buffers to reduce noise from vibrations, and dust filters to keep it clean. -

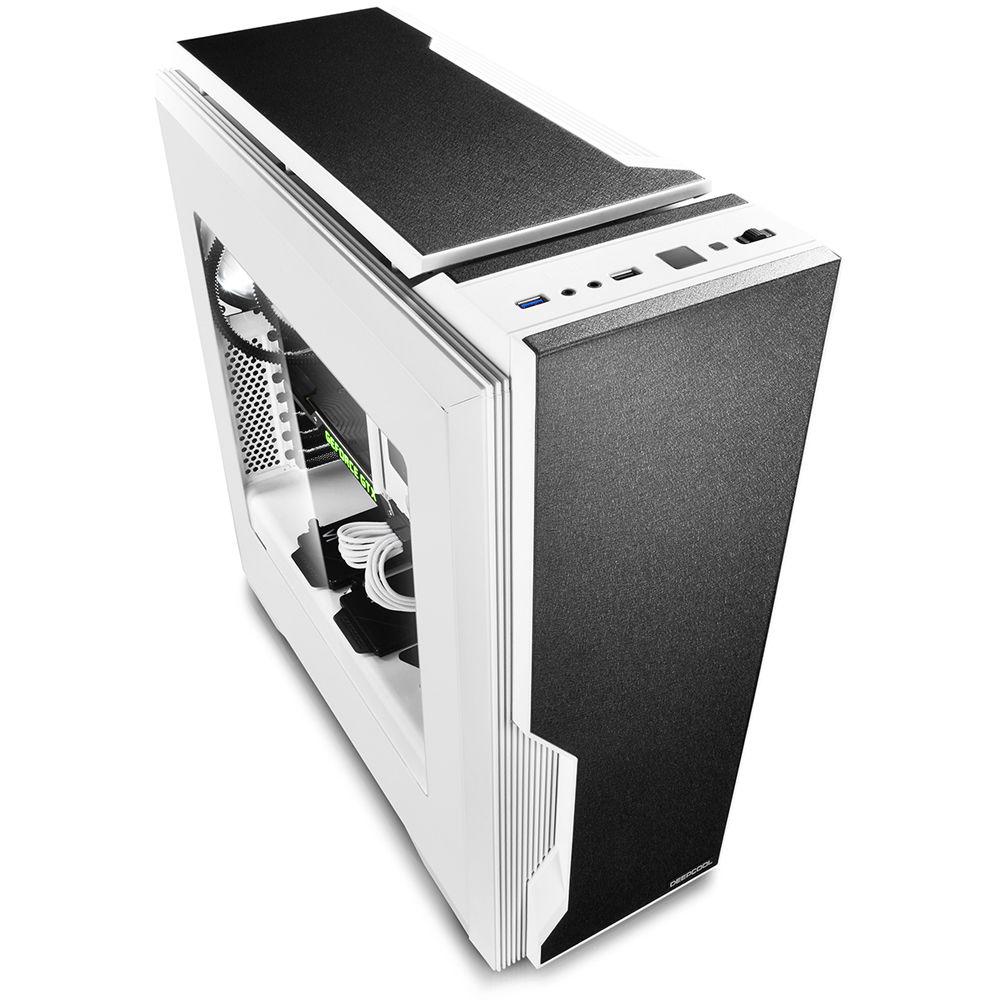

- Suspension-style designed top panel enables easy cleaning

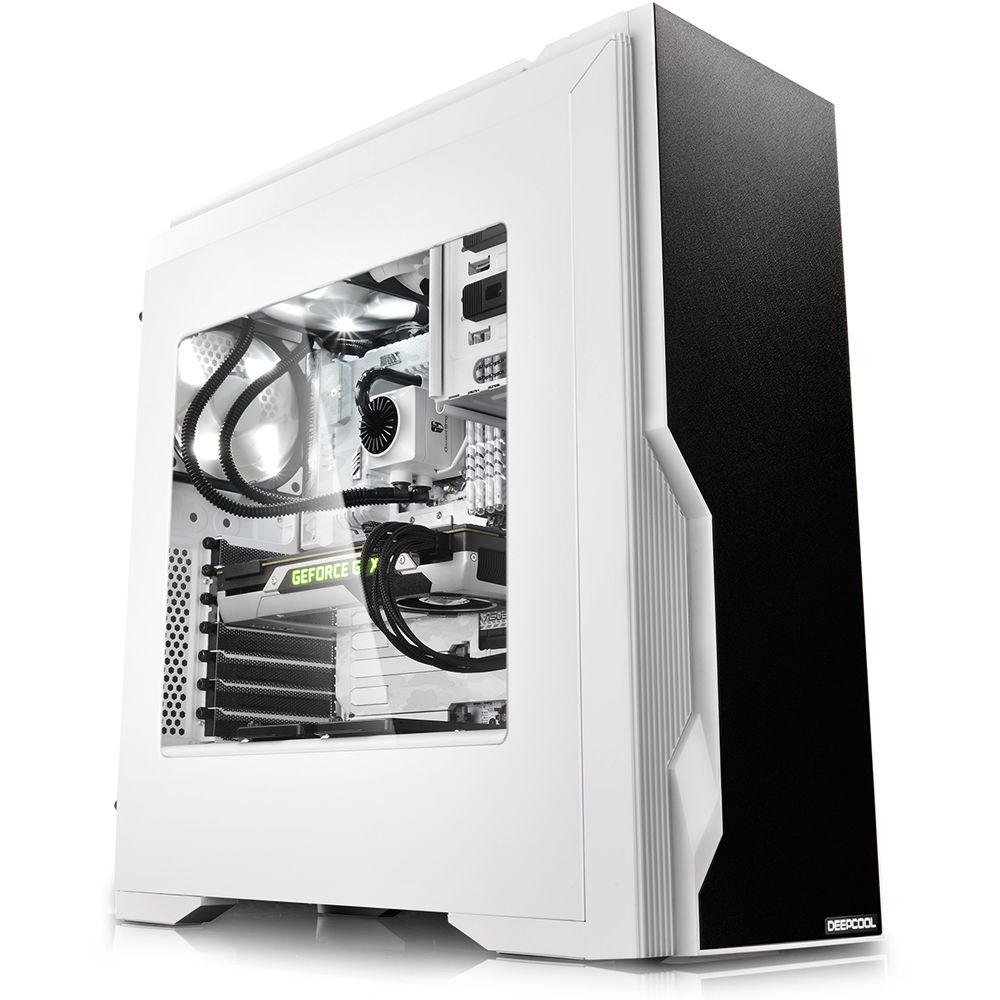

- Supports a 120/240/280 mm radiator at the top for liquid cooling
- Built-in fan controller for up to three fans
- Electrostatic powder coating for a smooth feel

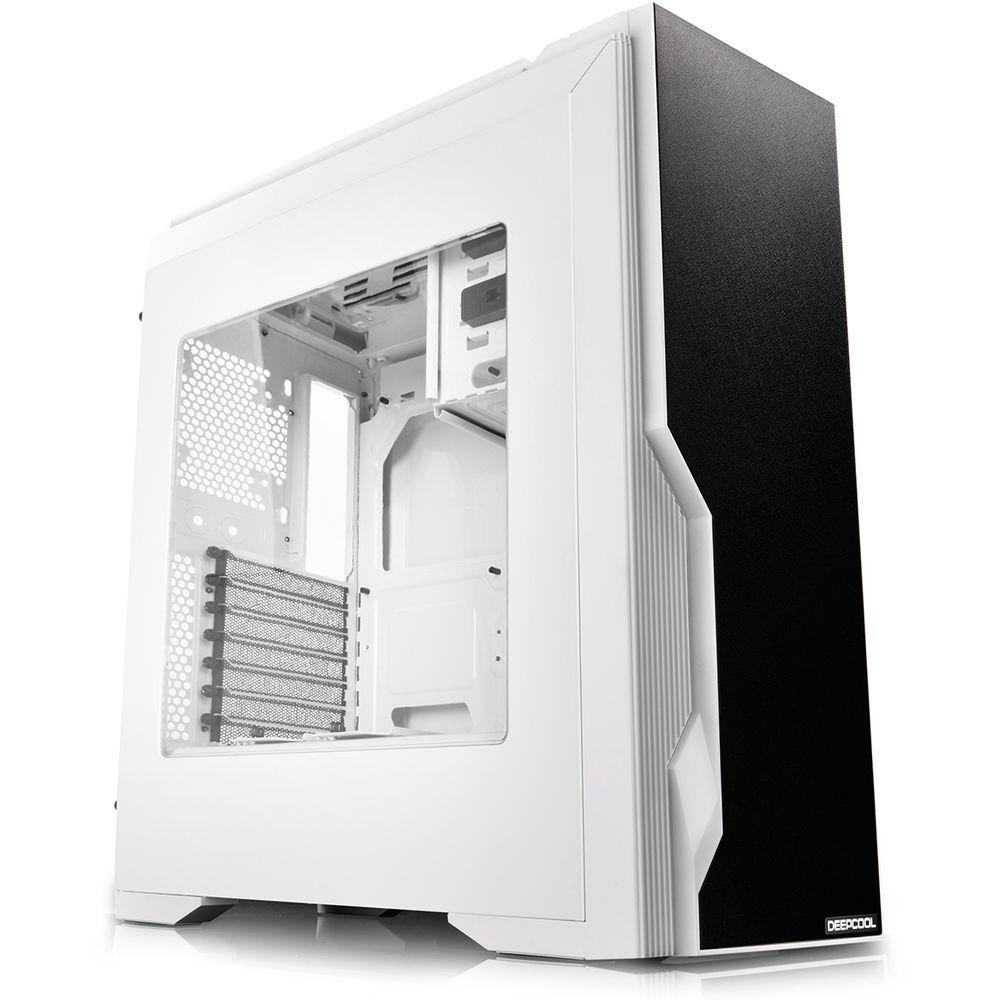

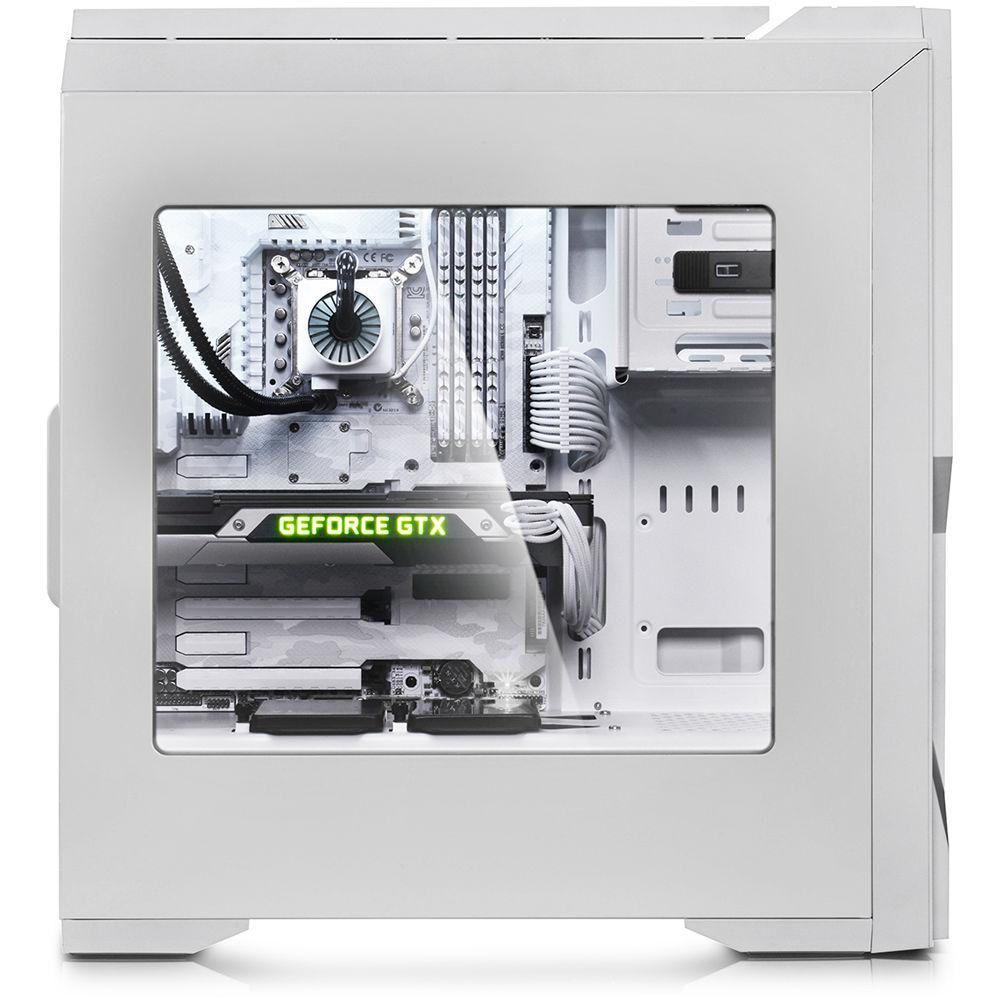

- Large side window for displaying system hardware

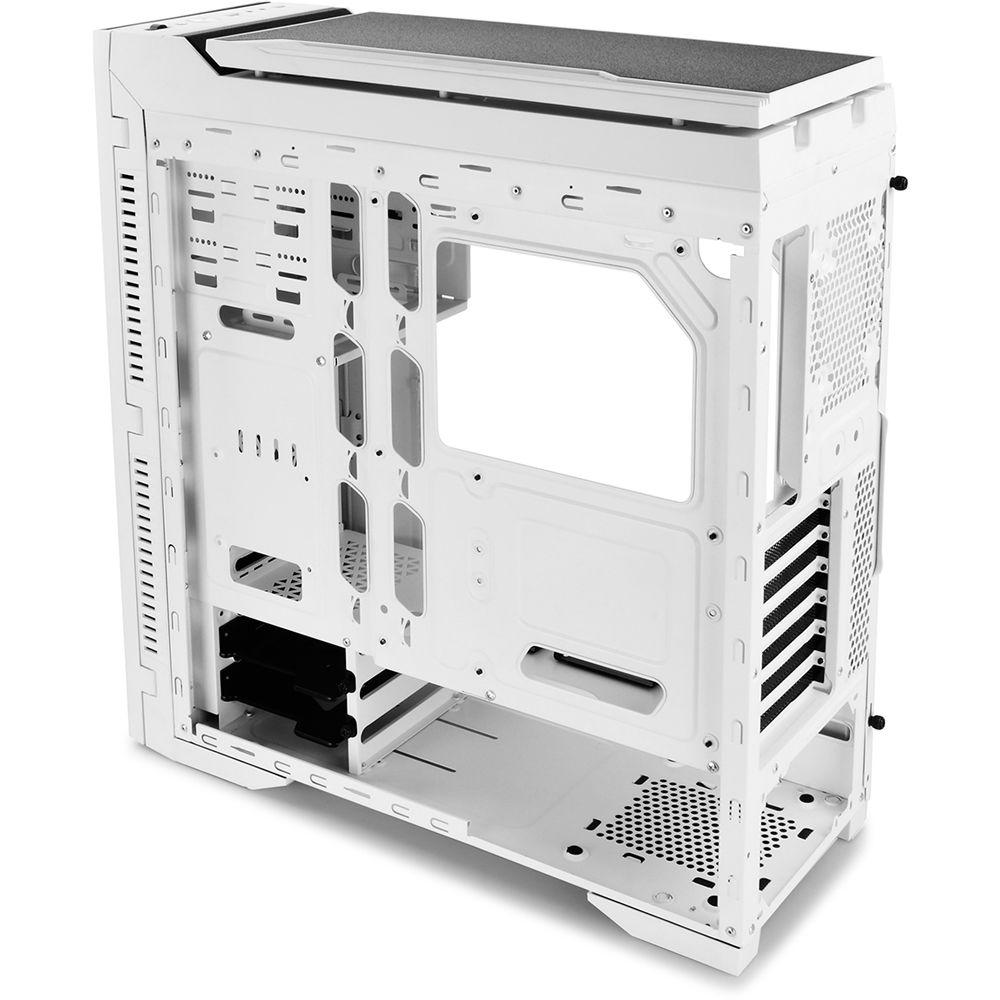

- Wide spaces and large holes for cable management
- Independent mounting positions for 2.5" SSDs
- Specially designed LED strip mounting spot
- Large CPU cutout for easy cooler installation
- Rubber buffer and dust filter for PSU
In the Box Deepcool Dukase V2 Mid-Tower Case (White) Screw Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Deepcool Dukase V2 Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeepcool DUKASE WHV2 Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 2 x 5.25"
1 x 3.5" | | Internal Drive Bays | 2 x 2.5"
3 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 15.4" / 39 cm | | CPU Cooler Height | 6.3" / 16.1 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 6.3" / 16 cm | | | | Fan Mounting (Front) | 2 x 120 mm
Or
1 x 140 mm
| | Fan Mounting (Top) | 2 x 120 mm
Or
2 x 140 mm
| | Fans Included (Rear) | 1 x 120 mm | | Fan Controller Included | No | | | | Connections | 1 x USB Type-A (USB 3.0)
1 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 19.0 x 8.0 x 19.8" / 48.3 x 20.2 x 50.4 cm | | Weight | 15.5 lb / 7.0 kg | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 22.0 x 22.0 x 10.4" |
