User Manual for Deepcool Gammaxx GT RGB CPU Cooler Click to enlarge the picture
Contents of the user manual for the Deepcool Gammaxx GT RGB CPU Cooler
- Product category: Fans & CPU Coolers Deepcool
- Brand: Deepcool
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Deepcool Fans & CPU Coolers
 |
User manual for the Deepcool Gammaxx GT RGB CPU Cooler contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Deepcool product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Deepcool user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Deepcool product will considerably shorten its lifespan!
|

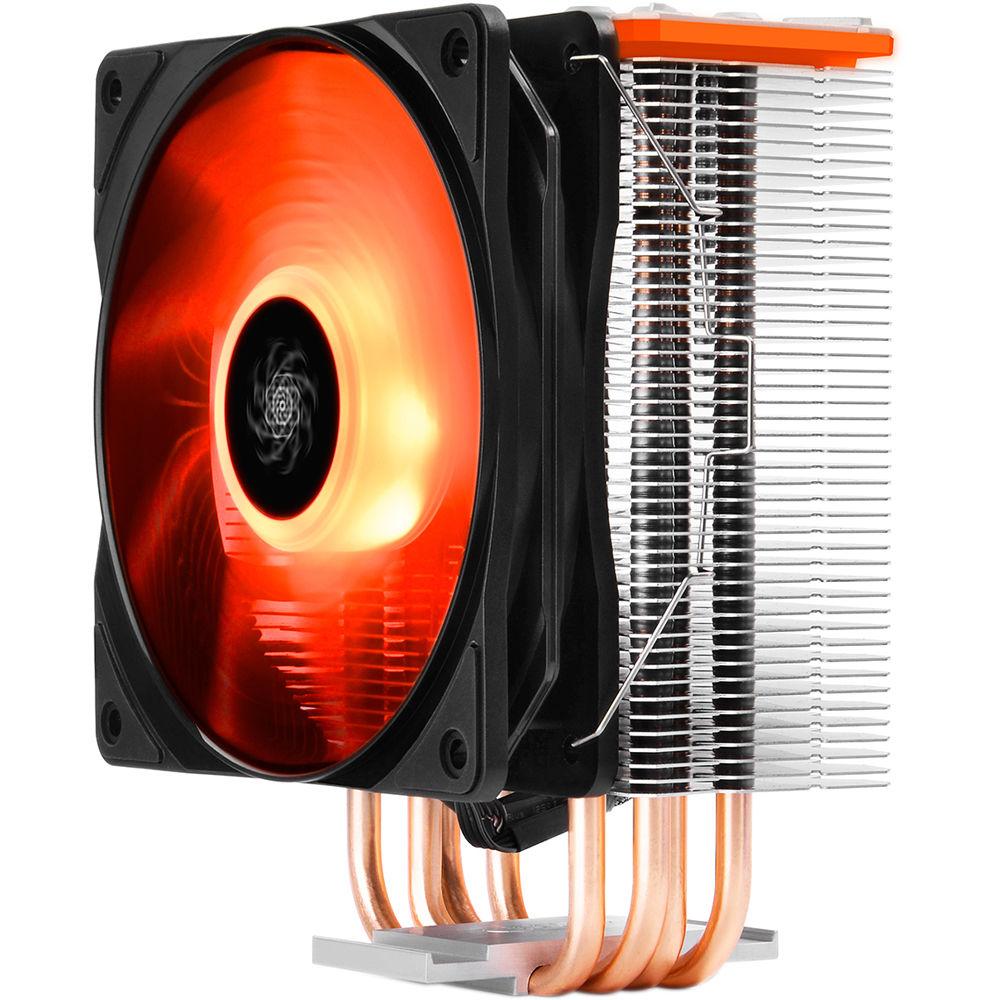

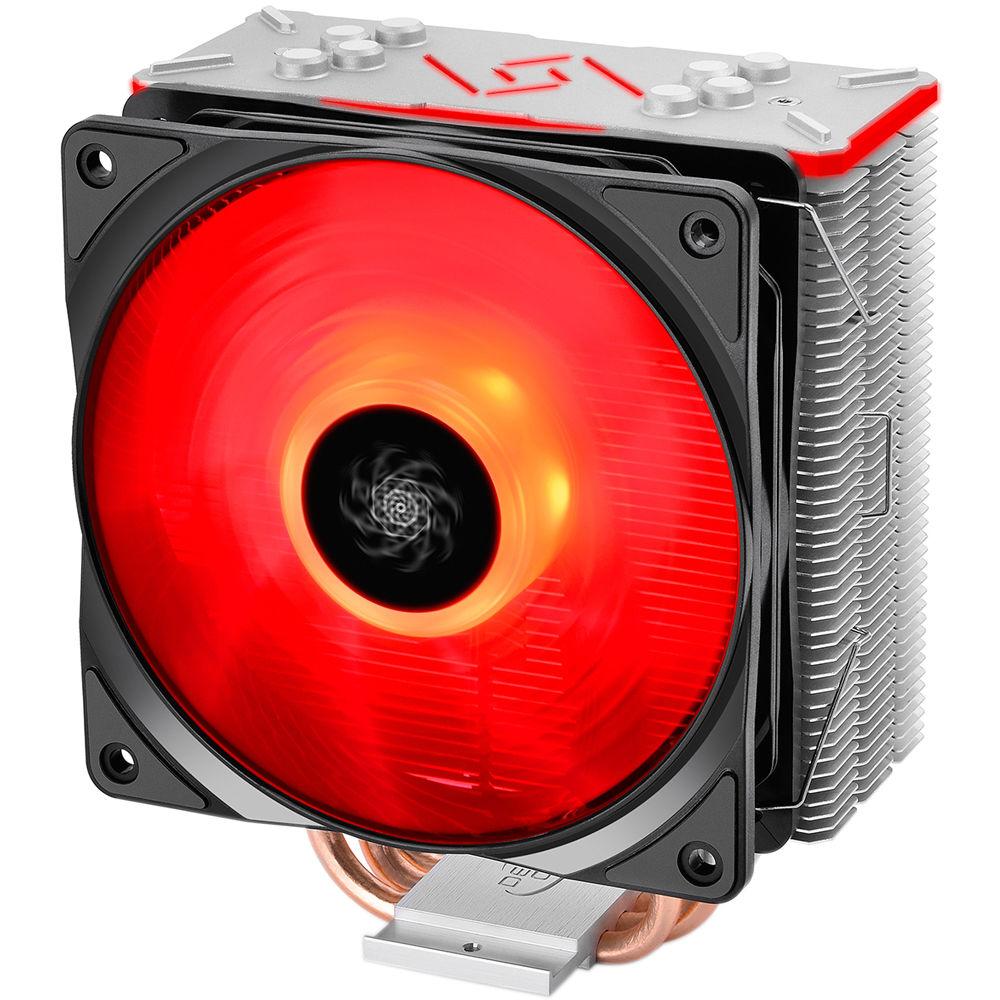

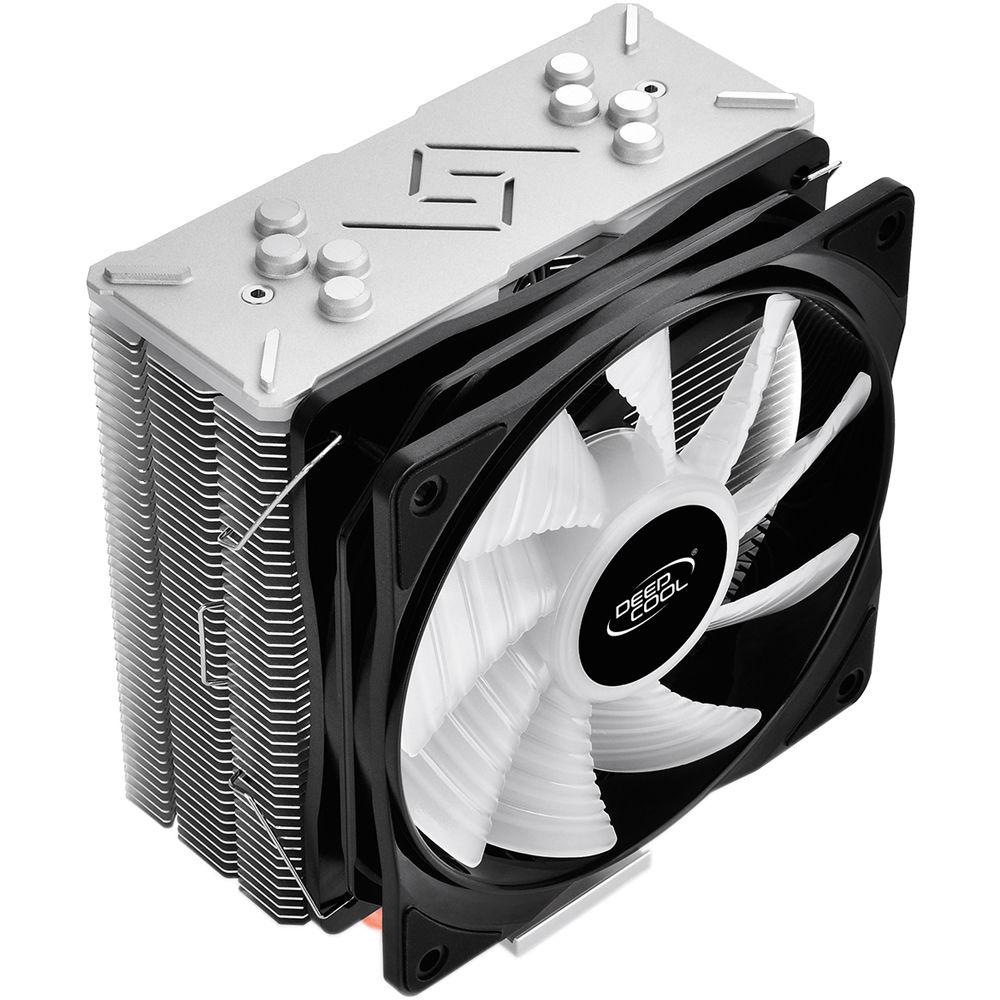

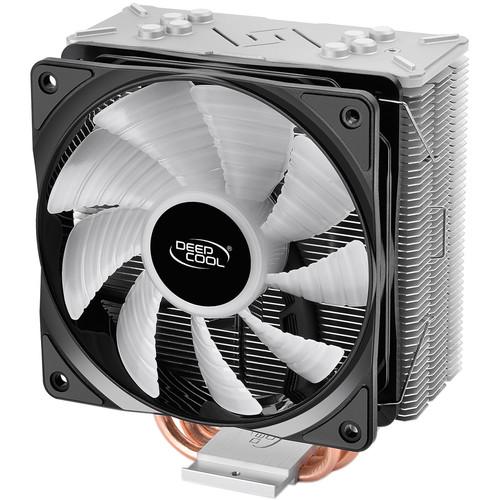

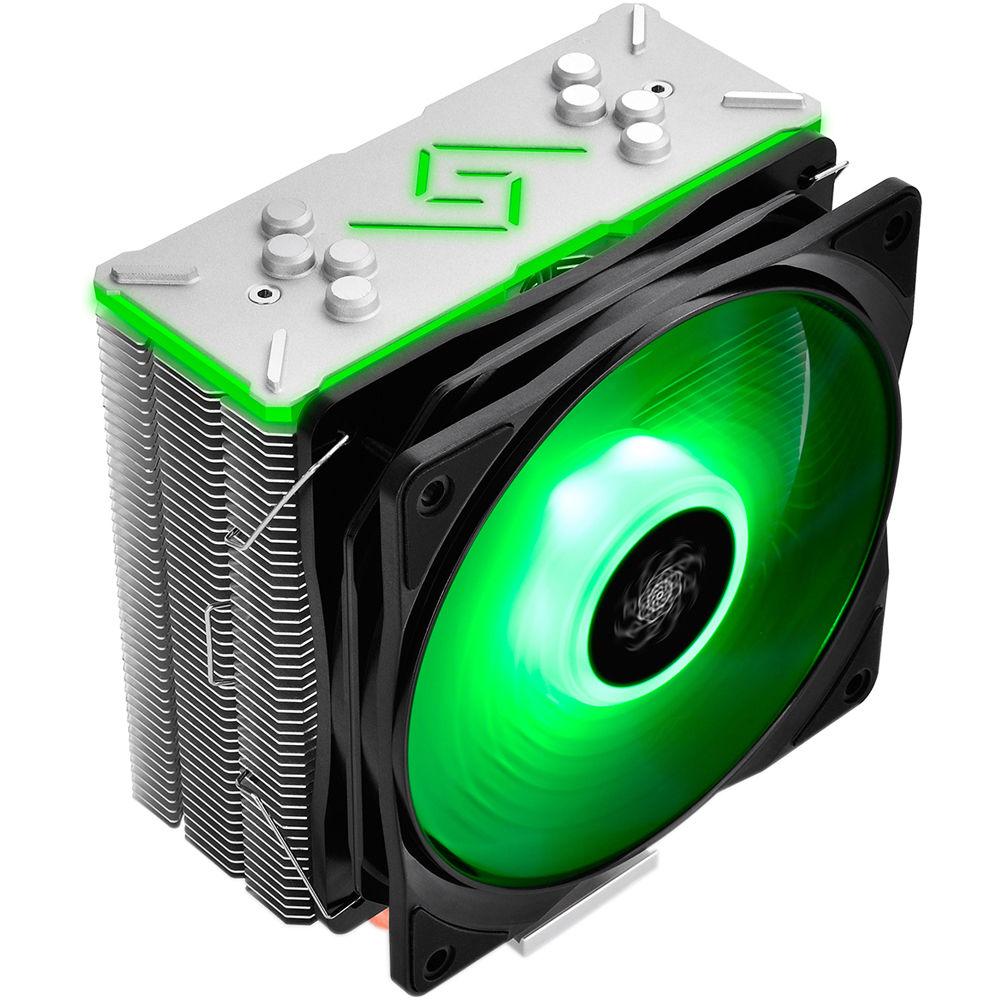

Product description Efficiently cool and enhance the aesthetics of your build with the Gammaxx GT RGB CPU Cooler from Deepcool. This CPU cooler is compatible with a wide range of both Intel and AMD sockets, and it comes with a 120mm fan. The lighting schemes on the RGB-lit aluminum top cover can be controlled via a compatible motherboard or using the included wired controller. Performance-wise, the air cooler is built with an aluminum heatsink with 0.5mm thick fins and four direct-touch heat pipes. Installation is easy and all the tools you need are included. - All-Aluminum RGB Top Cover

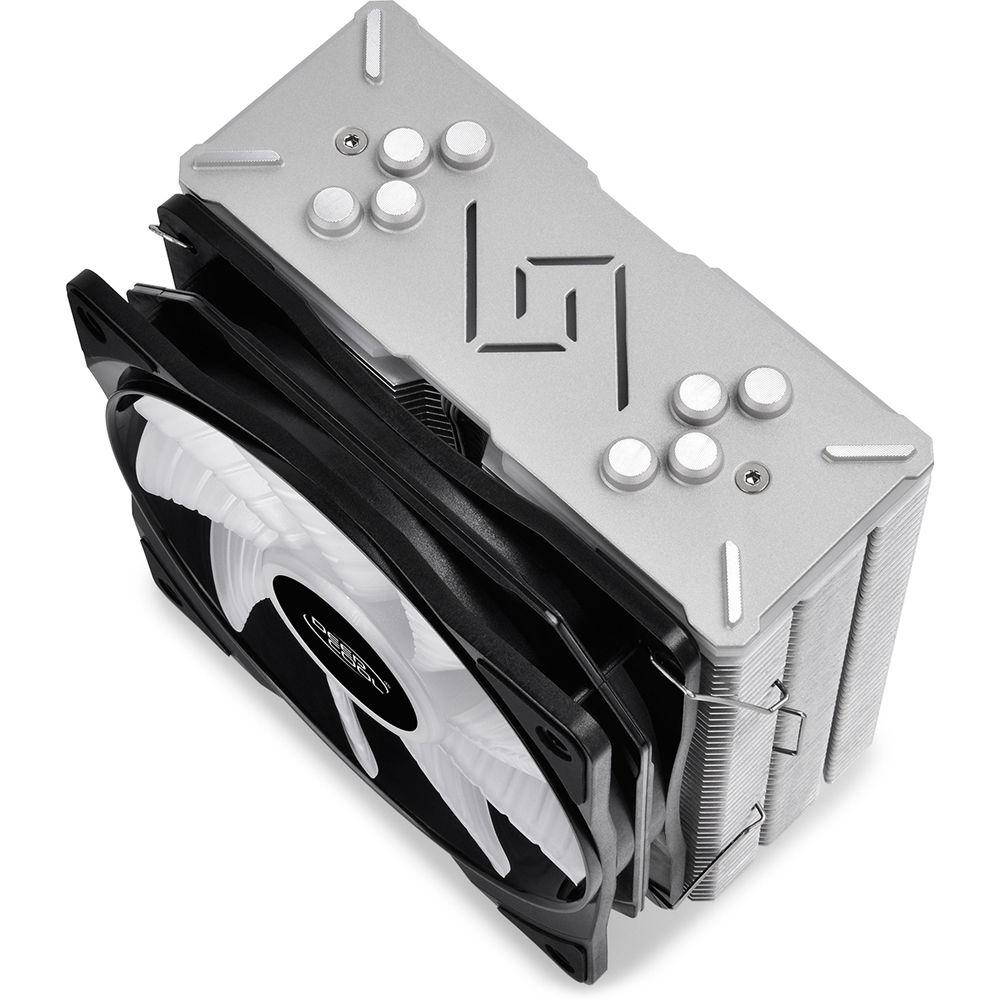

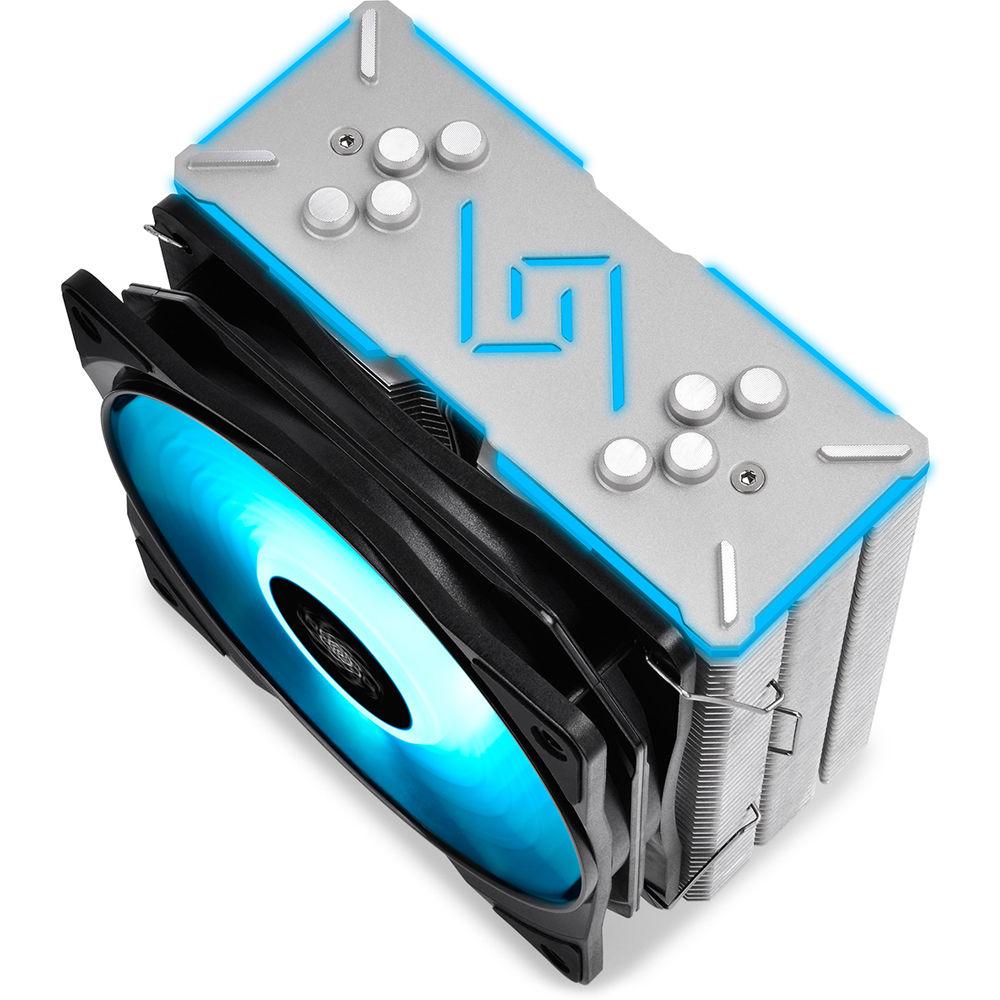

- The all-aluminum top cover features RGB lighting to enhance your system's aesthetics.
- RGB Lighting Customization
- Plug in the included RGB connector to a motherboard that supports RGB lighting and control the lighting with downloadable software. Also included is a wired controller with three buttons for mode, power/brightness, and speed.
- Cooling Performance

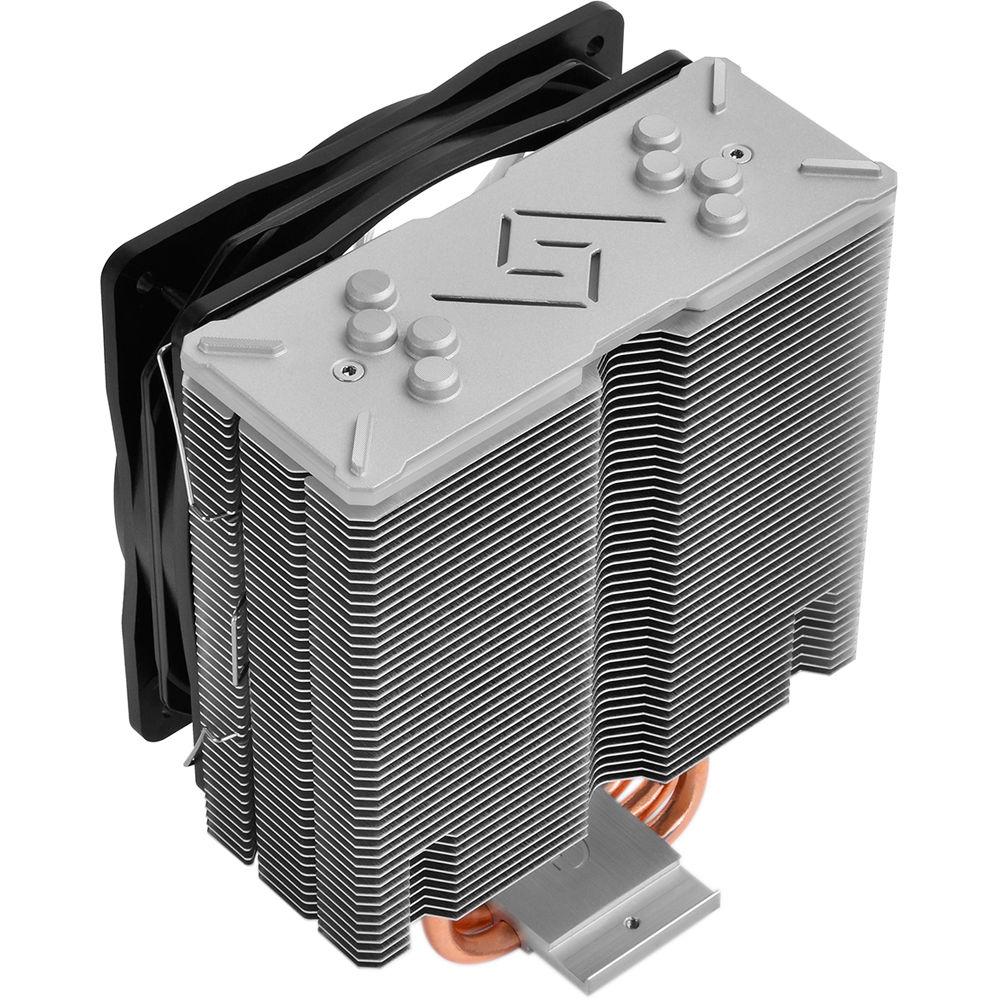

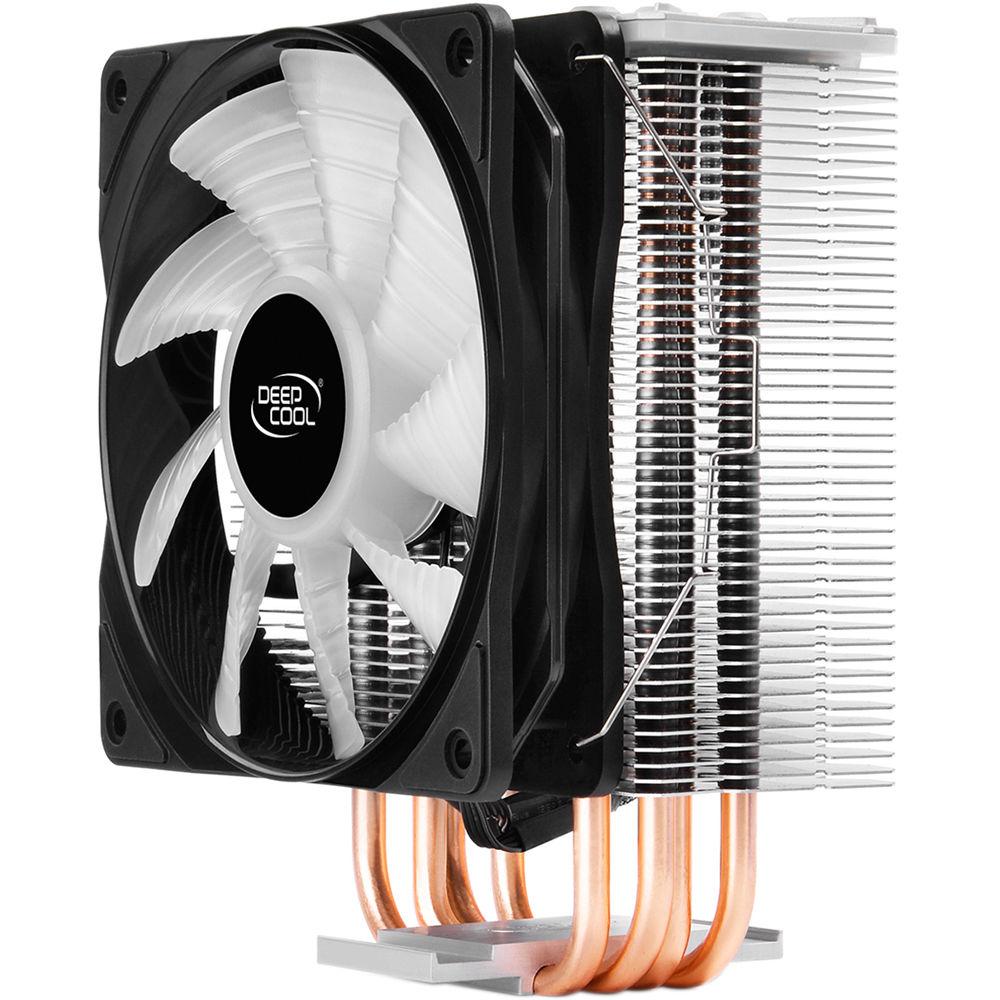

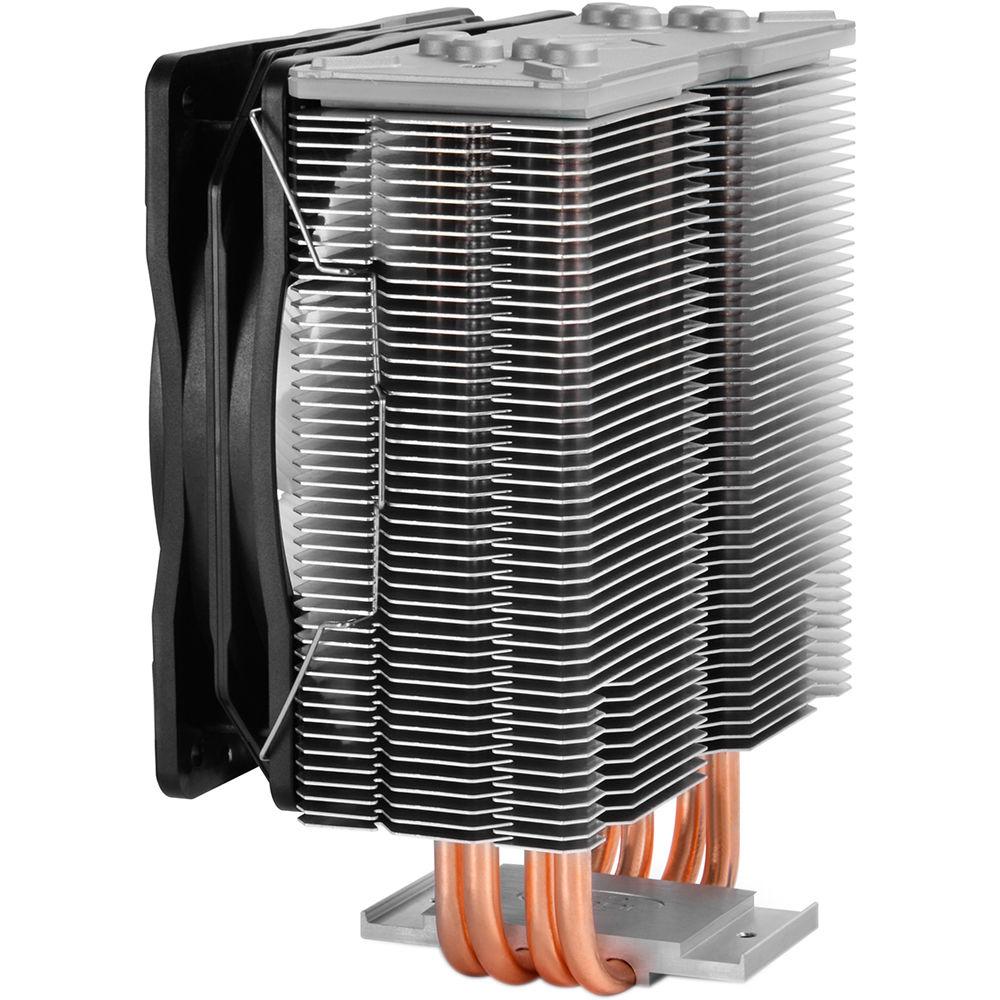

- The heatsink has 0.5mm-thick fins combined with four direct-touch heat pipes to help transfer and dissipate heat from your CPU.
- Easy Installation
- The included optimized mounting kit includes everything you need and installs easily in just a few steps.
In the Box Deepcool Gammaxx GT RGB CPU Cooler 120mm Fan Thermal Paste Back Plate Nut Kit Intel Clip AMD Clip Fan Clip RGB Controller RGB Sync Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Deepcool Gammaxx GT RGB CPU Cooler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeepcool RGB CPU Cooler Specs | Cooler Type | CPU Air Cooler | | Bearing Type | Hydro | | Connectors | 4-Pin | | Control Method | PWM (Pulse Width Modulation) | | Fan Size | 120 mm | | Fan Speed | 500 to 1500 rpm | | Noise Level | 17.8 to 29.5 dBA | | LED | RGB | | Maximum Airflow | 70.08 CFM | | Power Consumption | 2.76 W | | Dimensions (W x H x D) | 5.3 x 6.1 x 3.3" / 135.0 x 156.0 x 84.8 mm | | | | Supported AMD Sockets | AM2, AM2+, AM3, AM3+, AM4, FM1, FM2, FM2+ | | Supported Intel Sockets | LGA 2011, LGA 1150, LGA 1151, LGA 1155, LGA 1156, LGA 1366, LGA 2066 | | Number of Fans | 1 | | Heatsink Material | Copper | | Radiator Material | Aluminum | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 6.772 x 5.984 x 4.803" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 19 owners. Add your rating and experience with the product.
