User Manual for Deepcool Genome Full-Tower Case Click to enlarge the picture
Contents of the user manual for the Deepcool Genome Full-Tower Case
- Product category: Desktop Computer Cases Deepcool
- Brand: Deepcool
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Deepcool Desktop Computer Cases
 |
User manual for the Deepcool Genome Full-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Deepcool product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Deepcool user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Deepcool product will considerably shorten its lifespan!
|

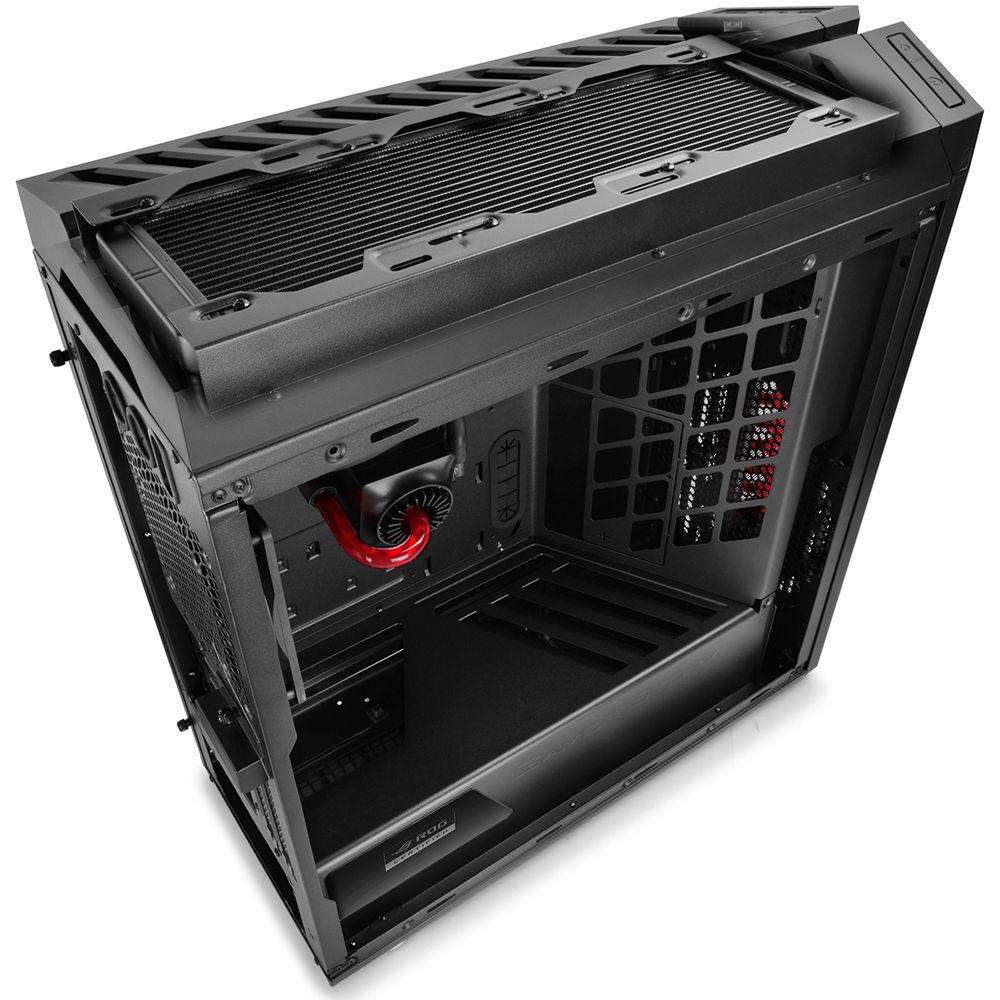

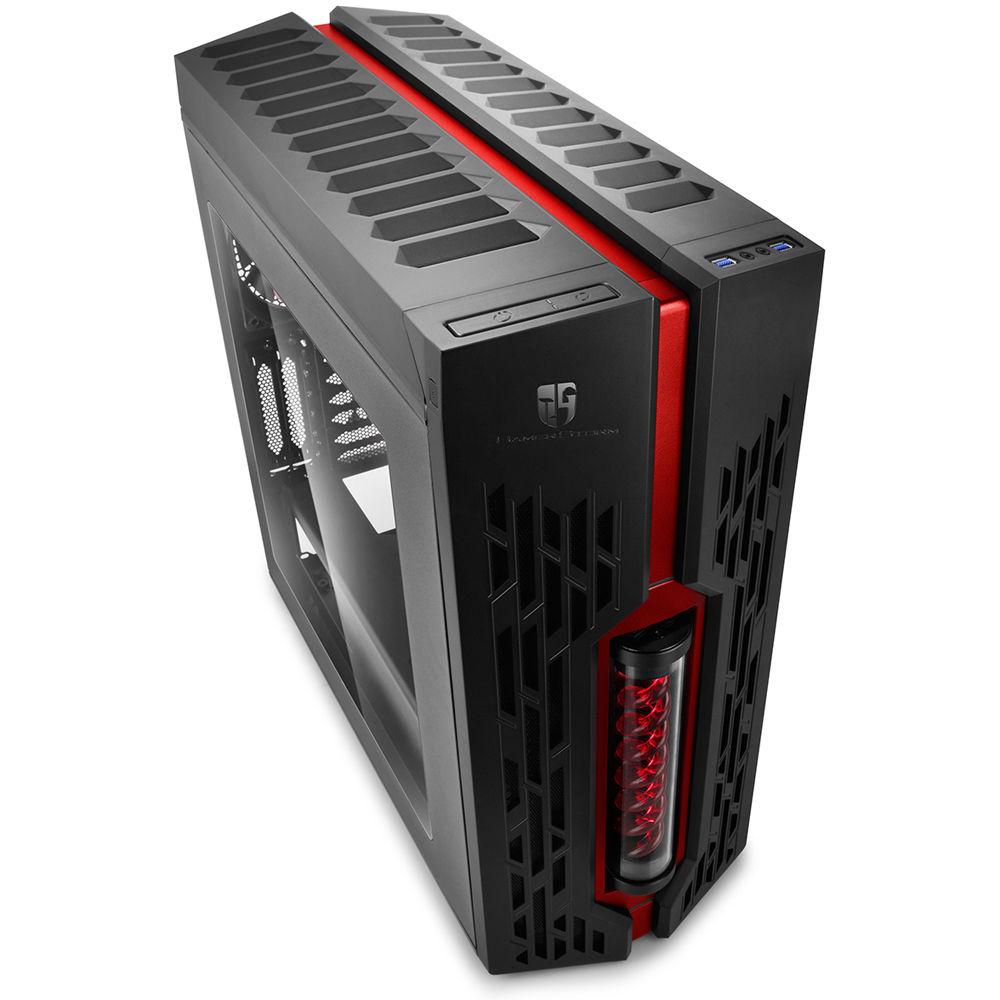

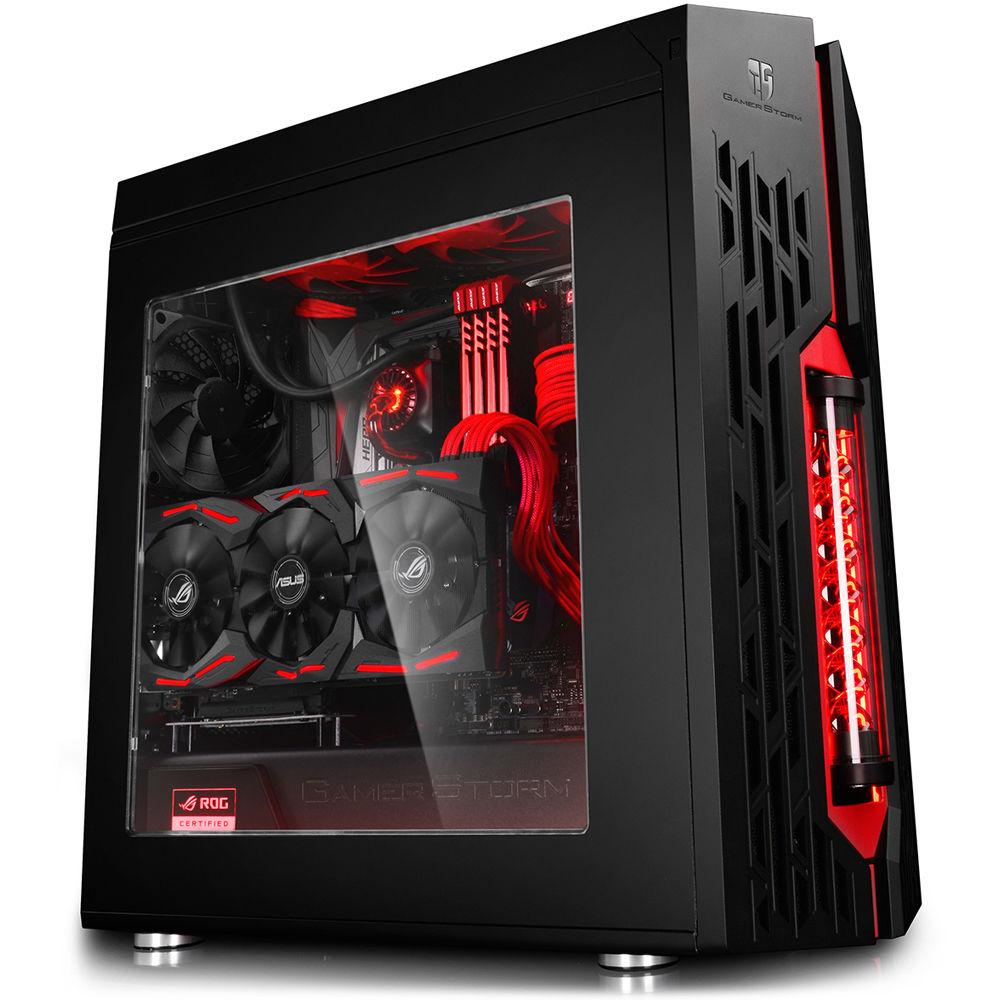

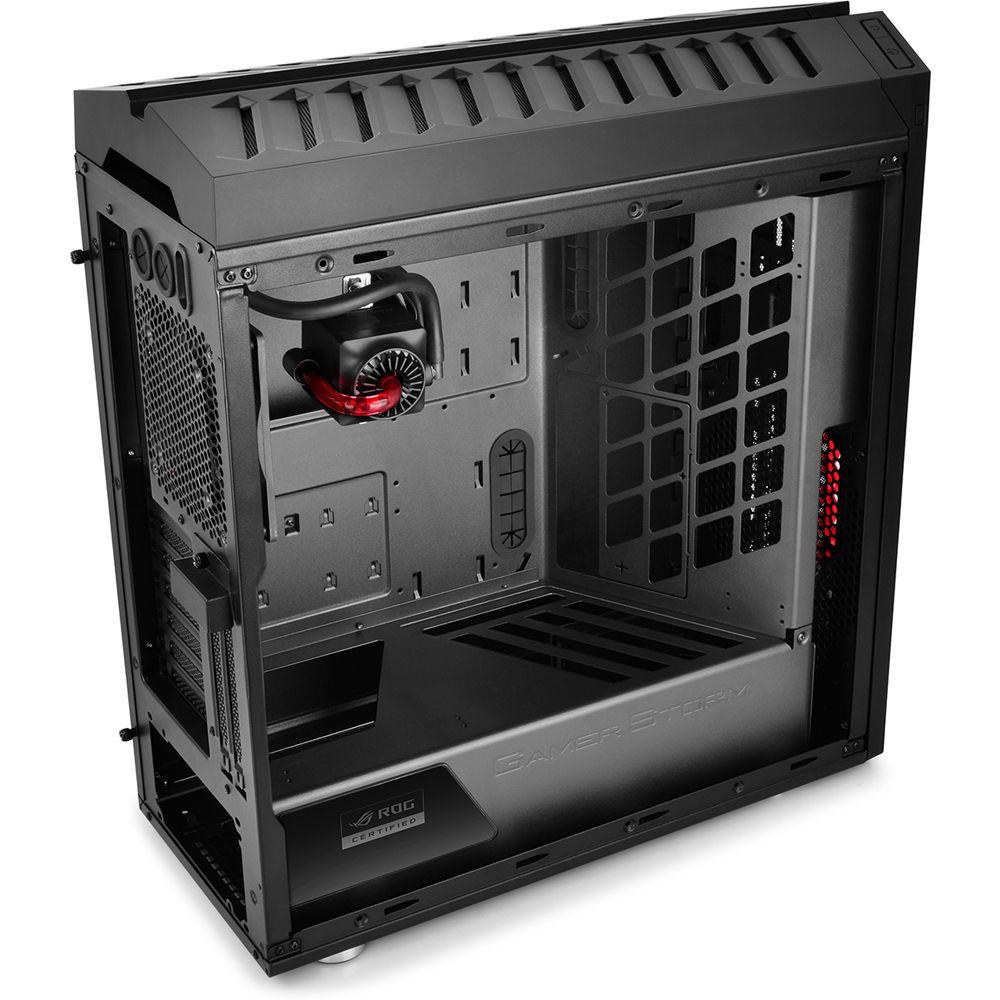

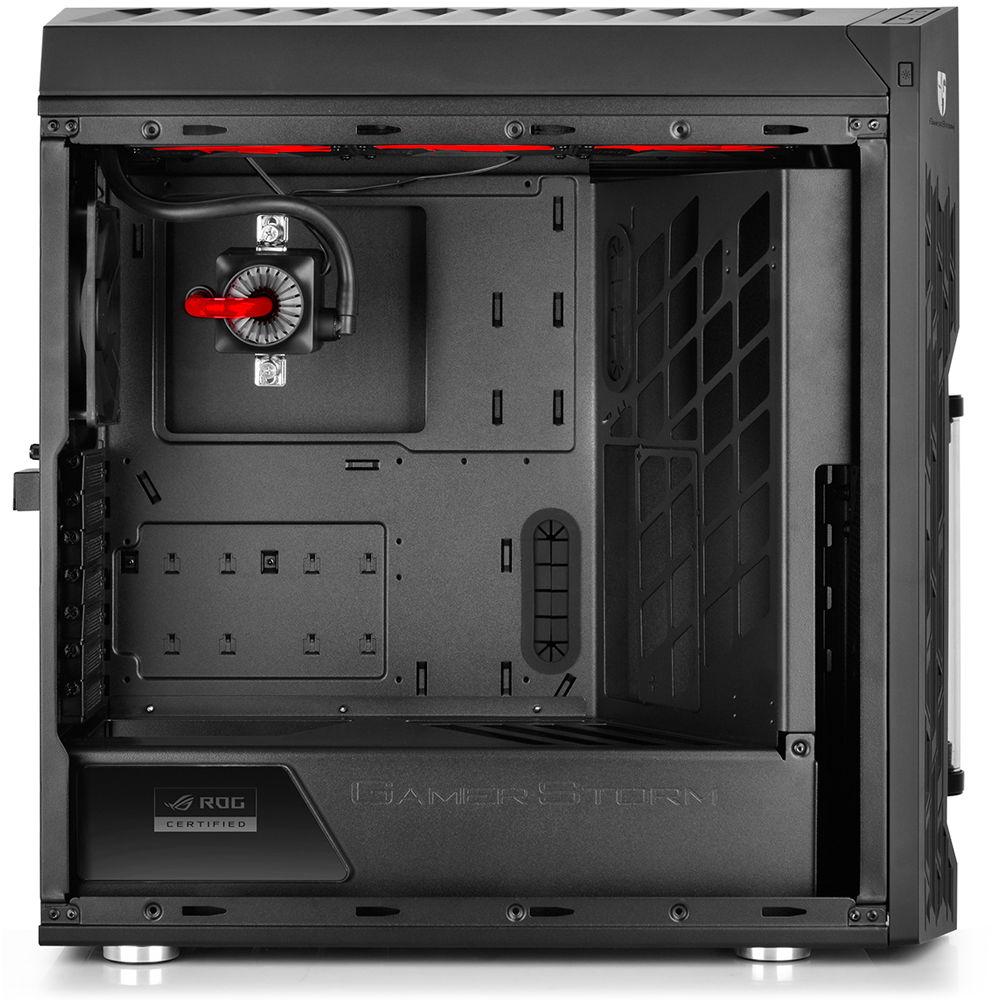

Product description The Deepcool Genome Full-Tower Case ROG Edition enables you to build an overclocked computer system by offering a pre-installed liquid cooling solution, as well as support for ATX-L, ATX, micro-ATX, and mini-ITX motherboards. The Genome sports RGB LED lighting on the logo, water block, reservoir, and other areas. This multicolored system is designed to sync with your motherboard's onboard LEDs, using ROG LED technology. For cooling an Intel or AMD processor, the integrated liquid cooling solution comes with a 360mm radiator, pump, and double-helix reservoir, along with three 120mm two-layer PWM fans. This liquid cooling system allows you to overclock a processor. In addition to this cooling method, a single 120mm fan is installed on the rear of the case for cooling the rest of your internal components.

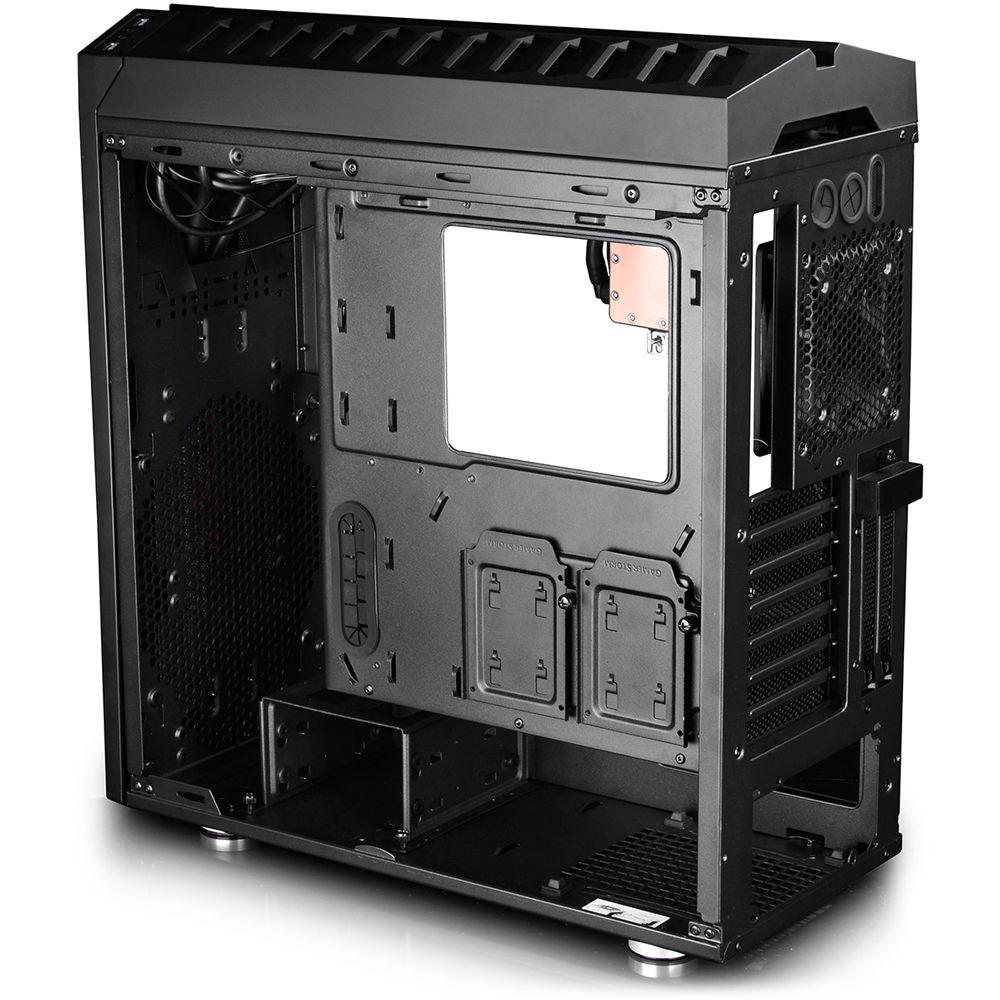

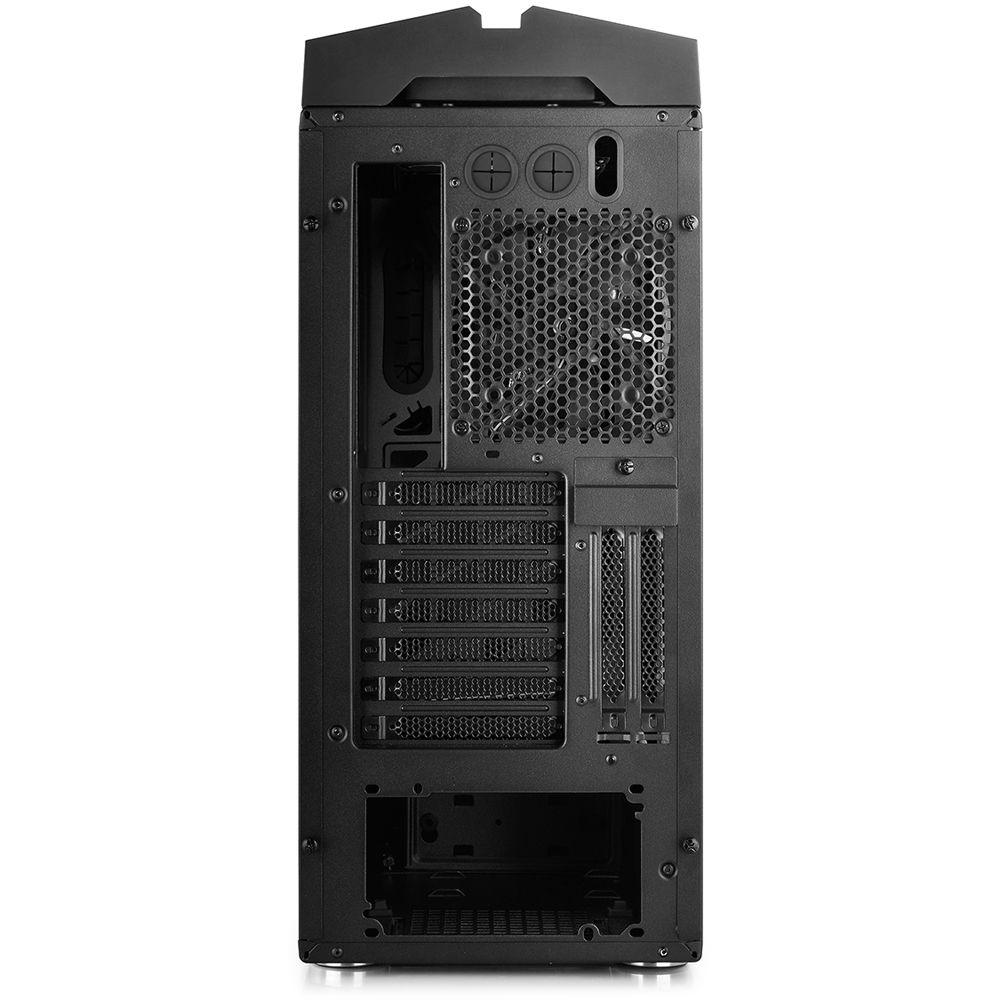

The Deepcool Genome ROG edition features an area behind the motherboard tray to hold up to two 2.5" SSDs or hard drives, as well as a removable drive cage that accommodates up to two 3.5" hard drives. For PCI cards, it provides seven expansion slots and two vertically-positioned expansion slots. With a supplied PCIe extension cable, you can mount your graphics card in the two vertical expansion slots, providing you with a full view of the graphics card through the windowed side panel. Video cards up to 13" long are supported.
Other notable features include two USB 3.0 ports, along with headphone and microphone jacks on the top of the case for easy connectivity with thumb drives, headsets, and other useful devices. Inside the case, Deepcool has outfitted the Genome with rubber grommets along with space to tidy your cables. To help keep the insides dust-free, a filter is provided. Additionally, the front of the case can hold either one 200mm fan or two 120mm fans for extra cooling. - Full-tower chassis with an integrated 360mm radiator liquid cooling system
- Certified by ROG for compatibility with ROG LED lighting system
- Integrated remote-controlled RGB lighting system for ROG logo, water block, reservoir, and LED strips
- One extra Aura RGB header available, giving you control over the system's lighting
- Two fixed positions for a 3.5" HDD cage to offer a flexible space for a power supply unit
- Extra space offered for a DIY water cooling system
- Vertical installation of a graphics card to keep it more stable, with the included PCI-E extension cable
- Large CPU cutout on motherboard tray
- Two USB 3.0 ports, windowed side panel, and metal logo
- Rubber buffer and dust filter for power supply
In the Box Deepcool Genome Full-Tower Case (ROG Edition) PCIe Extension Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Deepcool Genome Full-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeepcool GENOME ROG Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | Internal Drive Bays | 2 x 3.5"
2 x 2.5" | | Expansion Slots | 7 x Full Height + 2 | | Maximum GPU Length | 13" / 33 cm | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 2 x 120 mm
Or
1 x 200 mm
| | Fans Included (Rear) | 1 x 120 mm (Variable rpm) | | Maximum Radiator Size (Front) | 240 mm | | Maximum Radiator Size (Top) | 360 mm | | Noise Level | 17.6 to 31.3 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 19.9 x 8.3 x 19.9" / 50.6 x 21.0 x 50.5 cm | | Weight | 21.5 lb / 9.8 kg | | | | Package Weight | 26.5 lb | | Box Dimensions (LxWxH) | 23.6 x 23.0 x 11.4" |
