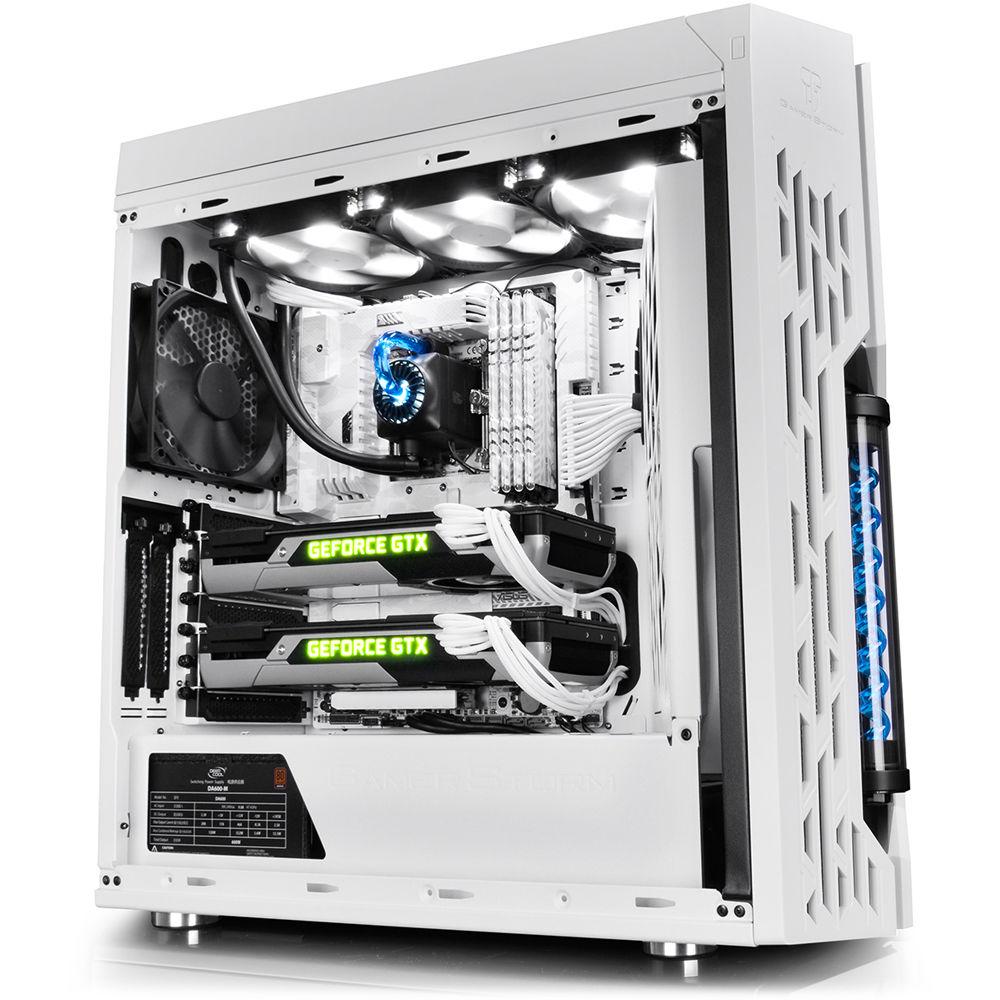

Product description The Deepcool Genome II Full-Tower Case enables you to build a high-end computer system by offering a pre-installed liquid cooling solution as well as support for extended-ATX, ATX, micro-ATX, and mini-ITX motherboards. The Genome II is designed with a white chassis and blue LED lights on a double-helix reservoir. Cooling an Intel or AMD processor is accomplished with a liquid-cooling solution that includes a 360mm radiator, pump, and double-helix reservoir along with three 120mm two-layer PWM fans. This liquid-cooling system allows you to overclock a processor. In addition to this system, a single 120mm fan is installed on the rear of the case for cooling the rest of your internal components.

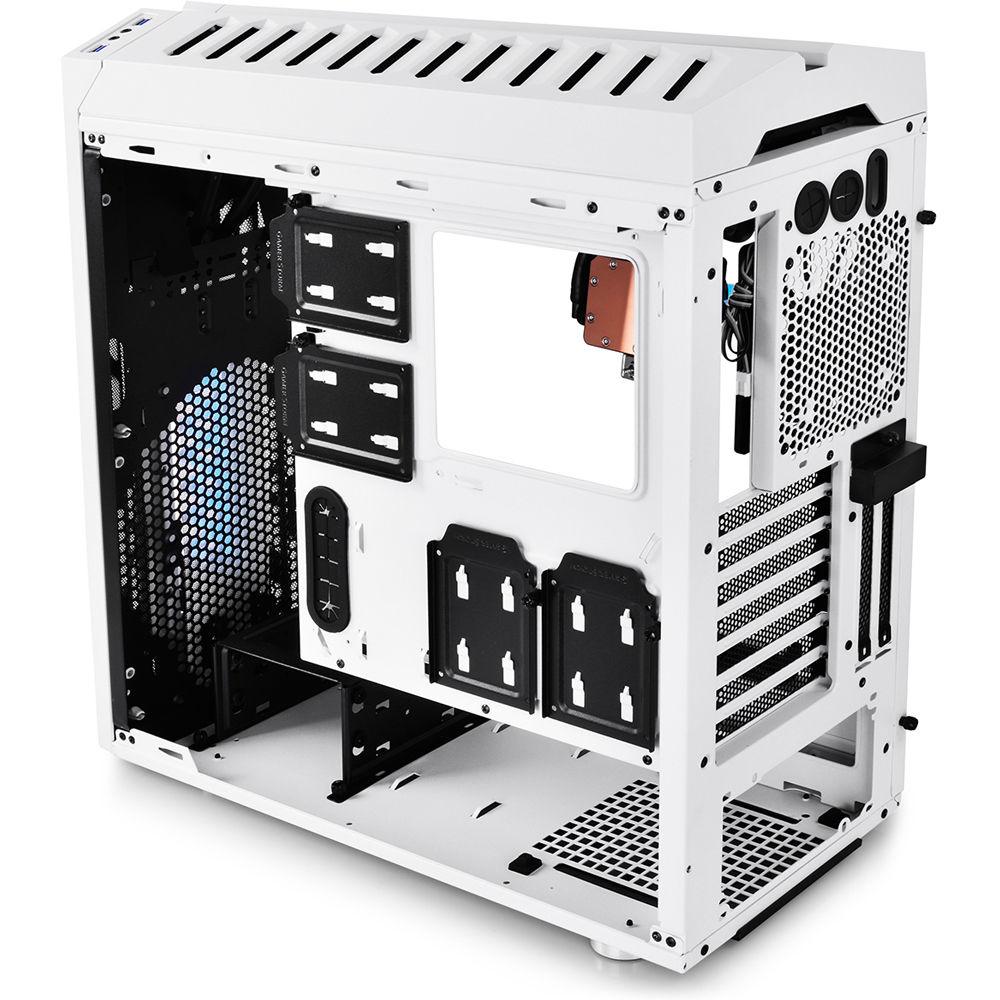

The Deepcool Genome II features an area behind the motherboard tray to hold up to two 2.5" SSDs or hard drives as well as a removable drive cage that accommodates up to two 3.5" hard drives. For PCI cards, it provides seven expansion slots and two vertically-positioned expansion slots. With a supplied PCIe extension cable, you can mount your graphics card in the two vertical expansion slots, providing you with a full view of the graphics card through the windowed side panel. Video cards up to 13" long are supported.
Other notable features include two USB 3.0 ports along with headphone and microphone jacks on the top of the case for easy connectivity with thumbdrives, headsets, and other useful devices. Back inside the case, Deepcool has outfitted the Genome II with rubber grommets along with space to tidy your cables. To help keep the insides dust-free, a filter is provided. Additionally, the front of the case can hold either one 200mm fan or two 120mm fans for extra cooling. - 360mm radiator liquid cooling system (including a front helix tube) pre-installed

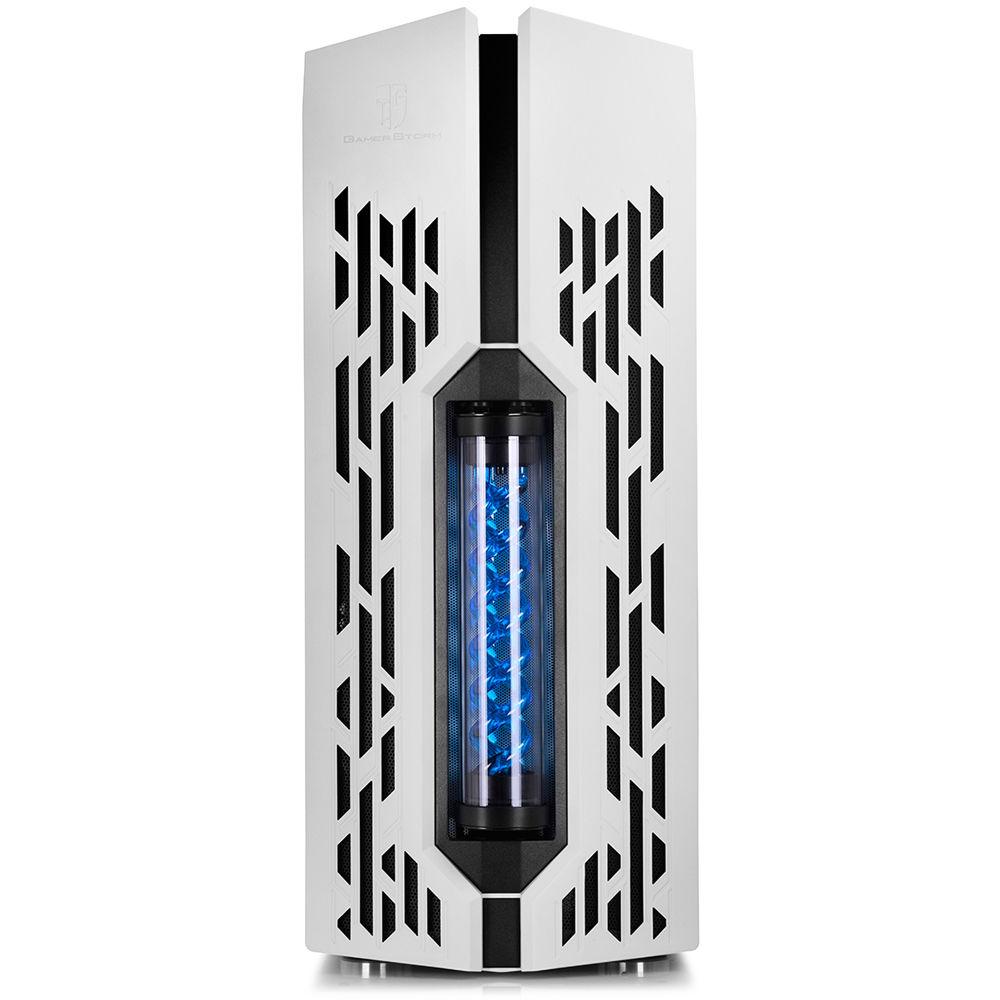

- Transparent helix water tube visible at front panel, equipped with a blue LED strip
- Optimized internal structure, separating functional areas, providing more compatible extended support for different parts
- Two fixed positions for a 3.5" HDD cage to offer a flexible space for a power supply unit
- LED lights on liquid-cooling fans and water pump
- Extra space offered for a DIY water cooling system
- Vertical installation of a graphic card to keep it more stable with the included PCI-E extension cable
- Large CPU cutout on motherboard tray
- Two USB 3.0 ports, windowed side panel, and metal logo
- Rubber buffer and dust filter for power supply
In the Box Deepcool Genome II Full-Tower Case (White) PCIe Extension Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Deepcool Genome II Full-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeepcool GENOME II WH-BL Specs | | | Motherboard Support | E-ATX, ATX, Micro-ATX, Mini-ITX | | Internal Drive Bays | 2 x 3.5"
2 x 2.5" | | Expansion Slots | 7 x Full Height + 2 | | Maximum GPU Length | 13" / 33 cm | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 2 x 120 mm
Or
1 x 200 mm
| | Fans Included (Rear) | 1 x 120 mm (Variable rpm) | | Maximum Radiator Size (Front) | 240 mm | | Maximum Radiator Size (Top) | 360 mm | | Noise Level | 17.6 to 31.3 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 19.9 x 8.3 x 19.9" / 506.0 x 210.0 x 505.0 mm | | Weight | 21.5 lb / 9.8 kg | | | | Package Weight | 26.25 lb | | Box Dimensions (LxWxH) | 23.5 x 23.0 x 11.0" |
