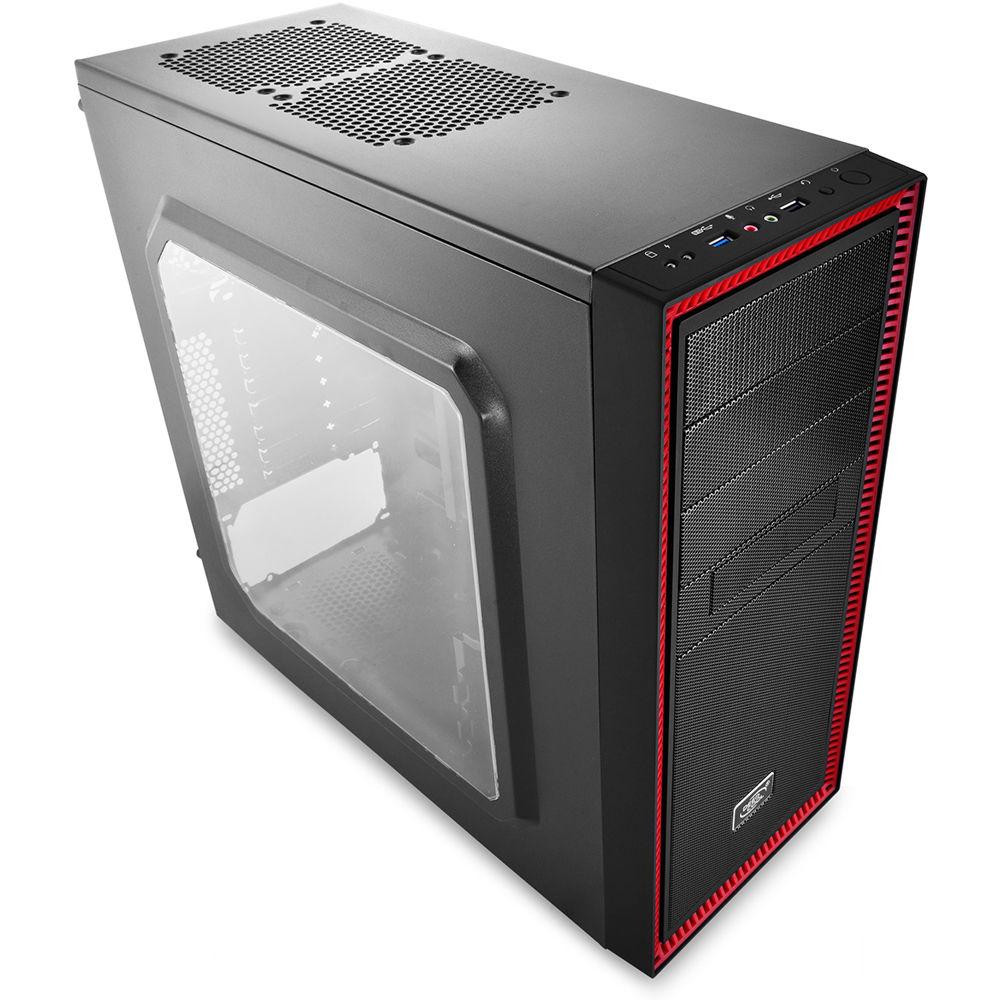

User Manual for Deepcool Tesseract Mid-Tower Case Click to enlarge the picture
Contents of the user manual for the Deepcool Tesseract Mid-Tower Case
- Product category: Desktop Computer Cases Deepcool
- Brand: Deepcool
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Deepcool Desktop Computer Cases
 |
User manual for the Deepcool Tesseract Mid-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Deepcool product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Deepcool user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Deepcool product will considerably shorten its lifespan!
|

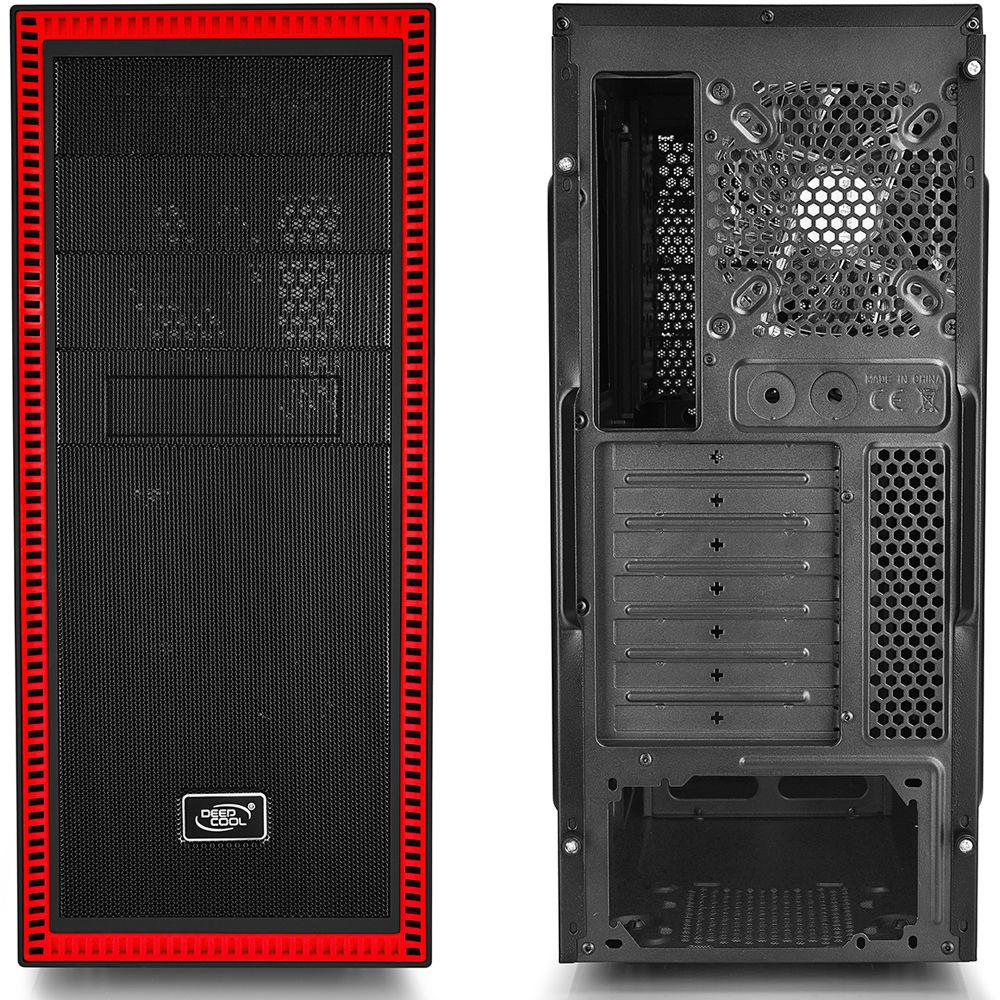

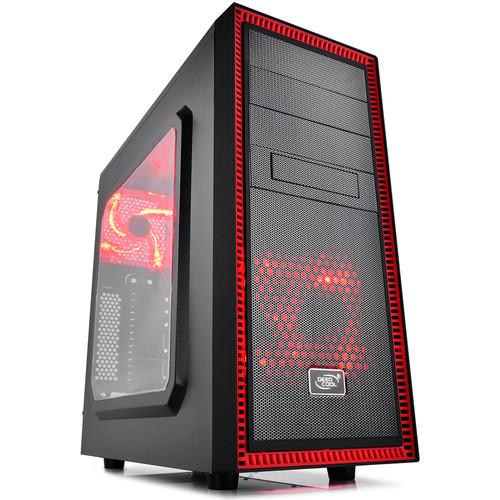

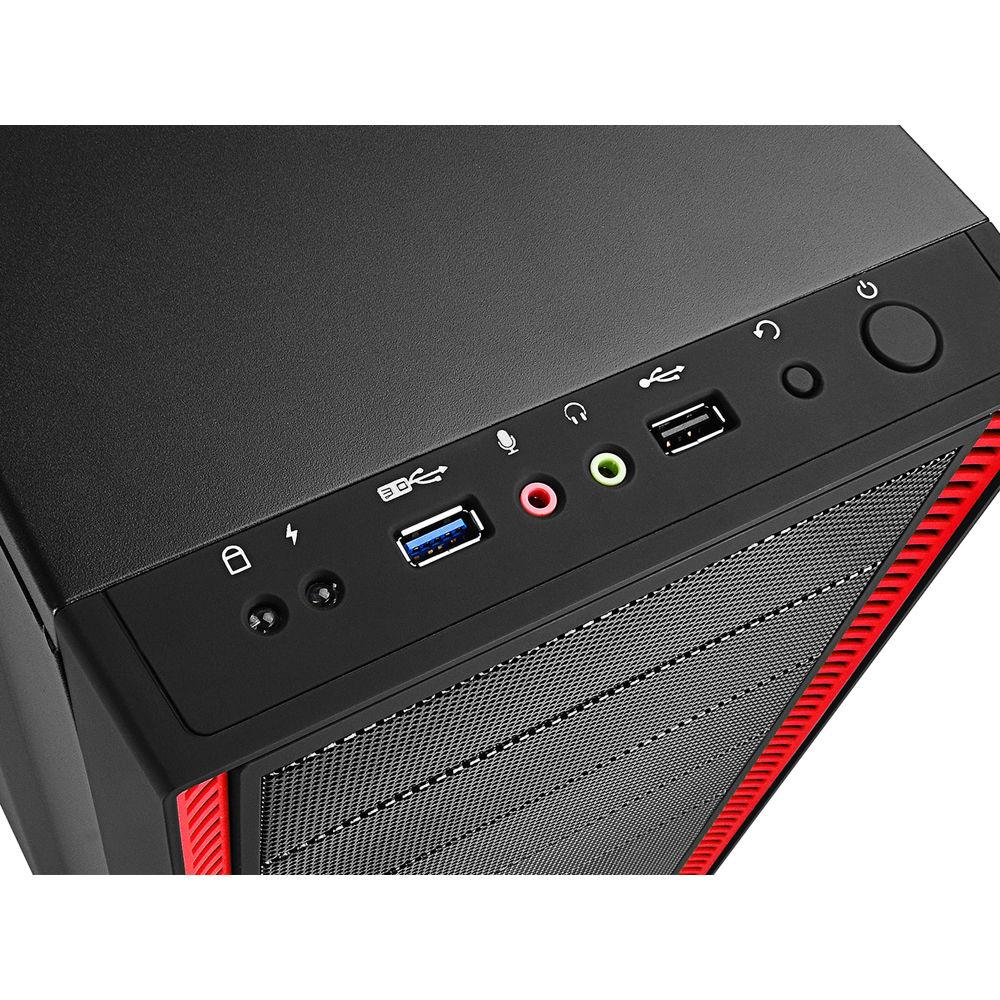

Product description The Tesseract Mid-Tower Case from Deepcool can accommodate ATX, Micro-ATX, and Mini-ITX motherboards making it ideal for both DIY enthusiasts and gamers. Additionally, it can fit up to two 5.25", four 3.5", and three 2.5" drives as well as graphics cards up to 12.2" long. The drive bays feature tool-less functionality for easy installation. At the front of the case, you'll have access to one USB 3.0, one USB 2.0, and audio in and out jacks. Multiple vents and air intake channels on the perimeter of the front panel provide ample airflow for your hardware while dust filters keep your system clean. There are also many fan mounting locations so you can add more fans for extreme cooling. To simplify hardware installation, Deepcool has designed this case with plenty of holes for cable management and a large CPU cutout for easy cooler setup. -
- Dust filters prevent dust build up, which can leads to overheating issues

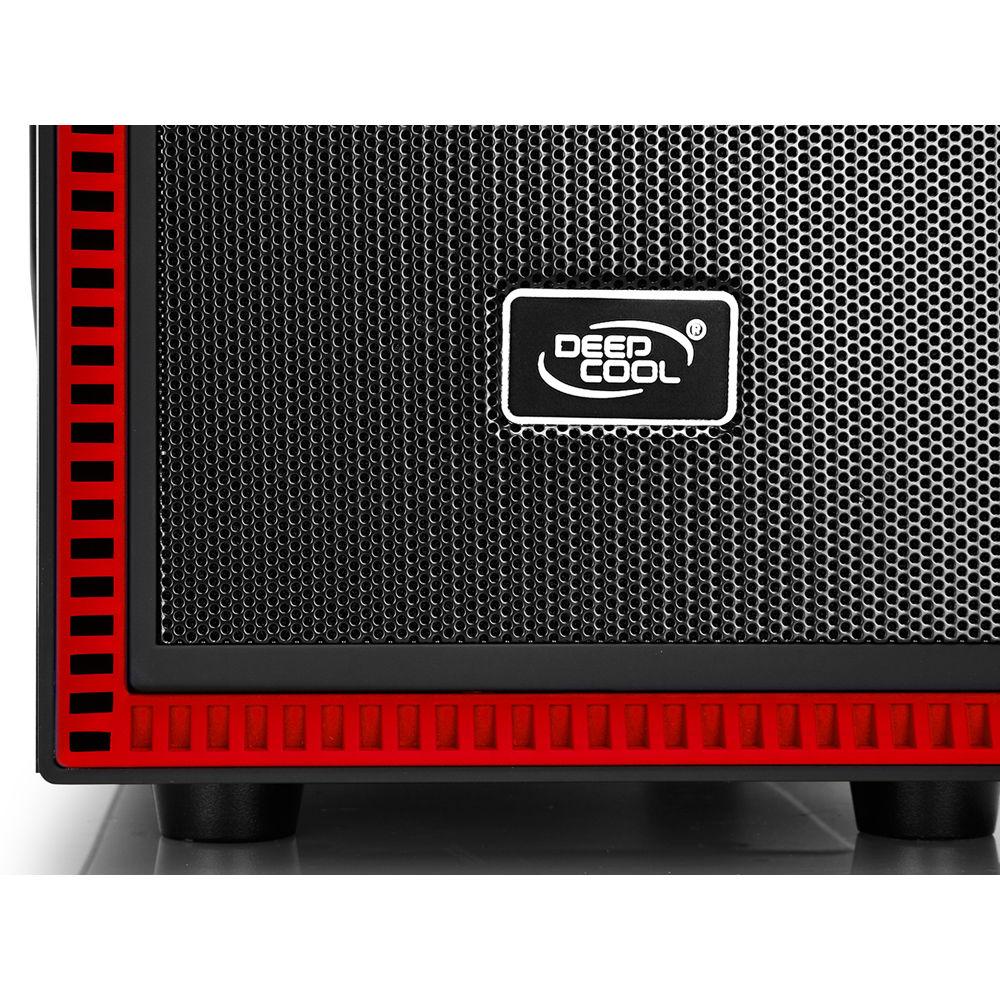

- Air intake channels on the perimeter of the front panel

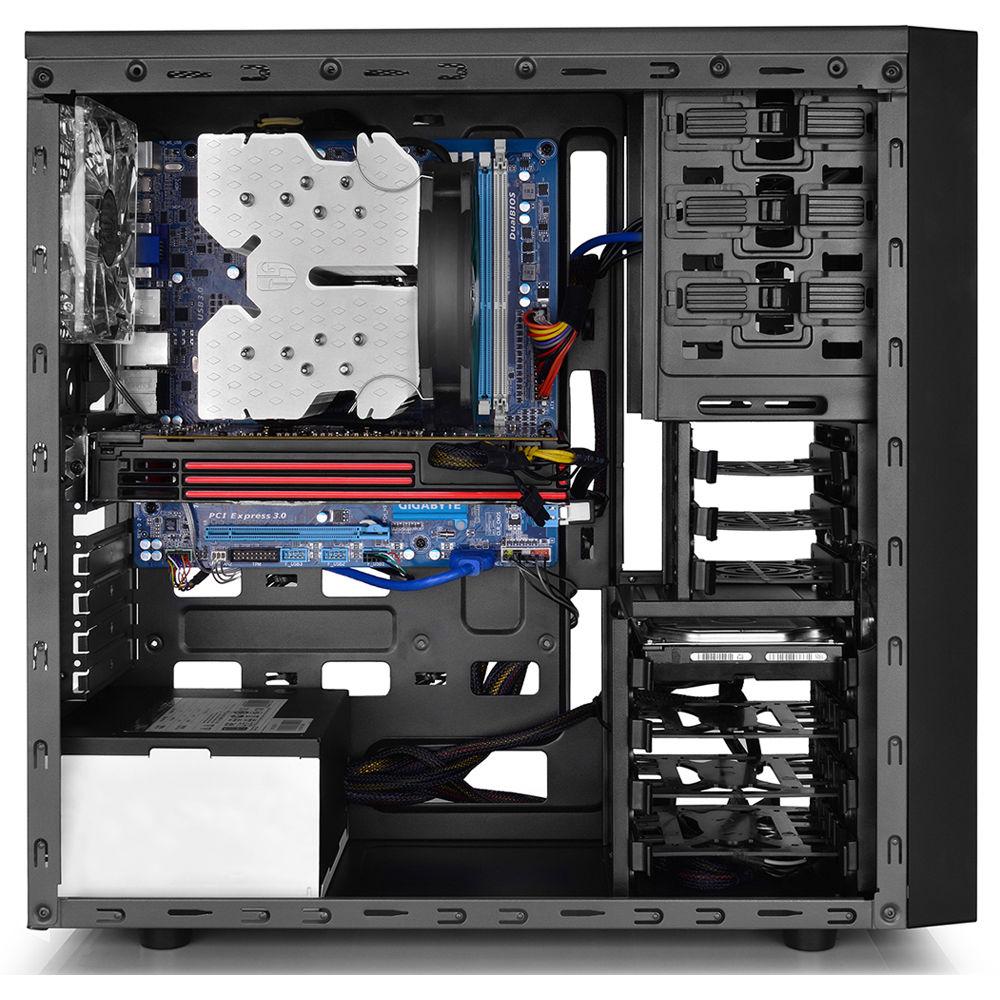

- Large CPU cutout for easy cooler installation

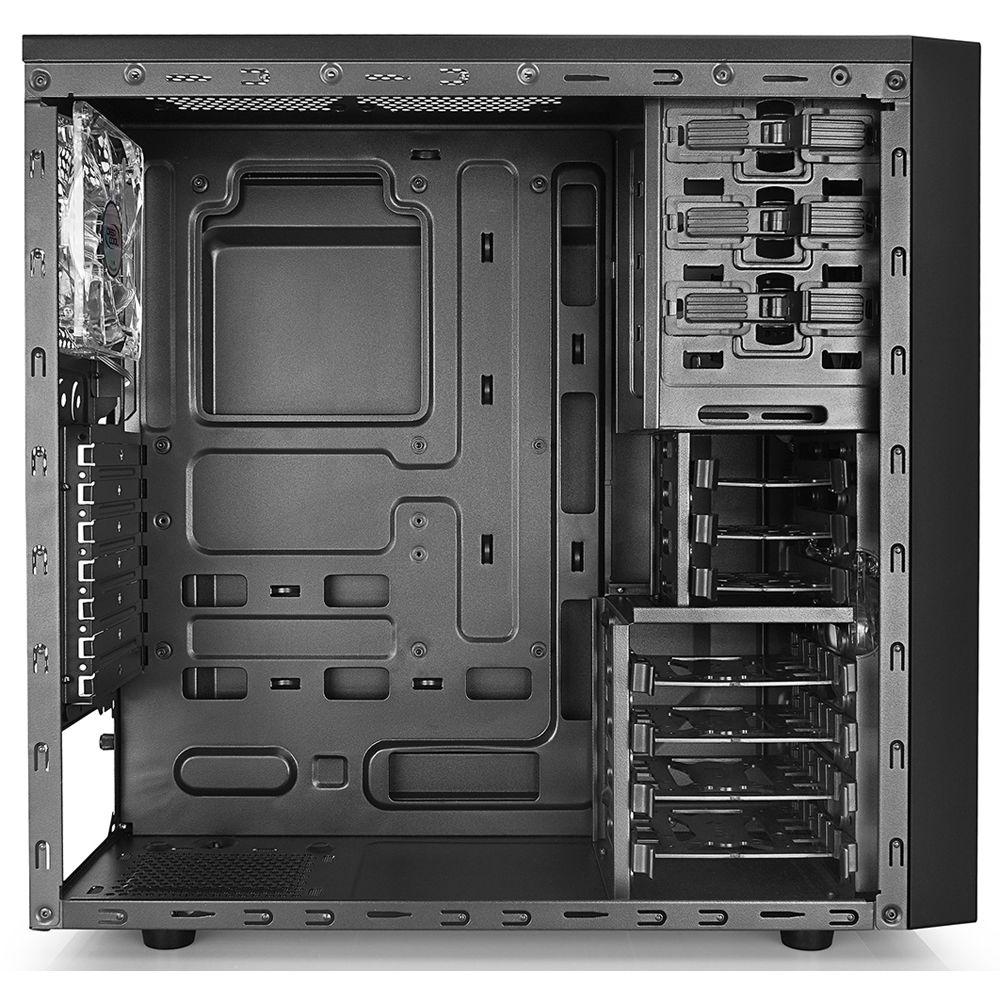

- Multiple holes for cable management

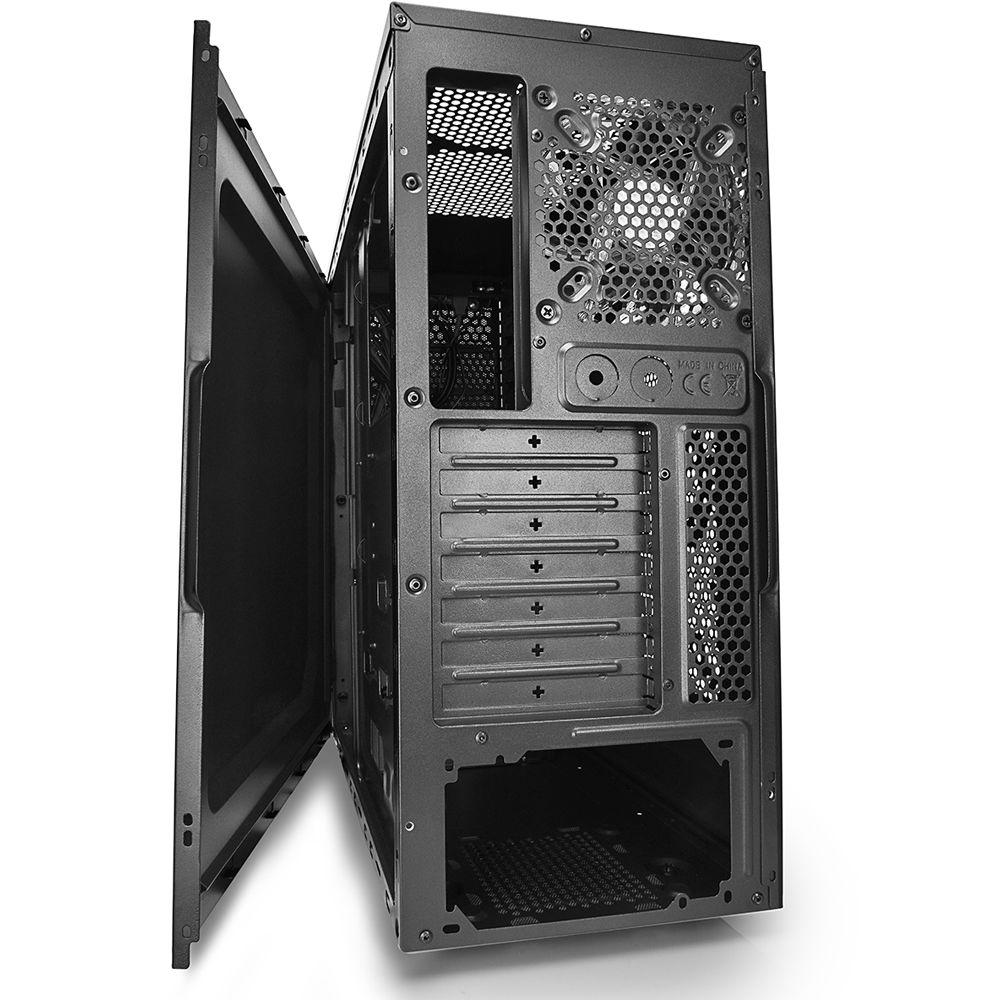

- Support for a 120 mm radiator at the rear for liquid cooling

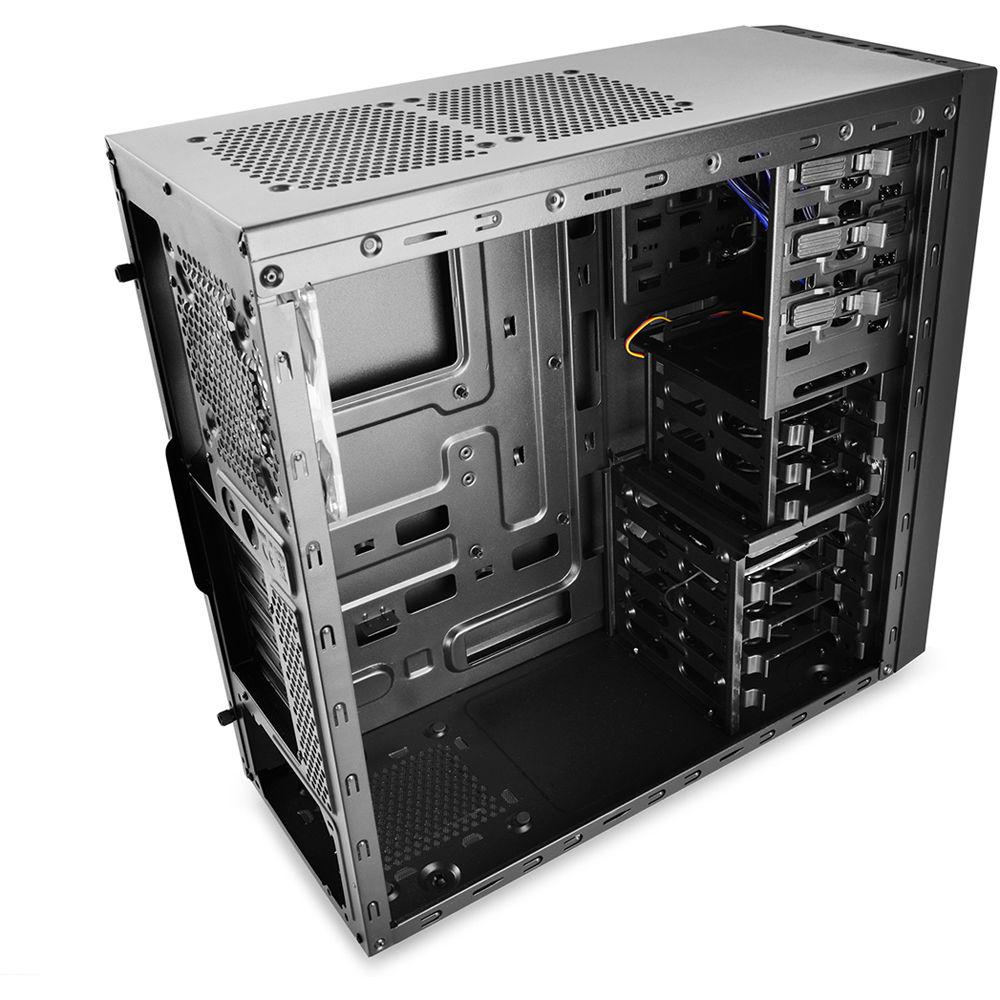

- Tool-free drive installation

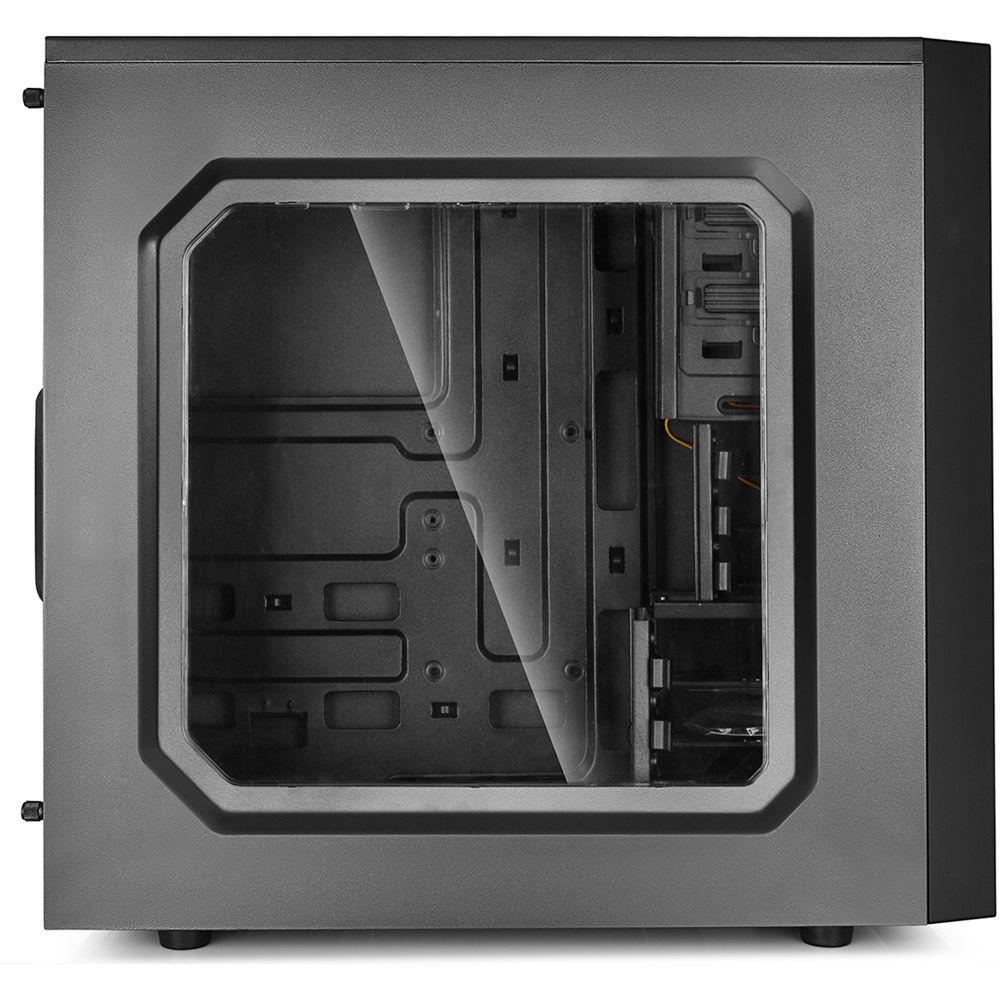

- Windowed side panel lets you show off your build and quickly examine components
In the Box Deepcool Tesseract Mid-Tower Case (Black / Red, Window) Screw Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Deepcool Tesseract Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Deepcool Tesseract Mid-Tower Case can be downloaded in PDF format at the link stated below.
Technical parametersDeepcool TESSERACT SW-RD Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 2 x 5.25" | | Internal Drive Bays | 4 x 3.5"
3 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 12.2" / 31 cm | | CPU Cooler Height | 6.6" / 16.7 cm | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 1 x 120 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Top) | 2 x 120 mm
| | Fan Mounting (Bottom) | None | | Fans Included (Front) | 1 x 120 mm LED | | Fans Included (Rear) | 1 x 120 mm LED | | Fans Included (Top) | None | | Maximum Radiator Size (Rear) | 120 mm | | Fan Mounting (Internal) | None | | Fan Controller Included | No | | | | Connections | 1 x USB Type-A (USB 3.0)
1 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel, Plastic, Rubber | | Cable Management Space | None | | Dimensions (W x H x D) | 18.6 x 8.3 x 17.9" / 472.0 x 210.0 x 454.0 mm | | Weight | 11 lb / 5 kg | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 21.0 x 20.0 x 10.5" |
