User Manual for Defender 4-Channel 4MP NVR with 1TB HDD & 2 4MP Outdoor Night Vision Wi-Fi Bullet Cameras Click to enlarge the picture
Contents of the user manual for the Defender 4-Channel 4MP NVR with 1TB
- Product category: Surveillance Systems Defender
- Brand: Defender
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Defender Surveillance Systems
 |
User manual for the Defender 4-Channel 4MP NVR with 1TB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Defender product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Defender user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Defender product will considerably shorten its lifespan!
|

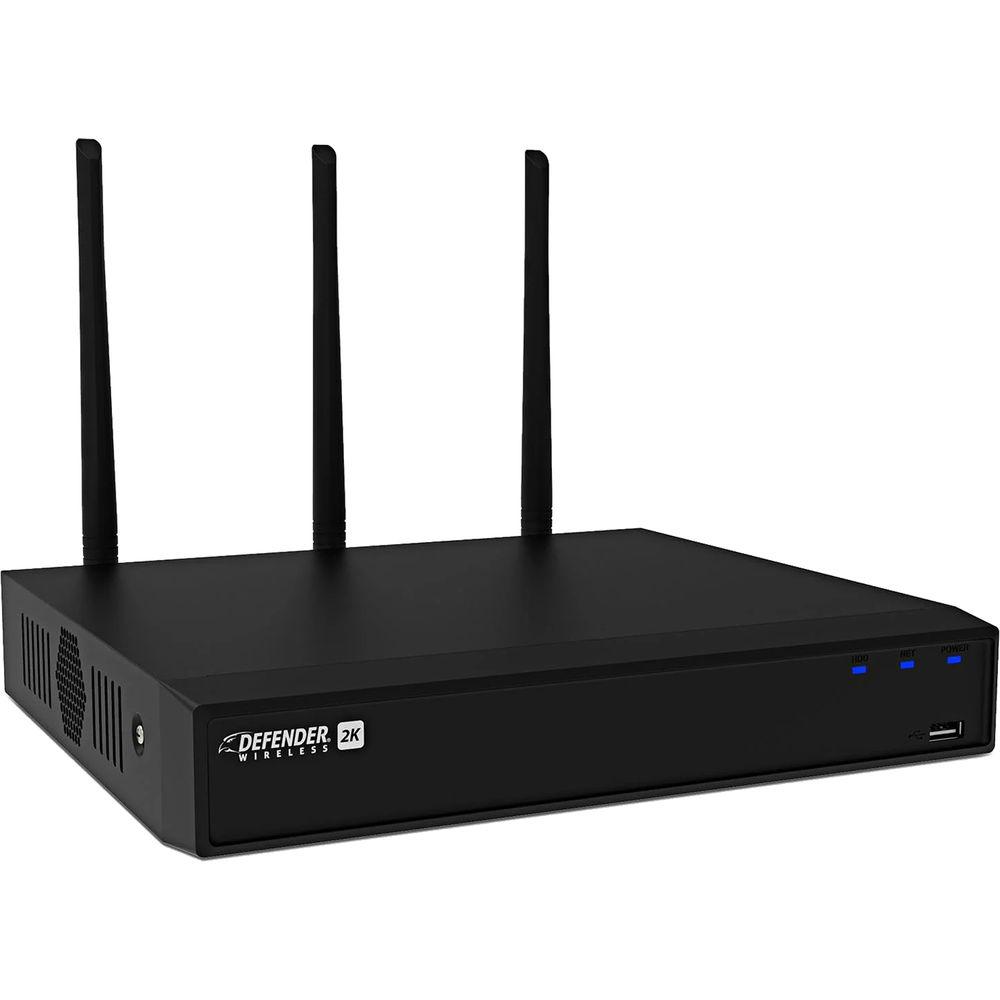

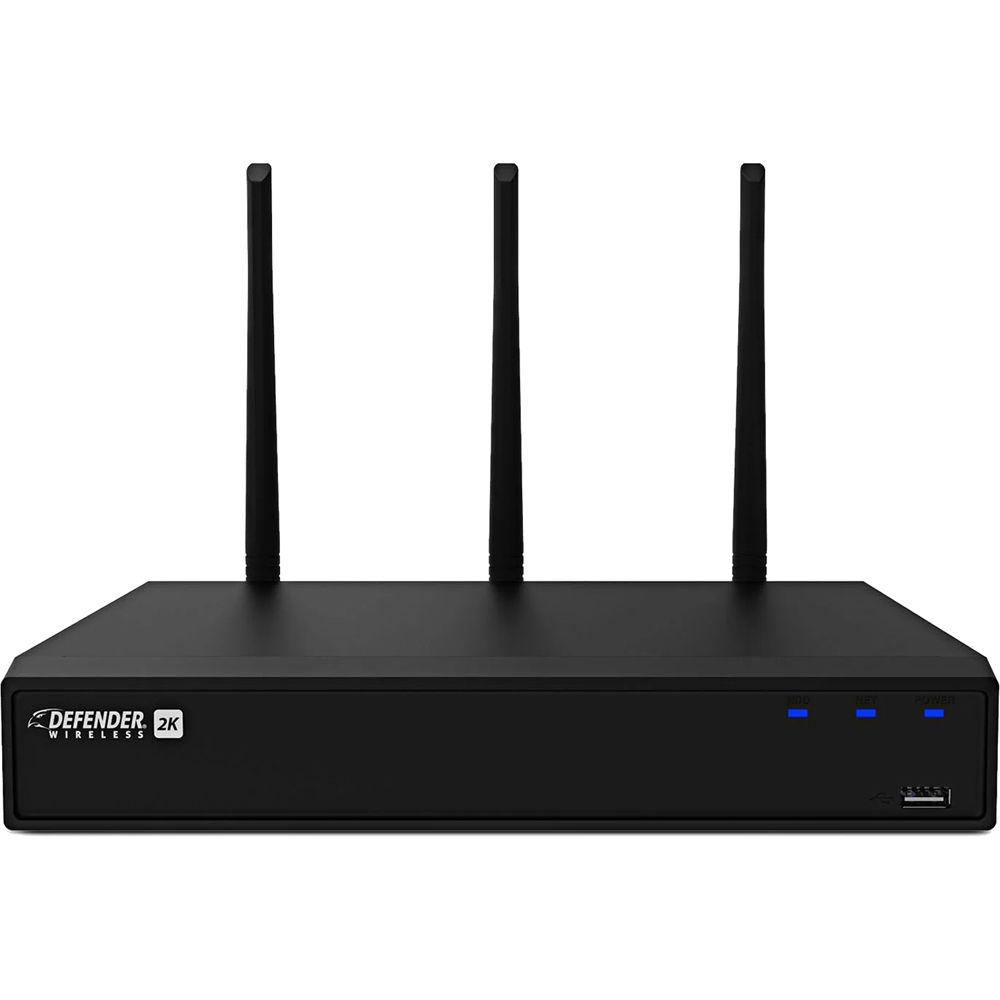

Product description Monitor your home or business with the 4-Channel 4MP NVR with 1TB HDD & 2 4MP Outdoor Night Vision Wi-Fi Bullet Cameras from Defender. The NVR enables you to manage and record from up to 4 cameras. It comes with a preinstalled 1TB HDD to store recorded video from the included bullet cameras. The SmartSignal app for iOS and Android enables remote viewing and lets you receive instant alerts.

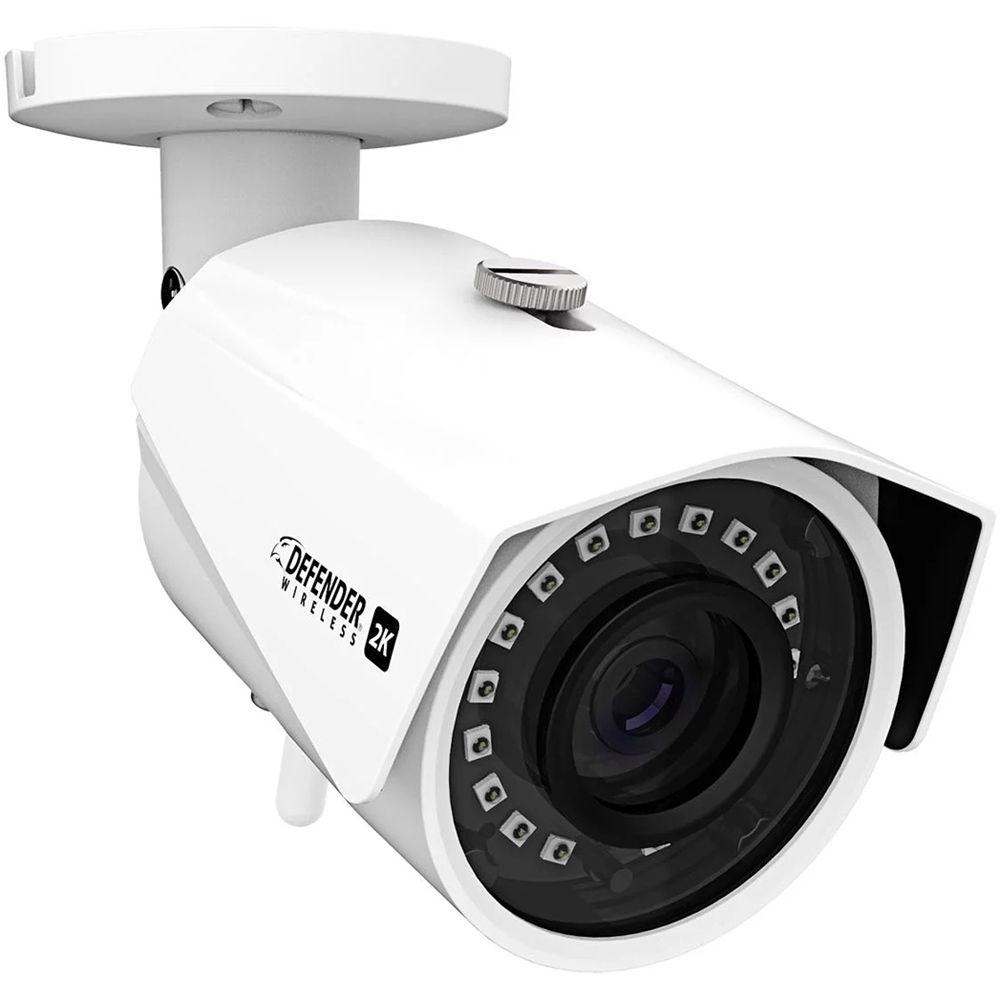

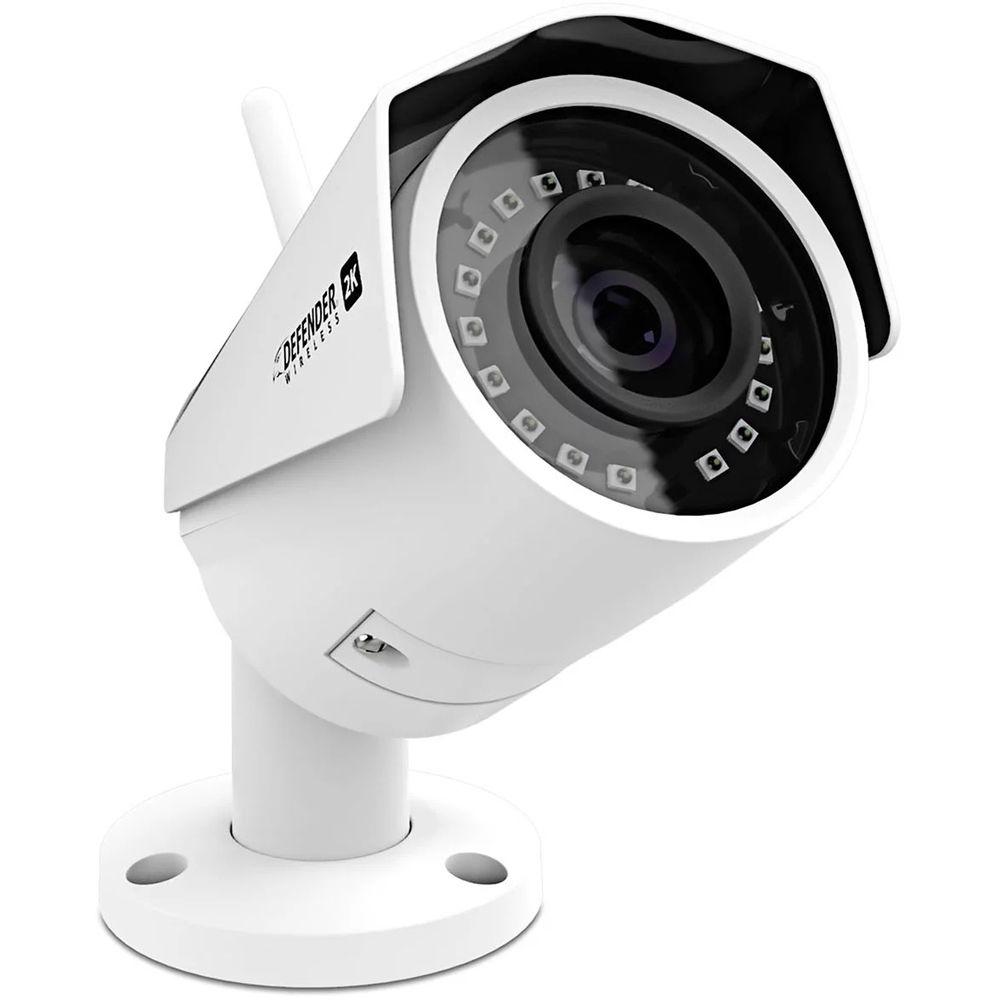

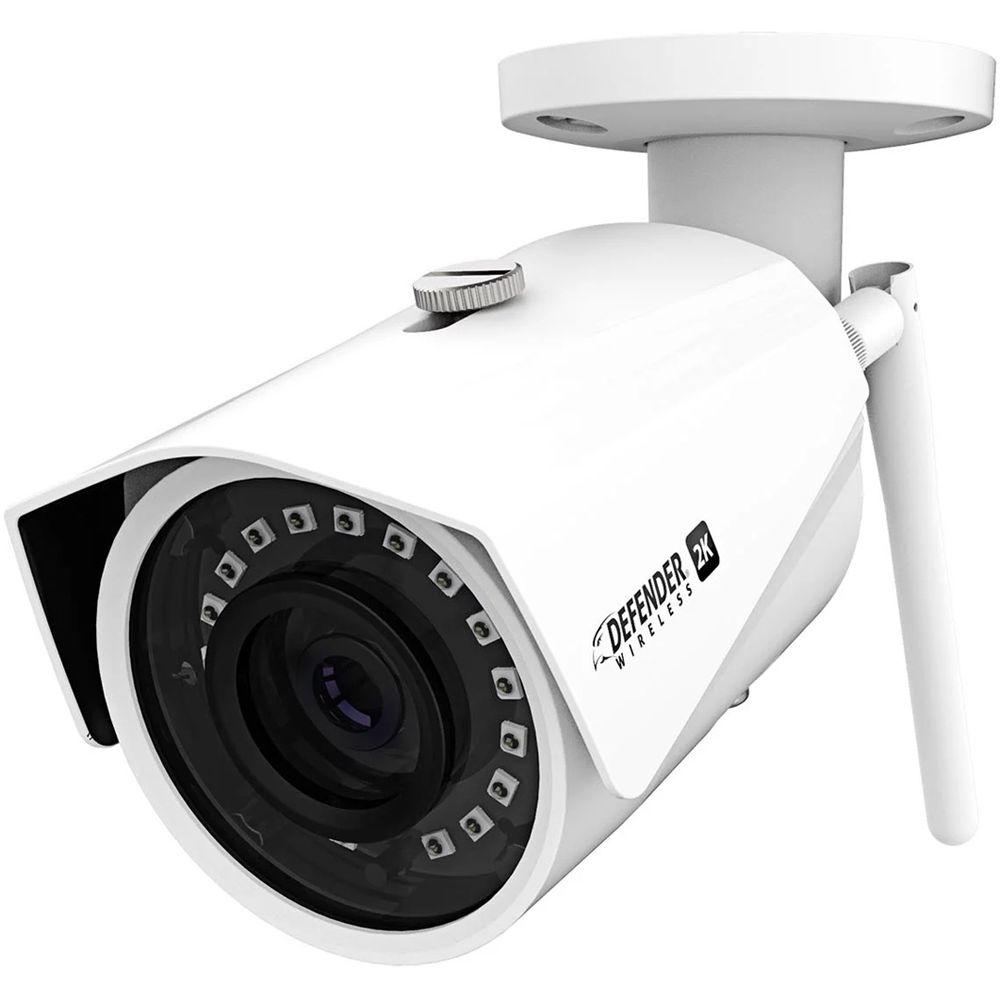

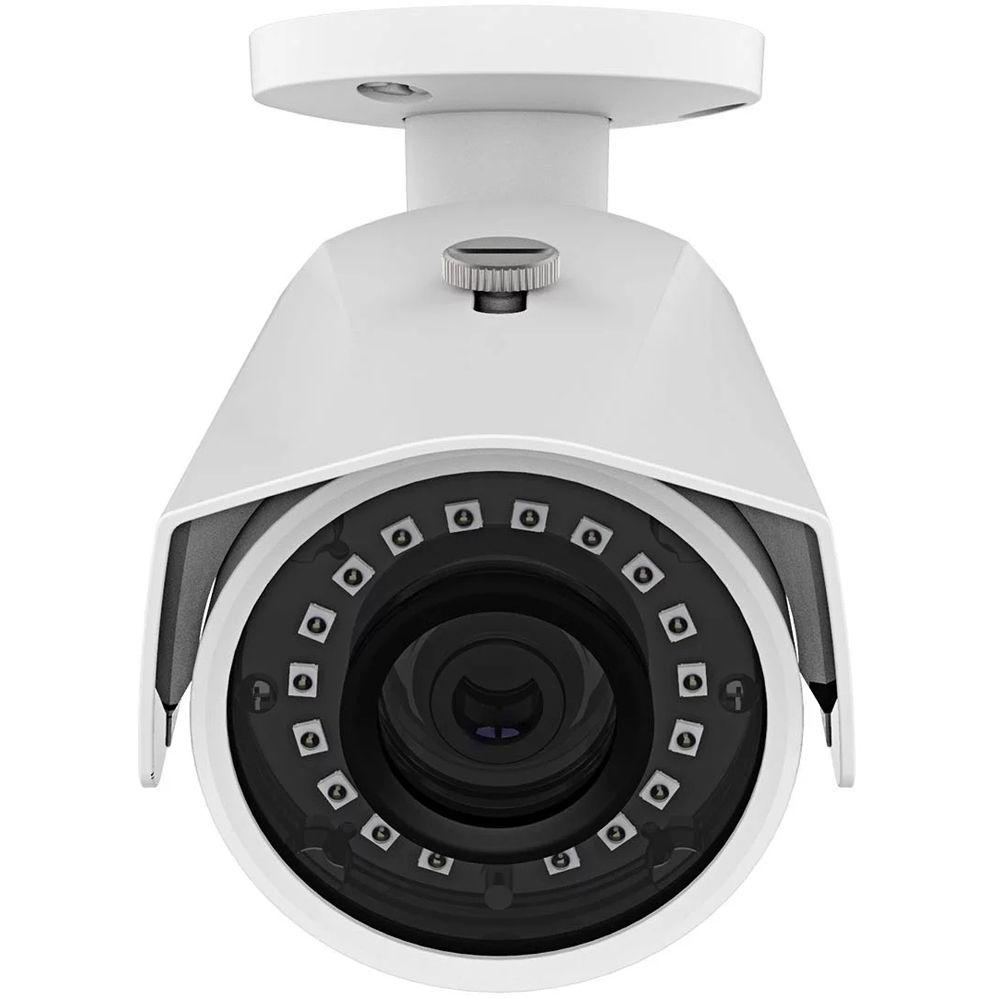

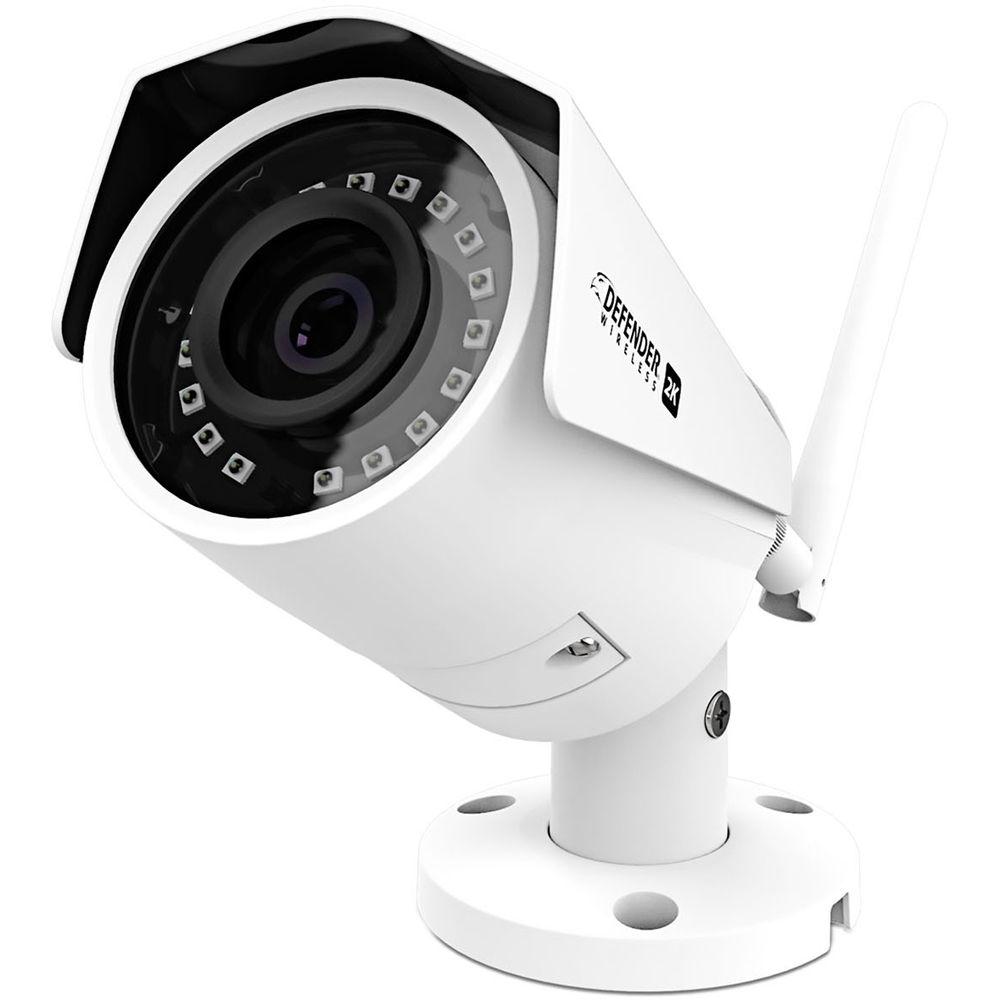

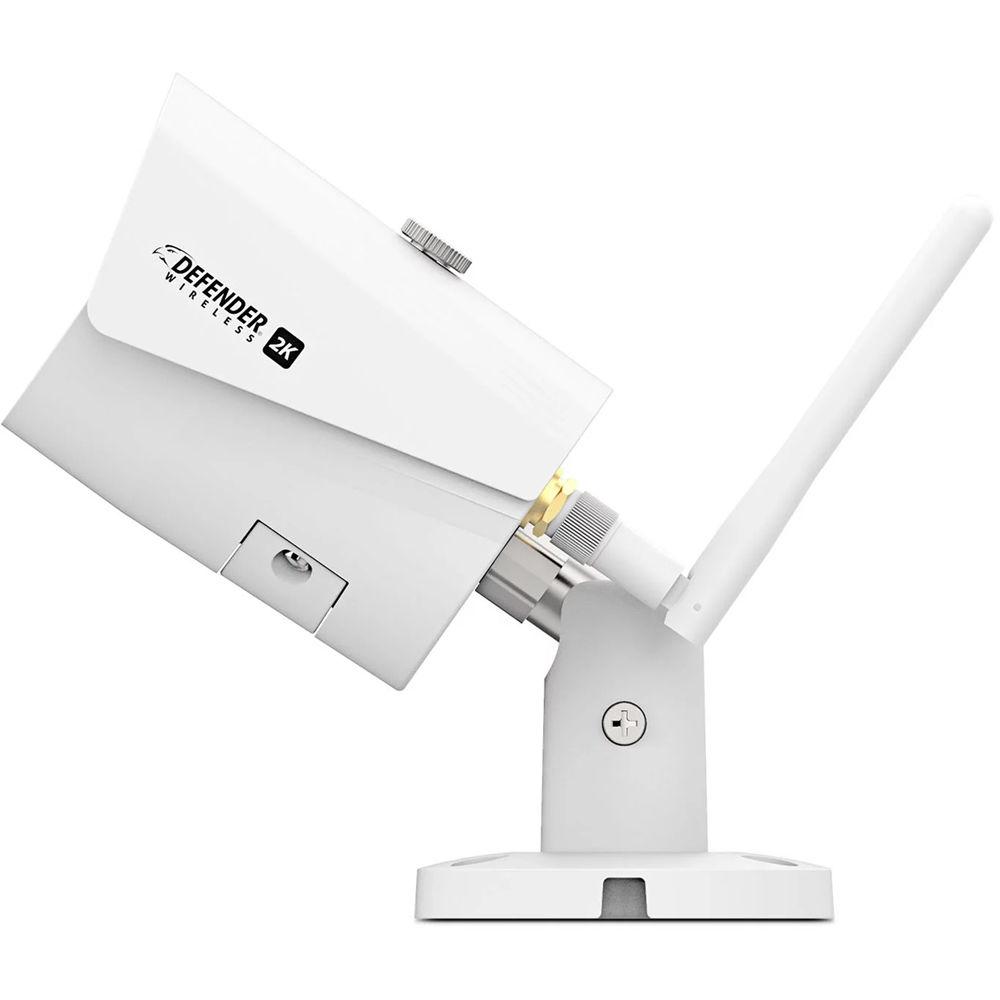

The included Wi-Fi bullet cameras capture 2688 x 1520 resolution video at up to 30 fps. They each have a 2.8mm fixed lens that offers a 127° diagonal field of view. Each camera is equipped with 18 IR LEDs that deliver up to 100' of night vision. The cameras have IP67-rated metal enclosures that are suitable for outdoor use. - No contracts or monthly fees
- H.265 and H.264 video compression
- 80 Mb/s incoming bandwidth
- HDMI and VGA video outputs
- Continuous, manual, motion, and schedule recording modes
- PTZ control supported (PTZ cameras available separately)
- 2 IP67-rated cameras housed in a metal enclosure
- 18 IR LEDs for up to 100' of night vision
- Lifetime online customer support

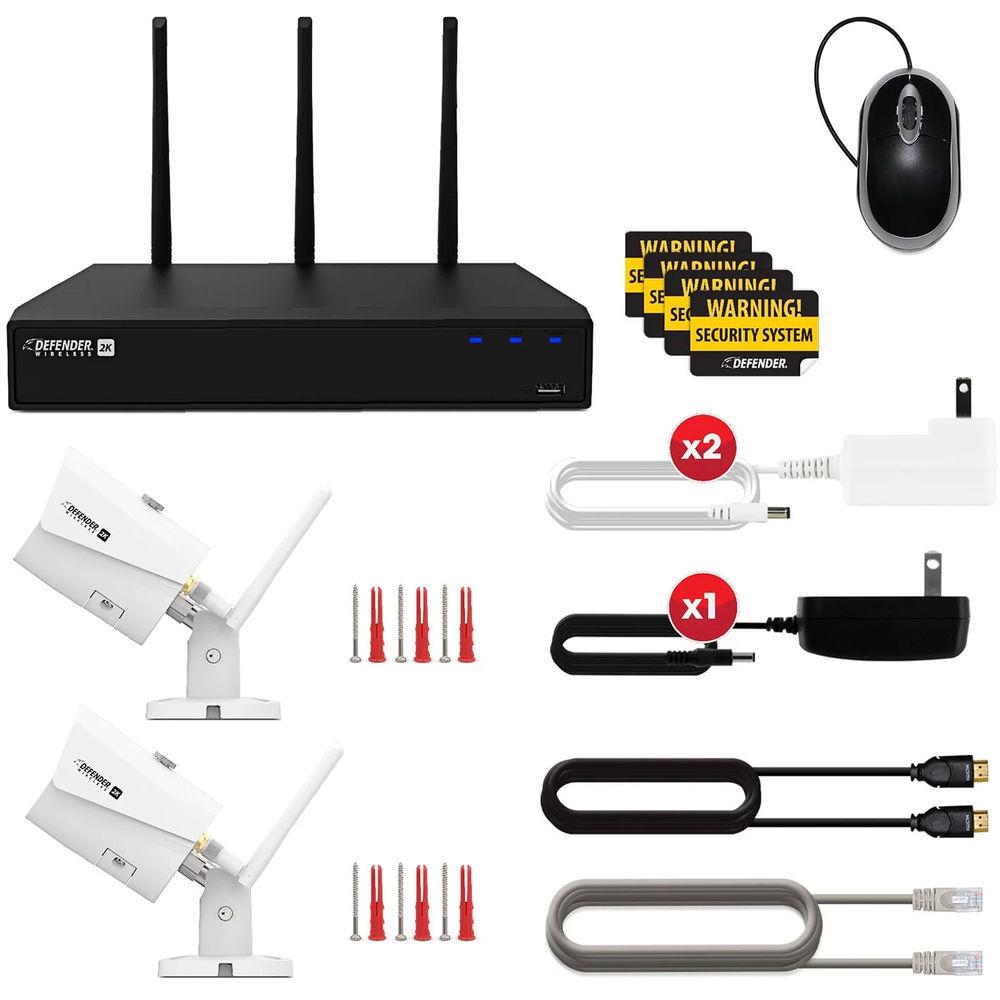

UPC: 061783268056 In the Box Defender 4-Channel 4MP NVR with 1TB HDD & 2 4MP Outdoor Night Vision Wi-Fi Bullet Cameras 1TB HDD 2 x Wireless Wi-Fi Camera Antennas 2 x Mounting Hardware for Cameras 2 x Waterproof Connectors 2 x 10' Camera Power Supply Units 3.2' HDMI Cable 3.2' Ethernet Cable 4' NVR Power Supply 4' Optical USB Mouse Window Decal/Warning Sticker Limited 1-Year Warranty More info from Defender fwczzatquryerf Table of Contents
|
Upload User Manual
Have you got an user manual for the Defender 4-Channel 4MP NVR with 1TB HDD & 2 4MP Outdoor Night Vision Wi-Fi Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDefender W2K1T4B2 Specs | | | Number of Channels | 4 | | HDD Capacity | 1 TB | | HDD Included | 1 TB | | Video Compression | H.265, H.264 | | Operating System | Embedded Linux | | Video Output | VGA, HDMI | | Display | Resolution: Up to 4 MP
Feature: Single/Quad | | Frame Rate | Up to 30 fps | | Recording Modes | Continuous, manual, motion, schedule | | Synchronous Playback | 4-channel | | Network Type | LAN, DHCP, DDNS | | Bandwidth | 80 Mb/s incoming bandwidth | | USB Ports | 1 x rear
1 x front
1 port for USB mouse, 1 port for backup/upgrade | | PTZ Control | Yes (PTZ cameras available separately) | | Mobile OS Support | iOS 8.0 or later
Android 4.0 or later | | Power Output | 12 V, 2 A | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 0 to 90% | | Dimensions (W x L x H) | 10 x 9 x 2" / 254 x 228.6 x 50.8 mm | | Weight | 5 lb / 2.3 kg | | | | Image Sensor | 4 MP 1/3" CMOS | | Effective Pixels | 2688 x 1520 | | Frame Rate | Up to 30 fps | | Lens | 2.8mm | | Diagonal Field of View (FOV) | 127° | | Synchronization | Internal | | Minimum Illumination | 1 lux | | IR Cut Filter | Yes | | Number of IR LEDs | 18 | | Night Vision Range | 100' / 30 m | | Power Supply | Maximum 5.5 W with IR on | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | <90% | | IP Rating | IP67 | | Housing Material | Metal | | | | Package Weight | 9.735 lb | | Box Dimensions (LxWxH) | 18.5 x 14.4 x 9.9" |
