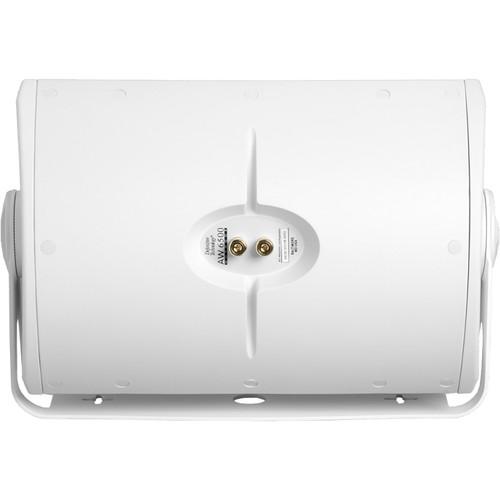

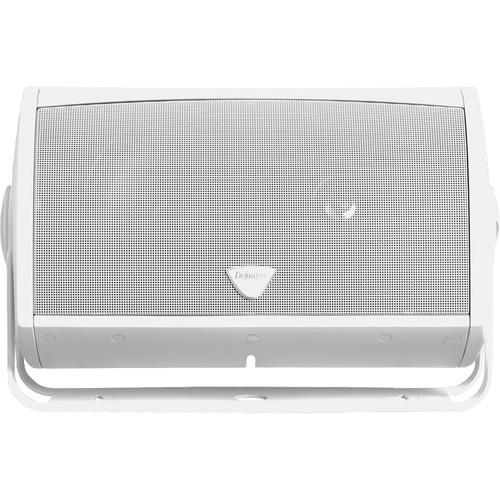

User Manual for Definitive Technology AW6500 All-Weather Outdoor Speaker Click to enlarge the picture
Contents of the user manual for the Definitive Technology AW6500 All-Weather Outdoor Speaker
- Product category: Outdoor Speakers Definitive Technology
- Brand: Definitive Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Definitive Technology Outdoor Speakers
 |
User manual for the Definitive Technology AW6500 All-Weather Outdoor Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Definitive Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Definitive Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Definitive Technology product will considerably shorten its lifespan!
|
Product description The white Definitive Technology AW6500 All-Weather Outdoor Speaker is a mountable 200W-peak, all-weather outdoor speaker designed to deliver audio with enhanced bass in nearly any outdoor setting. The enclosure is engineered to withstand the rigors of outdoor mounting. The white finish is paintable, making it easier to blend the AW6500 into nearly any décor. The speaker features a 1" aluminum dome tweeter, a 6.5" mid-woofer, and a 5.5 x 10" passive bass radiator for enhanced audio quality. - Designed for Enhanced Low End
- The racetrack-shaped planar pressure-coupled bass radiator is designed to deliver rich, warm audio. Its total bass radiating area helps enhance bass presence in every measure. The active mid-woofer, in conjunction with the bass radiator, helps further augment the bass output while maintaining a weather-tight seal for enhanced placement flexibility, reliability, and performance.
- 360° of Rotation
- The integrated galvanized steel mounting bracket and enclosure shape allow for 360° of rotation, allowing you to put the speaker nearly anywhere while directing the audio to reach just about everywhere.
- Paintable White Finish
- The white AW6500 is paintable, allowing you to fit it into nearly any outdoor d
|
Upload User Manual
Have you got an user manual for the Definitive Technology AW6500 All-Weather Outdoor Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDefinitive Technology AW6500 Specs | Frequency Response | 40 Hz to 30 kHz | | Sensitivity | 92 dB (1 watt @ 1 m) | | Power Handling | 200 W (peak) | | Nominal Impedance | 8 Ohms | | Tweeter | 1x 1" (2.54 cm) aluminum dome | | Mid-Woofers | 1x 6.5" (16.51 cm) BDSS bass mid-woofer | | Radiator | 1x 5.5 x 10" (13.97 x 25.4 cm) oval pressure-driven bass radiator | | Crossover | External (based on amplifier)
Amplifier Crossover Settings: Large (40 Hz) | | Enclosure | Driver: PolyStone | | Input | 1 x gold-plated, 5-way binding post pair | | Orientation | Horizontal, vertical | | Dimensions | 14.44 x 8.88 x 9.25" (36.68 x 22.56 x 23.5 cm) | | Weight | 9.2 lb (4.17 kg) | | | | Package Weight | 10.9 lb | | Box Dimensions (LxWxH) | 17.5 x 11.7 x 11.6" |
