Product description - Definitive Technology ⿿ The BP9000 Series

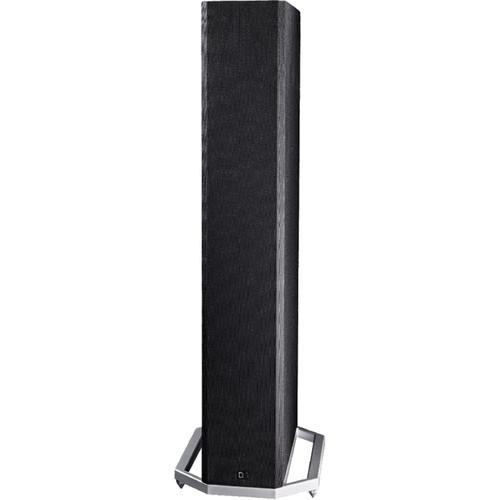

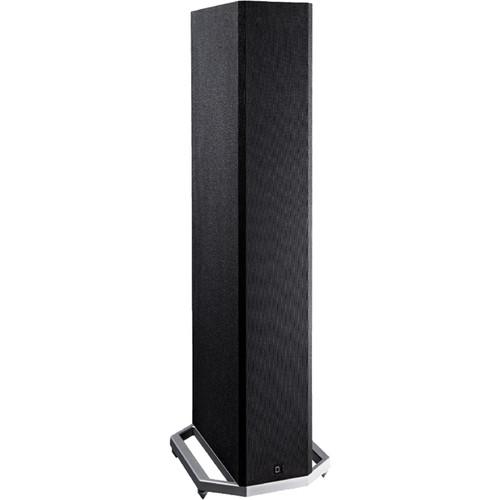

Expand your soundstage with the Definitive Technology BP9020 Floorstanding Speaker. It features a built-in 8" powered woofer for enhanced bass, plus a rear 3.5" midrange driver to provide a broader field of sound than would normally be produced by the two forward-facing 3.5" midrange drivers and 1" aluminum dome tweeter. The speaker will accept 50 to 200W from your amplifier via its binding post inputs and has a dedicated input and proprietary output connector for an optional height speaker. - Aluminum Dome Tweeters
- The tweeters are designed to play higher in frequency than what is heard by the human ear, helping to create an authentic reproduction of sound as the artist intends in the studio or concert hall.
- BDSS – Balanced Double Surround System
- BDSS is designed to increase driver excursion, resulting in a bass output usually associated with a larger driver while retaining the enhanced dispersion and midrange definition of a smaller driver.
- Acoustically Transparent Grille
- The acoustically transparent speaker grille allows you to enjoy your audio in the same quality whether it's on or off.
- Inert, Resonance-Free Cabinet

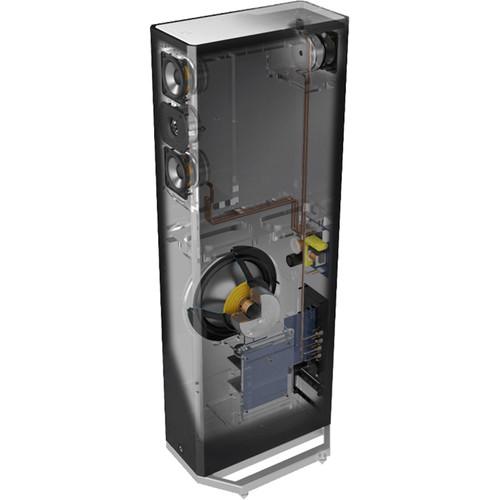

- Enhanced rigidity with strategically placed bracing helps improve imaging while reducing resonance, further reinforcing a clean and powerful sound.

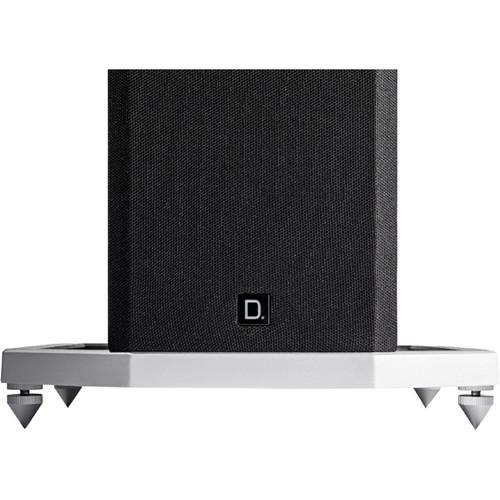

- Cast Aluminum Base with Spikes and Floor Glides
- The wide footprint of the base is designed to increase the overall stability of the speaker, while the addition of spikes or floor glides helps keep your speakers firmly in place whether on carpet or other solid floor surfaces like hardwood or cement.
- LED-Backlit Definitive Technology Logo
- To highlight the integrated powered subwoofer and show that your speaker is receiving a signal, an LED logo is positioned on its bottom front panel. Turn it on or off at your leisure, or it will automatically turn off/standby after 20 minutes without an active signal.
- Additional Features
-
- Forward-focused bipolar array (FFBP) designed to expand the entire soundstage
- Integrated 8" powered woofer and bass vent
- Intelligent bass control
UPC: 747192126469 In the Box Definitive Technology BP9020 Floorstanding Speaker with Integrated 8" Powered Woofer (Single) Stabilizer Base Base Attachment Hardware 4 x Screw Locks for Spikes/Glides 4 x Hard Floor Glides 4 x Carpet Spikes Power Cord Limited 5-Year Warranty on Drivers and Cabinets Limited 3-Year Warranty on Electric Components Table of Contents
|
Upload User Manual
Have you got an user manual for the Definitive Technology BP9020 Floorstanding Speaker with Integrated 8" Powered Woofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDefinitive Technology BP9020 Specs | | | Front Drivers | 1x 1" (2.54 cm) aluminum dome tweeter
2x 3.5" (8.89 cm) midrange
1x 8" (20.32 cm) powered woofer | | Rear Drivers | 1x 3.5" (8.89 cm) midrange | | Frequency Response | 28 Hz to 40 kHz | | Recommended Amplifier Power | 50 to 200 W | | Power Output | Nominal: 150 W @ 1% THD, 5 sec | | Sensitivity | 0 to 92 dB (1 W @ 1 m) | | Impedance | 8 Ohms | | | | Connections | 1 x Main binding post pair in
1 x Height binding post pair in
1 x Proprietary output connector to optional height speaker
1 x RCA LFE in | | Construction Material | Base: Aluminum | | Dimensions (W x H x D) | Without Base: 6 x 34.75 x 13" (15.24 x 88.27 x 33.02 cm)
With Base: 11 x 35.5 x 13" (27.94 x 90.17 x 33.02 cm) | | Weight | 30 lb (13.61 kg) | | | | Package Weight | 50.5 lb | | Box Dimensions (LxWxH) | 40.0 x 18.5 x 13.0" |
