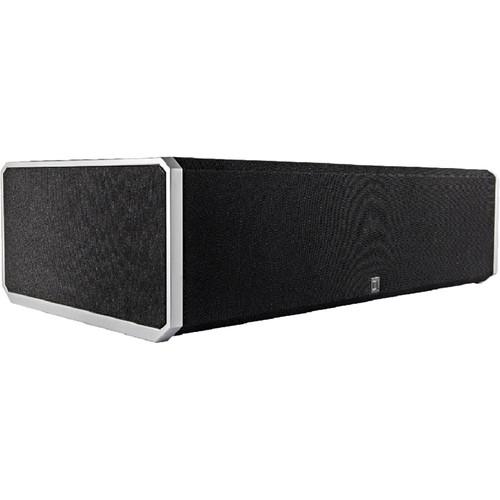

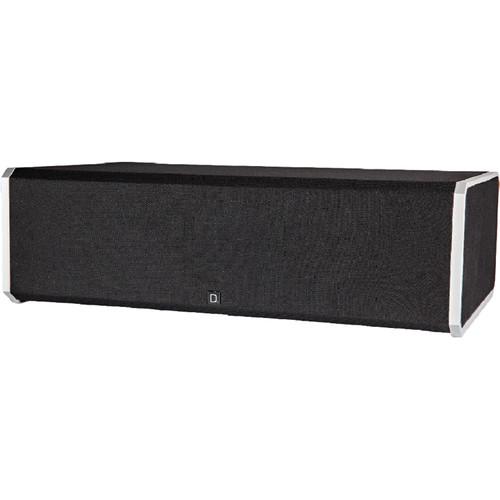

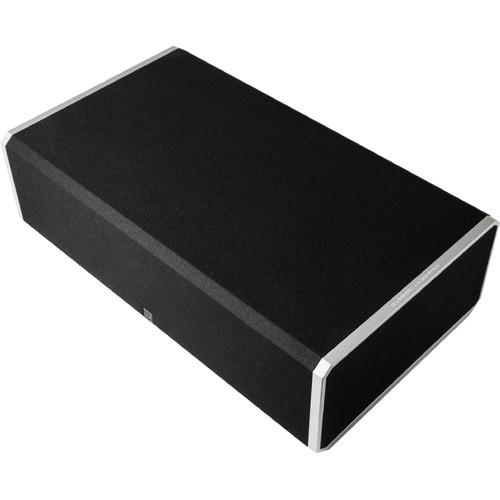

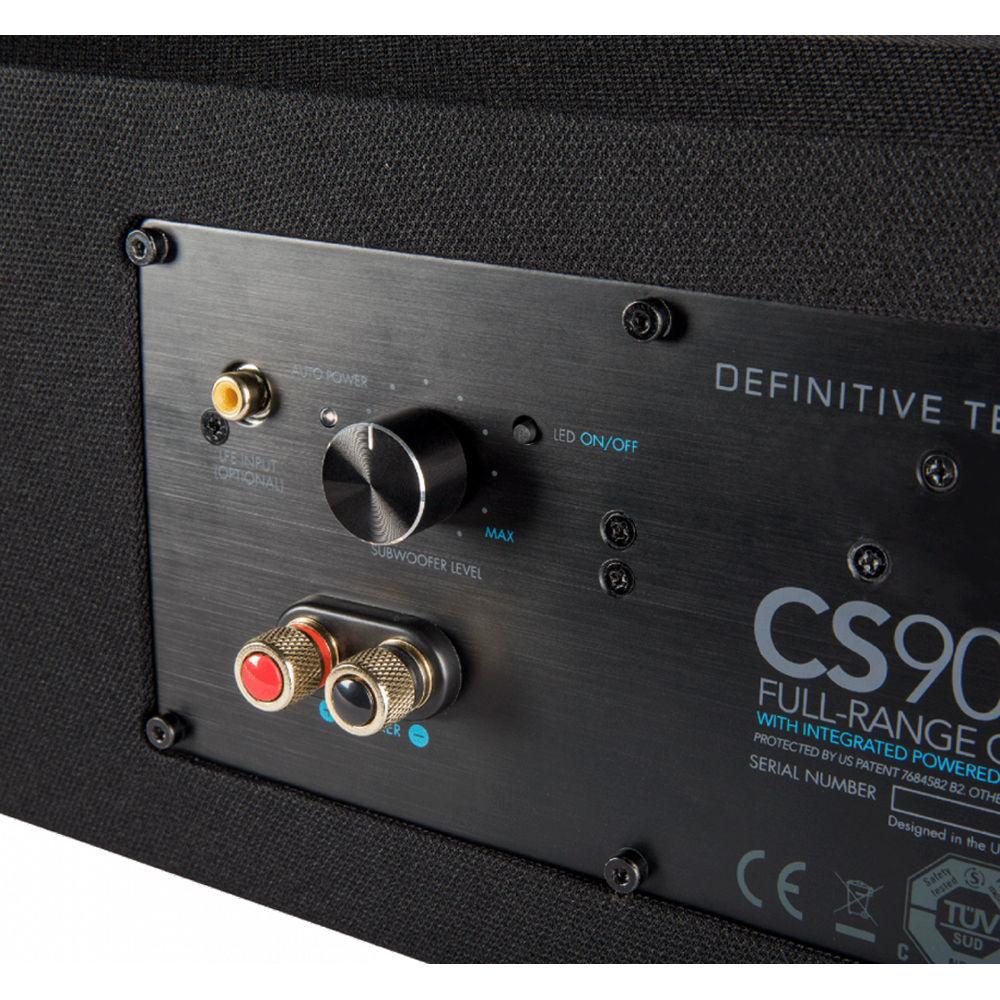

User Manual for Definitive Technology CS9080 Three-Way Center Channel Speaker with Integrated 8" Powered Woofer and 10" Bass Radiator Click to enlarge the picture
Contents of the user manual for the Definitive Technology CS9080 Three-Way Center Channel
- Product category: Center Channel Speakers Definitive Technology
- Brand: Definitive Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Definitive Technology Center Channel Speakers
 |
User manual for the Definitive Technology CS9080 Three-Way Center Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Definitive Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Definitive Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Definitive Technology product will considerably shorten its lifespan!
|

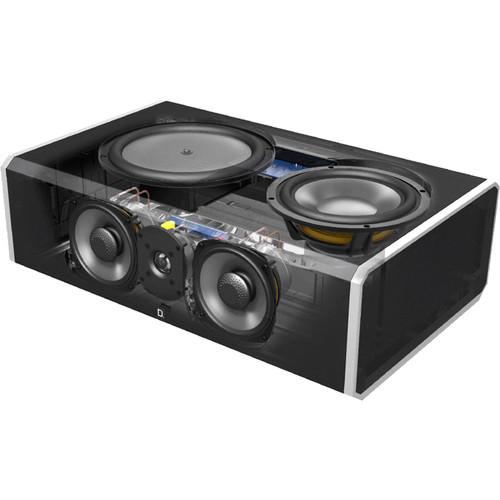

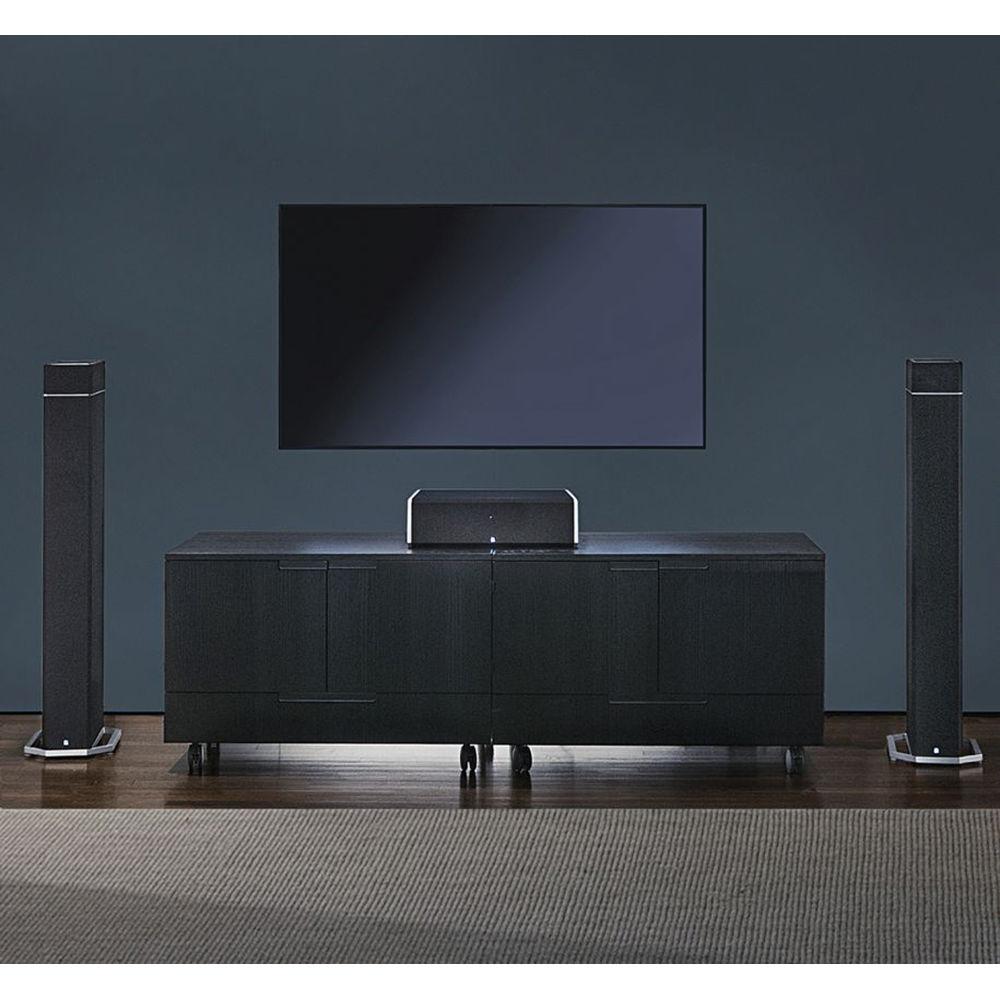

Product description Enhance the dialogue of your favorite movies and TV shows with the Definitive Technology CS9080 Two-Way Center Channel Speaker. It features a 1" aluminum dome tweeter, two 5.25" midrange drivers, and an 8" powered woofer. It accepts 50 to 300W of power from your amplifier. It also features a 10" passive bass radiator for enhanced low-frequency effects. As a center channel, when integrated with the rest of your home theater system, it will produce primarily on-screen dialogue rather than the sound effects coming from the rest of your speakers. - Aluminum Dome Tweeter
- The tweeter is designed to play higher in frequency than what is heard by the human ear, helping to create an authentic reproduction of sound as the artist intends in the studio or concert hall.
- Integrated 8" Powered Woofer and 10" Bass Radiator
- The integrated powered woofer, matched with its respective bass radiator, is designed to offer deeper, more impactful bass from the tower speaker without the need to add a separate subwoofer.
- BDSS – Balanced Double Surround System
- BDSS is designed to increase driver excursion, resulting in a bass output usually associated with a larger driver while retaining the enhanced dispersion and midrange definition of a smaller driver.
- Intelligent Bass Control
- Intelligent Bass Control is designed to give you the ability to modulate deep bass up or down in level while simultaneously maintaining mid-range tonal balance.

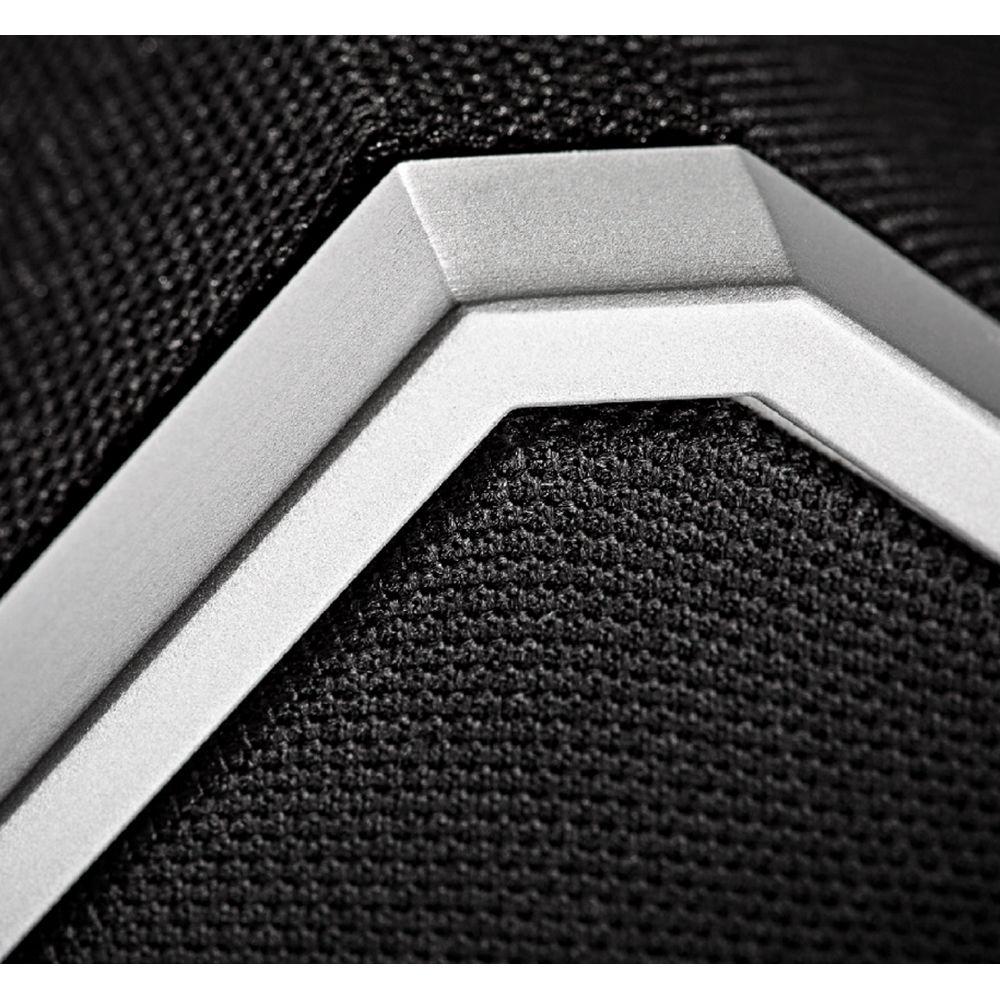

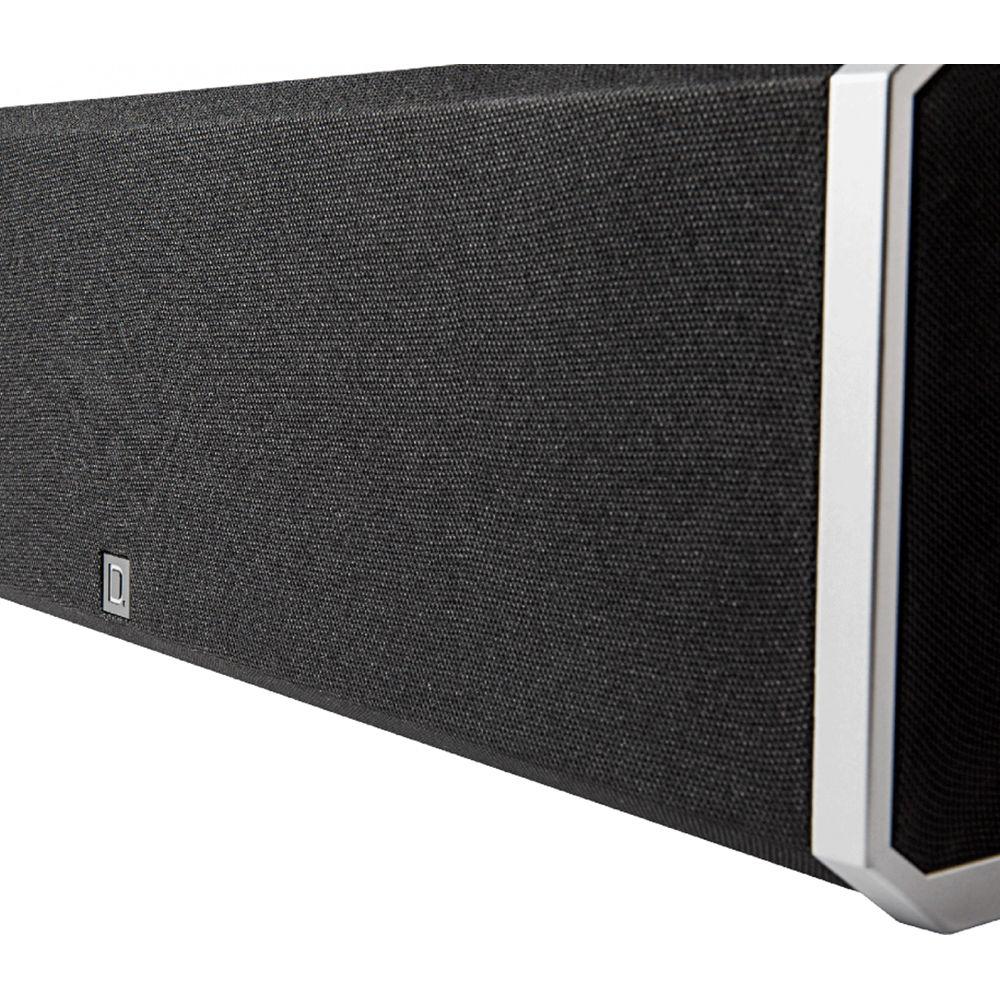

- Acoustically Transparent Grille
- The acoustically transparent speaker grille allows you to enjoy your audio in the same quality whether it's on or off.
- Inert, Resonance-Free Cabinet
- Enhanced rigidity and bracing helps improve imaging while reducing resonance.
UPC: 747192126476 In the Box Definitive Technology CS9080 Three-Way Center Channel Speaker with Integrated 8" Powered Woofer and 10" Bass Radiator Power Cord Limited 5-Year Warranty on Drivers and Cabinet Limited 3-Year Warranty on Electronic Components Table of Contents
|
Upload User Manual
Have you got an user manual for the Definitive Technology CS9080 Three-Way Center Channel Speaker with Integrated 8" Powered Woofer and 10" Bass Radiator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDefinitive Technology CS9080 Specs | Frequency Range | 24 Hz to 40 kHz | | Sensitivity | 0 to 91 dB (1 W @ 3.3' / 1 m) | | Amplifier Power | Recommended: 50 to 300 W
Nominal (1% THD, 5 Sec): 300 W | | Impedance | 8 Ohms | | Drivers | 1x 1" (2.54 cm) aluminum dome tweeter
2x 5.25" (13.34 cm) midrange drivers
1x 8" (20.32 cm) woofer

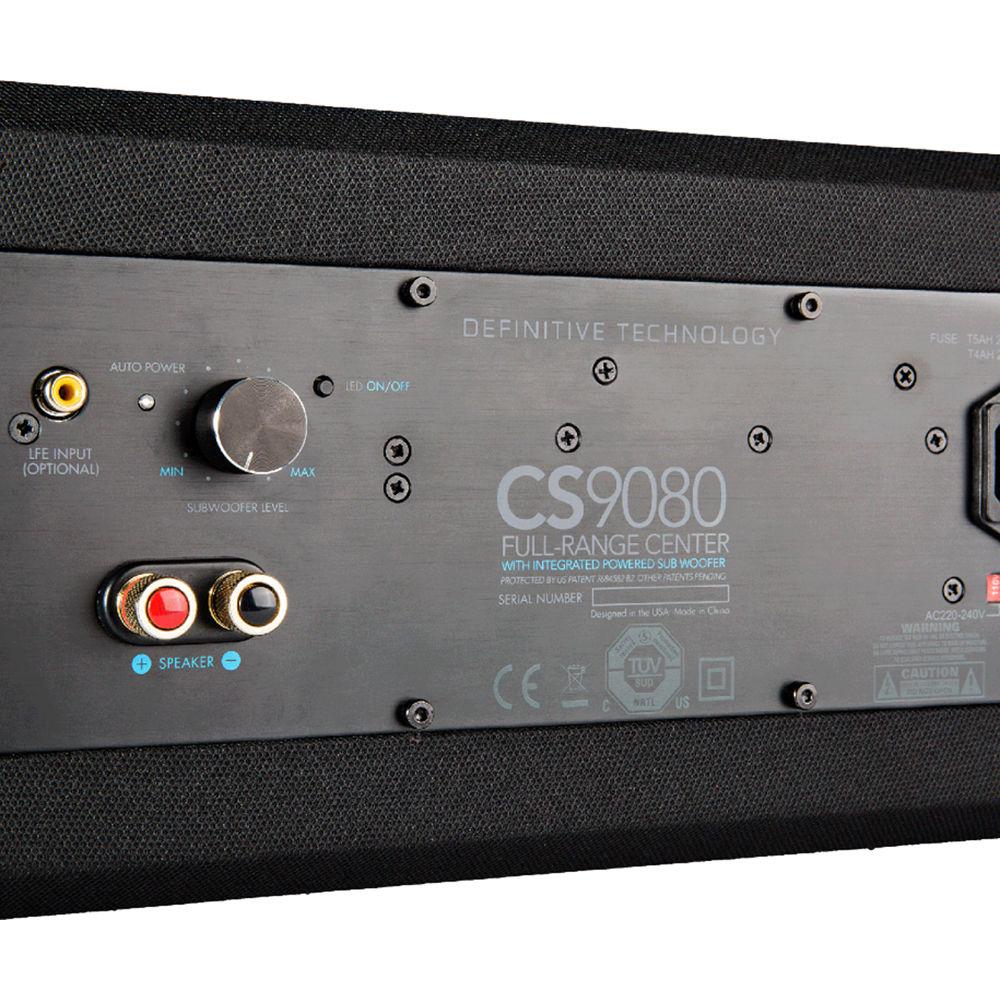

1x 10" (25.4 cm) bass radiator | | Configuration | 3-way | | Connectors | 1 x Binding post pair
1 x RCA LFE in | | Dimensions (W x H x D) | 23 x 7 x 14.25" (58.42 x 17.78 x 36.2 cm) | | Weight | 36 lb (16.33 kg) | | | | Package Weight | 40.0 lb | | Box Dimensions (LxWxH) | 27.5 x 19.0 x 12.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
