User Manual for Definitive Technology D7 2-Way Bookshelf Speakers Click to enlarge the picture
Contents of the user manual for the Definitive Technology D7 2-Way Bookshelf Speakers
- Product category: Bookshelf Speakers Definitive Technology
- Brand: Definitive Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Definitive Technology Bookshelf Speakers
 |
User manual for the Definitive Technology D7 2-Way Bookshelf Speakers contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Definitive Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Definitive Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Definitive Technology product will considerably shorten its lifespan!
|

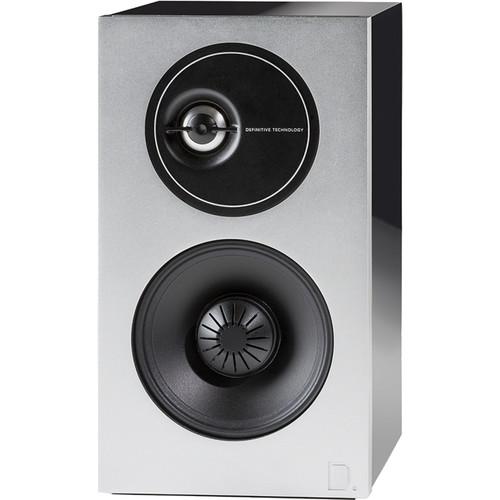

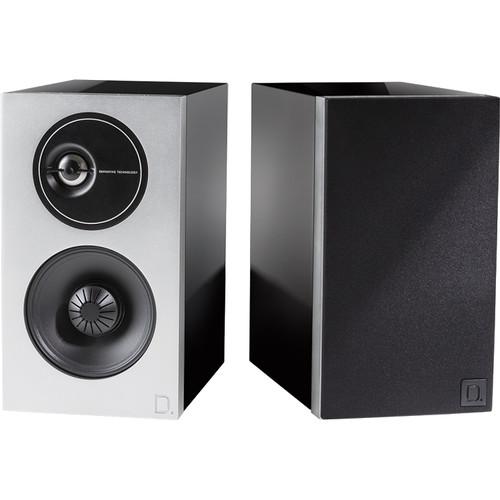

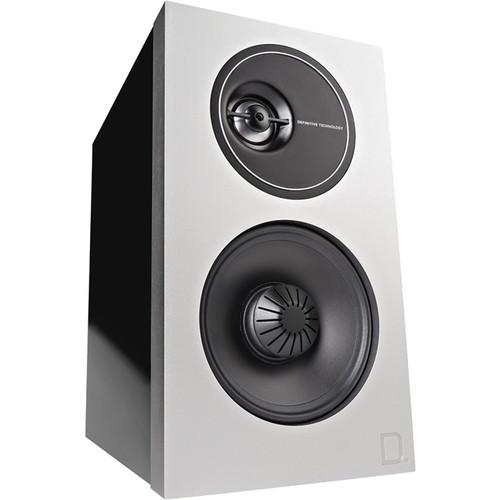

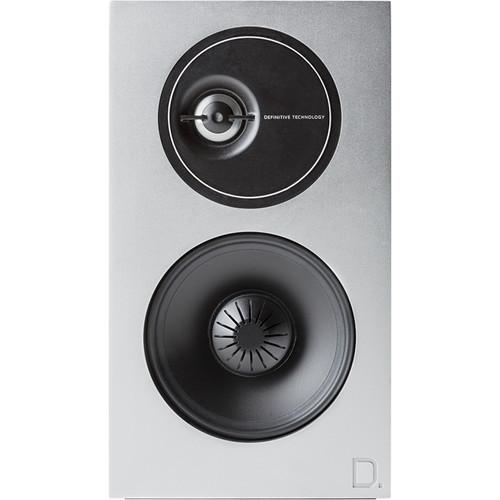

Product description Enjoy balanced stereo sound from this pair of Definitive Technology D7 2-Way Bookshelf Speakers. They feature a 2-way design with a 1" aluminum dome tweeter and a 4.5" polypropylene BDSS/LWR woofer, plus a bass port for enhanced low end response. The speakers accept 20 to 125W from your amplifier and have a 67 Hz to 21 kHz frequency response at -3 dB. The included magnetic grilles are designed to be acoustically inert to avoid coloration of the sound. - Offset Tweeters
- Offsetting the tweeter by 5° is designed to deliver a more precise center stereo image by minimizing undesirable symmetric diffraction off the corners of the front baffle

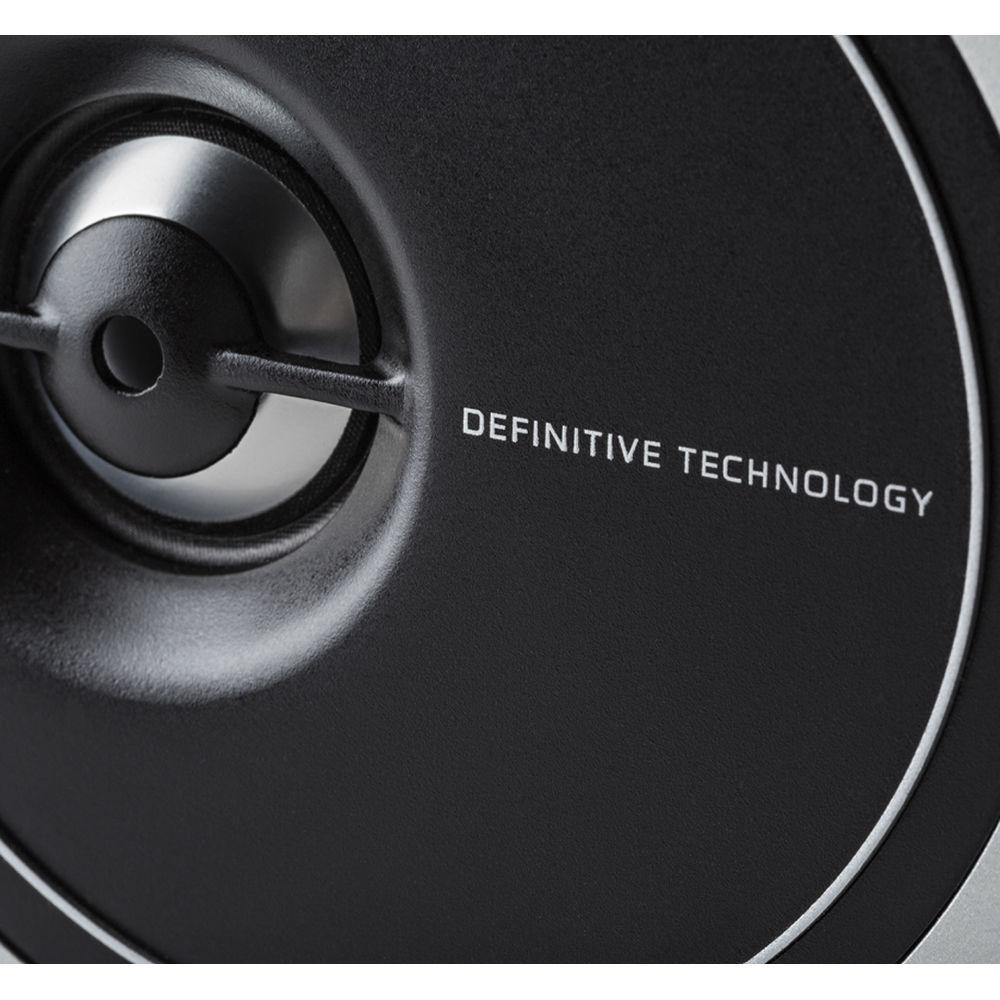

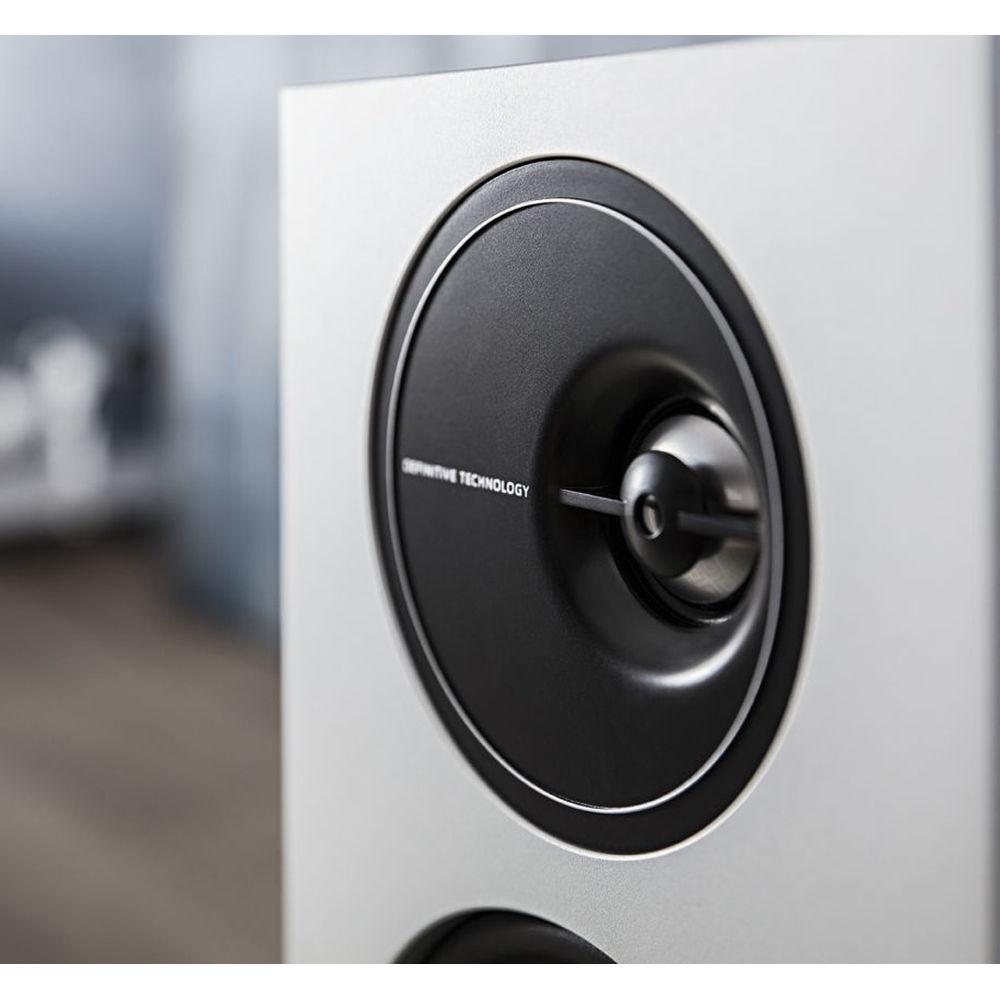

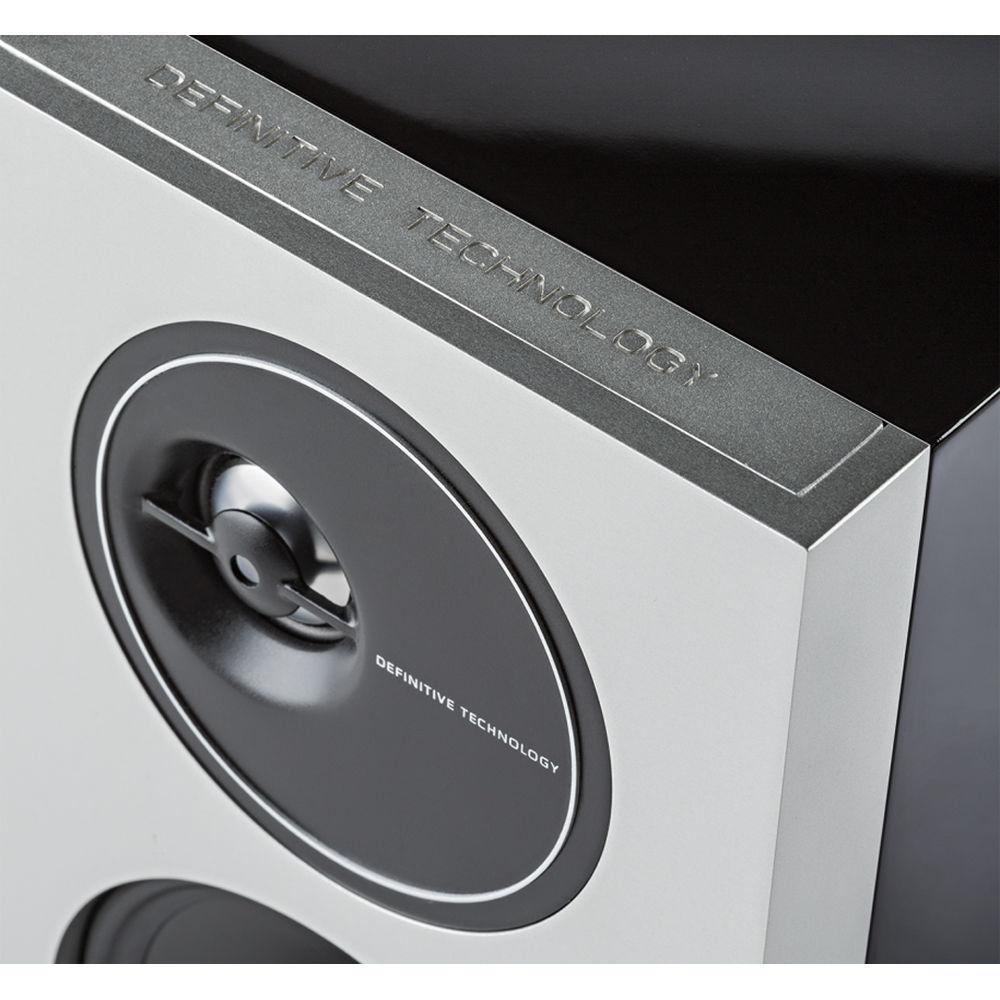

- 20/20 Wave Alignment Lens
- The 20/20 Wave Alignment Lens helps align and smooth high-frequencies off the tweeter for enhanced dispersion, helping to produce a balanced listening experience throughout your room.

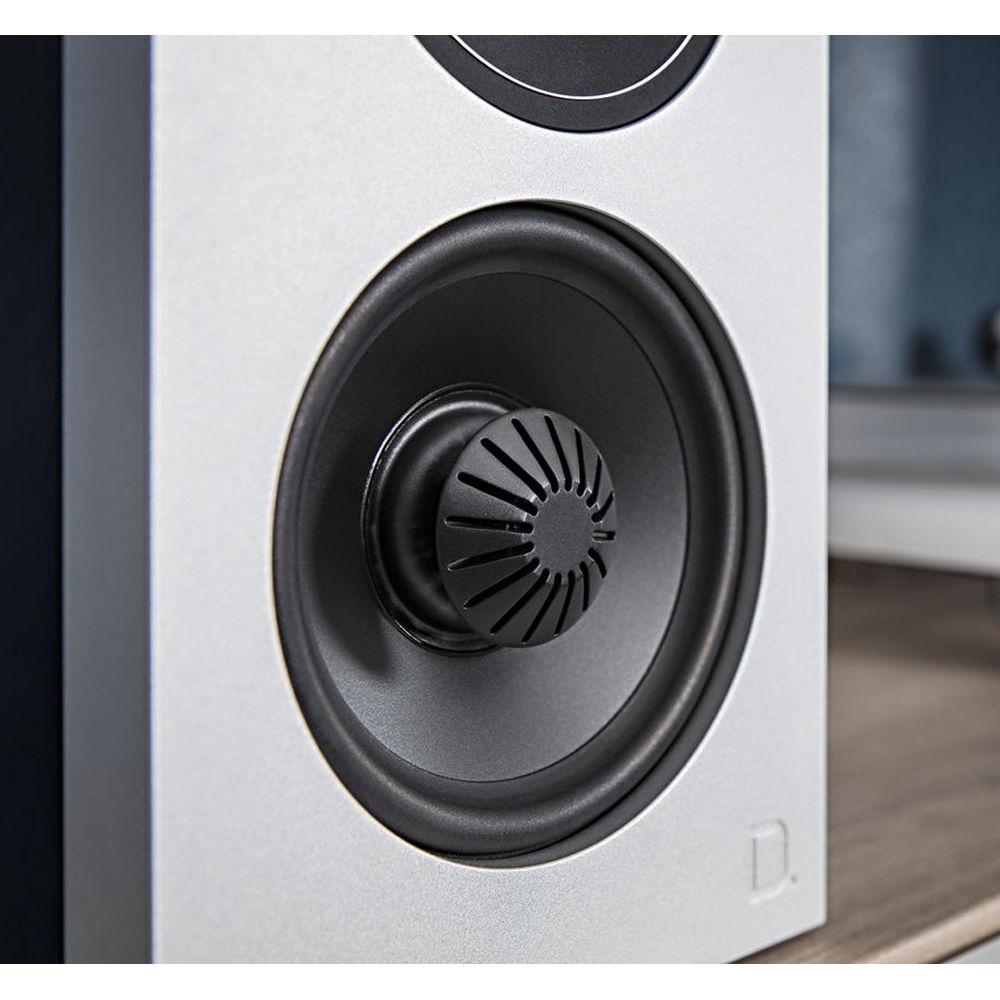

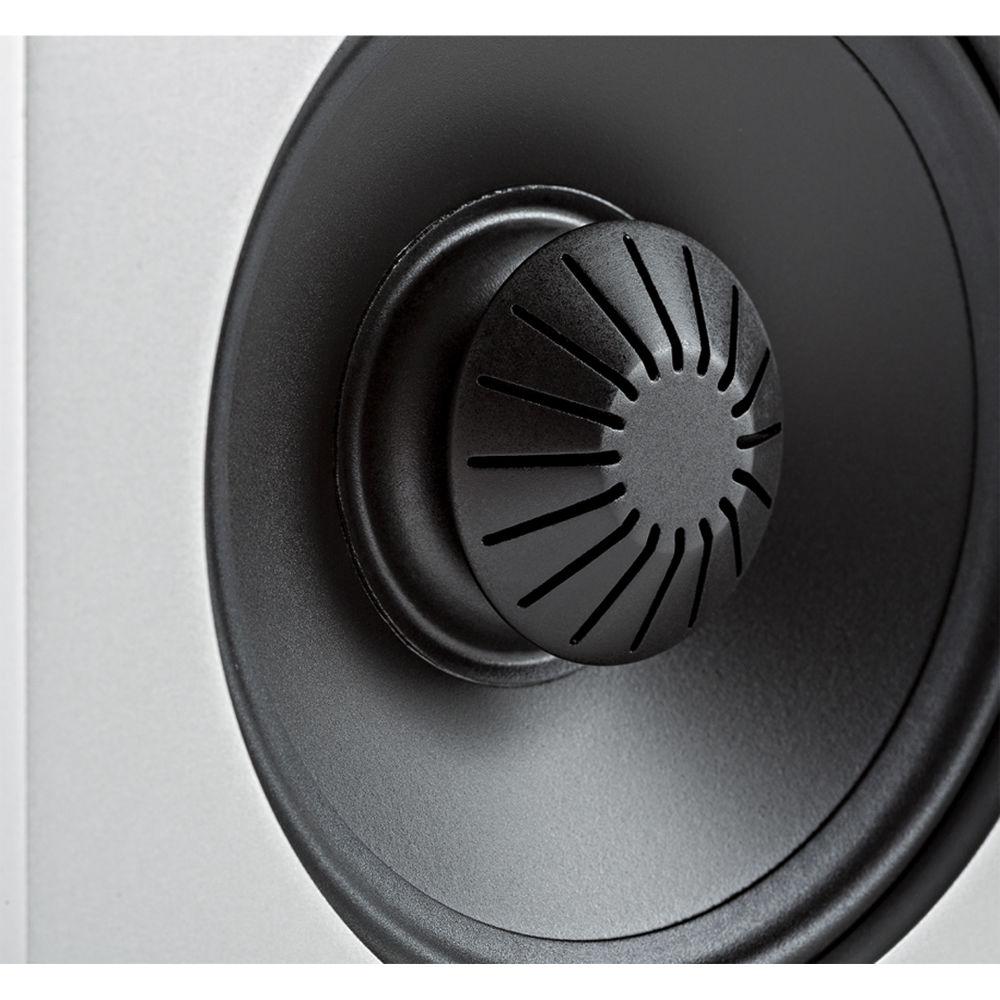

- BDSS Woofer
- The Double Surround midrange/woofer helps provide enhanced excursion and output for augmented midrange detail and bass.
- Linear Response Waveguide
- The Linear Response Waveguide is designed to extend both on- and off-axis frequency response while improving dispersion for a more natural midrange timbre and more precise imaging.

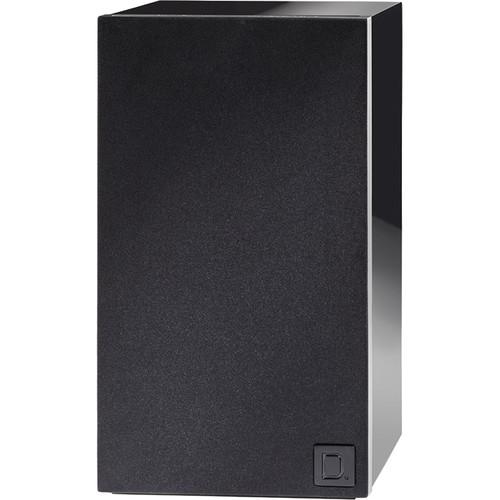

- Acoustically Transparent Magnetic Grille
- The included acoustically transparent magnetic black speaker grilles are designed to provide natural, uncolored sound when placed on the speaker, and to remove easily when you want to see your speakers uncovered.
- Bass Port
- The bass port in each speaker is designed to provide enhanced low-end extension by transitioning air flow from the speaker into your listening area for deep, extended bass impact with reduced turbulence and distortion.
- Wall Mounting Capabilities
- The D7 features a built-in threaded screw insert and keyhole slots for wall mounting and directional firing.
- Extruded Aluminum Front Baffle
- The design of the front baffle is fashioned to blend into nearly any d
|
Upload User Manual
Have you got an user manual for the Definitive Technology D7 2-Way Bookshelf Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDefinitive Technology MFAA Specs | | | High Frequency Driver | 1x 1" (2.54 cm) aluminum dome tweeter | | Low Frequency Driver | 1x 4.5" (11.43 cm) polypropylene BDSS/LWR | | Design | Ported | | -3dB Frequency Response | 67 Hz to 21 kHz | | Frequency Response (-10 dB) | 57 Hz to 24 kHz | | Recommended Amplifier Power | 20 to 125 W | | Sensitivity | 85 dB | | Impedance | 8 Ohms | | | | Front Baffle | Extruded aluminum | | Mounting | Rear-mounted threaded screw insert and keyhole slots | | Dimensions (W x H x D) | 5.5 x 9.75 x 8.75" (13.97 x 24.76 x 22.23 cm) | | Weight | Not specified by manufacturer | | | | Package Weight | 23.6 lb | | Box Dimensions (LxWxH) | 15.5 x 13.5 x 12.5" |
