User Manual for Definitive Technology Disappearing Series DI 5.5LCR 2-Way Speaker Click to enlarge the picture
Contents of the user manual for the Definitive Technology Disappearing Series DI 5.5LCR
- Product category: In-Wall Speakers Definitive Technology
- Brand: Definitive Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Definitive Technology In-Wall Speakers
 |
User manual for the Definitive Technology Disappearing Series DI 5.5LCR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Definitive Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Definitive Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Definitive Technology product will considerably shorten its lifespan!
|

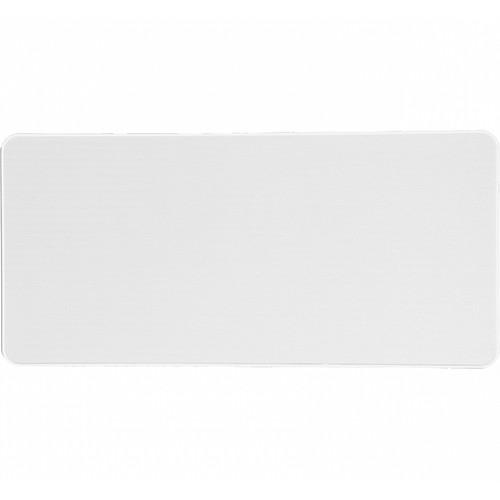

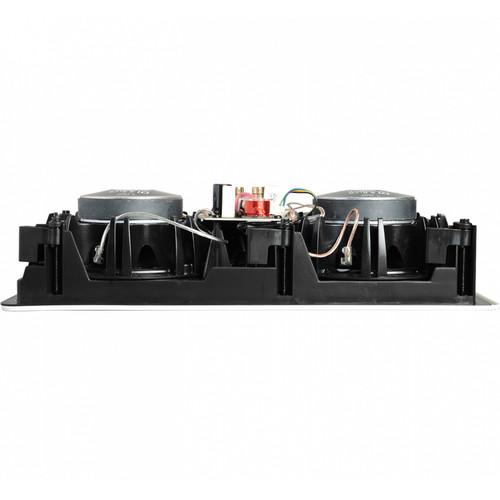

Product description Let your surround system blend into your décor with the Disappearing Series DI 5.5LCR 2-Way Speaker from Definitive Technology. Featuring a flush-mount, flangeless design and a white paintable micro-perf grille, this speaker hides in the wall or ceiling onto which it is installed. The speaker's two 5.25" BDSS drivers and 1" pivoting pure aluminum dome tweeter deliver deep sound quality while the rigid PolyStone basket eliminates unwanted vibrations, preventing ringing and minimizing distortion. A three-position environmental EQ switch optimizes the speaker's performance to match the acoustic properties of your room. - White, paintable 15.31 x 7.38" grille
- Simple conventional installation—no plasterwork required
- Sure-grip neodymium magnet fasteners securely hold the grille to the speaker
- Pure aluminum dome tweeter pivots to precisely aim high frequencies toward the listening position for precise imaging
- Energy absorbing Aero Ring reduces diffraction distortion for enhanced off-axis response and sound quality
- Adjustable high-definition crossover
- Cast PolyStone basket for rigidity without "ringing"
- Energy-absorbing baffle material for reduced diffraction
UPC: 093207074295 In the Box Definitive Technology Disappearing Series DI 5.5LCR 2-Way Speaker (Single, Dual 5.25" Drivers) Wall-Mounting Template Paintable Magnetic Grille Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Definitive Technology Disappearing Series DI 5.5LCR 2-Way Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDefinitive Technology DI 5.5LCR Specs | Components | 1 x 1" / 2.54 cm round pivoting dome tweeter
2 x 5.25" / 13.34 cm round BDSS bass/mid drivers | | Frequency Response | Total: 28 Hz - 30 kHz | | Nominal Impedance | 8 Ohms | | Sensitivity | Max: 89 dB, 1 W at 3.3' (1 m) | | Crossover | A/V Receiver Crossover Settings: 80 Hz | | Inputs | 2 (heavy-duty, spring-loaded) | | Dimensions | Depth 3.75" / 9.53 cm
Grille: 7.38 x 15.31" / 18.75 x 38.89 cm
Cut-Out: 6.44 x 14.38" / 16.36 x 36.53 cm | | Weight | 8 lb / 3.63 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 98 owners. Add your rating and experience with the product.
