User Manual for Definitive Technology Mythos Gem XL Compact 2-Way Loudspeaker Click to enlarge the picture
Contents of the user manual for the Definitive Technology Mythos Gem XL Compact
- Product category: Bookshelf Speakers Definitive Technology
- Brand: Definitive Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Definitive Technology Bookshelf Speakers
 |
User manual for the Definitive Technology Mythos Gem XL Compact contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Definitive Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Definitive Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Definitive Technology product will considerably shorten its lifespan!
|

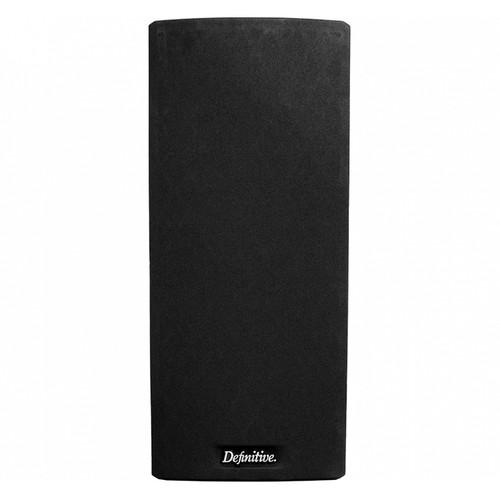

Product description Get big, high-definition sound from compact, easy-to-use speakers with the Mythos Gem XL 2-Way Loudspeaker from Definitive Technology. Voice-matched with the complete Mythos Series, the Mythos Gem XL speaker packs two high-definition 4.5" mid/bass drivers and a 1" pure aluminum dome tweeter into a compact extruded aluminum enclosure that uses various damping technologies to ensure rigidity and sound accuracy. The Mythos Gem XL is designed to be used as a surround speaker in a system made up of larger Mythos main speakers, or as a compact high-performance home theater system when combined with a Mythos Three center-channel speaker and a SuperCube subwoofer (all available separately). - Versatile Mounting Options

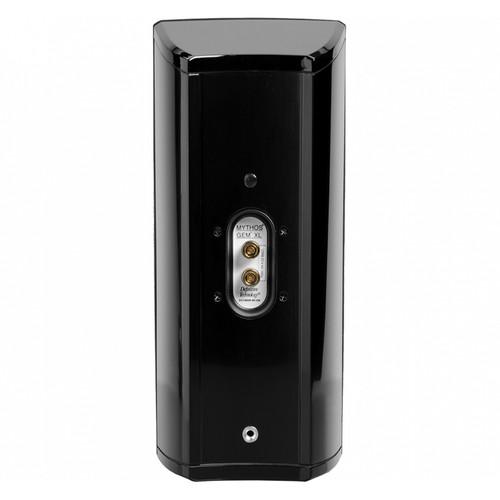

- The Mythos Gem Speaker features a keyhole slot for simple wall mounting next to your flat-screen television. Alternatively, an articulating wall-mount bracket (available separately) can be used.
- High-Performance Components

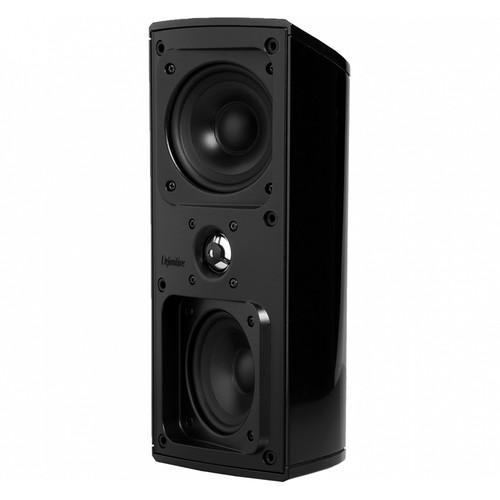

- The Mythos Gem incorporates two 4.5" mid/bass drivers that are angled in opposite directions to broaden the midrange dispersion. Designed for front and surround channel duties, the Mythos Gem delivers an enveloping surround experience. The bass roll-off of the Mythos Gem is smooth and controlled, allowing it to blend seamlessly with a powered subwoofer (available separately). A 1" pure aluminum dome tweeter produces extended highs that reveal nuance and shimmer.
- Solid Enclosure
- Mythos Series enclosures are hand-polished gloss black aircraft-grade extruded aluminum. All components are mounted on a resonance-free PolyStone baffle.
UPC: 093207025792 In the Box Definitive Technology Mythos Gem XL Compact 2-Way Loudspeaker (Single) Steel Wall Bracket Wall Mounting Template Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Definitive Technology Mythos Gem XL Compact 2-Way Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDefinitive Technology Gem XL Specs | Components | 1 x 1" (2.54 cm) pure aluminum round tweeter
2 x 4.5" (11.43 cm) round mid/woofer drivers | | Material | Enclosure: Aircraft-grade aluminum | | Frequency Response | 50 Hz to 30 kHz, total | | Nominal Impedance | 4-8 Ohms | | Sensitivity | Max: 89 dB, 1 W at 3.3' (1 m) | | Amplification | 10-200 W per channel | | Input | Pair of speaker cable | | Crossover | A/V Receiver Crossover Setting: 80 Hz
Phase: 10-200° | | Mount | Flush-mount wall bracket | | Dimensions | 12.6 x 5.5 x 4.5" (32.05 x 13.97 x 11.43 cm) | | Weight | 7.25 lb (3.29 kg) | | | | Package Weight | 8.2 lb | | Box Dimensions (LxWxH) | 16.0 x 8.4 x 7.4" |
