User Manual for Definitive Technology Mythos Seven Tabletop & On-Wall Center-Channel 2-Way Loudspeaker Click to enlarge the picture
Contents of the user manual for the Definitive Technology Mythos Seven Tabletop &
- Product category: Center Channel Speakers Definitive Technology
- Brand: Definitive Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Definitive Technology Center Channel Speakers
 |
User manual for the Definitive Technology Mythos Seven Tabletop & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Definitive Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Definitive Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Definitive Technology product will considerably shorten its lifespan!
|

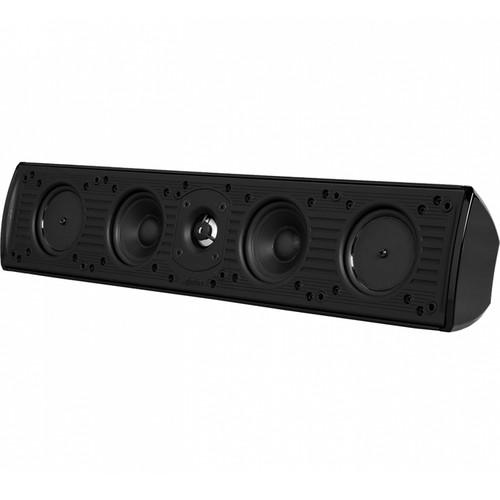

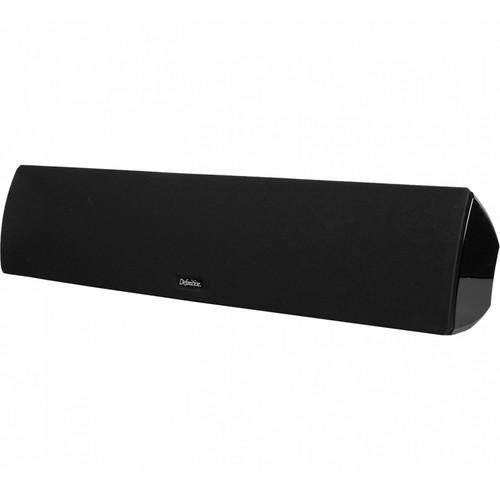

Product description Enhance the audio from your TV with the black Mythos Seven Center-Channel 2-Way Loudspeaker from Definitive Technology. Designed to hang or stand above or below your TV, this speaker packs two high-definition 3.5" drivers pressure-coupled to two 3.5" planar low-bass radiators, plus a 1" pure aluminum dome tweeter, all in a compact, elongated enclosure. The speaker's hand-polished gloss, aircraft-grade, extruded aluminum enclosure uses various damping technologies to ensure rigidity and sound accuracy. Included with the Mythos Seven is a wall-mounting bracket and a vertical leveling foot. - Mythos Series Performance for Flat-Panel TVs
- The Mythos Seven is a table/shelf-mount and on-wall speaker designed to complement your high-definition flat-screen television's style and performance. The included wall-mount bracket allows direct mounting to a wall and also adapts to flat-panel TV swing-out arm-style wall mounts so that the speaker angle changes with the TV angle. The Mythos Seven can be used as center speaker in home theater audio systems.
- High-Performance Components
- The Mythos Seven incorporates a D'Appolito array consisting of two high-definition 3.5" drivers housed in an air-tight enclosure. The drivers feature die-cast aluminum baskets, mono-polymer cones, and Finite Element Analysis optimized magnet structures for clear, low-distortion, life-like sound. The active drivers are pressure-coupled to two 3.5" planar low-bass radiators for bass extension down to 60 Hz. The bass roll-off of the Mythos Seven is smooth and controlled, allowing it to blend seamlessly with a powered subwoofer (available separately). A 1" pure aluminum dome tweeter produces extended highs that reveal nuance and shimmer.
- Solid Enclosure
- Mythos Series enclosures are hand-polished gloss, aircraft-grade extruded aluminum. All components are mounted on a resonance-free PolyStone baffle.
UPC: 093207011993 In the Box Definitive Technology Mythos Seven Tabletop & On-Wall Center-Channel 2-Way Loudspeaker (Single) Horizontal Leveler Foot Steel Wall Bracket 2 x Bumpers Wall-Mounting Template Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Definitive Technology Mythos Seven Tabletop & On-Wall Center-Channel 2-Way Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDefinitive Technology Mythos Seven Specs | Orientation | Horizontal | | Components | 1 x 1" (2.54 cm) pure aluminum round tweeter
2 x 3.5" (8.89 cm) round mid/woofer drivers
2 x 3.5" (8.89 cm) pressure-driven round bass radiators | | Frequency Response | 60 Hz to 30 kHz, total | | Nominal Impedance | 4-8 Ohms | | Sensitivity | Max: 89 dB, 1 W at 3.3' (1 m) | | Amplification | 10-175 W per channel | | Phase | 10-175°, continuous | | Crossover | A/V Receiver Crossover Setting: 120 Hz | | Mount | Flush-mount wall bracket | | Dimensions | 19.62 x 4.06 x 4.0" (49.8 x 10.3 x 10.2 cm) | | Weight | 8 lb (3.63 kg) | | | | Package Weight | 8.8 lb | | Box Dimensions (LxWxH) | 23.5 x 8.5 x 7.1" |
