User Manual for Definitive Technology Mythos Ten 2-Way Loudspeaker Click to enlarge the picture
Contents of the user manual for the Definitive Technology Mythos Ten 2-Way Loudspeaker
- Product category: Center Channel Speakers Definitive Technology
- Brand: Definitive Technology
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Definitive Technology Center Channel Speakers
 |
User manual for the Definitive Technology Mythos Ten 2-Way Loudspeaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Definitive Technology product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Definitive Technology user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Definitive Technology product will considerably shorten its lifespan!
|

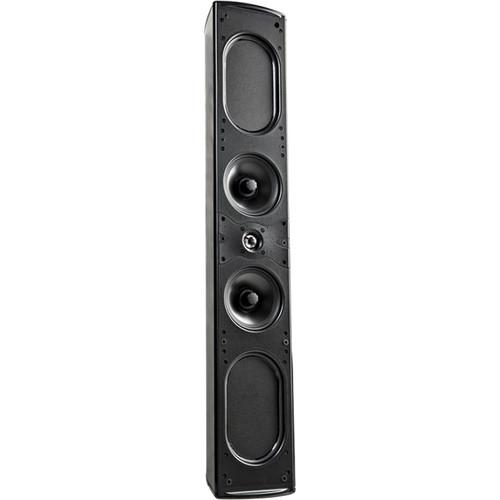

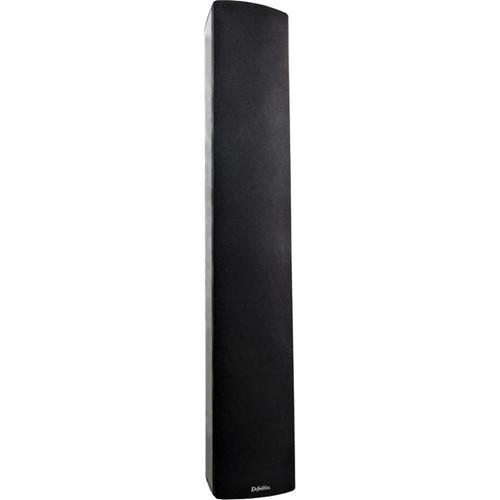

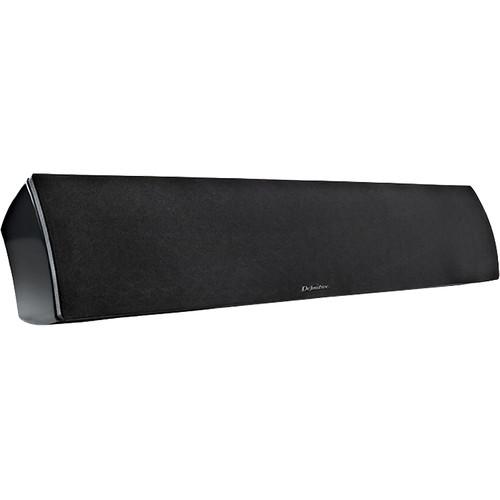

Product description Enhance the audio from your 50" or larger flat-panel TV with the black Mythos Ten 2-Way Loudspeaker from Definitive Technology. Designed to hang next to your screen, this speaker packs two high-definition BDSS 5.25" drivers pressure-coupled to two 5 x 8" planar low-bass radiators, plus a 1" ceramic-coated pure aluminum dome tweeter, all in a compact, elongated enclosure. The speaker's hand-polished gloss aircraft-grade extruded aluminum enclosure uses various damping technologies to ensure rigidity and sound accuracy. Included is a steel bracket for mounting the Mythos Ten vertically or horizontally on a wall. - Mythos Series Performance for Large Flat-Panel TVs
- The Mythos Ten is an on-wall speaker designed to complement your 50" or larger HDTV and perform as a main- (left/right) or center-channel speaker. It can serve as a center-channel complement to the Mythos ST SuperTowers (available separately).
- Woofer System
- The Mythos Ten incorporates two high-definition BDSS (Balanced Double Surround System) 5.25" drivers that are pressure-coupled to two 5 x 8" racetrack-shaped planar low-bass radiators. The result is bass extension down to 31 Hz and a power handling capacity of up to 300W. The bass roll-off of the Mythos Ten is smooth and controlled, allowing it to blend seamlessly with a powered subwoofer (available separately).
- Midrange Drivers
- The two BDSS 5.25" drivers surround a 1" dome tweeter, which is housed in a sealed, acoustically isolated enclosure. The drivers support the speaker cone at both the inner and outer edges for longer & more linear excursion, greater clarity, and finely textured detail. The driver baskets are die-cast aluminum.
- Tweeter
- The pure aluminum dome tweeter is heat-treated to relax the crystal structure and then coated with ceramic to deliver extended highs that reveal nuance and shimmer—without edginess.
- Solid Enclosure
- Mythos Series enclosures are hand-polished gloss black aircraft-grade extruded aluminum. All components are mounted on a resonance-free PolyStone baffle.
- Versatility
- The included wall-mount bracket allows direct mounting to a wall and also adapts to flat-panel TV swing-out arm-style wall mounts so that the speaker angle changes with the TV angle. An adjustable foot for shelf mounting is also included.
UPC: 093207055638 In the Box Definitive Technology Mythos Ten 2-Way Loudspeaker (Single) Steel Wall Bracket Horizontal Level Adapter Horizontal Leveler Foot 2 x Bumpers Wall-Mounting Template Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Definitive Technology Mythos Ten 2-Way Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

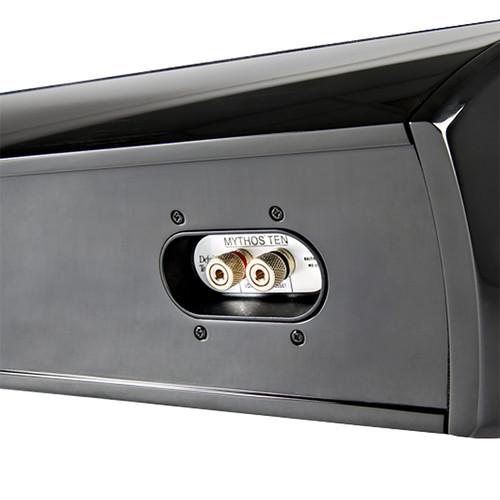

Technical parametersDefinitive Technology Mythos Ten Specs | Orientation | Horizontal/vertical | | Components | 1x 1" (2.54 cm) pure aluminum round tweeter
2x 5.25" (13.34 cm) BDSS round mid/woofer drivers
2x 5 x 8" (12.70 x 20.32 cm) oval bass radiators | | Frequency Response | 31 Hz to 30 kHz, total | | Nominal Impedance | 4-8 Ohms | | Sensitivity | Max: 93 dB, 1 W at 3.3' (1 m) | | Amplification | 10-300 W per channel | | Inputs | Pair of 5-way binding posts, gold-plated | | Crossover | A/V Receiver Crossover Setting: 60 Hz | | Mount | Flush-mount wall bracket | | Dimensions | 6.06 x 34.5 x 4.38" (15.39 x 87.63 x 11.13 cm) | | Weight | 17 lb (7.71 kg) | | | | Package Weight | 20.45 lb | | Box Dimensions (LxWxH) | 38.3 x 8.8 x 7.0" |
