User Manual for Deity Microphones V-Mic D3 Pro Supercardioid On-Camera Shotgun Microphone with Rycote Lyre Suspension Click to enlarge the picture
Contents of the user manual for the Deity Microphones V-Mic D3 Pro Supercardioid
- Product category: Shotgun Microphones Deity Microphones
- Brand: Deity Microphones
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Deity Microphones Shotgun Microphones
 |
User manual for the Deity Microphones V-Mic D3 Pro Supercardioid contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Deity Microphones product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Deity Microphones user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Deity Microphones product will considerably shorten its lifespan!
|

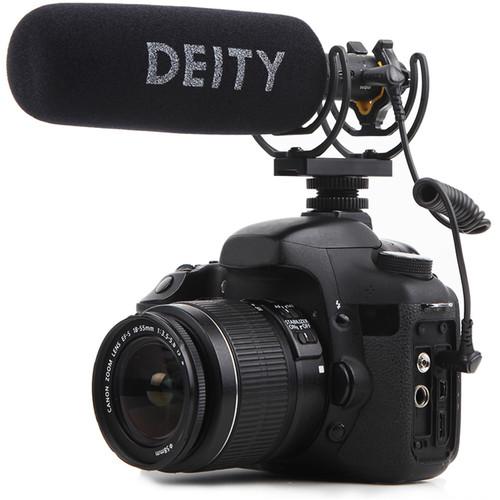

Product description Deity Mics: Wholly Useful Heavenly Mics Read More The Deity Microphones V-Mic D3 Pro is a supercardioid on-camera shotgun microphone offering directional audio capture, adjustable gain and filtering, and broad device compatibility for videographers, YouTubers, and sound recordists. With a built-in microprocessor that automatically configures its TRRS connector to work with most 3.5mm mic input jacks, the V-Mic D3 Pro is compatible with a variety of DSLRs, camcorders, mobile devices, and portable audio recorders. Setup with your camera is simple and efficient using the supplied Rycote Lyre adjustable shoe shockmount and 3.5mm TRRS coiled cable. The pre-polarized condenser capsule utilizes a supercardioid polar pattern, which yields low off-axis coloration, high SPL handling, and a high signal-to-noise ratio. Boasting a 50 Hz to 20 kHz frequency range with low noise and distortion, the V-Mic D3 Pro adheres to the demanding standards of high-resolution recording. A stepless dial on the mic's bottom provides up to 20 dB of gain for easy optimization of levels. Activate the onboard low-cut filter at 75 Hz or 150 Hz to reduce rumble and bass buildup. The microphone is powered by the internal 51-hour rechargeable battery; automatic power saving conserves battery life by shutting down the V-Mic D3 Pro after 15 minutes of standby time. The lightweight aluminum body is finished in a low-reflection paint, ensuring that it won't weigh down your camera or induce distracting glare. The V-Mic D3 Pro includes a foam windscreen to minimize noise from wind or HVAC systems. - Auto-Configuring 3.5mm Connector
- The V-Mic D3 Pro incorporates a microprocessor that automatically adapts its 3.5mm TRRS connector to work with most 3.5mm microphone jacks. Out of the box, the V-Mic D3 Pro is compatible with DSLRs, camcorders, smartphones and tablets (late-model iOS devices require Apple's Lightning to 3.5mm headphone jack adapter), portable audio recorders, bodypack transmitters, and laptops.
- Stepless Gain Knob
- The V-Mic D3 Pro features a stepless analog gain dial. Integrated bump guards help prevent the dial from being accidentally rotated. The gain (up to 20 dB) is added on a linear scale, so you can dial in the exact amount of boost you need for the shot.
- Selectable Low-Cut Filtering

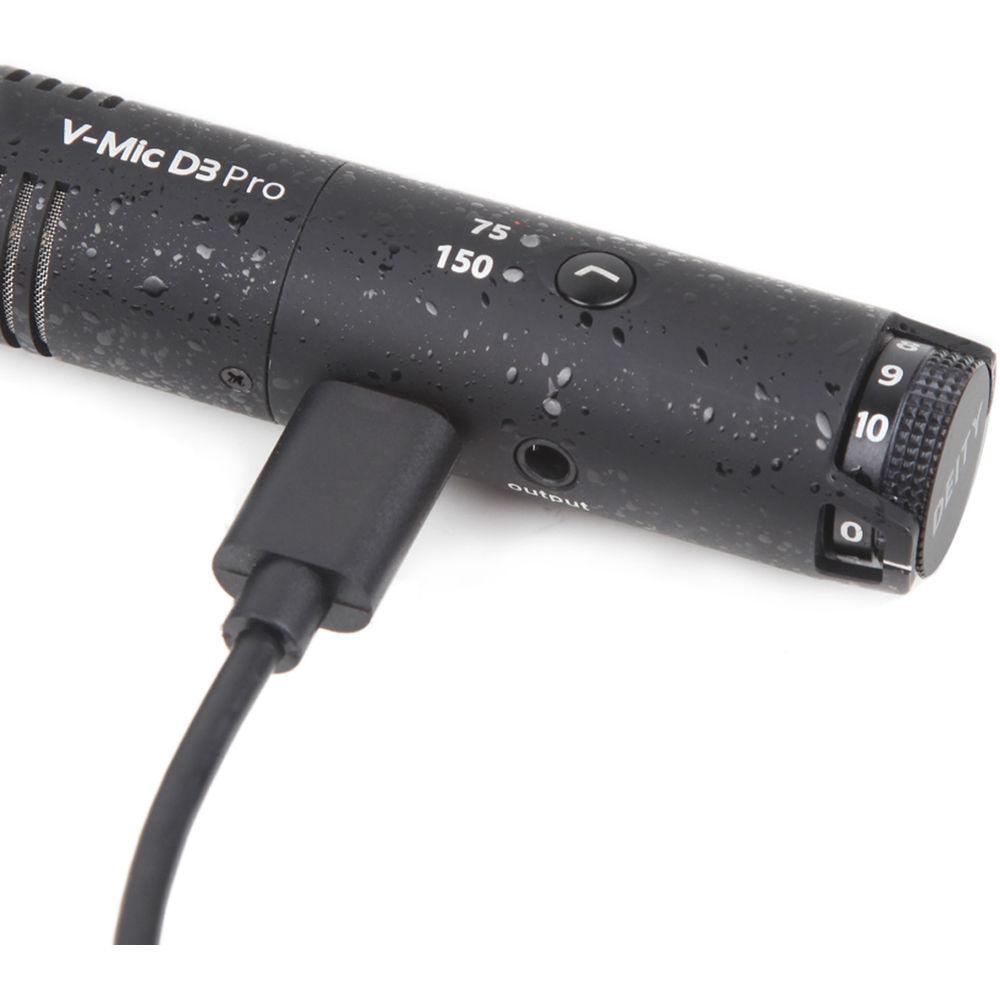

- Attenuate low-frequency rumble with the V-Mic D3 Pro's low-cut filter, selectable at 75 Hz or 150 Hz. Rather than using a sunken switch that requires a pointed object to flip, the V-Mic D3 Pro opts for a single top-mounted button.
- Low Off-Axis Coloration
- The V-Mic D3 Pro's pickup pattern remains similar across essential frequencies, yielding low off-axis coloration. Novice and experienced videographers can capture consistent audio quality when dealing with sources that vary their positions.
- Low-Noise Electronics
- Thanks to the 14mm condenser capsule and low-noise, low-distortion electronics, the V-Mic D3 Pro provides clean audio, which means less time spent in post-production processing your tracks with noise-reduction software.
- Long Battery Life
- The V-Mic D3 Pro uses a built-in 320mAh lithium battery, which powers the mic for up to 51 hours. Unnecessary battery usage is avoided by an automatic power-off function that turns off the V-Mic D3 Pro after 15 minutes in standby mode. The internal battery recharges via USB in approximately two hours.
- Convenient Accessories

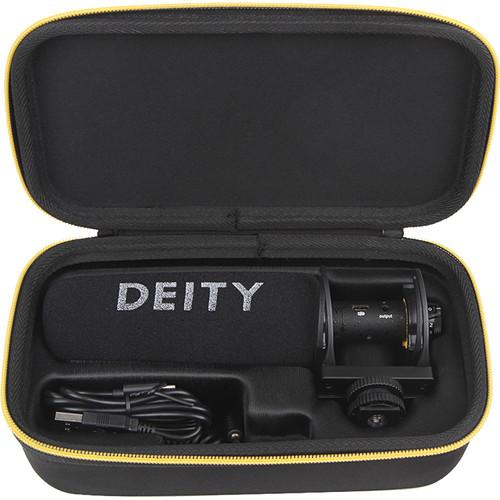

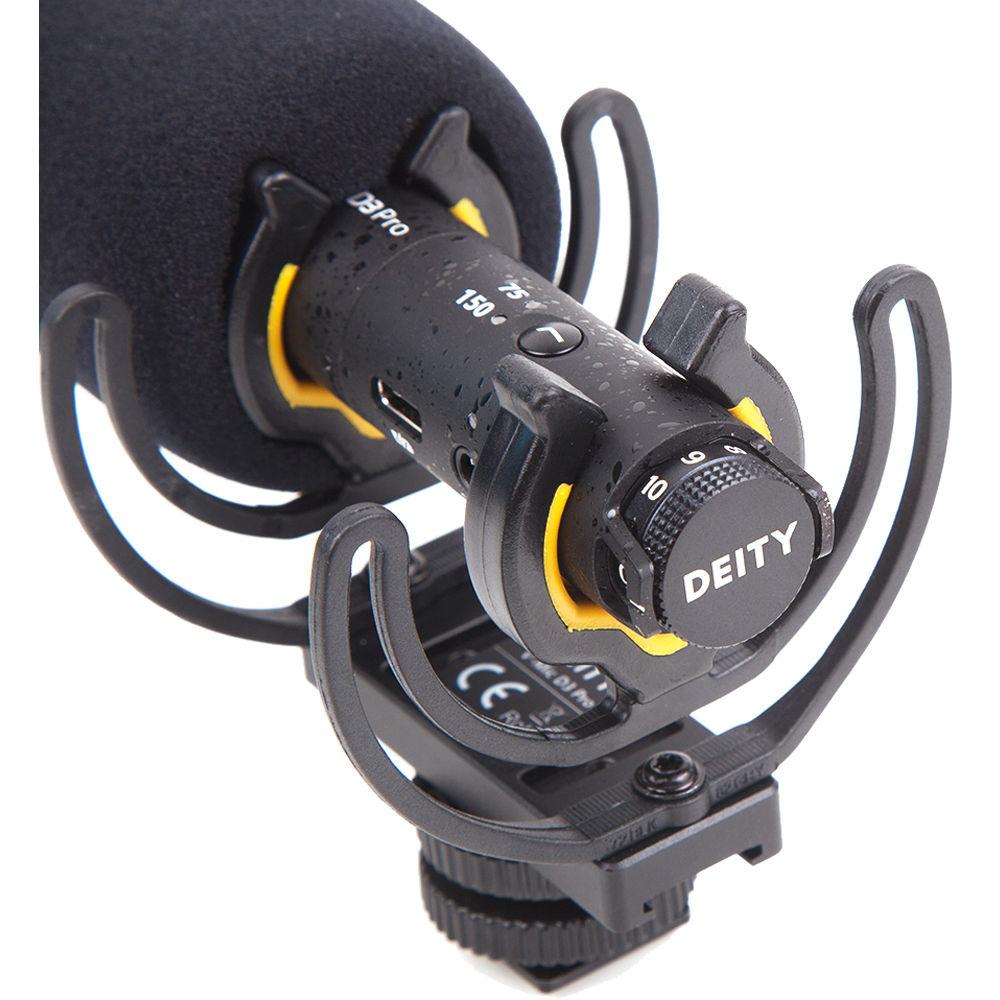

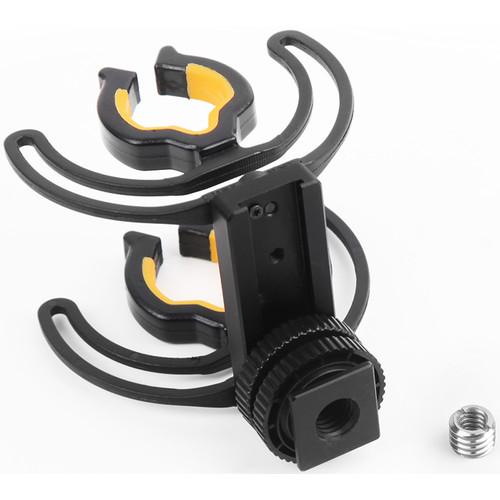

- The included foam windscreen reduces wind noise and handling noise. The Rycote Lyre adjustable shoe shockmount minimizes the transfer of vibrations by decoupling the mic from your camera. Connect the V-Mic D3 Pro to your device via the supplied 3.5mm TRRS coiled cable. Store and transport the entire bundle in the included semi-rigid nylon carrying pouch.

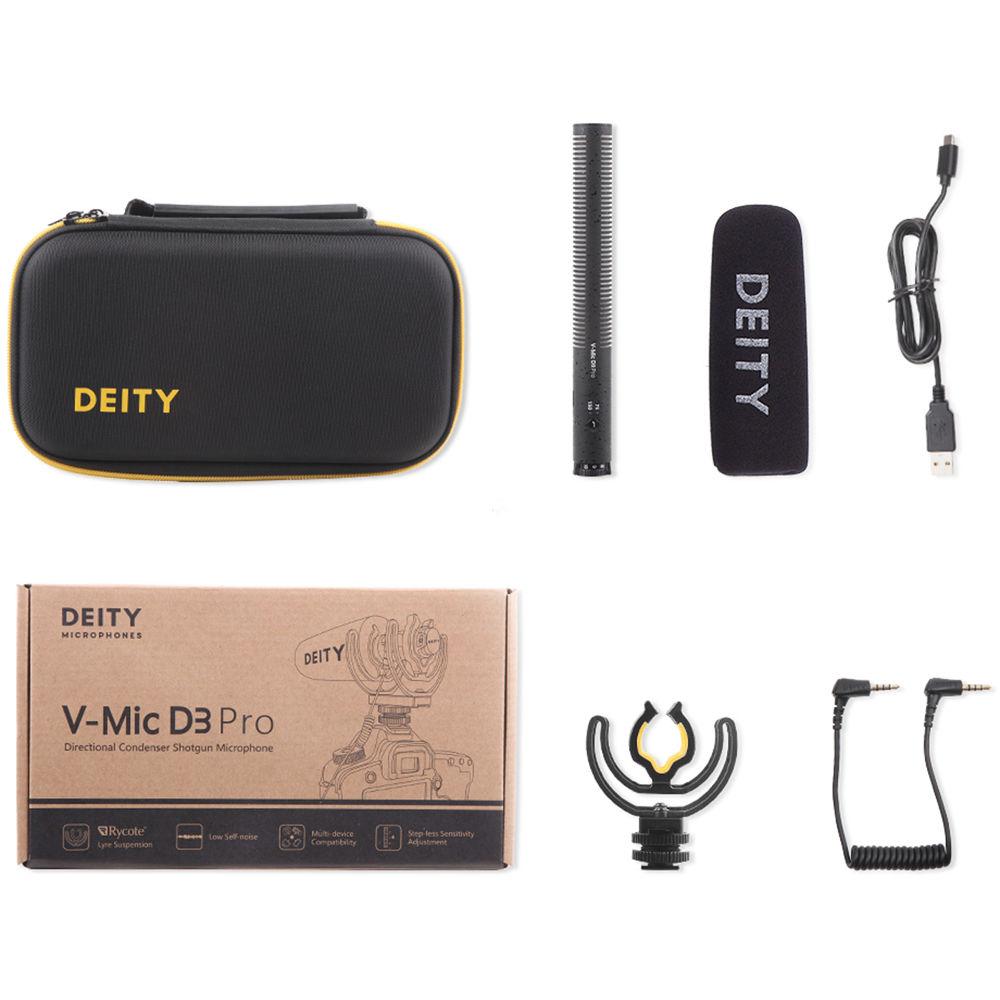

In the Box Deity Microphones V-Mic D3 Pro Supercardioid On-Camera Shotgun Microphone with Rycote Lyre Suspension Rycote Lyre Adjustable Shoe Shockmount Smart 3.5mm TRRS Coiled Cable USB Charging Cable Foam Windscreen Semi-Rigid Nylon Carrying Pouch Limited 2-Year Warranty with 6-Month Extension upon Online Registration User Manual PDF 5.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Deity Microphones V-Mic D3 Pro Supercardioid On-Camera Shotgun Microphone with Rycote Lyre Suspension in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDeity Microphones V-MIC D3 Specs | | | Sound Field | Mono | | Operating Principle | Pressure Gradient | | Transducer | Condenser | | Diaphragm | 0.55" / 14 mm | | Tube | No | | Polar Pattern | Supercardioid | | Frequency Range | 50 Hz to 20 kHz | | Signal to Noise Ratio | 84 dB | | Maximum SPL | 130 dB SPL | | Pad | None | | THD | < 0.1% | | Impedance | 200 Ohms | | Sensitivity | -24 dB at 1 kHz -44 dB Sensitivity with Gain Adjustment at +20 dB | | Low-Cut Filter | @ 75 Hz
@ 150 Hz | | Dynamic Range | 114 dB | | | | Output Connectors | 1 x 1/8" (3.5 mm) TRRS | | Battery Type | 1 x Built-In | | Length | 7.44" / 189 mm | | Diameter | 0.83" / 21 mm | | Weight | 5.04 oz / 143 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 10.0 x 5.5 x 4.0" |
