Product description

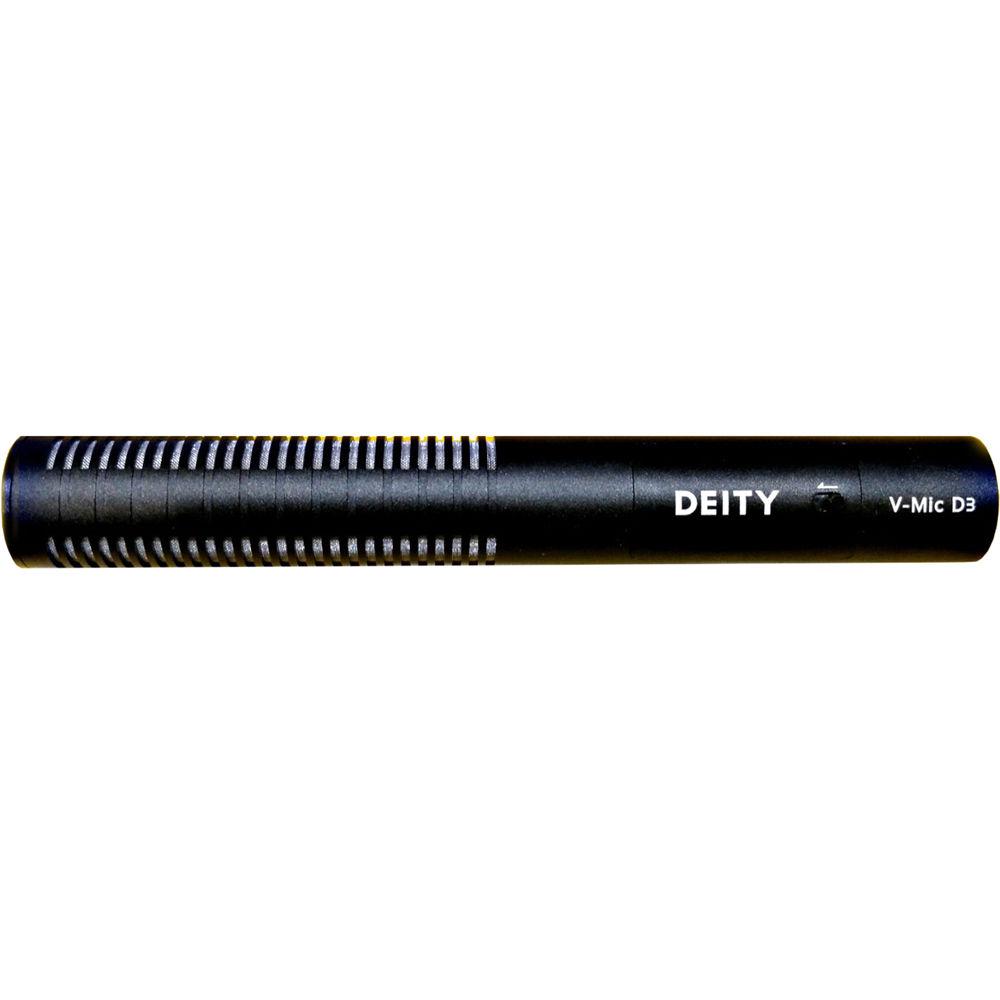

The Deity Microphones V-Mic D3 is a supercardioid on-camera shotgun microphone offering directional audio capture and broad device compatibility for videographers, YouTubers, and sound recordists. With a built-in microprocessor that automatically configures its TRRS connector to work with most 3.5mm mic input jacks, the V-Mic D3 is compatible with a variety of DSLRs, camcorders, mobile devices, and portable audio recorders. Setup with your camera is simple and efficient using the supplied Rycote adjustable hot-shoe shockmount and 3.5mm TRRS coiled cable. The pre-polarized condenser capsule utilizes a supercardioid polar pattern, which yields low off-axis coloration and high SPL handling. Boasting a 50 Hz to 20 kHz frequency range with low noise and distortion, the V-Mic D3 adheres to the demanding standards of high-resolution recording. The microphone may be powered via a single AAA alkaline, NiMH, or lithium battery; automatic power saving conserves battery life by entering standby mode when your camera or device is turned off. The lightweight aluminum body is finished in a low-reflection paint, ensuring that it won't weigh down your camera or induce distracting glare. The V-Mic D3 includes a foam windscreen to minimize noise from wind or HVAC systems.
    Auto-Configuring 3.5mm Connector
  • The V-Mic D3 incorporates a microprocessor that automatically adapts its 3.5mm TRRS connector to work with most 3.5mm microphone jacks. Out of the box, the V-Mic D3 is compatible with DSLRs, camcorders, smartphones and tablets (late-model iOS devices require Apple's Lightning to 3.5mm headphone jack adapter), portable audio recorders, bodypack transmitters, and laptops.
    Low Off-Axis Coloration
  • The V-Mic D3's pickup pattern remains similar across essential frequencies, yielding low off-axis coloration. Novice and experienced videographers can capture consistent audio quality when dealing with sources that vary their positions.
    Low-Noise Electronics
  • Thanks to the 14mm condenser capsule and low-noise, low-distortion electronics, the V-Mic D3 provides clean audio, which means less time spent in post-production processing your tracks with noise-reduction software.
    Long Battery Life
  • The V-Mic D3 uses a single AAA battery (alkaline, NiMH rechargeable, or lithium) for power, and features a one-button on/off switch. When turned on, the microphone is ready in standby mode; it automatically goes into run mode when your camera or device turns on. This also allows you to save battery on your microphone when you turn your camera off. A lithium AAA battery provides up to 208 hours of operating time, and over 6300 hours of standby time.
    Convenient Accessories

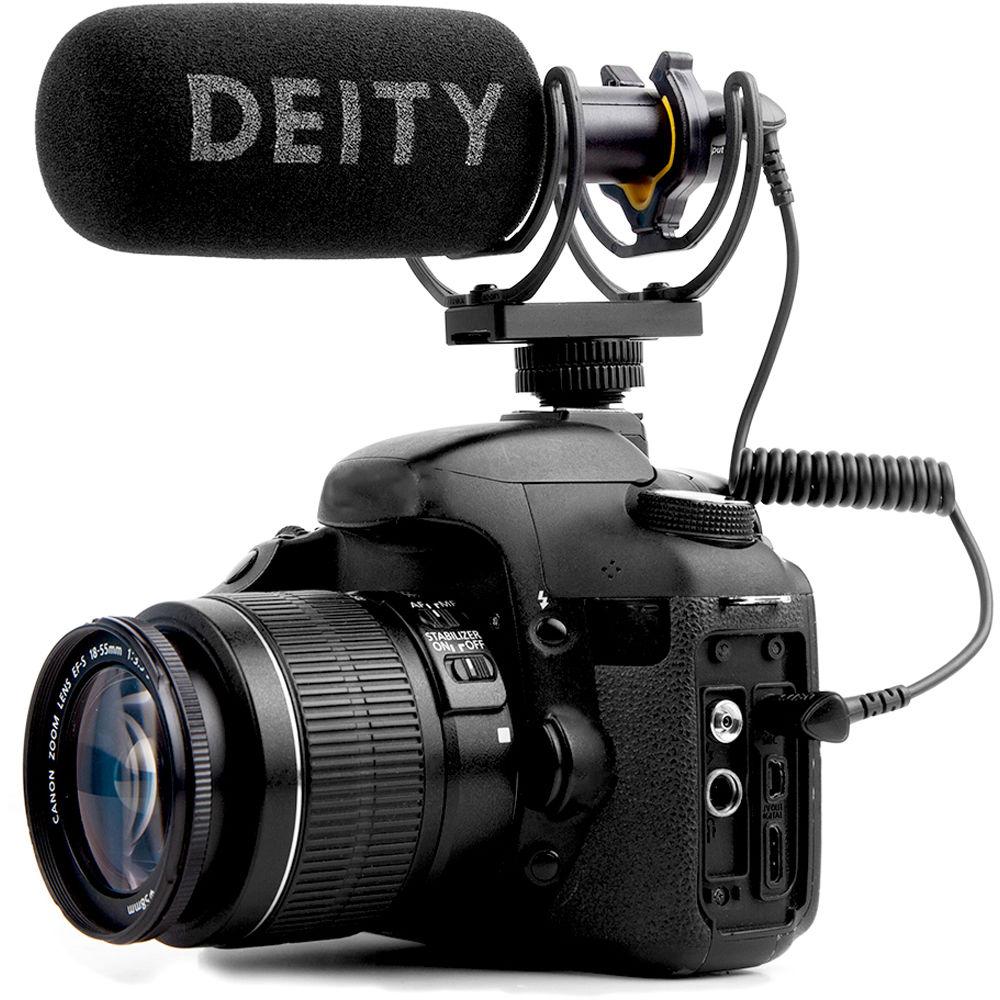

  • The included foam windscreen reduces wind noise and handling noise. The Rycote hot-shoe shockmount minimizes the transfer of vibrations by decoupling the mic from your camera. Connect the V-Mic D3 to your device via the supplied 3.5mm TRRS coiled cable.

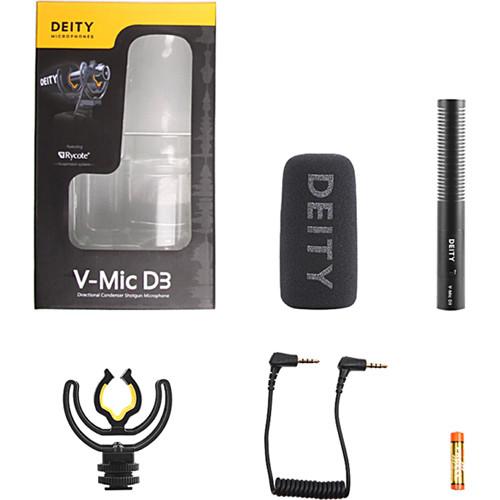

In the Box Deity Microphones V-Mic D3 Supercardioid On-Camera Shotgun Microphone with Rycote Suspension
  • Rycote Adjustable Hot-Shoe Shockmount
  • Smart 3.5mm TRRS Coiled Cable
  • Foam Windscreen
  • AAA Battery
  • Limited 2-Year Warranty with 6-Month Extension Upon Online Registration
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Deity Microphones V-Mic D3 Supercardioid On-Camera Shotgun Microphone with Rycote Suspension in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Deity Microphones V-Mic D3 Specs

    Sound Field Mono
    Operating Principle Pressure Gradient
    Transducer Condenser
    Diaphragm 0.55" / 14 mm
    Tube No
    Polar Pattern Supercardioid
    Frequency Range 50 Hz to 20 kHz
    Signal to Noise Ratio 78 dB
    Maximum SPL 130 dB SPL
    Pad None
    THD < 0.1%
    Impedance 200 Ohms
    Sensitivity -35 dB at 1 kHz
    Low-Cut Filter None
    Dynamic Range 114 dB
    Output Connectors 1 x 1/8" (3.5 mm) TRRS
    Battery Type 1 x AAA
    Package Weight 0.6 lb
    Box Dimensions (LxWxH) 8.0 x 5.0 x 3.0"
