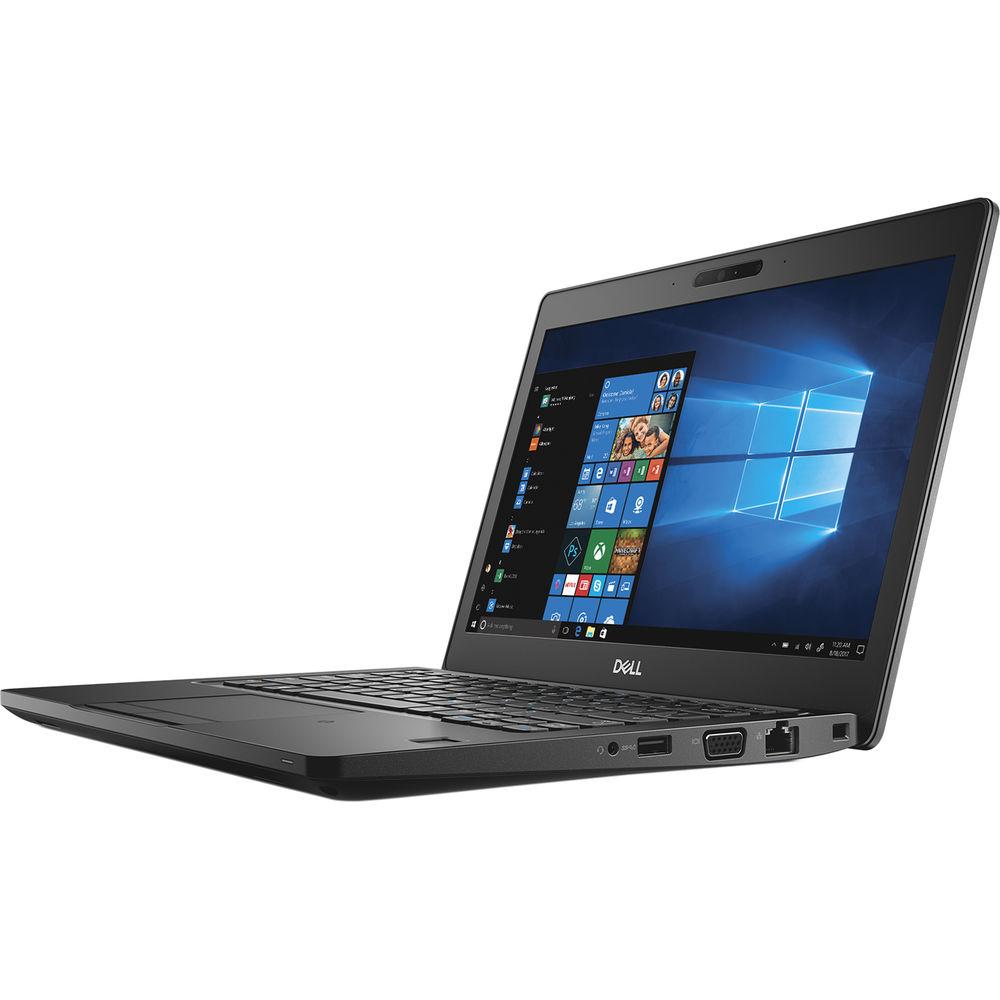

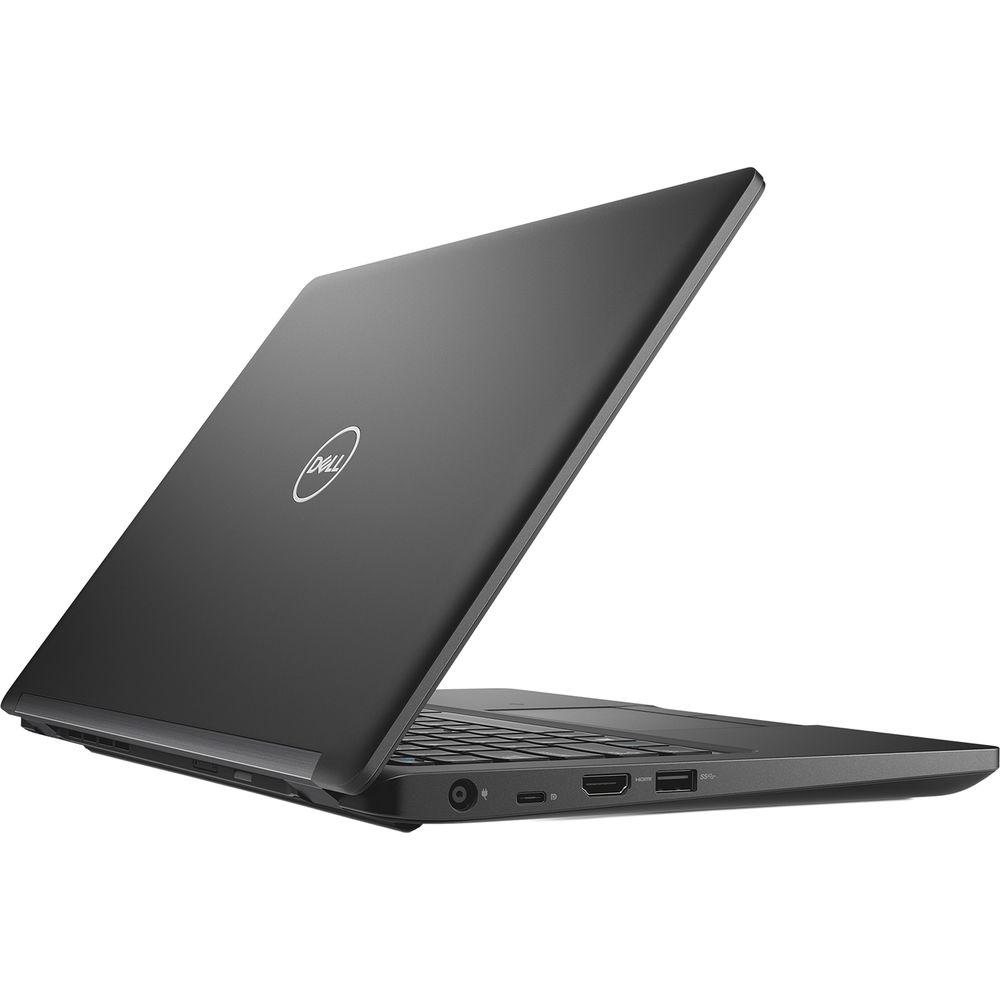

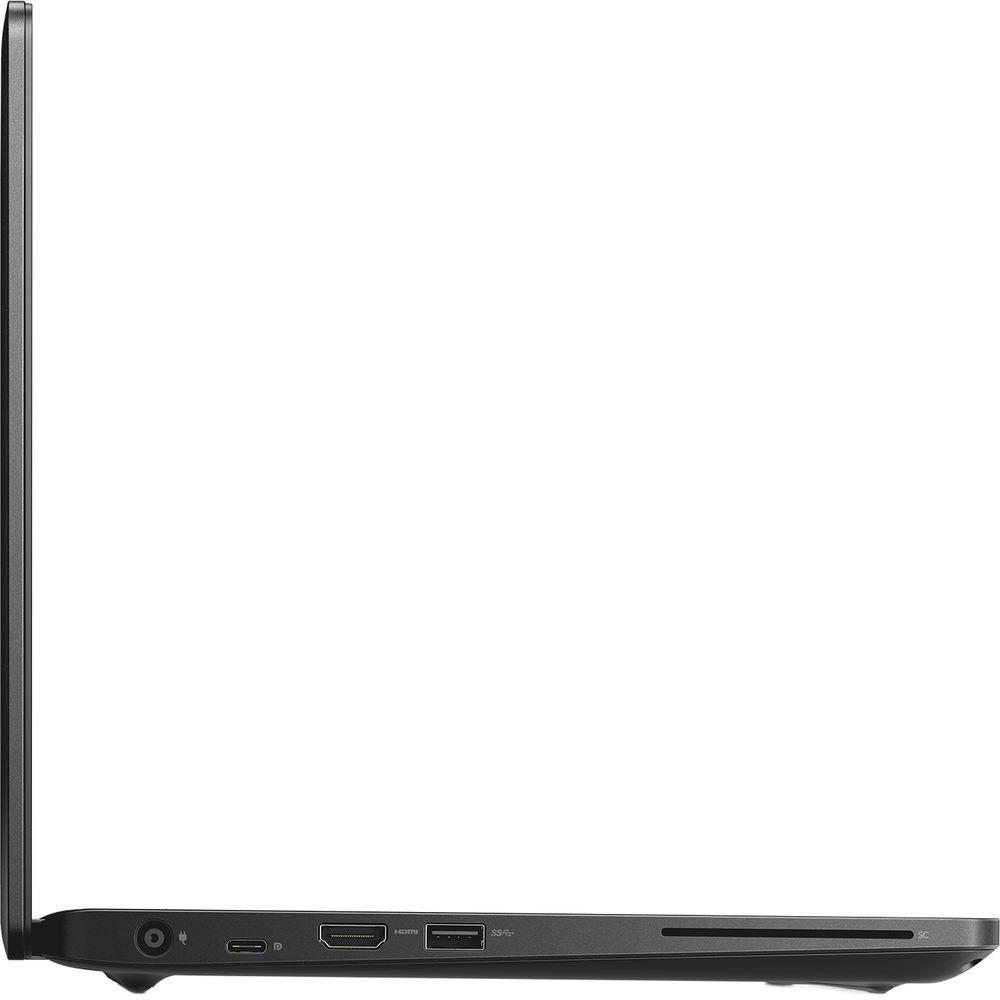

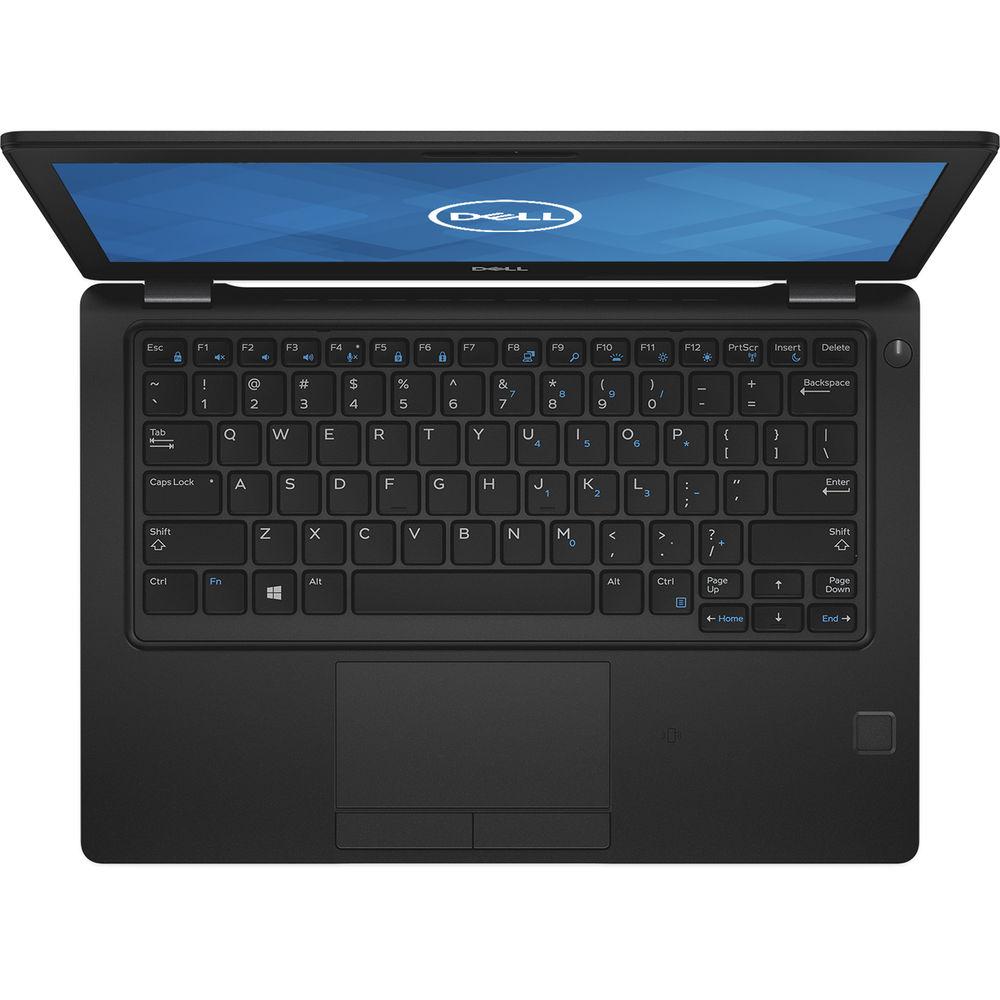

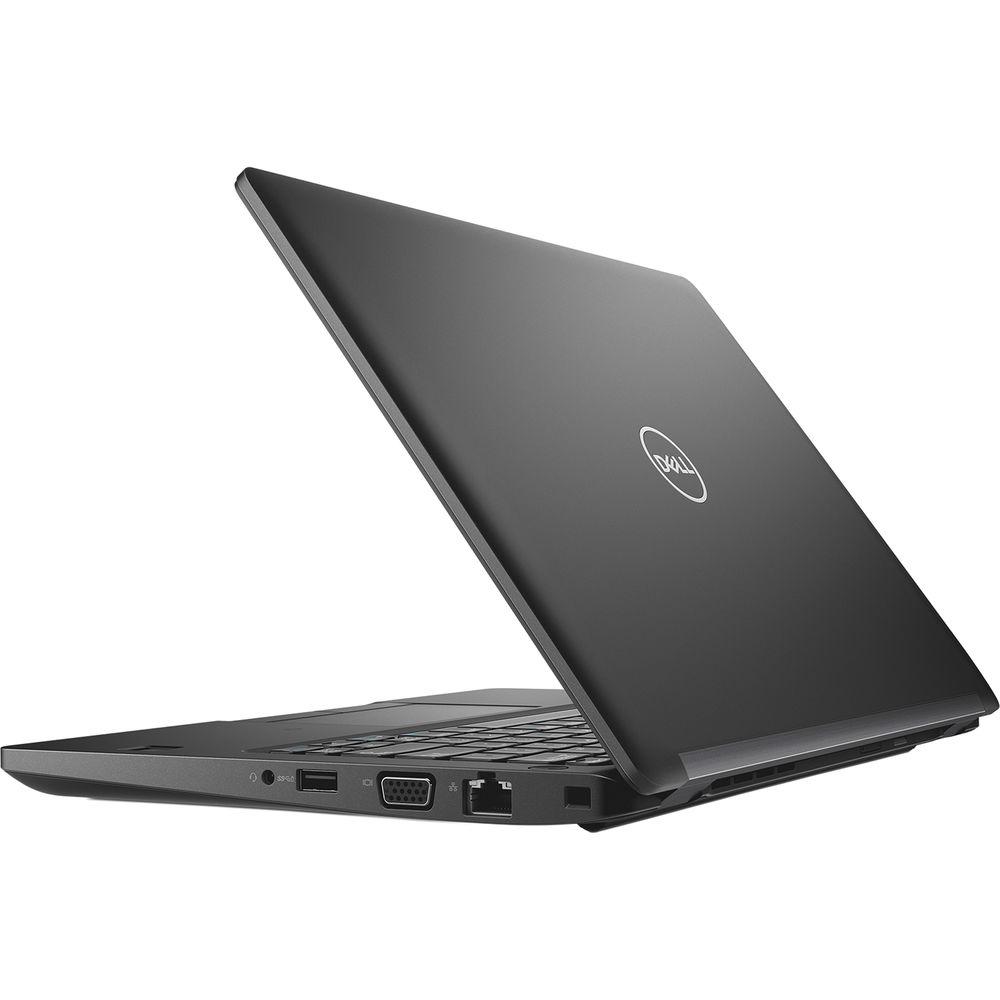

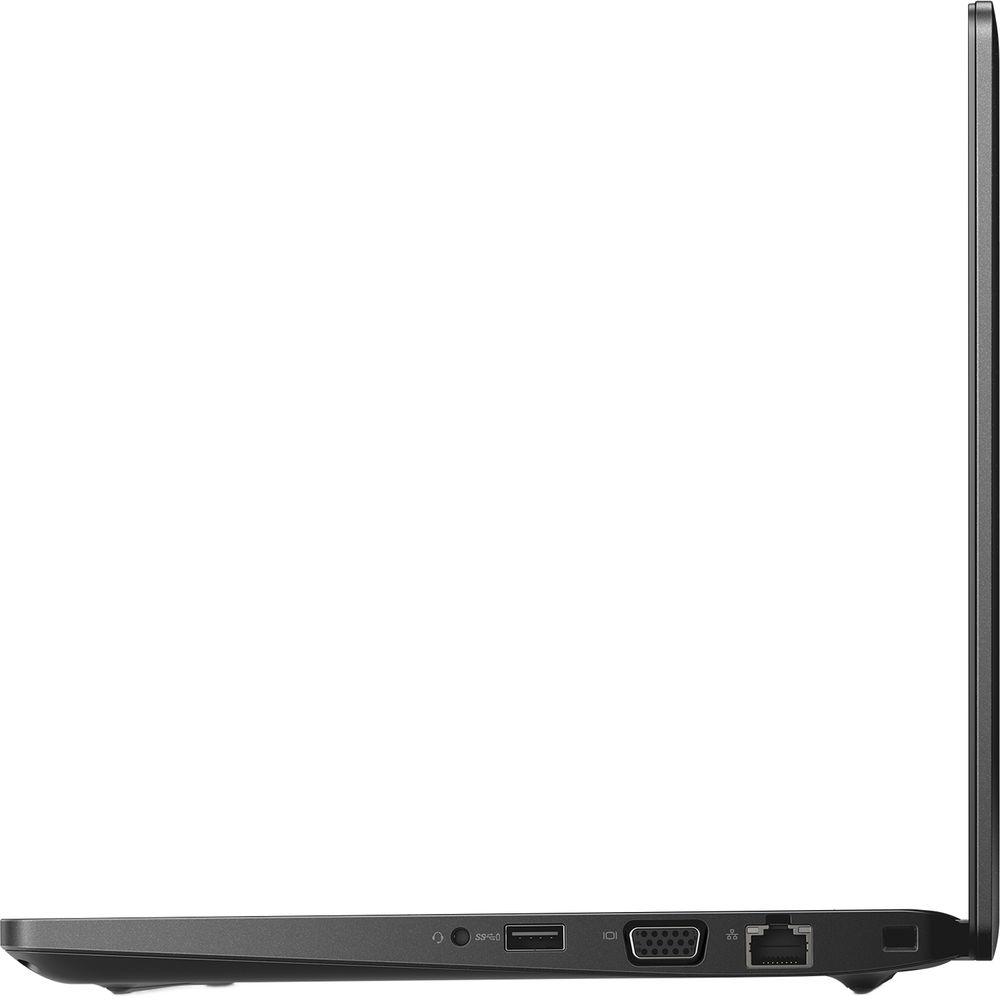

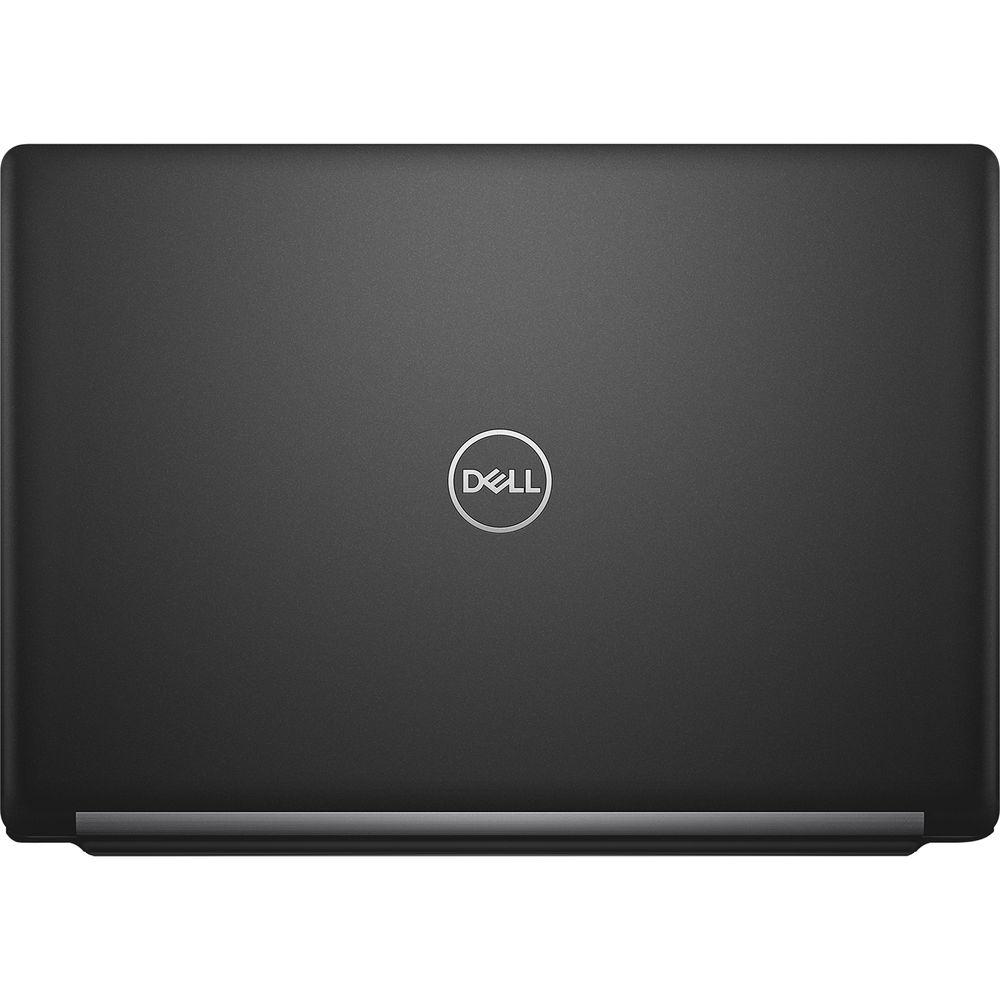

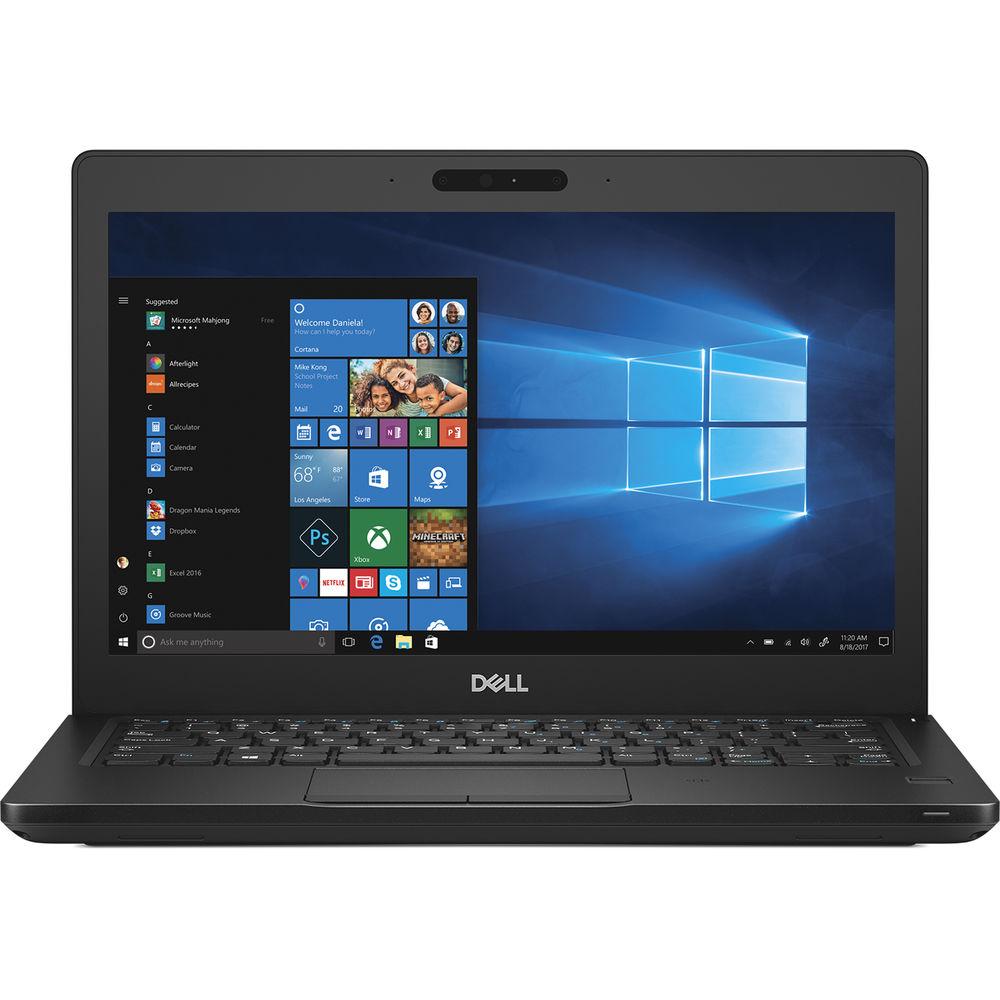

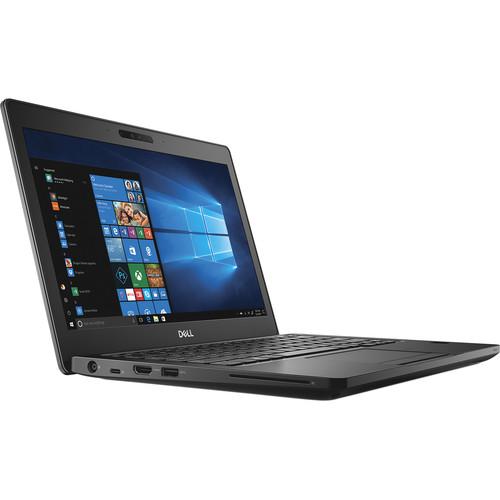

User Manual for Dell 12.5" Latitude 5290 Notebook Click to enlarge the picture
Contents of the user manual for the Dell 12.5" Latitude 5290 Notebook
- Product category: Notebooks Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Notebooks
 |
User manual for the Dell 12.5" Latitude 5290 Notebook contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|
Product description Work Laptops The 12.5" Latitude 5290 Notebook from Dell empowers productivity with a range of security options. The system is powered by a 1.6 GHz Intel Core i5-8250U Quad-Core processor and 8GB of 2400 MHz DDR4 RAM in a 1 x 8GB configuration, allowing you to run multiple programs simultaneously and quickly access frequently used files and programs. When running more demanding programs or tasks, the processor can be boosted to achieve a speed of 3.4 GHz using Intel's Turbo Boost 2.0 technology and the memory can be upgraded to 32GB in 2 x 16GB configuration.
The 12.5" Anti-Glare display features an HD 16:9 resolution of 1366 x 768 for playback of your media content, plus a brightness of 200 cd/m2 and viewing angles of 40/40/10/30°. Visuals are handled by the integrated Intel UHD Graphics 620 chipset, and you can output video to an external display using the HDMI 1.4 and VGA ports, as well as DisplayPort via USB Type-C.
For storage of your files, this system comes with both a 256GB NVMe PCIe M.2 SSD, with an empty 2.5" SATA drive bay for additional internal storage. If you want to add external storage, optical drives, mice, keyboards, printers, memory card readers, and more, the Latitude 5290 offers one USB 3.1 Gen 1 Type-C port and two USB 3.1 Gen 1 Type-A ports (one with PowerShare). Built-in stereo speakers, a microphone, and a 720p webcam let you participate in video calls for work or with friends and family. Connect to the internet via dual-band 802.11ac Wi-Fi or Gigabit Ethernet LAN for a more stable and reliable connection. Furthermore, to free up USB ports and reduce wire clutter, you can connect additional peripherals and devices using Bluetooth 4.2, while a built-in media card reader supports UHS-II microSD/SDHC/SDXC formats.
Dell's 12.5" Latitude 5290 Notebook operates using an included 65W AC adapter, a power cord, and a 3-cell / 51Wh battery. The installed operating system is Windows 10 Pro (64-Bit). General Features - Office Everywhere
- The Latitude's security, versatility, and accessories empower the way you work because your success relies on the ability to maintain office-level productivity, wherever your job takes you.
- Protection from Attacks
- Dell ControlVault 2 with FIPs 140-2 Level 3 Certification provides a more secure alternative for storing and processing passwords, biometric templates, and security codes.
- The Power to Perform
- Leverage outstanding performance with a 1.6 GHz Intel Core i5-8250U Quad-Core processor and a 256GB NVMe PCIe M.2 SSD to round out your Latitude 5290 to power your workday.
- Designed with Purpose
- Work confidently thanks to an HD display and all-day battery life. Bring your Dell Power Companion for extended workdays.
- Focus on Work, Not Your Notebook
- Tested against 17 MIL STD 810G benchmarks, Dell's durable system helps make sure your work stays safe.
- Stay Connected
- Navigate congested workspaces with Gigabit Ethernet and dual-band 802.11ac (2x2) Wi-Fi. Other compatible peripherals, such as keyboards, mice, and headsets, may be paired using Bluetooth 4.2 technology.
Windows 10 Pro - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the Internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 884116282686 In the Box Dell 12.5" Latitude 5290 Notebook 65W AC Adapter Power Cord Limited 1-Year Hardware Warranty with Onsite/In-Home Service After Remote Diagnosis User Manual PDF 12.3mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell 12.5" Latitude 5290 Notebook in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell 5290 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU | 1.6 GHz Intel Core i5-8250U Quad-Core | | Maximum Boost Speed | 3.4 GHz | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 8 GB | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 1 | | ECC Memory | No | | Graphics Type | Integrated | | GPU | Intel UHD Graphics 620 | | | | Panel Type | Unspecified LCD | | Size | 12.5" | | Aspect Ratio | 16:9 | | Resolution | 1366 x 768 | | Touchscreen | No | | Finish | Matte | | Maximum Brightness | 200 cd/m2 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Viewing Angle (H x V) | 80 x 40° | | | | 2.5" Slots | 1 x Height Unspecified (Available) | | SSD Slots | 1 x M.2 PCIe (In Use) | | Total Installed Capacity | 256 GB | | Solid State Storage | 1 x 256 GB M.2 NVMe PCIe | | Expansion Slots | None | | Optical Drive | None | | | | Ports | 2 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x USB 3.1 Gen 1 | | Display | 1 x HDMI 1.4
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 2 | | Built-In Microphones | 2 | | Media Card Slots | 1 x microSDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | MU-MIMO Support | 2 x 2 | | Bluetooth | 4.2 | | GPS | None | | NFC | None | | Webcam | User-Facing: 720p | | | | Watt Hours / Type | 51 Wh | | Cells | 3 | | Output Voltage | 11.4 VDC | | | | Keyboard | 82-Key Notebook Keyboard with Backlight | | Pointing Device | TouchPad | | | | Security | Accepts 3rd Party Security Lock Devices | | Power Supply | 65 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions | 12 x 0.8 x 8.3" / 304.8 x 20.3 x 210.8 mm | | Weight | 3 lb / 1.4 kg | | | | Package Weight | 5.0 lb | | Box Dimensions (LxWxH) | 16.9 x 11.0 x 2.9" |
