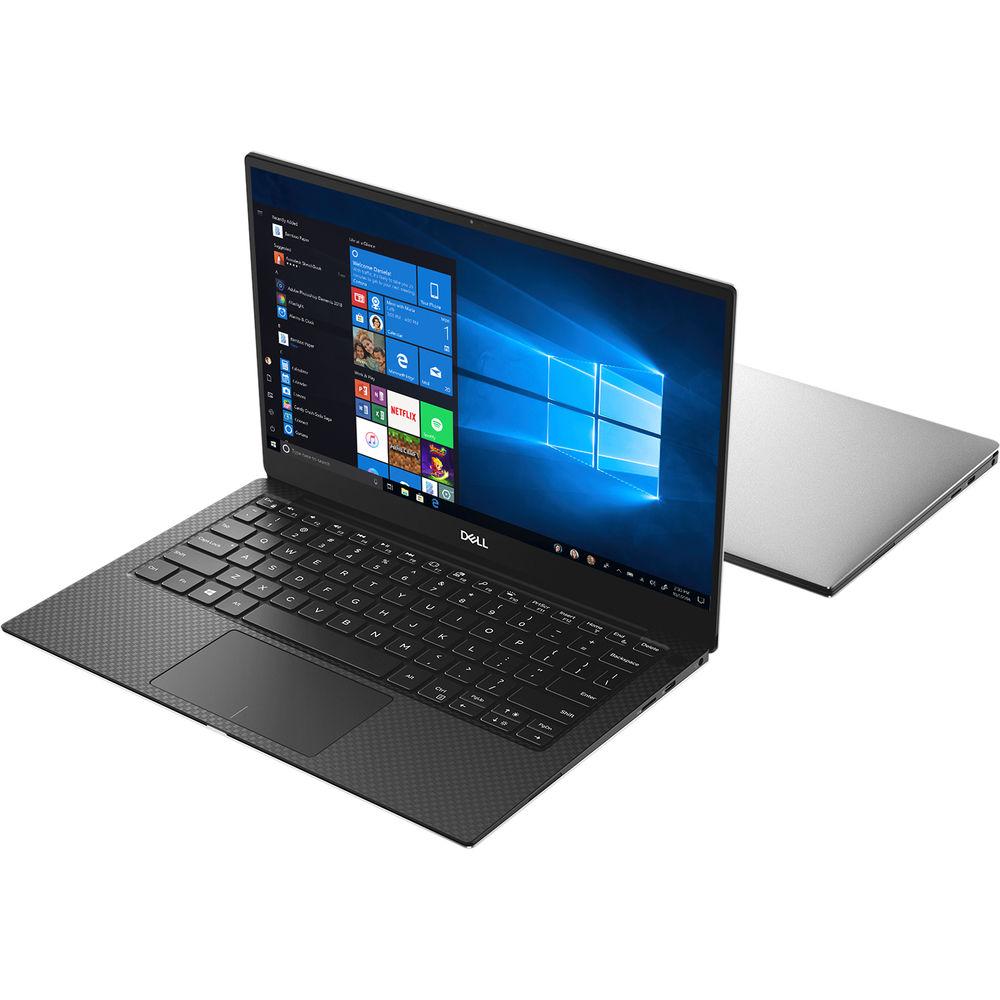

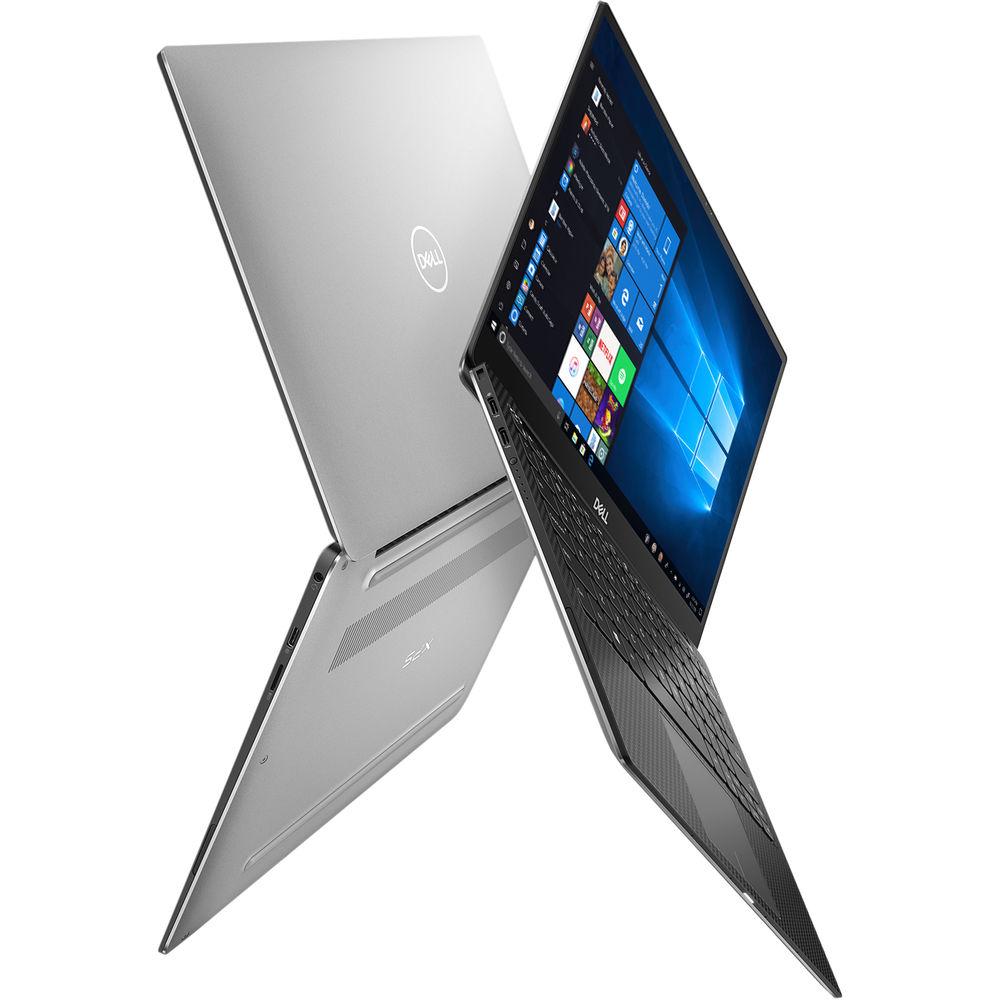

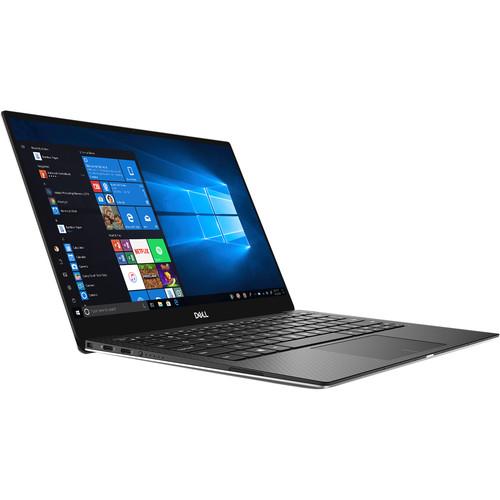

User Manual for Dell 13.3" XPS 13 9380 Multi-Touch Laptop Click to enlarge the picture
Contents of the user manual for the Dell 13.3" XPS 13 9380 Multi-Touch
- Product category: Notebooks Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Notebooks
 |
User manual for the Dell 13.3" XPS 13 9380 Multi-Touch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|
Product description Work Laptops Redesigned with an InfinityEdge display and Dell Cinema, the 13.3" XPS 13 9380 Multi-Touch Laptop from Dell is a thin, light, and durable system designed for users who need a portable system that's capable of keeping up with them. Powered by a 1.8 GHz Intel Core i7-8565 Quad-Core processor with a boost speed of 4.6 GHz, 16GB of 2133 MHz LPDDR3 RAM, and integrated Intel UHD Graphics 620, the XPS 13 can efficiently multitask and quickly access frequently used files and programs.
Its 13.3" InfinityEdge IGZO IPS display features an Ultra HD 3840 x 2160 resolution with a 60 Hz refresh rate for crystal-clear details, as well as multi-touch capabilities, allowing you to utilize touch gestures and commands within Windows 10 Home to further improve its efficiency and accessibility. The display also features a brightness of 400 cd/m2, a contrast ratio of 800:1, viewing angles of 160°, and a glossy finish.
For storage, this system is equipped with a 256GB NVMe PCIe M.2 solid-state drive, which can boot-up and load files and applications within seconds. Should you need more storage, connect external storage solutions using its two Thunderbolt 3 ports and one USB 3.1 Gen Type-C port. Both Thunderbolt 3 ports support bi-directional transfers of up to 40 Gb/s, as well as 10 Gb/s USB 3.1 Gen 2, DisplayPort 1.2, Power Delivery (PD), and a 5V /3A output for device charging. The USB 3.1 Gen 2 Type-C port supports DisplayPort and Power Delivery up to 7.5W.

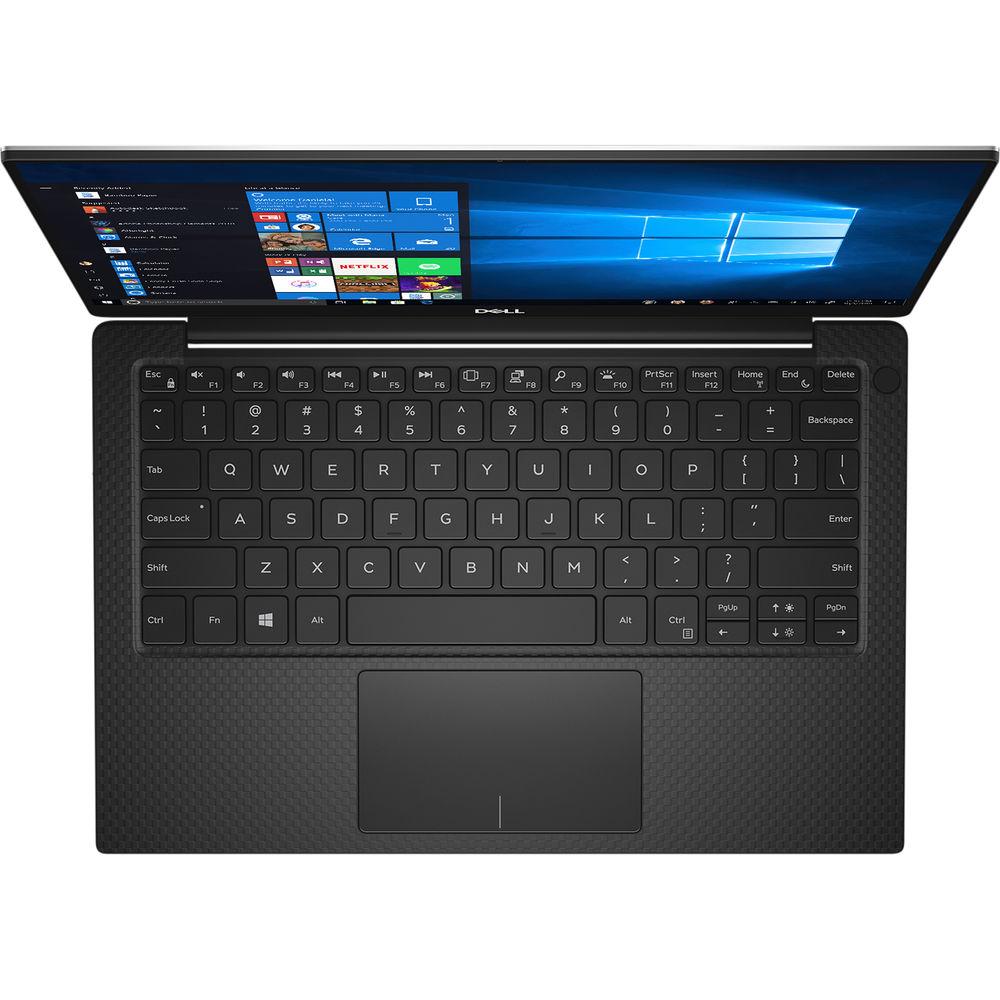

Connect to the internet via Wi-Fi 5 (802.11ac) and pair compatible wireless peripherals using Bluetooth 4.1 to free up its USB ports for more important devices. Other integrated features include a 720p webcam, a full-sized, backlit, chiclet-style 82-key keyboard, a microSD card reader, quad-array far-field microphones, dual 1W speakers, and a headset/microphone combo jack. The operating system installed is Windows 10 Home (64-Bit).
Please note that a USB Type-C to DisplayPort adapter is required to connect a DisplayPort device. Dell XPS 13 9380 Dell Cinema - CinemaColor
- Visuals appear every bit as lifelike as the world around you. Experience richer, more vibrant color and details enabled by Dell Color Profiles and take full advantage of HDR content's increased dynamic range, deeper blacks, and brighter whites, thanks to Dolby Vision.
- CinemaStream
- Killer Wireless channels more bandwidth to your videos or music for a seamless, stutter-free experience.
- CinemaSound
- Waves MaxxAudio Pro boosts volume and clarifies tones, so you experience studio-quality sound.

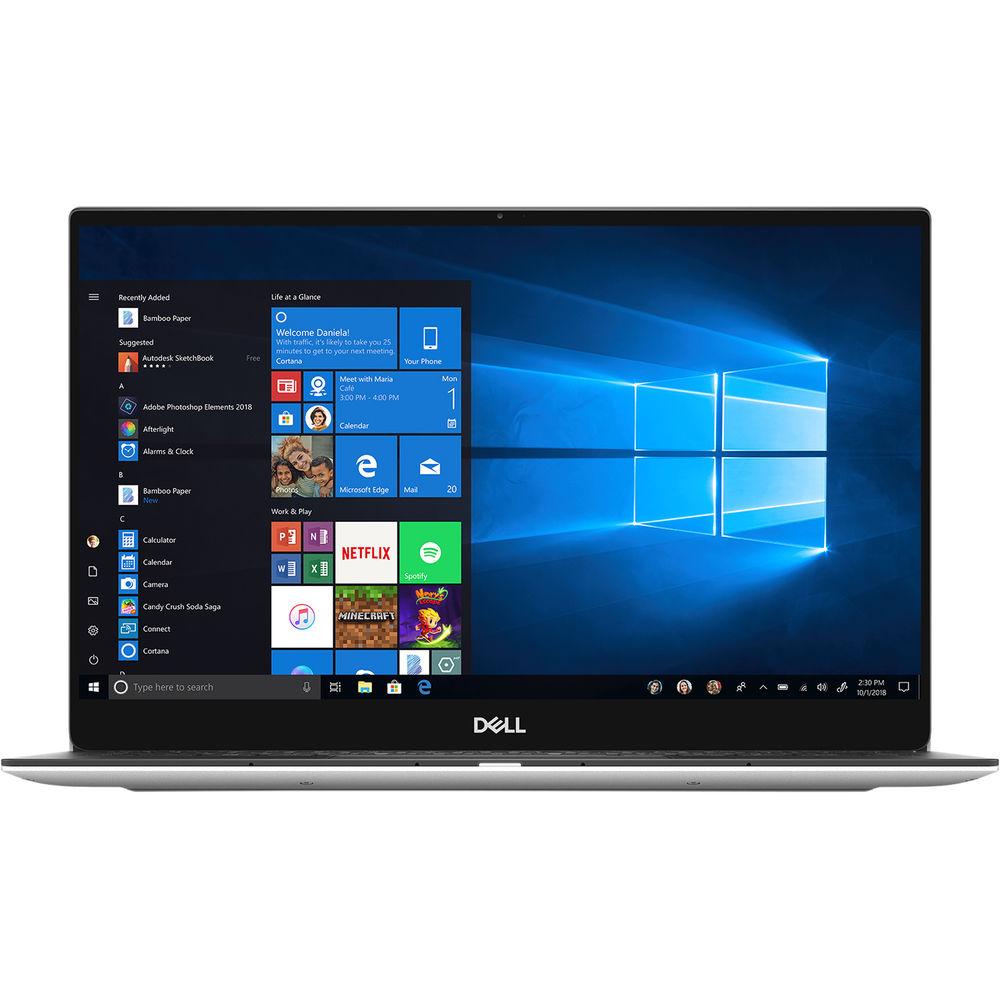

An Unparalleled View - Less Border, More Pixels
- Dell improved every part of the display. Enjoy a screen that seems endless with an InfinityEdge display, enabling a 13.3" screen in an 11" form factor with an 80.7% screen-to-body ratio. See every detail you didn't know you were missing with an Ultra HD 3840 x 2160 resolution that packs in 8 million pixels.
- Vibrant Colors
- By maximizing the color spectrum with 100% sRGB color and an 800:1 contrast ratio, shadows take shape and even bright scenes gain definition.
- Beautiful from Every Angle
- The anti-reflective screen has a 400 cd/m2 brightness that gives you the freedom to enjoy your entertainment outdoors, while the IPS panel provides viewing angles of up to 160°, so you can share your screen more easily.
More Might, Even More Slight - A Small 13" Laptop
- Your entertainment can go with you almost everywhere-. Starting at just 2.7 pounds, the smaller, thinner XPS 13 is ready for take-off. Sized for airplane tray tables, you won't even notice when the passenger in front of you reclines their seat.
- A Powerful 13" Laptop
- With a 1.8 GHz Intel Core i7-8565U Quad-Core processor, more cores means increased performance, even with multiple applications running. Plus, Dell Power Manager, engineered by Dell, allows users to customize their laptop acoustics (fan speeds), temperature, and performance based on their preferences between quiet, performance, and cool modes. For example, quiet mode is 50% quieter than the other modes. It also dynamically delivers the maximum power from your processor while monitoring and managing system temperatures.
- Work or Play Longer
- You'll experience a long battery life, especially when using productivity applications like Word or Excel.
- Fast Memory and Storage
- Your system boots and resumes quickly thanks to a 256GB NVMe PCIe M.2 SSD and 16GB of 2133 MHz LPDDR3 memory.
Looks That Keep Their Cool - Strength
- The XPS 13 is cut from a single block of aluminum, so it's more durable than a machine that's pieced together. Carbon fiber, inspired by the aerospace industry, and the woven glass fiber of the palm rest, allow for increased strength and minimal weight. Corning Gorilla Glass 4 is more damage resistant compared to competitive products.
- Clean Design
- Aesthetically, less is more. Dell inlayed a stainless XPS logo, laser-etched the regulatory details, and color-matched the feet. The brightened platinum silver finish truly shines.
- Cooler Than Ever
- The XPS 13 is built with GORE Thermal Insulation, which provides thermal conductivity levels lower than air in a thin, flexible format. While the Gore insulation directs heat out of the device, dual fans and heat pipes further lower the temperature of your XPS, enabling greater performance in a thinner form factor.
Advanced Technology - Voice Activated
- The XPS 13 responds to your voice from up to 14' away, thanks to four built-in mics, Microsoft Cortana, and Waves-enabled speech technology. Control playlists and access schedules even with background noise.
- Connectivity
- The multi-use Thunderbolt 3 ports use the USB Type-C interface and allow you to charge your laptop, connect to multiple devices (including support for up to two 4K displays), and enjoy data transfers up to 40 Gb/s, which is up to 8 times that of USB 3.0.
- Docking
- The XPS 13 can be used with Dell docking solutions, featuring single-cable connections for power, Ethernet, audio, and video. Add the optional Dell Thunderbolt Dock for faster data transfers and support for up to three Full HD displays or two 4K displays.
Dell Mobile Connect. - PC/Smartphone Integration
- Access multiple devices without dividing your attention. Dell Mobile Connect pairs your iOS or Android smartphone with your laptop.
- Limit Disruptions
- With Dell Mobile Connect, you get the option to channel notifications from phone calls, SMS, IMs, and other apps right to your laptop. Keep your focus on a single screen and respond only when it's convenient for you.
- Maintain Your Privacy
- Your phone connects to your system via Dell Mobile Connect's point-to-point, secure connection, so your data is never exposed via unsecure internet connections.
Windows 10 Pro - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Laptop, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
UPC: 884116313977 In the Box Dell 13.3" XPS 13 9380 Multi-Touch Laptop 45W USB Type-C Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell 13.3" XPS 13 9380 Multi-Touch Laptop in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell 9380 Specs | Operating System | Windows 10 Home (64-Bit) | | | | CPU | 1.8 GHz Intel Core i7-8565U Quad-Core | | Maximum Boost Speed | 4.6 GHz | | L3 Cache | 8 MB | | Memory Type | 2133 MHz LPDDR3 | | Total Installed Memory | 16 GB | | Memory Configuration | 2 x 8 GB (Onboard) | | Graphics Type | Integrated | | GPU | Intel UHD Graphics 620 | | | | Panel Type | IPS | | Size | 13.3" | | Aspect Ratio | 16:9 | | Resolution | 3840 x 2160 | | Touchscreen | Yes | | Finish | Glossy | | Maximum Brightness | 400 cd/m2 | | Refresh Rate | 60 Hz | | Contrast Ratio | 800:1 | | Response Time | 35 ms | | Viewing Angle (H x V) | 160 x 160° | | | | SSD Slots | 1 x M.2 2280 SATA / PCIe x4 (In Use) | | Total Installed Capacity | 256 GB | | Solid State Storage | 1 x 256 GB M.2 NVMe PCIe | | Optical Drive | None | | | | USB Type-C Ports | 2 x Thunderbolt 3 (Supports DisplayPort and Power Delivery)
1 x USB 3.1 Gen 2 (Supports DisplayPort and 7 W Power Delivery) | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 2 x 1 W | | Built-In Microphones | 4 x Far-Field | | Media Card Slots | 1 x microSDXC | | | | Ethernet | None | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | MU-MIMO Support | 2 x 2 | | Bluetooth | 4.1 | | GPS | None | | NFC | No | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion | | Watt Hours / Type | 52 Wh | | Cells | 4 | | Output Voltage | 7.6 VDC | | | | Keyboard | 82-Key Chiclet Full-Size Keyboard with Backlight | | Pointing Device | TouchPad | | | | Security | Accepts 3rd Party Security Lock Devices | | Power Supply | 45 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.3 A | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 10 to 90% | | Dimensions | 11.9 x 7.8 x 0.5" / 302.26 x 198.12 x 12.7 mm | | Weight | 2.8 lb / 1.3 kg |
