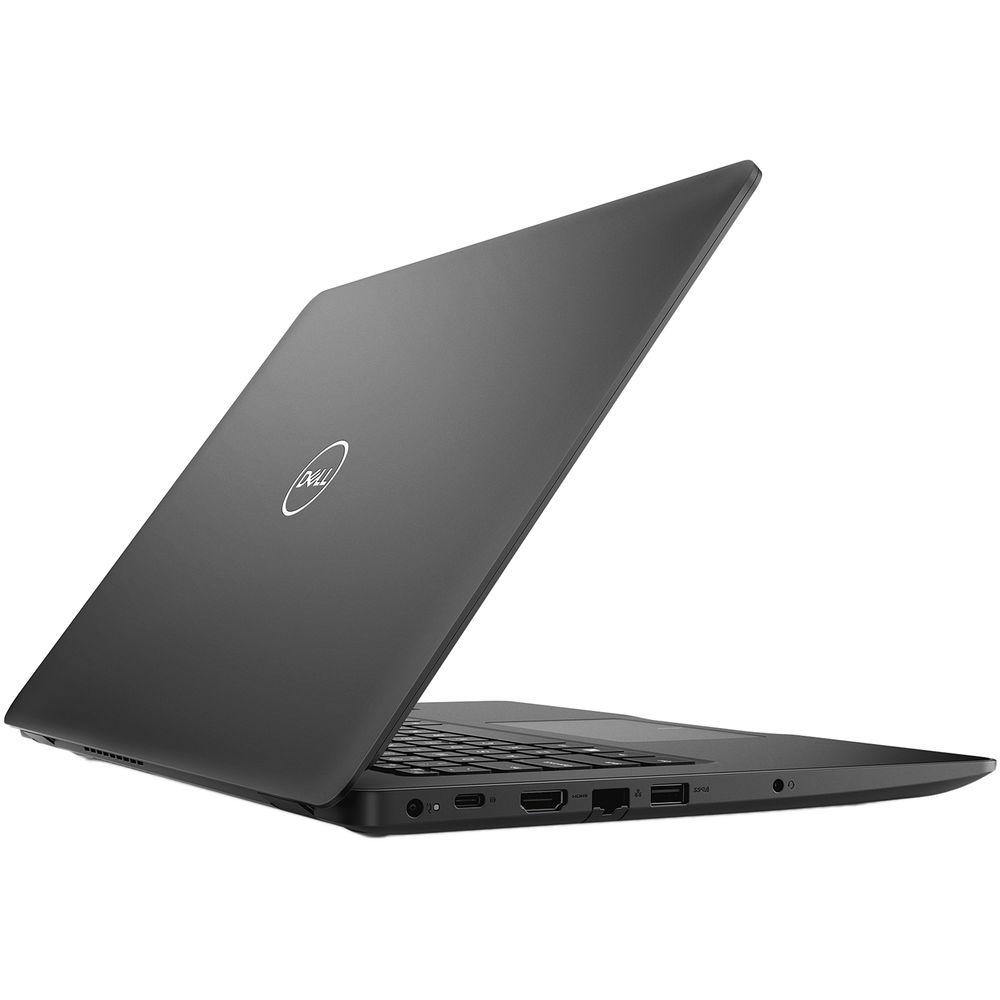

User Manual for Dell 14" Latitude 3490 Notebook Click to enlarge the picture
Contents of the user manual for the Dell 14" Latitude 3490 Notebook
- Product category: Notebooks Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Notebooks
 |
User manual for the Dell 14" Latitude 3490 Notebook contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|
Product description Work Laptops The 14" Latitude 3490 Notebook from Dell provides security features critical for small and growing businesses in a durable, reliable, and portable design. The 14" anti-glare display is driven by integrated Intel UHD Graphics 620 and features an HD 1366 x 768 resolution, 220 cd/m2 brightness, viewing angles of 40/40/10/30°, a 300:1 contrast ratio, and a refresh rate of 60 Hz. With its 16:9 aspect ratio, 720p HD content is displayed without scaling or letterboxing.
The system is powered by a 1.6 GHz Intel Core i5-8250U Quad-Core processor. It also has 8GB of 2400 MHz DDR4 RAM, a 500GB 7200 rpm SATA 2.5" hard drive, one USB 3.1 Gen 1 Type-C port with support for Power Delivery and DisplayPort, one USB 3.1 Gen 1 Type-A port with PowerShare, one USB 2.0 port Type-A port, one HDMI 1.4 port, one VGA port, a built-in SD/SDHC/SDXC card reader, dual-band 802.11ac Wi-Fi (2x2), Bluetooth 4.1, an integrated 720p webcam, dual integrated microphones, and stereo speakers that are driven by the Realtek ALC3253 codec with Waves MaxxAudio Pro. Included with this system are a 65W AC adapter that operates using 100-240 VAC at 50-60 Hz and a 4-cell / 56Wh battery that can recharge in around 3-4 hours.
Windows 10 Pro (64-bit) is the installed operating system. Windows 10 Pro improves the user experience of Windows with several additions and changes. Cortana, Microsoft's digital assistant, is integrated into Windows 10 and is available to answer questions with information gathered from both your system and the internet. Microsoft Edge replaces Internet Explorer, and the Windows Store is now unified to include apps for PCs, tablets, and phones, which can now take advantage of the Windows Continuum feature. Xbox One streaming and integration for supported games are also included. General Features - Office Everywhere
- The Latitude's security, versatility, and accessories empower the way you work because your success relies on the ability to maintain office-level productivity, wherever your job takes you.
- Enhanced Data Protection
- Data security is key in protecting your business and employees. Dell Data Protection is a suite of security software programs offered on each Latitude 3000 Series system. Endpoint security, advanced user authentication, and data encryption software all work cohesively to help safeguard your data from threats and hacks.
- Safely Communicate
- Your Latitude 3490 comes TPM2.0 TCG certified, FIPS-140-2 certified, and uses hardware-based cryptography for more secure communications.
- User-Friendly Management
- Dell Client Command Suite comes with a set of automation tools that assists in device monitoring, deploying images, updating and more, to maximize your hardware and software investments and save time.
- Strong Reliability
- Your Latitude 3490 features a durable, built-to-last chassis that has undergone military-grade MIL-STD 810G testing to ensure your system can withstand real-world conditions.
- Power Your Workday
- An 8th Gen 1.6 GHz Intel Core i5-8250U Quad-Core processor delivers the power you need for increased productivity, while 8GB of DDR4 memory boosts transfer rates while using less voltage, making your Latitude 3490 run faster and more efficiently.
- Flexible Connectivity
- VGA, HDMI, RJ45, USB Type-A, and USB Type-C ports let you go dongle free and accommodate your legacy connections.
- Work Together with Ease
- The extended 175° hinge is smooth, flexible, and durable so you can collaborate effectively.
- Take Your Work with You
- At 0.82" thin and weighing in at 3.79 pounds, your Latitude laptop is travel ready.
- Power
- Get up to 15 hours of battery life with the optional 56WHr battery to handle your entire workday.
Windows 10 Pro - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the Internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 884116279099 In the Box Dell 14" Latitude 3490 Notebook 65W AC Adapter Power Cord Limited 1-Year Hardware Warranty with Onsite/In-Home Service After Remote Diagnosis More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell 14" Latitude 3490 Notebook in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell 3490 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU Socket | BGA 1356 | | CPU | 1.6 GHz Intel Core i5-8250U Quad-Core | | Maximum Boost Speed | 3.4 GHz | | L3 Cache | 6 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 8 GB | | Memory Configuration | 1 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | 1 | | Graphics Type | Integrated | | GPU | Intel UHD Graphics 620 | | | | Panel Type | Unspecified LCD | | Size | 14" | | Aspect Ratio | 16:9 | | Resolution | 1366 x 768 | | Touchscreen | No | | Finish | Matte | | Maximum Brightness | 220 cd/m2 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Viewing Angle (H x V) | 80 x 40° | | | | Total Drive Bays | 1 x 2.5" (Internal) | | 2.5" Slots | 1 x Height Unspecified (In Use) | | SSD Slots | 1 x M.2 (Available) | | Total Installed Capacity | 500 GB | | Hard Disk Storage | 1 x 500 GB 2.5" SATA (7200 rpm) | | Expansion Slots | None | | Optical Drive | None | | | | Ports | 1 x USB Type-A (USB 3.1 Gen 1)
1 x USB Type-A (USB 2.0) | | USB Type-C Ports | 1 x USB 3.1 Gen 1 | | Display | 1 x HDMI 1.4
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 2 | | Built-In Microphones | 2 | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | MU-MIMO Support | 2 x 2 | | Bluetooth | 4.1 | | GPS | None | | NFC | None | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 56 Wh | | Cells | 4 | | Output Voltage | 15.2 VDC | | | | Keyboard | Notebook Keyboard | | Pointing Device | TouchPad | | | | Security | Accepts 3rd Party Security Lock Devices | | Power Supply | 65 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions | 13.3 x 9.5 x 0.8" / 337.8 x 241.3 x 20.3 mm | | Weight | 3.8 lb / 1.7 kg Starting weight | | | | Package Weight | 6.25 lb | | Box Dimensions (LxWxH) | 18.0 x 12.4 x 3.2" |
