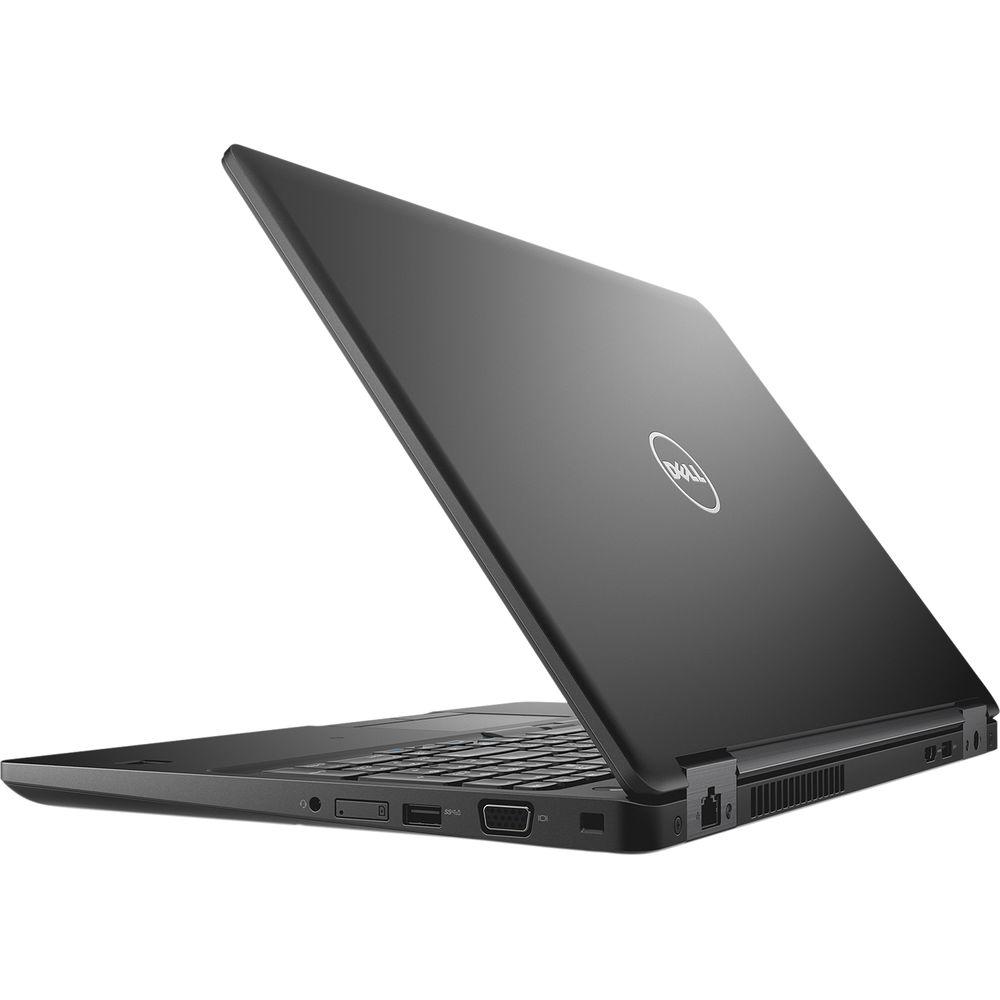

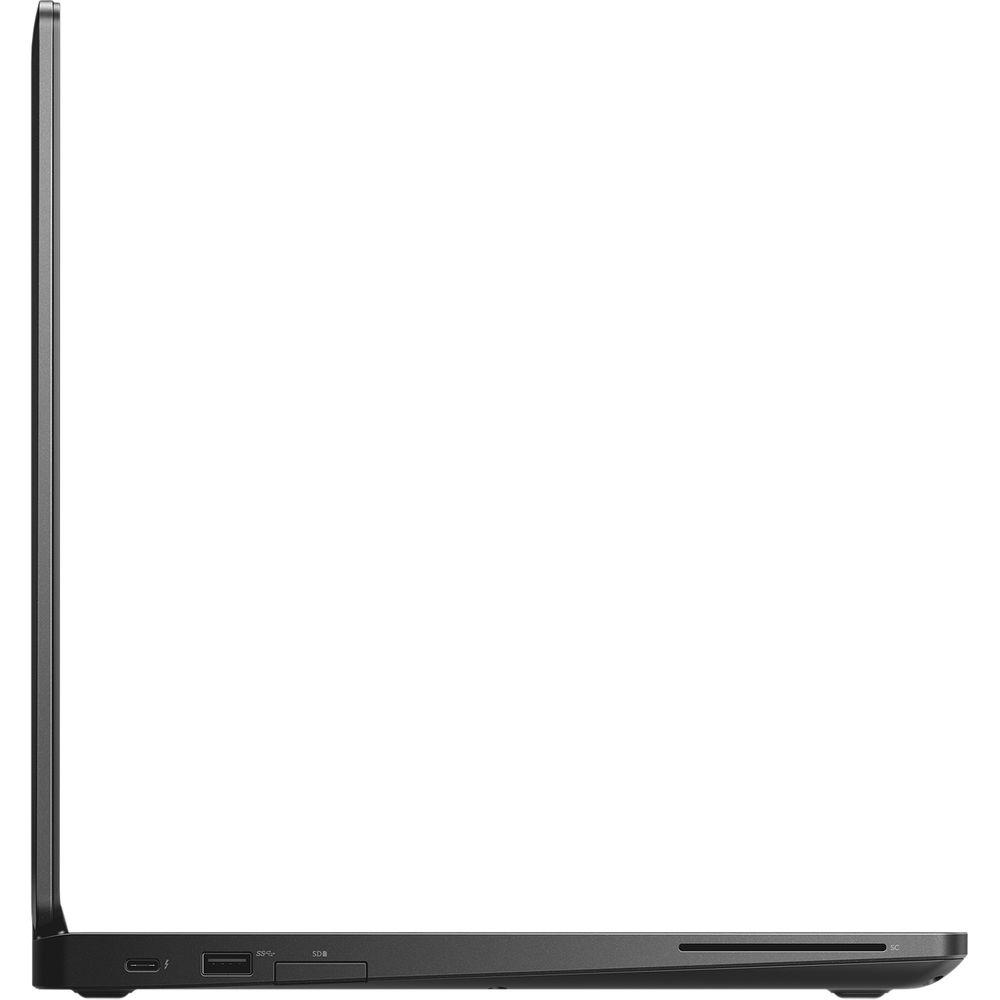

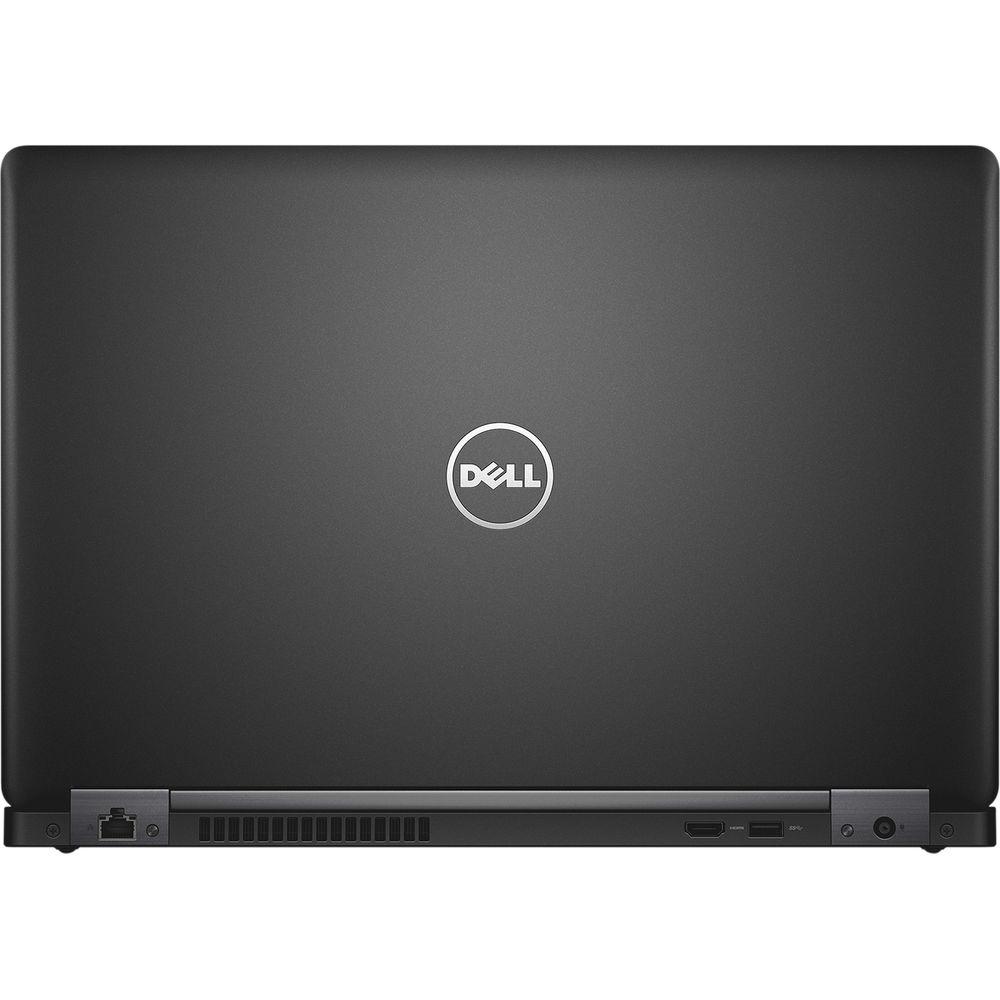

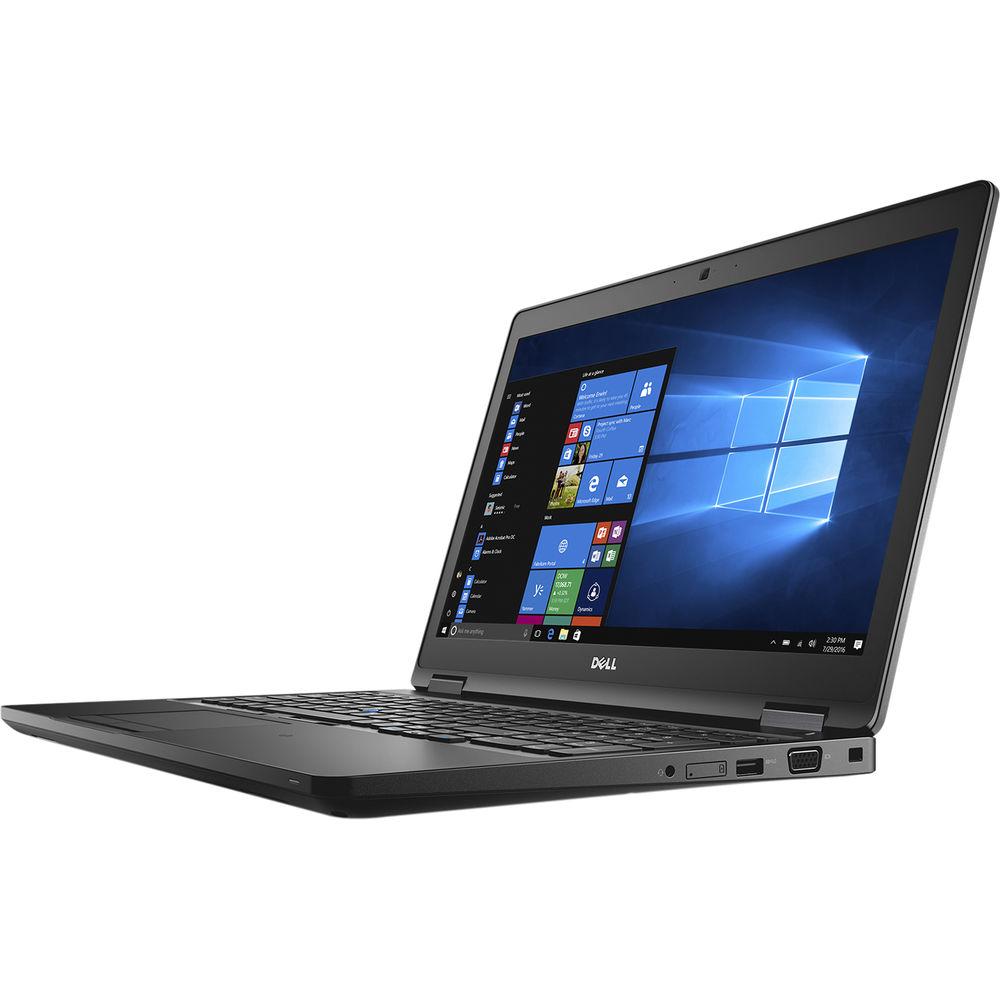

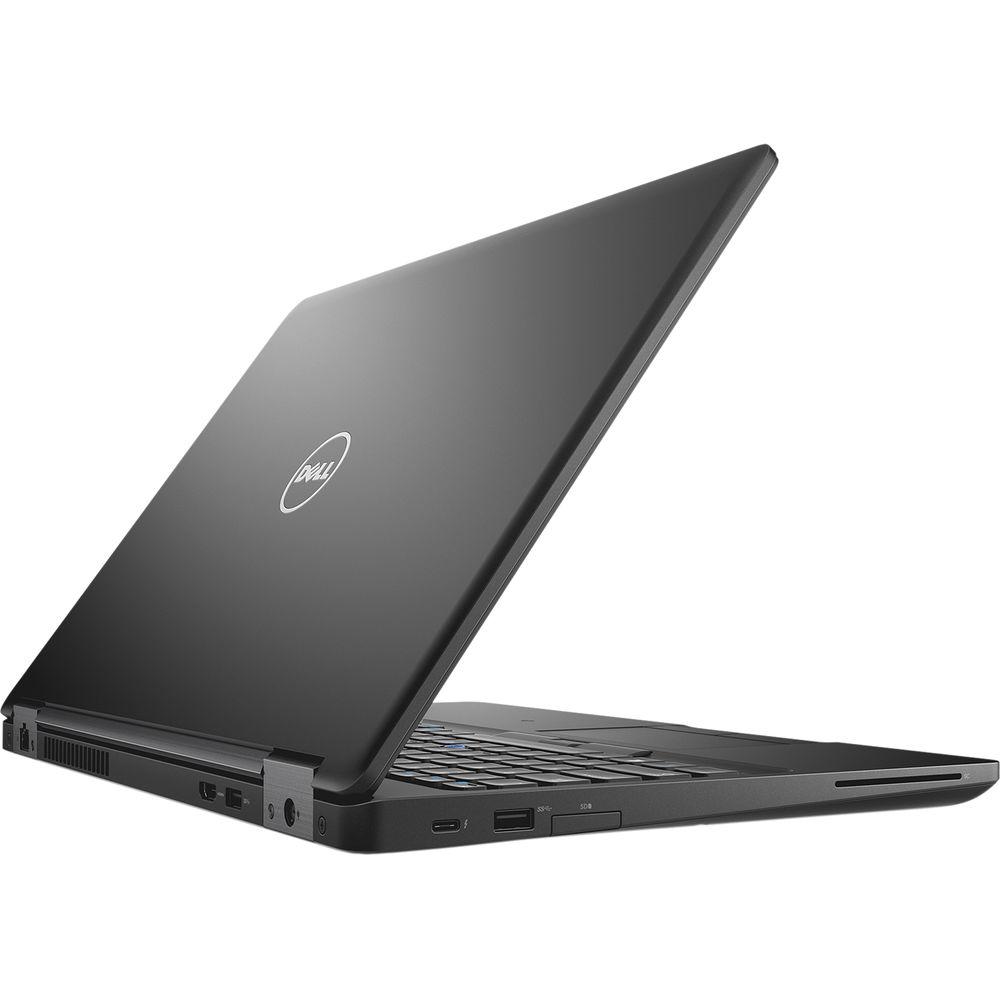

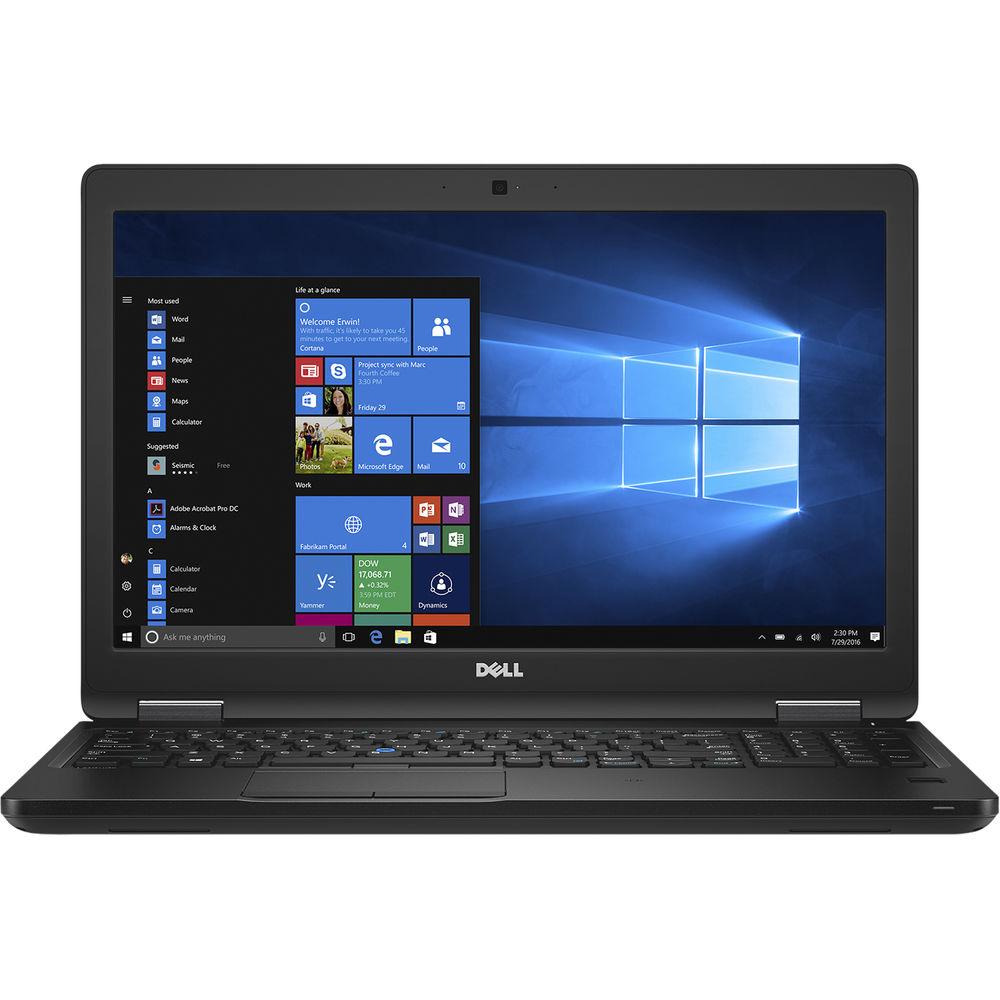

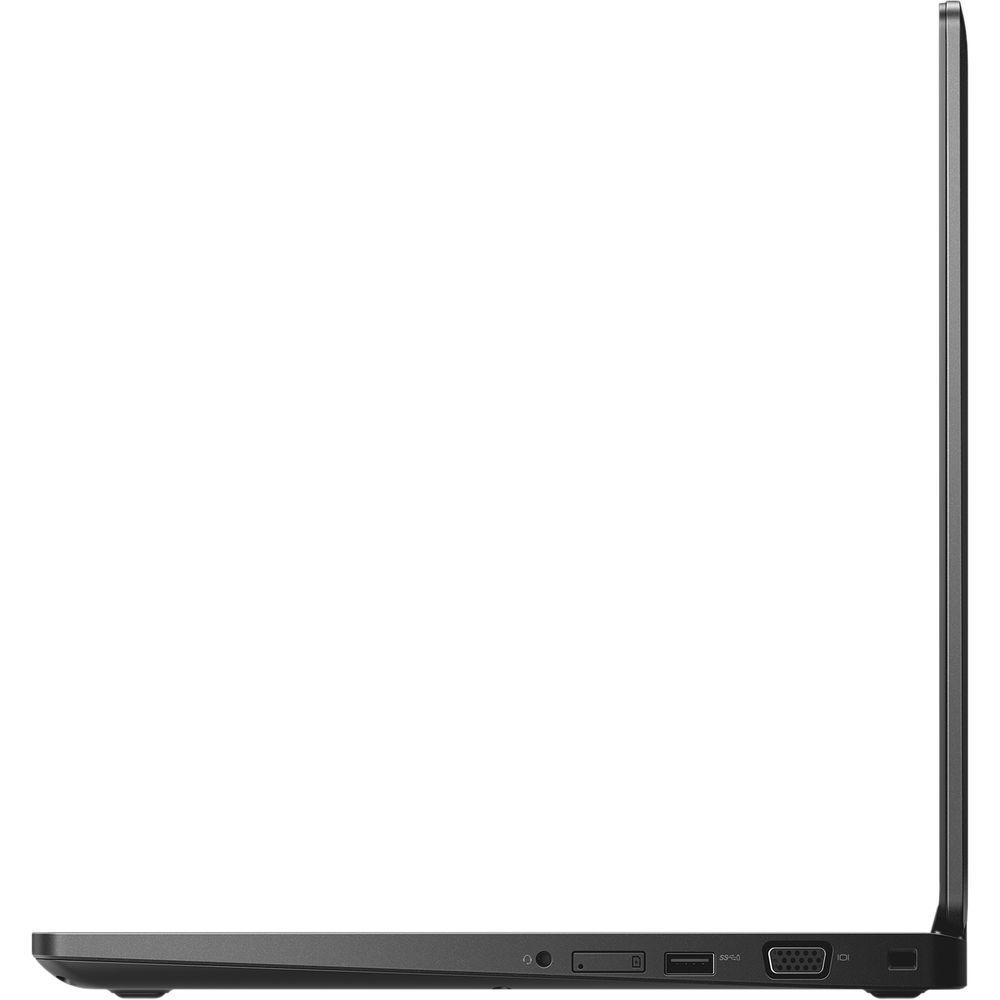

User Manual for Dell 15.6" Precision 3520 Mobile Workstation Click to enlarge the picture
Contents of the user manual for the Dell 15.6" Precision 3520 Mobile Workstation
- Product category: Notebooks Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Notebooks
 |
User manual for the Dell 15.6" Precision 3520 Mobile Workstation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|
Product description Designed with a compact form factor and powerful performance for demanding applications, the 15.6" Precision 3520 Mobile Workstation from Dell is well-suited for those on-the-go users who are working with 3D imaging, rendering, and other intensive applications. It is powered by a 2.9 GHz Intel Core i7-7820HQ Quad-Core processor that allows you to run multiple applications simultaneously. The processor also features a boost speed of up to 3.9 GHz and the system's 8GB of 2400 MHz DDR4 RAM allows the computer to quickly access frequently used files and programs, as well as help to ensure efficient multitasking. If you'd like to upgrade the system's memory, up to 32GB is supported over two 260-pin SO-DIMM slots.
The 15.6" IPS display features a Full HD 1920 x 1080 resolution, a 16:9 aspect ratio, LED backlighting, 300 cd/m2 brightness, and viewing angles of 160°. The dedicated NVIDIA Quadro M620 graphics card has 2GB of GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to an external display using the built-in HDMI and VGA outputs, as well as DisplayPort via USB 3.1 Type-C.
For storage of your files, this Precision 3520 is equipped with a 500GB 7200 rpm SATA 2.5" / 7mm hard drive, and there is also an empty M.2 slot for additional internal PCIe or SATA storage. If you want to add external storage, optical drives, memory card readers, and more, the Precision 3520 offers one USB 3.1 Type-C port, which can output up to 15W of power, and three USB 3.1 Type-A ports, one of which doubles as a charging port. Gigabit Ethernet and 802.11ac dual-band Wi-Fi are built-in for wired and wireless networking, and Bluetooth 4.1 technology will also allow you to connect additional compatible peripherals. So that content from memory cards may be accessed, a built-in SD 4.0 card reader supports SD/SDHC/SDXC UHS-II flash media and lets users download content from their digital camera. Other integrated features include a 720p webcam, dual-array microphones, and stereo speakers with 2W per channel.
The 15.6" Precision 3520 Mobile Workstation includes a power cord, a 130W AC adapter that operates using 100-240 VAC at 50-60 Hz, and a 4-cell / 68Wh lithium-ion polymer battery with ExpressCharge. The installed operating system is Windows 10 Professional (64-bit) and protection is provided by a limited 3-year hardware warranty with onsite/in-home service after remote diagnosis. General Features - SD 4.0 Card Reader
- The card reader supports SD, SDHC, and SDXC cards. The Ultra High Speed Phase II (UHS-II) bus design was added for the SD 4.0 spec, which consists of an additional design enhancement with connector interface modifications to increase performance. UHS-II specs define bus architecture for maximums of 156 MB/s to 312 MB/s using the four-lane (two differential lanes) UHS-II bus and its additional row of physical pins.
- 1 x USB 3.0 Type-C | 3 x USB 3.0 Type-A
- The Precision 3520 has one USB 3.0 Type-C port and four USB 3.0 Type-A ports that operate at speeds up to 5 Gb/s and can be used to connect USB-compatible peripherals to your system, such as external storage, optical drives, printers, memory card readers, and more.
- PowerShare
- One USB 3.0 Type-A port is equipped with USB PowerShare technology. This allows you to select how much of the battery's charge can be used to charge external devices. If you set the USB PowerShare to 25%, the external device is allowed to charge until the laptop battery reaches 25% of its full capacity, so 75% of the Precision's charge is used up. If the system is running on battery power alone, PowerShare will only power devices while the system is in a 'low power state' (standby mode).
- USB Type-C Connector Power
- This option lets you set the maximum power that can be drawn from the USB Type-C connector, either 7.5W (default) or 15W.
- Battery Charge Configuration
- There are five battery charging configurations available, including Adaptive, Standard (which fully charges the battery at a normal rate), ExpressCharge (which charges the battery over a shorter period of time using Dell's fast charging technology), Primarily AC use, and Custom. If Custom is selected, you can also configure charging start and stop times.
- Dell Precision Optimizer
- Free with your Precision workstation, the Dell Precision Optimizer takes the guesswork out of customizing settings and automatically tunes your workstation to run popular Independent Software Vendor (ISV) applications at the fastest speeds possible. It features centralized management with Microsoft SCCM and KACE, simplified systems management to improve system reliability, detailed analytics and smart notifications to proactively address resource bottlenecks, certified graphics driver downloads, and Radeon ProRender ray-tracing plug-ins to render photorealistic images.
- Independent Software Vendor (ISV) Certification
- Precision Workstations are tested to ensure that the high-performance applications you rely on every day run smoothly. Dell ISV-certifications cover the most popular independent software applications.
Windows 10 - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 884116281214 In the Box Dell 15.6" Precision 3520 Mobile Workstation 4-cell / 68Wh Lithium-ion Polymer Battery 130W AC Adapter Power Cord Limited 3-Year Hardware Warranty with Onsite/In-Home Service After Remote Diagnosis More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell 15.6" Precision 3520 Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell Precision 3520 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | CPU | 2.9 GHz Intel Core i7-7820HQ Quad-Core | | Maximum Boost Speed | 3.9 GHz | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 8 GB | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Graphics Type | Dedicated | | GPU | NVIDIA Quadro M620 with 2 GB GDDR5 VRAM | | | | Panel Type | IPS | | Size | 15.6" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Touchscreen | None | | Maximum Brightness | 300 cd/m2 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Viewing Angle (H x V) | 160 x 160° | | | | SSD Slots | 1 x M.2 (Available) | | Total Installed Capacity | 500 GB | | Hard Disk Storage | 1 x 500 GB 2.5" SATA (7200 rpm) | | Optical Drive | None | | | | Ports | 3 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x USB 3.1 Gen 1 | | Display | 1 x HDMI
1 x VGA | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 2 | | Built-In Microphones | 2 | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | 4.1 | | GPS | None | | NFC | None | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 68 Wh | | Cells | 4 | | Output Voltage | 7.6 VDC | | | | Keyboard | 103-Key Full-Size Keyboard with Backlight and Number Pad | | Pointing Device | TouchPad | | | | Security | Accepts 3rd Party Security Lock Devices | | Power Supply | 130 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Dimensions | 14.8 x 1 x 9.9" / 375.9 x 25.4 x 251.5 mm | | Weight | 4.8 lb / 2.2 kg |
