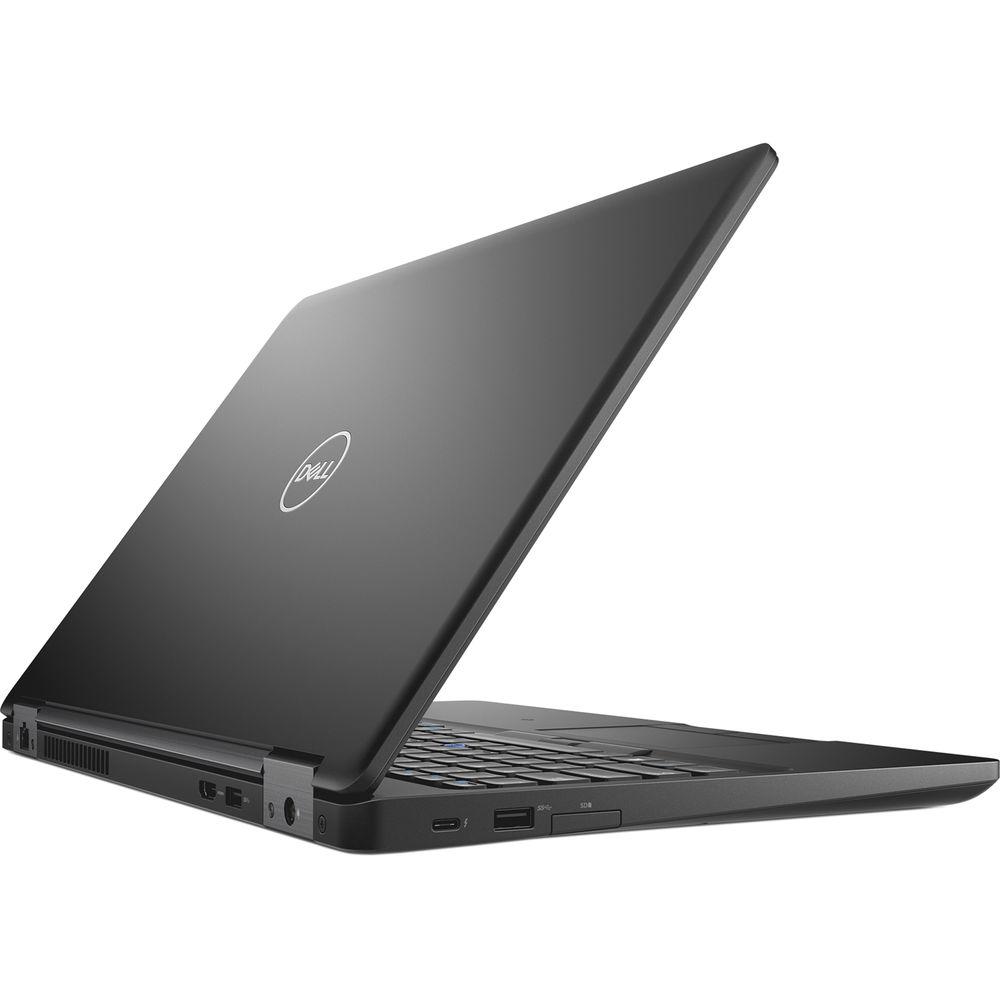

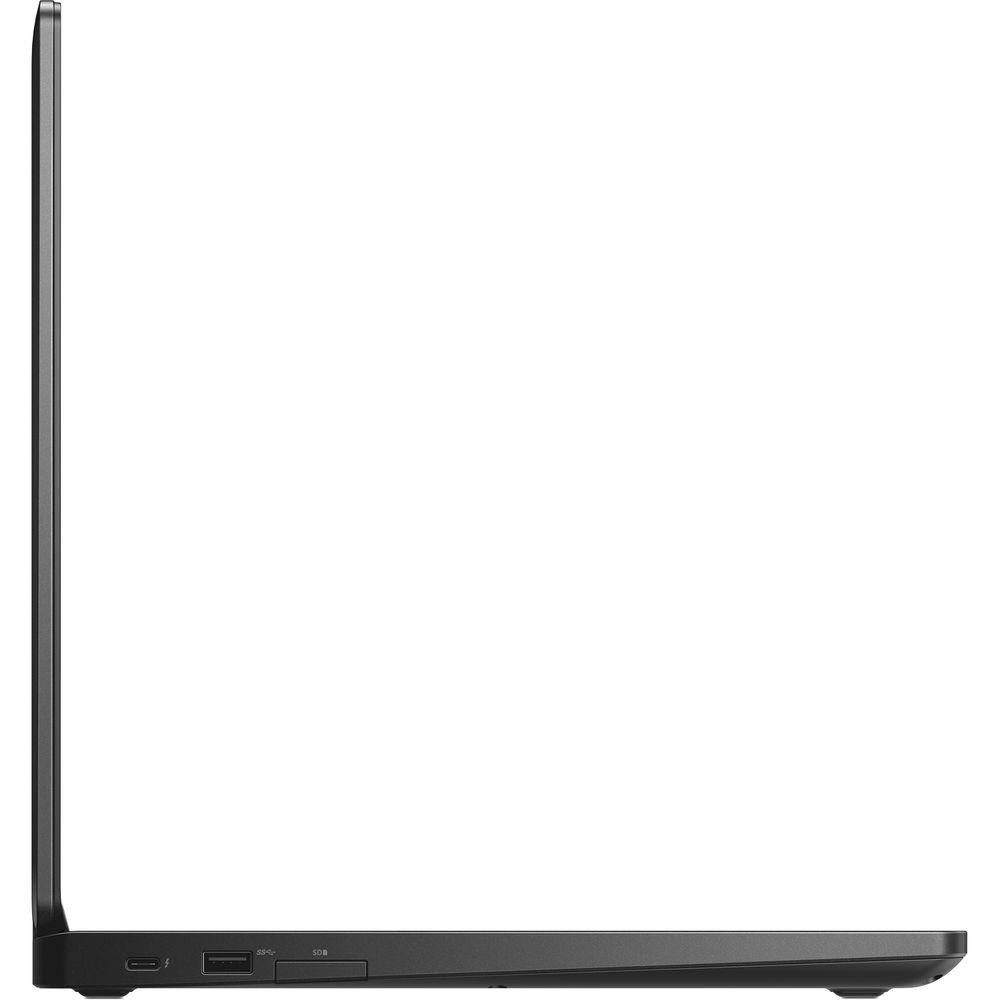

User Manual for Dell 15.6" Precision 3530 Mobile Workstation Click to enlarge the picture
Contents of the user manual for the Dell 15.6" Precision 3530 Mobile Workstation
- Product category: Notebooks Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Notebooks
 |
User manual for the Dell 15.6" Precision 3530 Mobile Workstation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

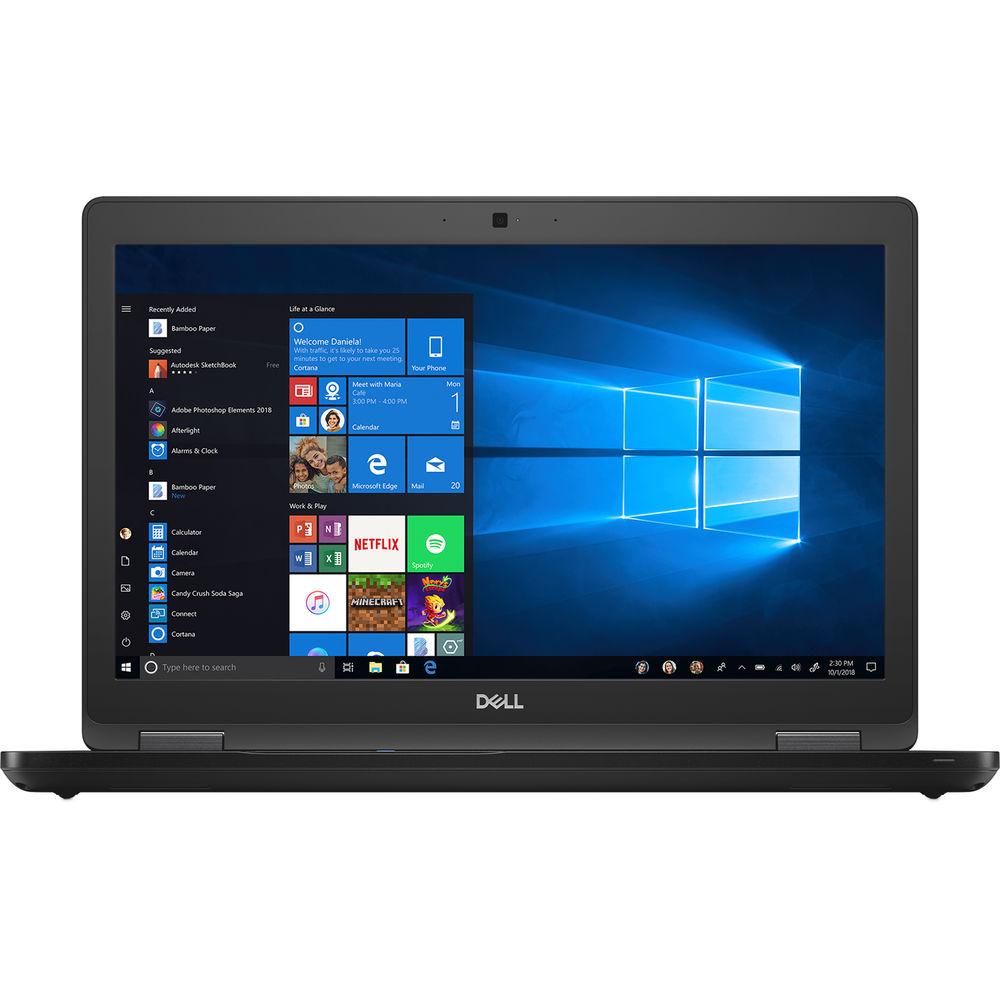

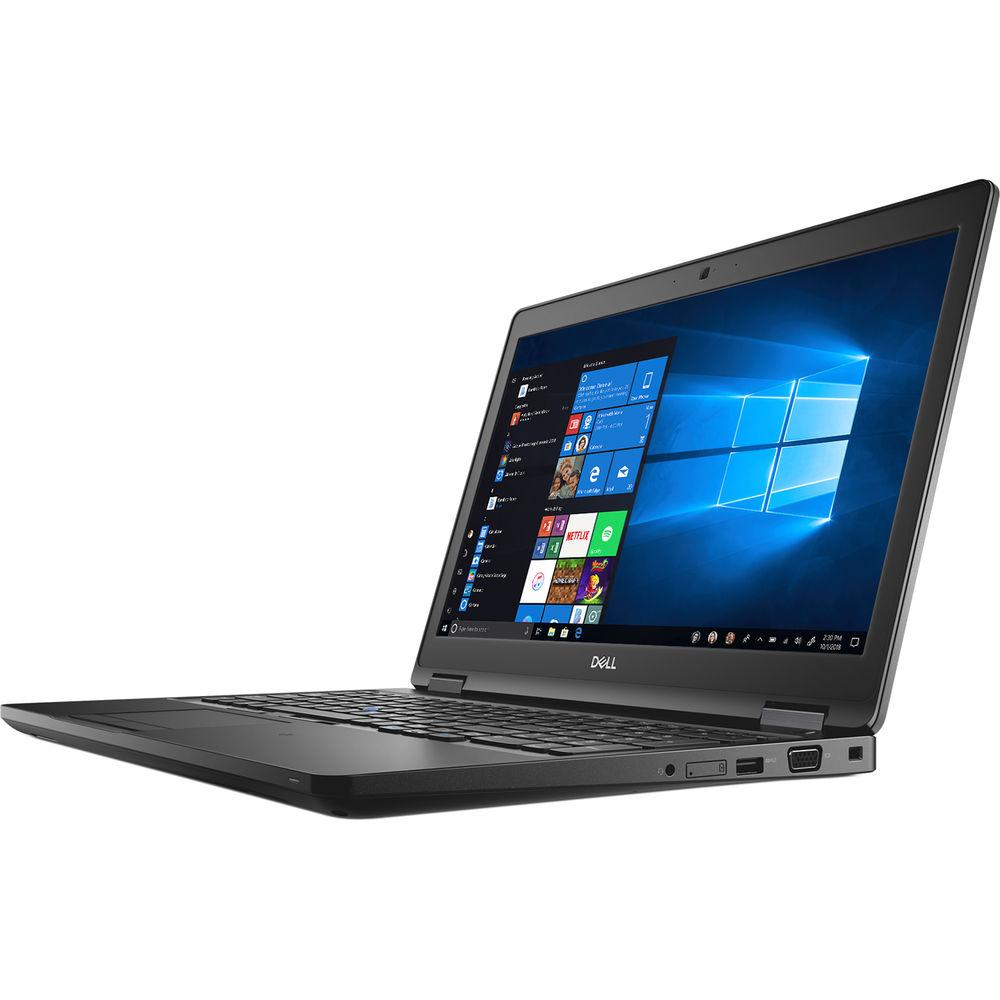

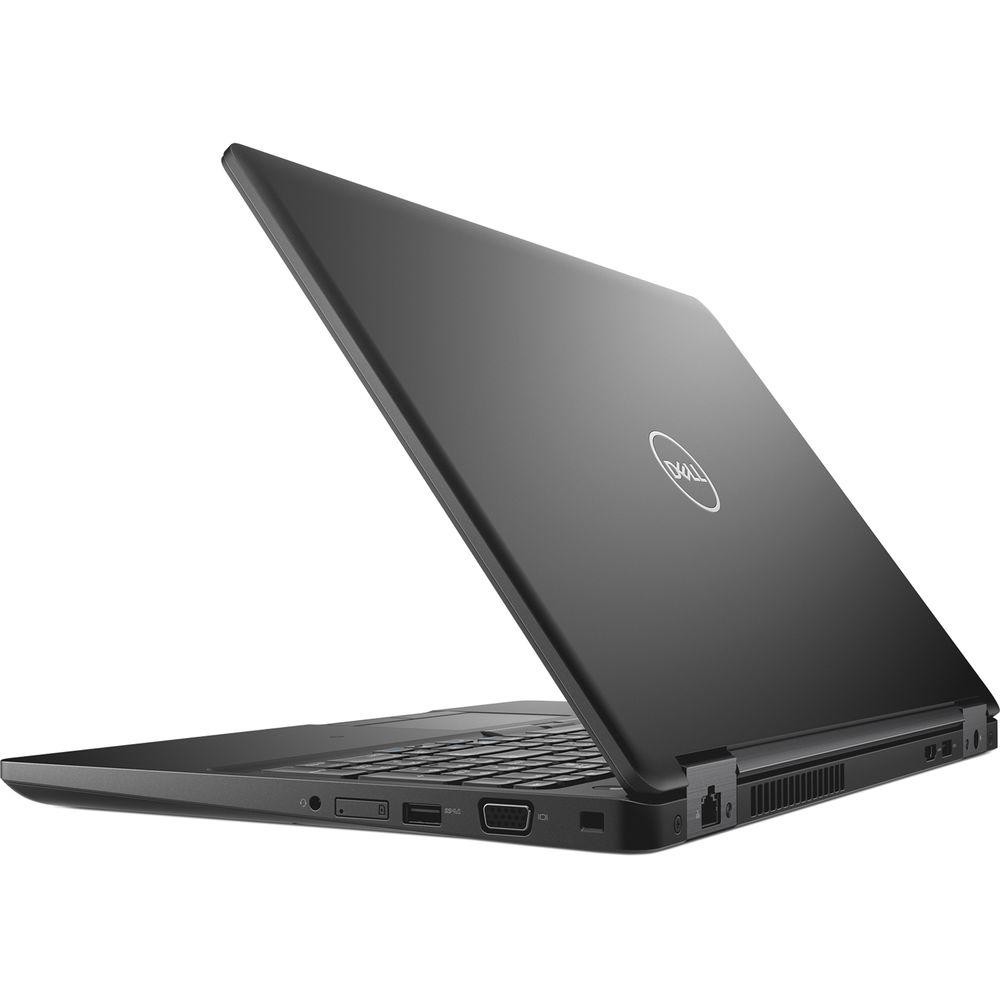

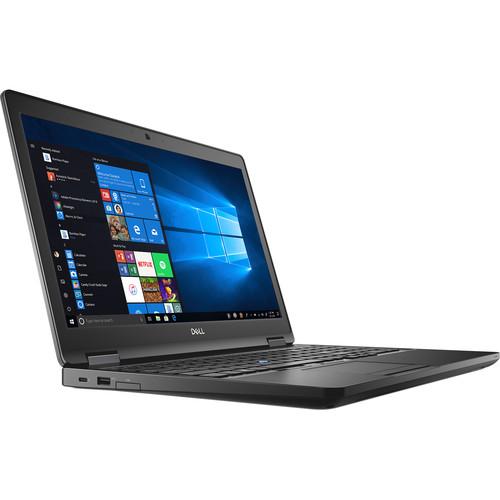

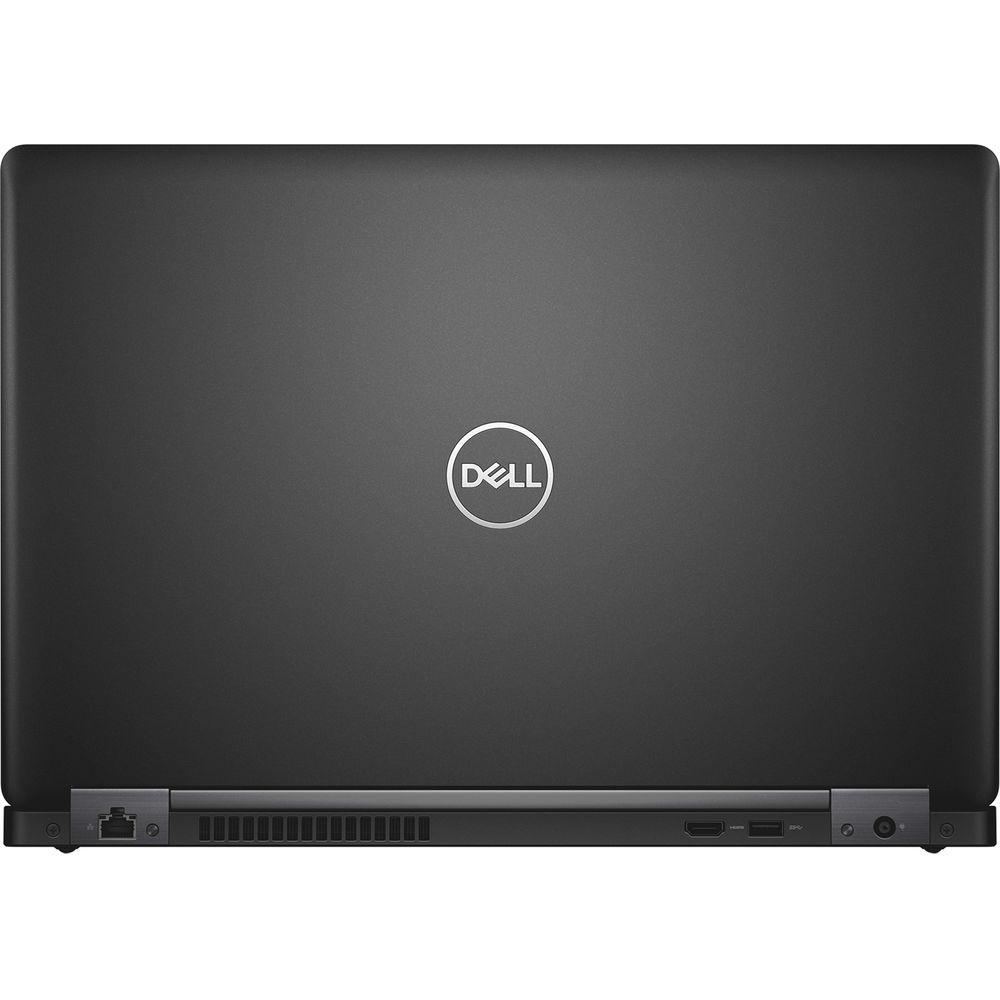

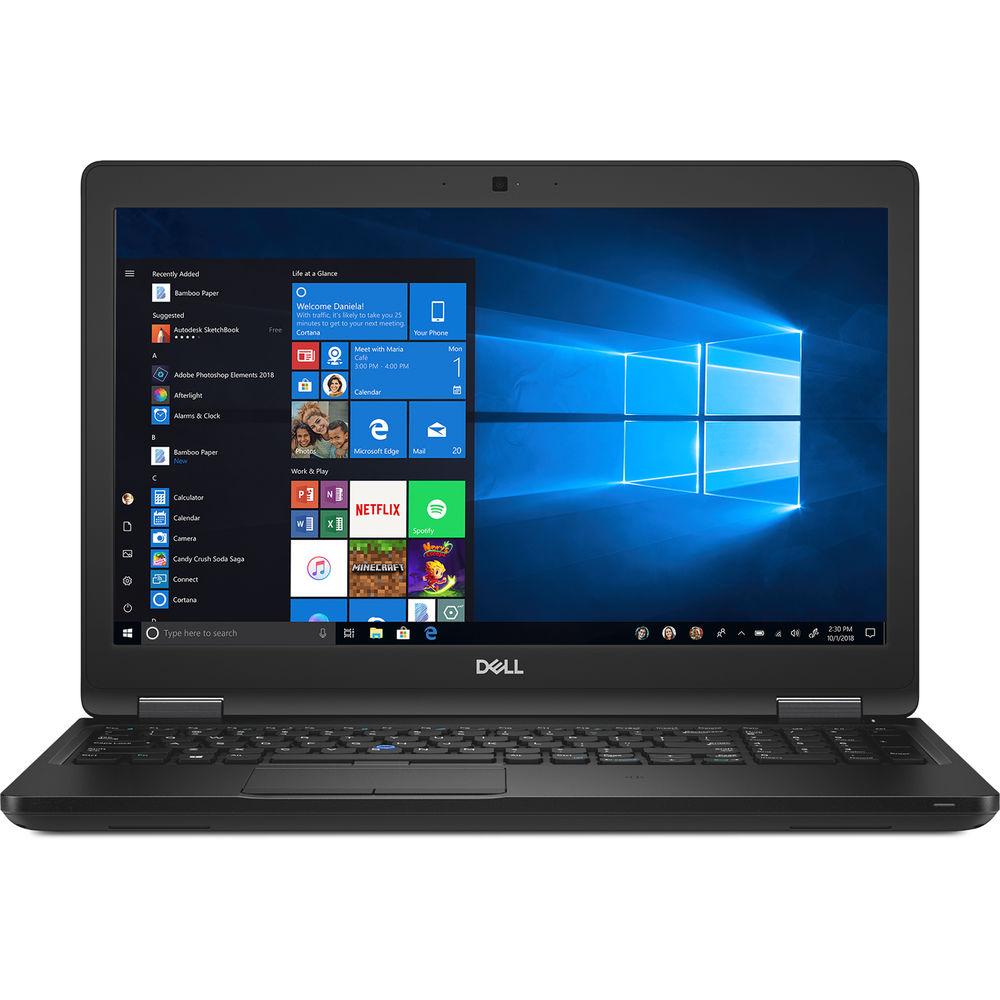

Product description Work Laptops Designed with powerful performance and a compact form factor, the 15.6" Precision 3530 Mobile Workstation from Dell is thin, light, and ready to back your ingenuity. It is powered by a 2.6 GHz Intel Core i7-8850H Six-Core processor that allows you to run multiple applications simultaneously. The processor also features a boost speed of up to 4.3 GHz, and the system's 8GB of 2666 MHz DDR4 RAM allows the computer to quickly access frequently used files and programs, as well as help to ensure efficient multitasking. The system's memory comes in a 2 x 4GB configuration and both slots may be upgraded to 16GB each for a max system total of 32GB.
The 15.6" display features a Full HD 1920 x 1080 resolution, a 16:9 aspect ratio, 300 cd/m2 brightness, and 72% color gamut coverage. The dedicated NVIDIA Quadro P600 graphics card has 4GB of GDDR5 RAM and delivers a sharp, clear picture. You'll also be able to output video to an external display using the built-in HDMI 2.0 and VGA ports, as well as DisplayPort over Thunderbolt 3.
For storage of your files, this Precision 3530 is equipped with a 256GB M.2 SATA SSD. If you want to add external storage, optical drives, memory card readers, and more, the Precision 3530 offers one Thunderbolt 3 port and three USB 3.1 Gen 1 Type-A ports, one of which is equipped with PowerShare technology for charging external devices using battery power. Gigabit Ethernet and Wi-Fi 5 (802.11ac) are built-in for wired and wireless networking, and Bluetooth 5.0 technology will also allow you to connect additional compatible peripherals. So that content from memory cards may be accessed, a built-in SD 4.0 card reader supports UHS-II SD/SDHC/SDXC, MMC, and Memory Stick, Memory Stick Pro, Memory Stick HG, Memory Stick Duo, and Memory Stick XC flash media so users can download content from their digital camera. Other integrated features include a 720p webcam, two integrated microphones, and 2W stereo speakers.
The 15.6" Precision 3530 Mobile Workstation includes a power cord, a 130W AC adapter that operates using 100-240 VAC at 50-60 Hz, and a 4-cell / 68Wh lithium-ion polymer battery with ExpressCharge. The installed operating system is Windows 10 Pro (64-bit) and protection is provided by a limited 3-year hardware warranty with onsite/in-home service after remote diagnosis. General Features - Power as Big as Your Ideas
- Experience innovation with the thinner, lighter, premium-built Precision Mobile Workstation. Built with a 2.6 GHz Intel Core i7-8850H Six-Core processor, 8GB of 2666 MHz DDR4 memory, and an NVIDIA Quadro P600 graphics card with 4GB of GDDR5 memory, the Precision Mobile family is engineered with power to match your ingenuity.
- Dell Precision Optimizer
- Free with your Precision workstation, the Dell Precision Optimizer delivers faster application optimization with a single click. It also automatically tunes your workstation to run popular ISV applications at the faster speeds, has automated system updates, and provides analytics to address resource bottlenecks.
Or, upgrade to the Dell Precision Optimizer Premium version, an AI-based performance optimizer software for workstations. This program learns the behavior of user-specified applications, identifies optimization opportunities using machine learning, and applies performance improvements. - Prolonged Productivity
- The 4-cell / 68Wh battery features a faster charge to get you up and running quickly, so you can stay productive on the job.
- Fit for Your Lifestyle
- Designed with cable docking, this small and compact workstation can carry large projects.
- Connect with Ease
- Support for 4K video to an external monitor at 60 fps via HDMI 2.0 allows you to create and edit your work with improved clarity.
Windows 10 Pro - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for business users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 884116320760 In the Box Dell 15.6" Precision 3530 Mobile Workstation 130W AC Adapter Limited 3-Year Hardware Warranty with Onsite/In-Home Service After Remote Diagnosis Setup and Specifications guide PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell 15.6" Precision 3530 Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell 3530 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | Chipset | Intel CM246 | | CPU Socket | BGA 1440 | | CPU | 2.6 GHz Intel Core i7-8850H 6-Core | | Maximum Boost Speed | 4.3 GHz | | L3 Cache | 9 MB | | Memory Type | 2666 MHz DDR4 | | Total Installed Memory | 8 GB | | Memory Configuration | 2 x 4 GB (User-Replaceable) | | Maximum Memory Capacity | 32 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | None | | Graphics Type | Dedicated | | GPU | NVIDIA Quadro P600 with 4 GB GDDR5 VRAM | | | | Panel Type | Unspecified LCD | | Size | 15.6" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Touchscreen | No | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Refresh Rate | 60 Hz | | Viewing Angle (H x V) | 170 x 170° | | | | Total Drive Bays | 1 x 2.5" (Internal) | | 2.5" Slots | 1 x Height Unspecified (Available) | | SSD Slots | 1 x M.2 SATA / PCIe (Available)

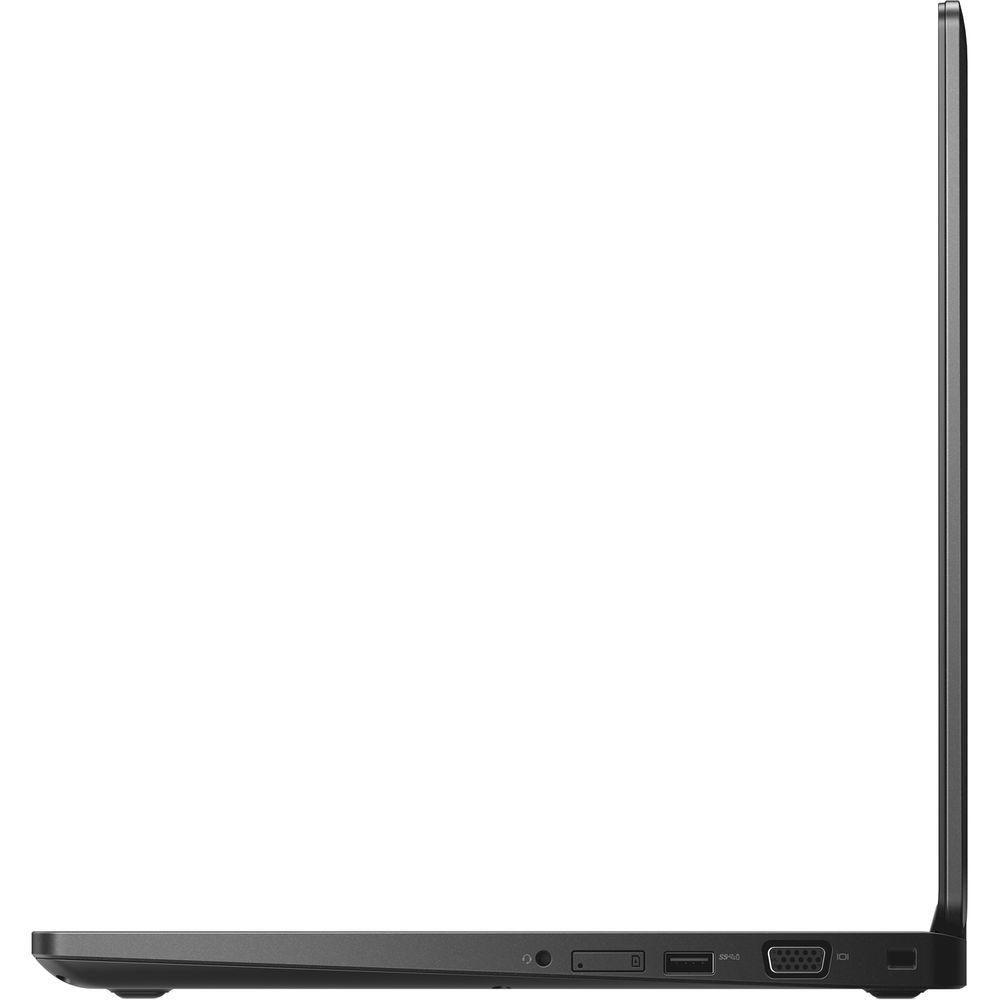

1 x M.2 SATA / PCIe (In Use) | | Total Installed Capacity | 256 GB | | Solid State Storage | 1 x 256 GB M.2 SATA | | Optical Drive | None | | | | Ports | 3 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 1 x Thunderbolt 3 (Supports DisplayPort) | | Display | 1 x VGA

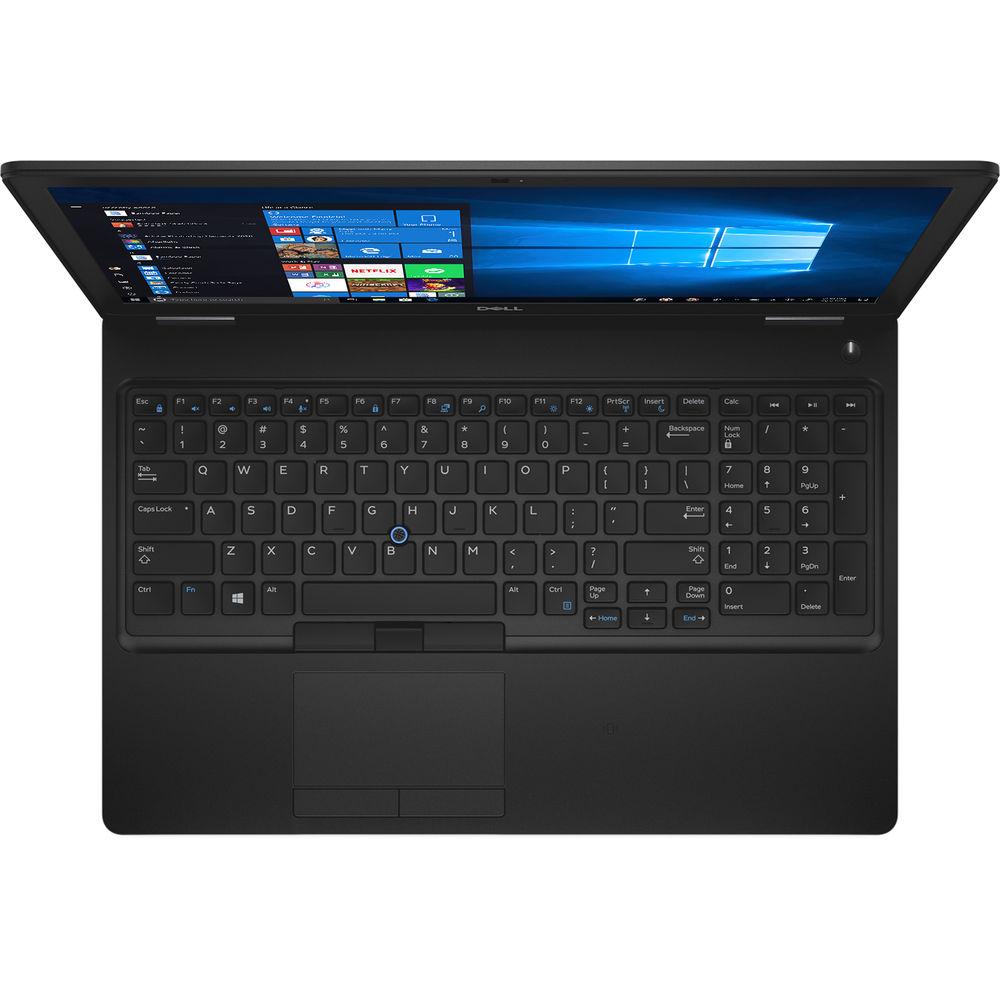

1 x HDMI 2.0 Output | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output | | Built-In Speakers | 2 x 2 W | | Built-In Microphones | 2 | | Media Card Slots | 1 x SDXC/MMCplus Hybrid/Memory Stick PRO (UHS-II [312 MB/s]) | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | MU-MIMO Support | 2 x 2 | | Bluetooth | 5.0 | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 68 Wh | | Cells | 4 | | Output Voltage | 7.6 VDC | | | | Keyboard | Notebook Keyboard with Backlight, Number Pad | | Pointing Device | TouchPad | | | | Security | Kensington Lock Slot | | Power Supply | 130 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.8 A | | Operating Temperature | -40 to 158°F / -40 to 70°C | | Dimensions | 14.8 x 9.9 x 0.9" / 375.92 x 251.46 x 22.86 mm | | Weight | 4.5 lb / 2 kg | | | | Package Weight | 7.54 lb | | Box Dimensions (LxWxH) | 21.8 x 13.8 x 3.2" |
