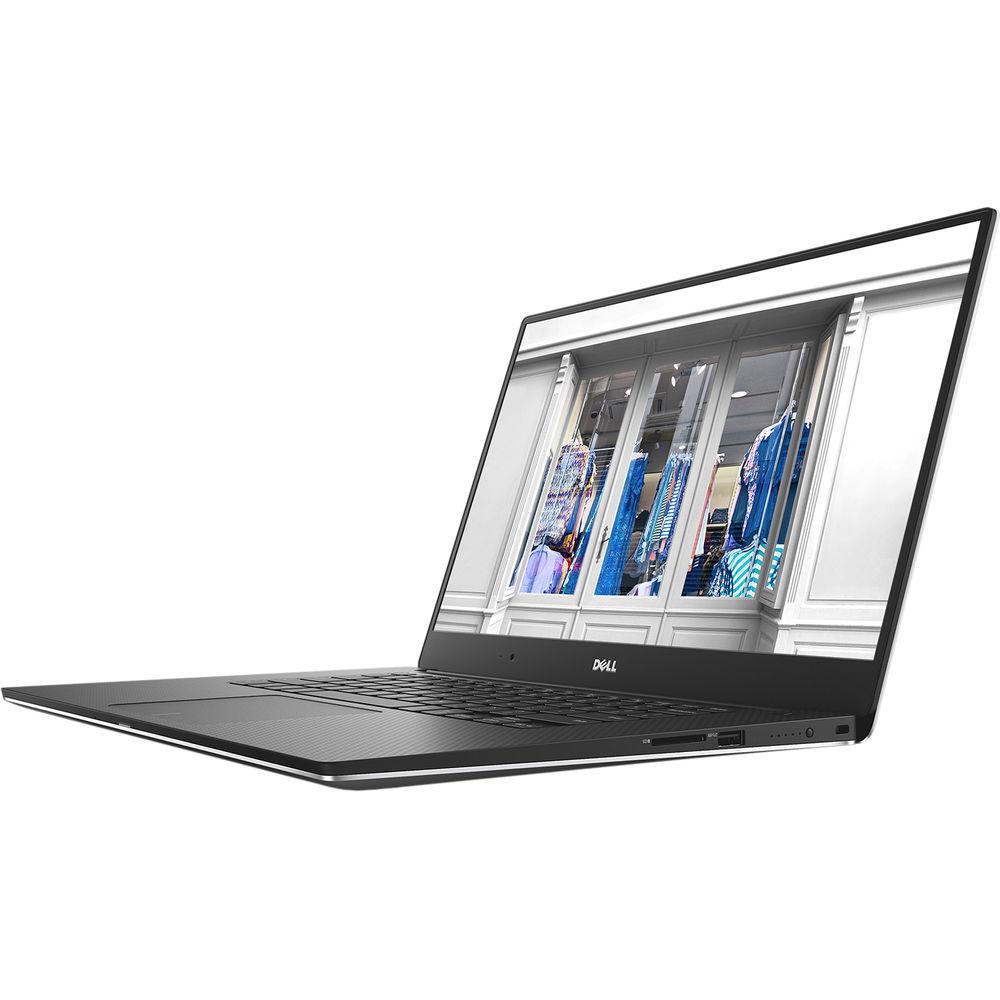

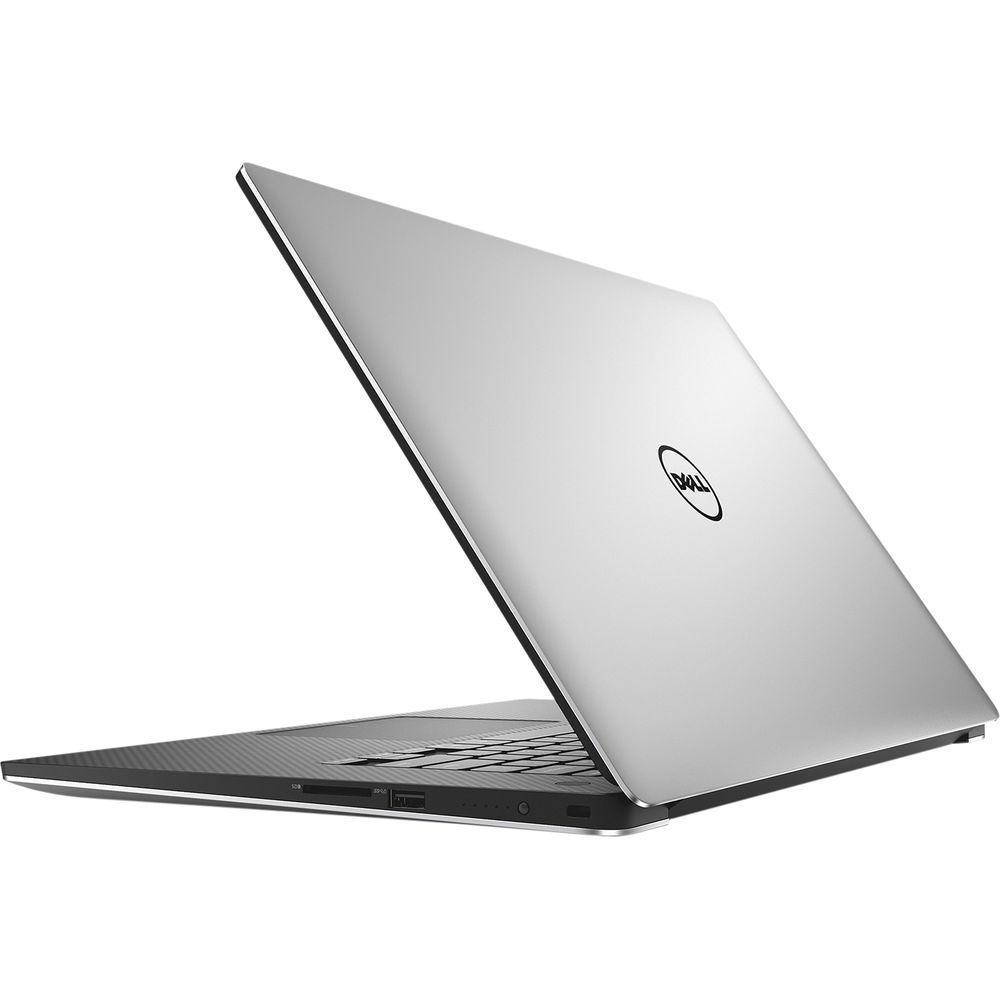

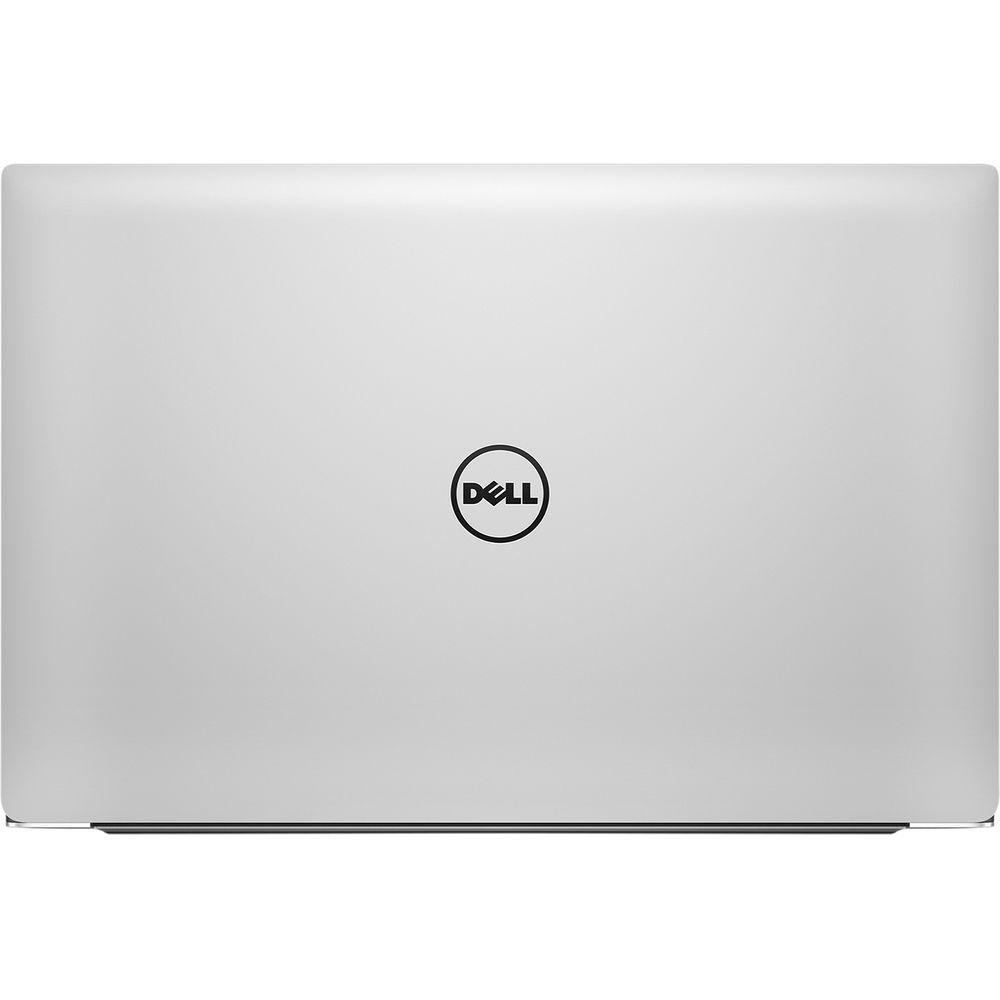

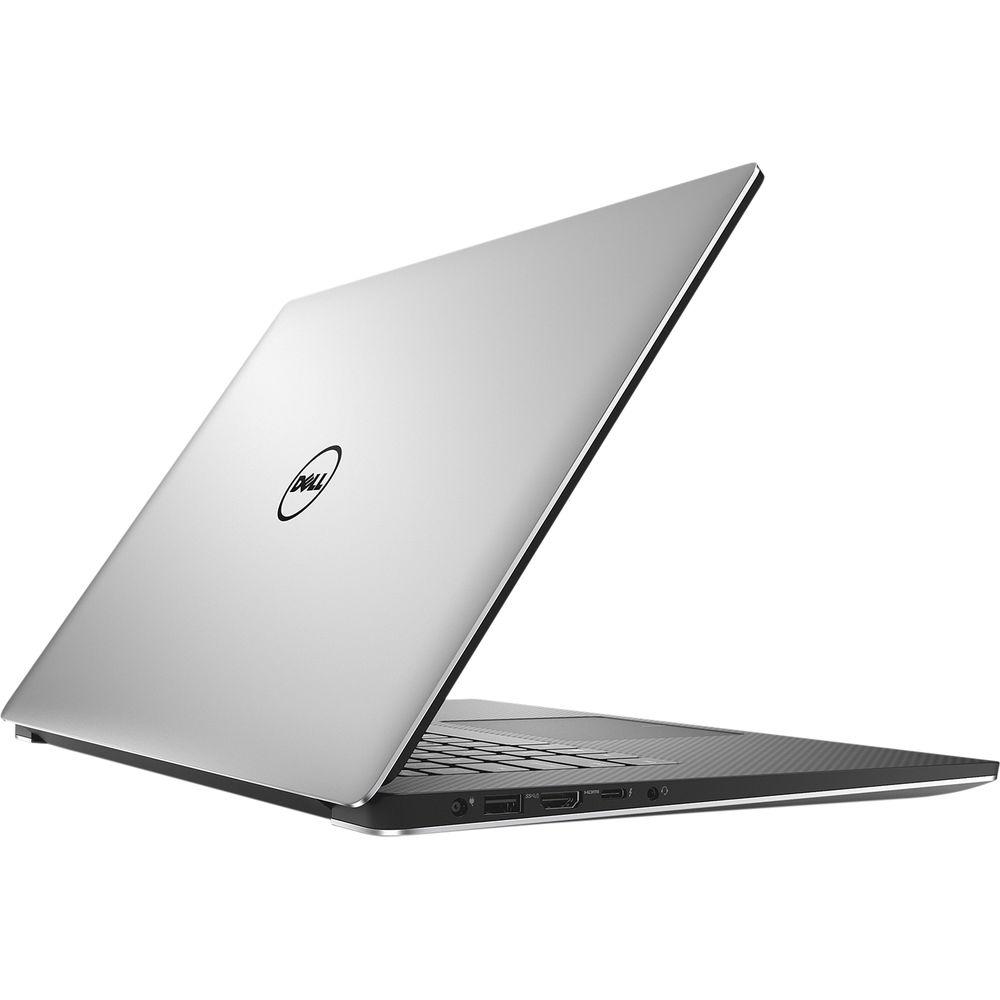

User Manual for Dell 15.6" Precision 5520 Mobile Workstation Click to enlarge the picture
Contents of the user manual for the Dell 15.6" Precision 5520 Mobile Workstation
- Product category: Notebooks Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Notebooks
 |
User manual for the Dell 15.6" Precision 5520 Mobile Workstation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|
Product description Designed with powerful performance and a compact form factor, the 15.6" Precision 5520 Mobile Workstation from Dell is thin and light, making it well-suited for those who are on-the-go. It is powered by a 2.8 GHz Intel Core i5-7440HQ Quad-Core processor that allows you to run multiple applications simultaneously. The processor also features a boost speed of up to 3.8 GHz and the system's 8GB of 2400 MHz DDR4 RAM, which may be upgraded to 32GB, allows the computer to quickly access frequently used files and programs, as well as help to ensure efficient multitasking.

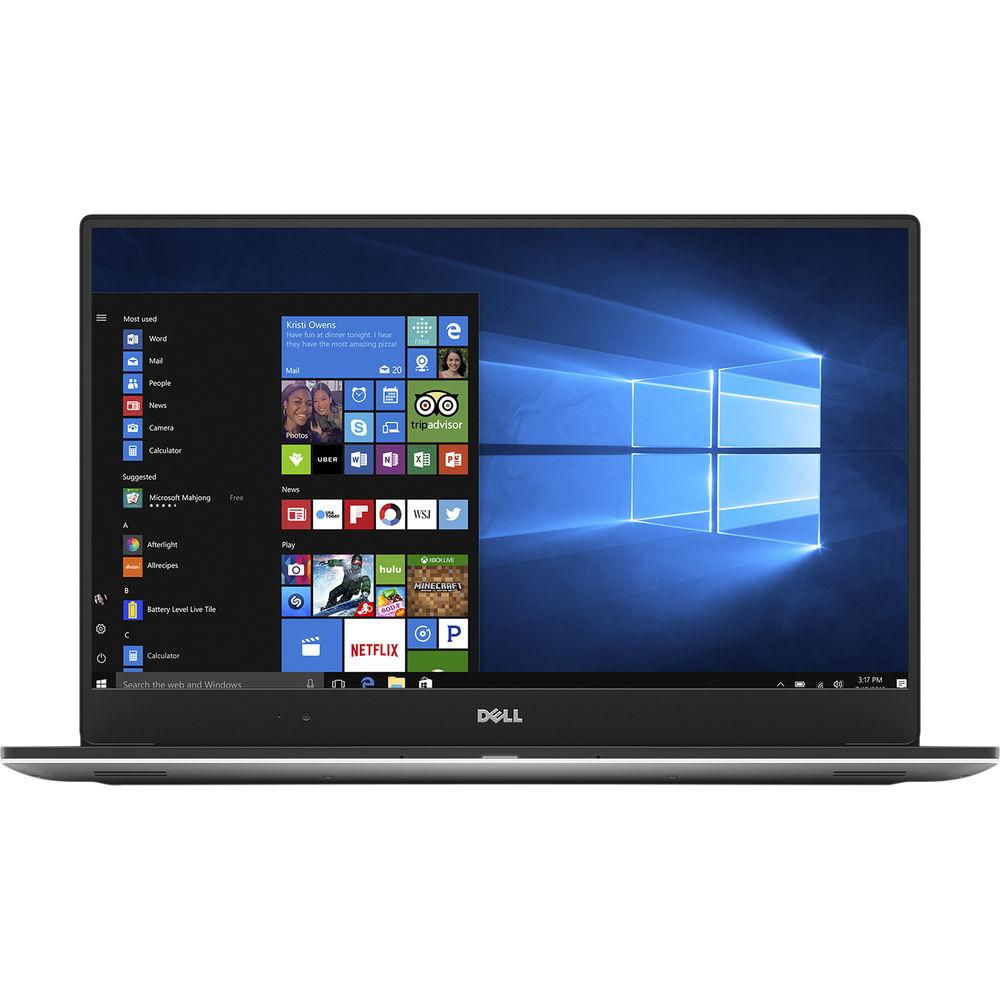

The 15.6" UltraSharp Wide View Anti-Glare IPS display features a Full HD 1920 x 1080 resolution, a 16:9 aspect ratio, LED backlighting, 400 cd/m2 brightness, 100% Adobe color gamut coverage, and viewing angles of 80/80/80/80°. The integrated Intel HD Graphics 630 chipset delivers a sharp, clear picture. You'll also be able to output video to an external display using the built-in HDMI 1.4 output.

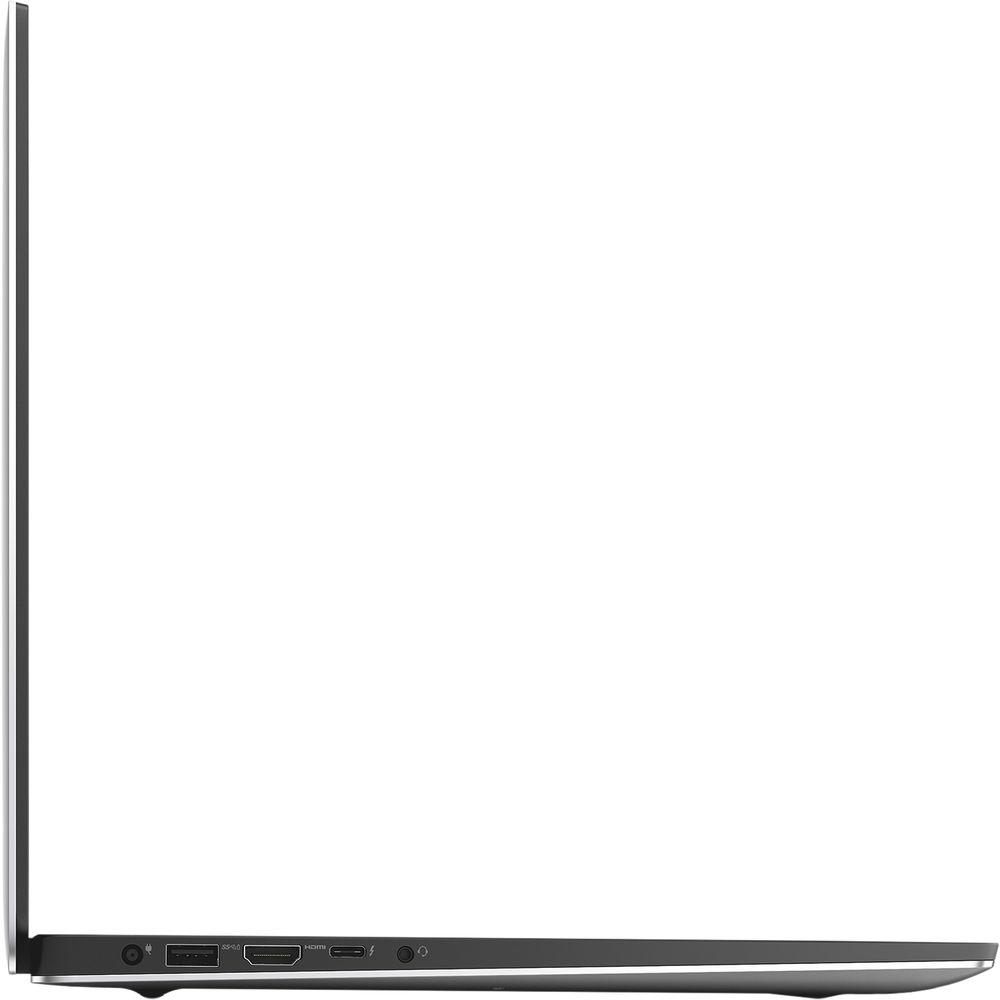

For storage of your files, this Precision 5520 is equipped with a 500GB 7200 rpm SATA 2.5" / 7mm hard drive, and there is also an empty M.2 slot for additional internal PCIe storage. If you want to add external storage, optical drives, memory card readers, and more, the Precision 5520 offers one Thunderbolt 3 port and two USB 3.0 Type-A ports, both of which double as charging ports. Gigabit Ethernet and 802.11ac dual-band Wi-Fi are built-in for wired and wireless networking, and Bluetooth 4.2 technology will also allow you to connect additional compatible peripherals. So that content from memory cards may be accessed, a built-in SD 4.0 card reader supports SD/SDHC/SDXC UHS-II flash media and lets users download content from their digital camera. Other integrated features include a 720p webcam, an integrated microphone, and stereo speakers.
The 15.6" Precision 5520 Mobile Workstation includes a 130W AC adapter that operates using 100-240 VAC at 50-60 Hz and a 3-cell / 56Wh lithium-ion polymer battery that has a lifespan of around 300 discharge/charge cycles. The installed operating system is Windows 10 Professional (64-bit) and protection is provided by a limited 3-year warranty. Also included is an Ethernet to USB dongle. General Features - Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.

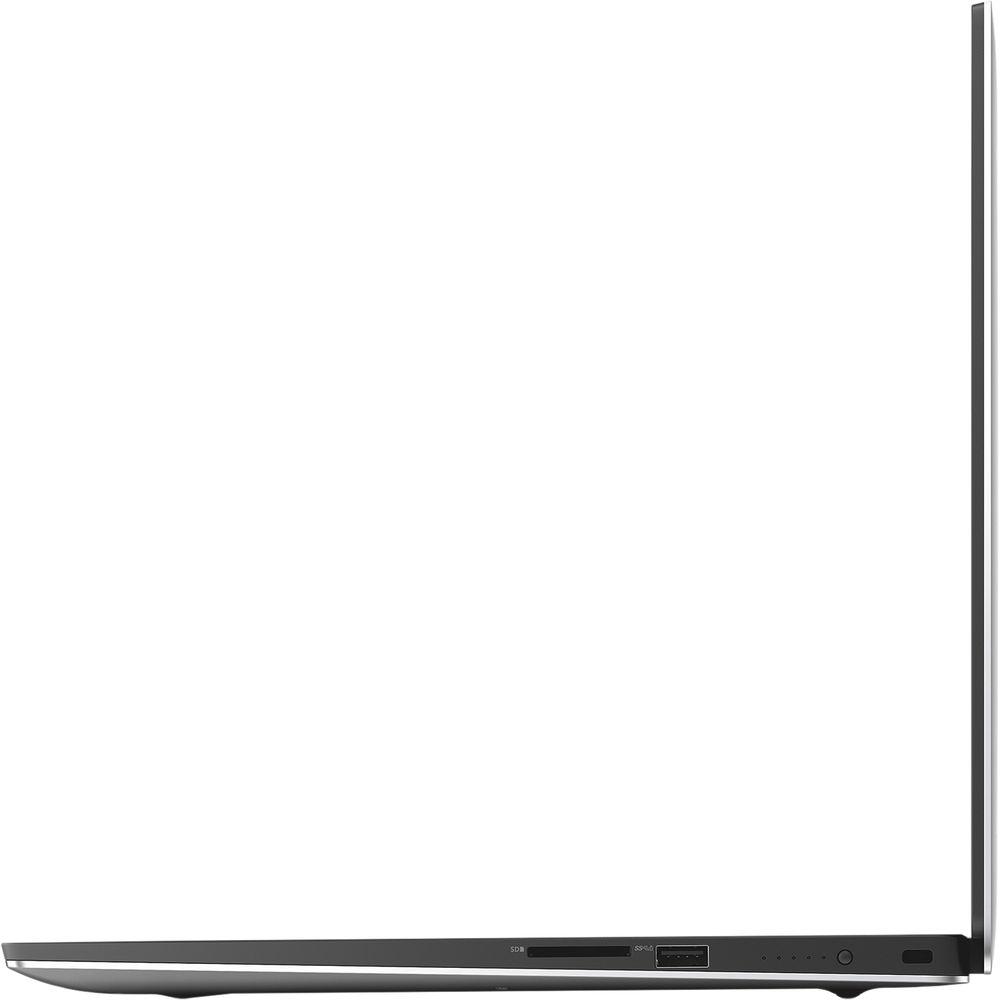

- SD 4.0 Card Reader
- The card reader supports SD, SDHC, and SDXC cards. The Ultra High Speed Phase II (UHS-II) bus design was added for the SD 4.0 spec, which consists of an additional design enhancement with connector interface modifications to increase performance. UHS-II specs define bus architecture for maximums of 156 MB/s to 312 MB/s using the four-lane (two differential lanes) UHS-II bus and its additional row of physical pins.
- USB 3.0 Type-A
- The Precision 5520 has two USB 3.0 Type-A ports that operate at speeds up to 5 Gb/s and can be used to connect USB-compatible peripherals to your system, such as external storage, optical drives, printers, memory card readers, and more.
- USB PowerShare
- The USB 3.0 Type-A ports are equipped with USB PowerShare technology. This allows you to select how much of the battery's charge can be used to charge external devices. If you set the USB PowerShare to 25%, the external device is allowed to charge until the laptop battery reaches 25% of its full capacity, so 75% of the Precision's charge is used up. If the system is running on battery power alone, PowerShare will only power devices while the system is in a 'low power state' (standby mode).
Windows 10 - Start Menu
- After its hiatus in Windows 8, the Start Menu has returned. Utilizing a combination of the traditional menu system and Windows 8's Live Tiles, the improved Start Menu gives you more information at a glance, showing notification information alongside your applications and other pinned items.
- Cortana
- Microsoft's digital personal assistant, Cortana can answer your questions with information gleaned from both your device and the internet at large. You can type or even talk with her, if your system has a microphone. Using her Notebook, Cortana keeps track of your needs and wants, and she learns over time to improve her information gathering skills.
- Microsoft Edge
- After nearly 20 years, Microsoft has finally replaced its Internet Explorer web browser. With Microsoft Edge, users can write directly on web pages and share notes with friends and colleagues. It also improves the online reading experience by adding a distraction-free mode and read-it-later functionality. Edge also has built-in Cortana integration; you can have her help you find a restaurant, make a reservation, and pull up directions without leaving your browser.
- Windows Store
- For Windows 10, Microsoft has unified the Windows Store. Now, apps for PCs, tablets, and phones will all be accessible from one place. And with support for Universal Apps, one version of an app can work across all your compatible devices automatically.
- Windows Continuum
- Windows 10 was designed for a variety of screen sizes and input styles, and with its Continuum feature, it automatically adapts to fit your needs. A Windows 10 tablet on its own requires a touch-centric approach, but attaching a mouse and keyboard will shift everything to a more traditional interface. You can even attach an external monitor to your Windows 10 phone for a near-desktop experience. But it's not just the operating system; Windows Universal Apps take advantage of Continuum as well.
- Xbox on Windows 10
- Gaming is a big focus of Windows 10. Xbox integration allows for PC players to match up against Xbox One players on supported games, and if you have an Xbox One, you can even stream compatible titles to your PC. Native support for recording with the new Game DVR feature makes it easy to capture and share your gameplay. The new DirectX12 takes better advantage of multi-core processors, giving games a performance boost, even on older hardware. Windows 10 also features native support for virtual reality headsets, such as the Oculus Rift.
- Windows 10 Pro
- The Pro version of Windows 10 includes all of the features of Windows 10 Home plus many designed specifically for businesses users, including Hyper-V virtualization, BitLocker disk encryption, and remote desktop access. Devices will also be able to join domains and the Azure Active Directory, and they can even access a specialized version of the Windows Store featuring custom, company-specific applications.
UPC: 884116280835 In the Box Dell 15.6" Precision 5520 Mobile Workstation 130W AC Adapter Power Cord 3-cell / 56Wh Lithium-ion Battery Ethernet to USB Dongle Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell 15.6" Precision 5520 Mobile Workstation in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell Precision 5520 Specs | | | Processor | Intel Core i5-7440HQ Quad-Core | | Base Clock Speed | 2.8 GHz | | Maximum Boost Speed | 3.8 GHz | | Total Installed Memory | 8 GB | | Maximum Memory Capacity | 32 GB | | Memory Type | DDR4 SDRAM | | Memory Speed | 2400 MHz | | User-Replaceable Memory | 1 x 8 GB | | Available Memory Slots | None | | Memory Slot Type | 260-Pin SO-DIMM | | Graphics Type | Integrated | | GPU | Intel HD Graphics 630 | | | | Panel Type | IPS | | Size | 15.6" | | Aspect Ratio | 16:9 | | Resolution | 1920 x 1080 | | Touchscreen | None | | Finish | Matte | | Maximum Brightness | 400 cd/m2 | | Viewing Angle (H x V) | 160 x 160° | | | | Available Slots | 1 x M.2 | | Total Installed Capacity | 500 GB | | Hard Disk Storage | 1 x 500 GB 2.5" SATA (7200 rpm) | | Optical Drive | None | | | | Ports | 1 x Thunderbolt 3
2 x USB 3.1 Gen 1 Type-A | | Display | 1 x HDMI 1.4 | | Audio | 2 x Integrated Speaker
1 x Integrated Microphone
1 x 1/8" (3.5 mm) Headphone/Microphone Combo Jack | | Expansion Slots | None | | Media Card Slots | SD/SDHC/SDXC | | | | Network | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) via Included Cable | | Modem | None | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | Bluetooth | Bluetooth 4.2 | | Mobile Broadband | None | | GPS | None | | NFC | None | | Webcam | User-Facing: 720p | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Watt Hours / Type | 56 Wh | | Cells | 3 | | Output Voltage | 11.4 VDC | | Power Requirements | 100-240 VAC, 50-60 Hz | | Power Supply | x 130 W | | | | Operating System | Windows 10 Pro (64-Bit) | | Security | HDD User Password Protection, Kensington Lock Slot, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package | | Keyboard | 80-Key Standard Notebook Keyboard (Backlight) | | Pointing Device | TouchPad | | Dimensions (W x H x D) | 14.1 x 0.6 x 9.3" / 358.1 x 15.2 x 236.2 mm | | Weight | 4.41 lb / 2.00 kg (Minimum) |
