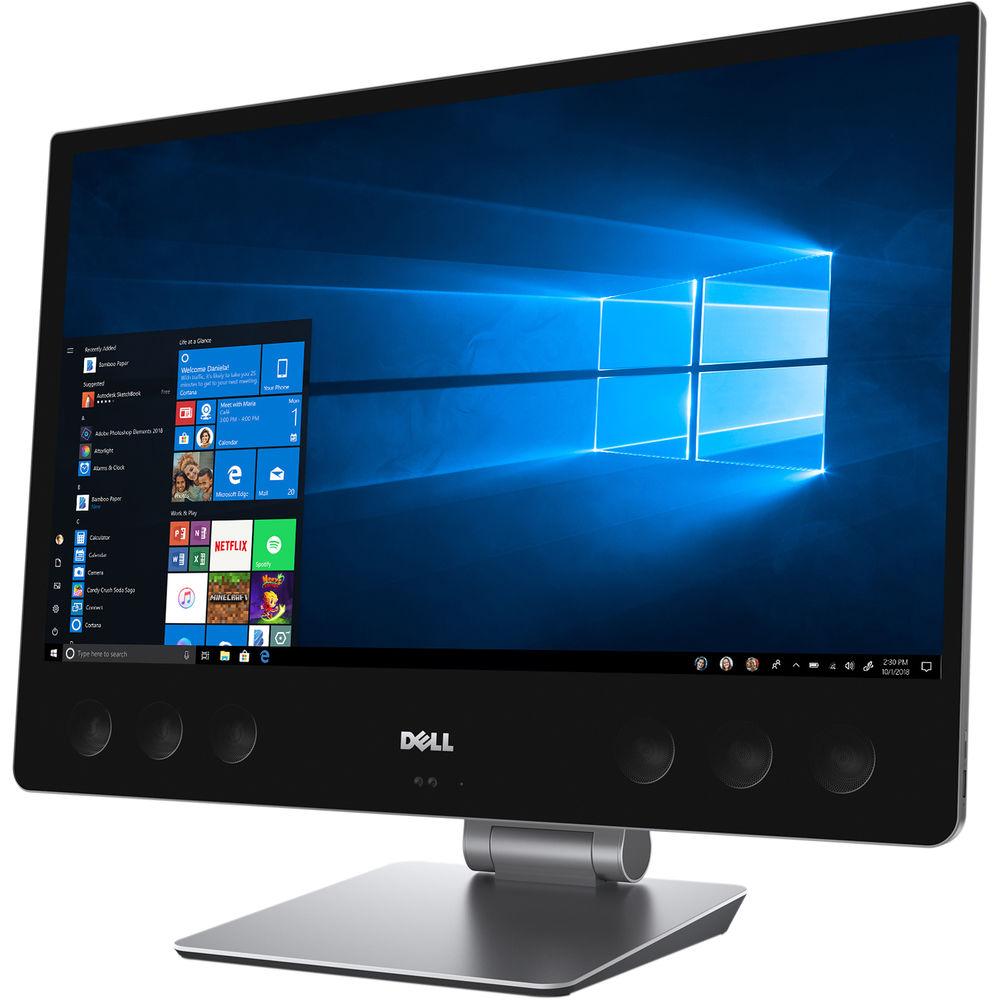

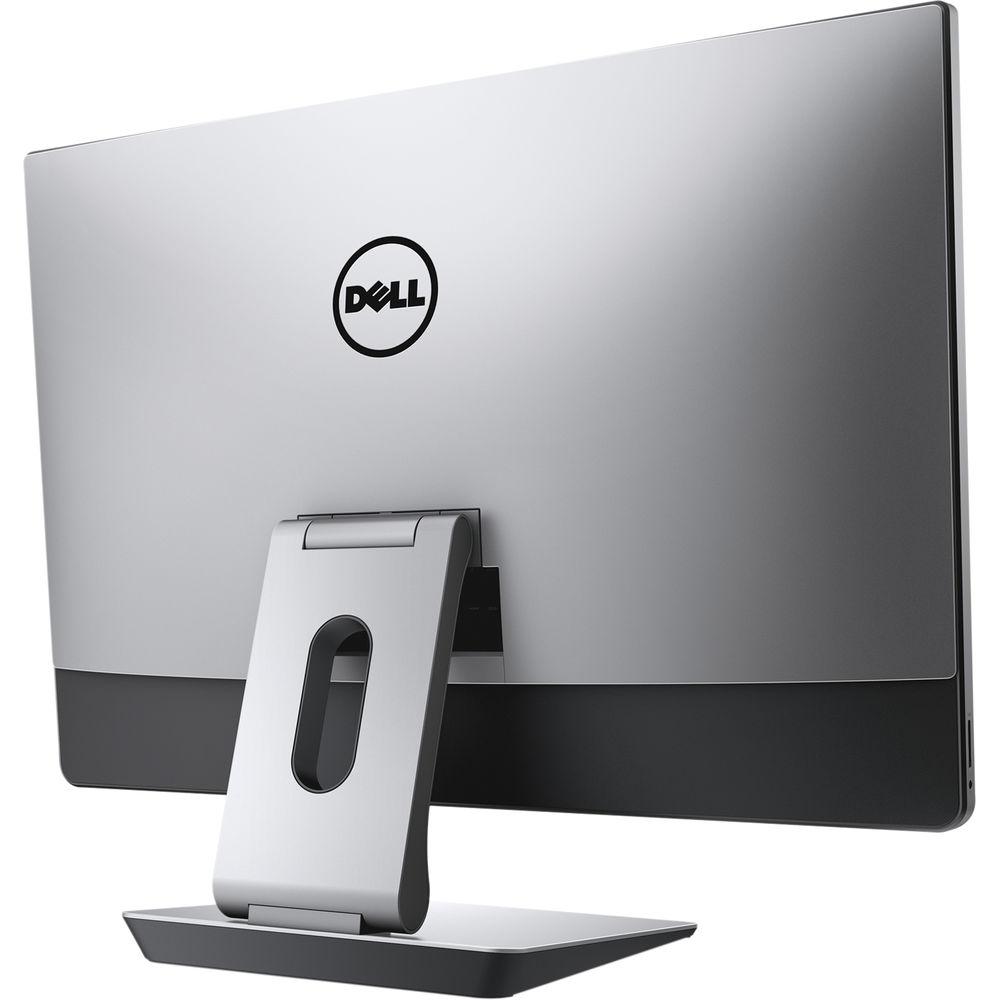

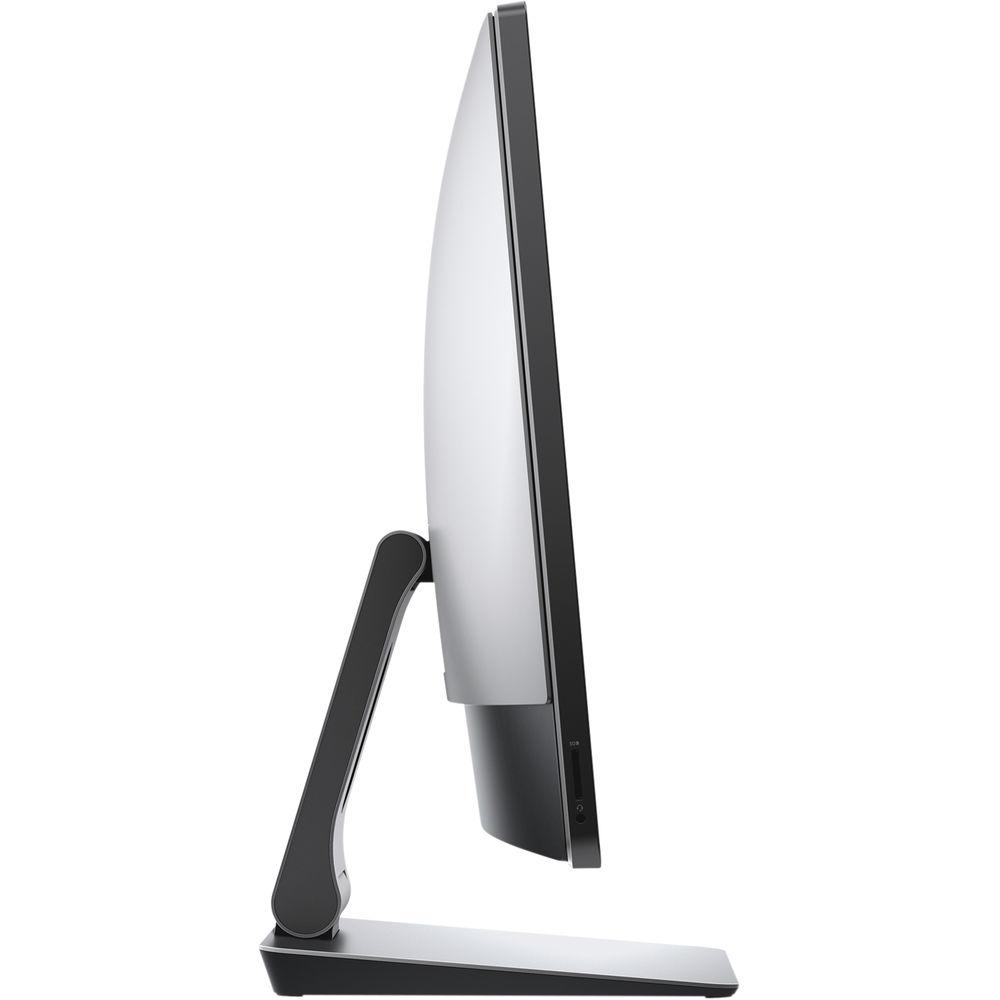

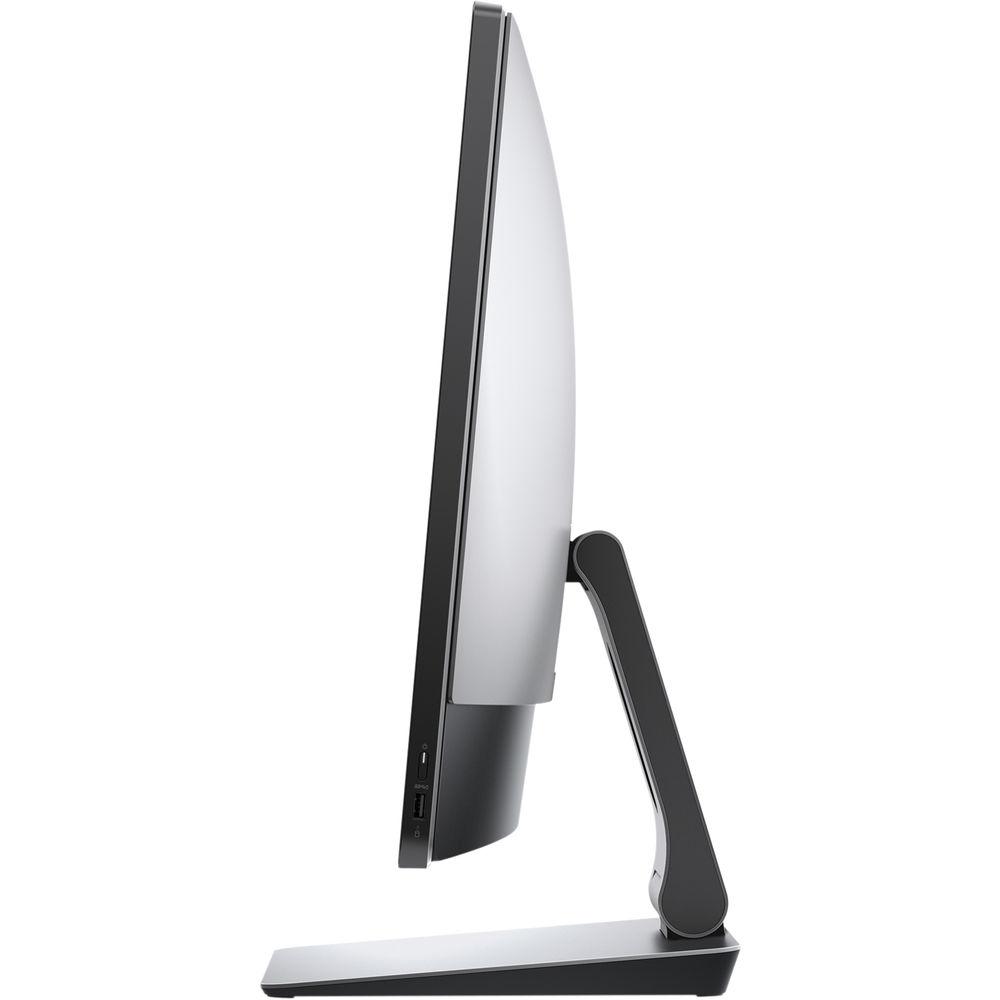

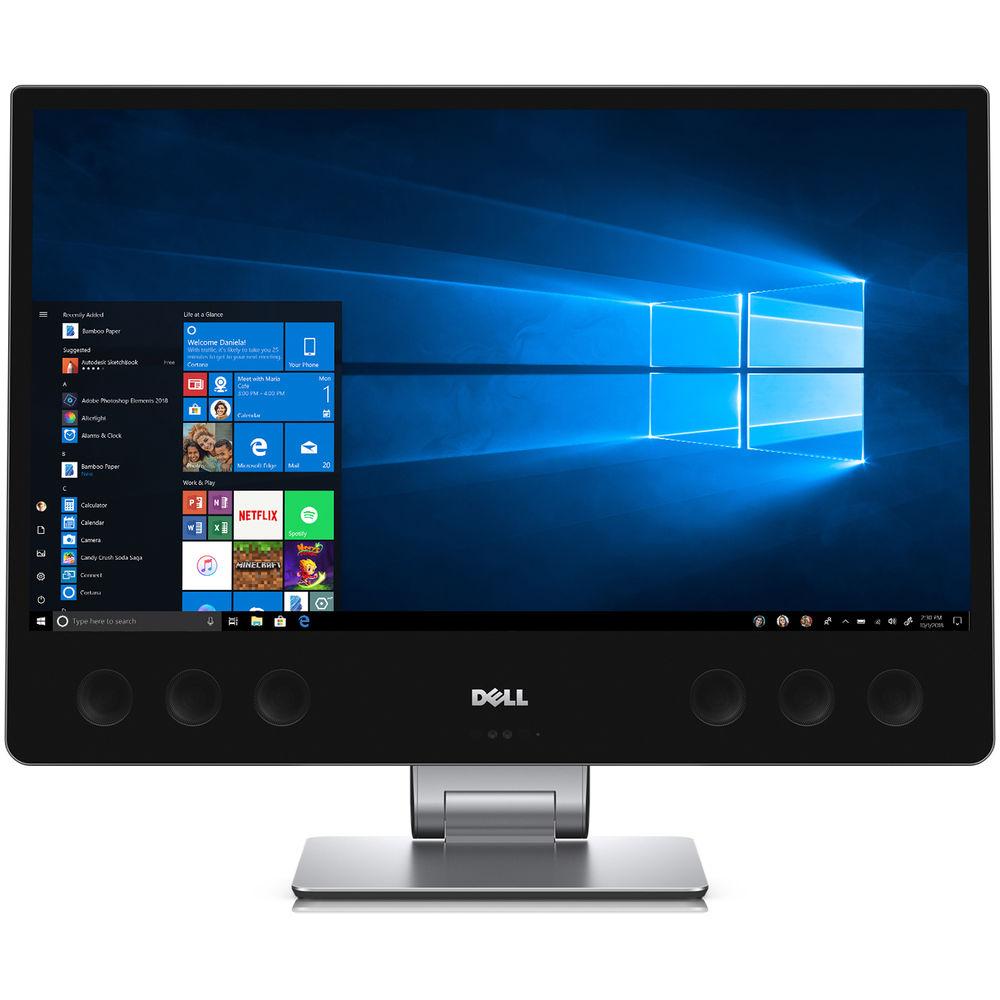

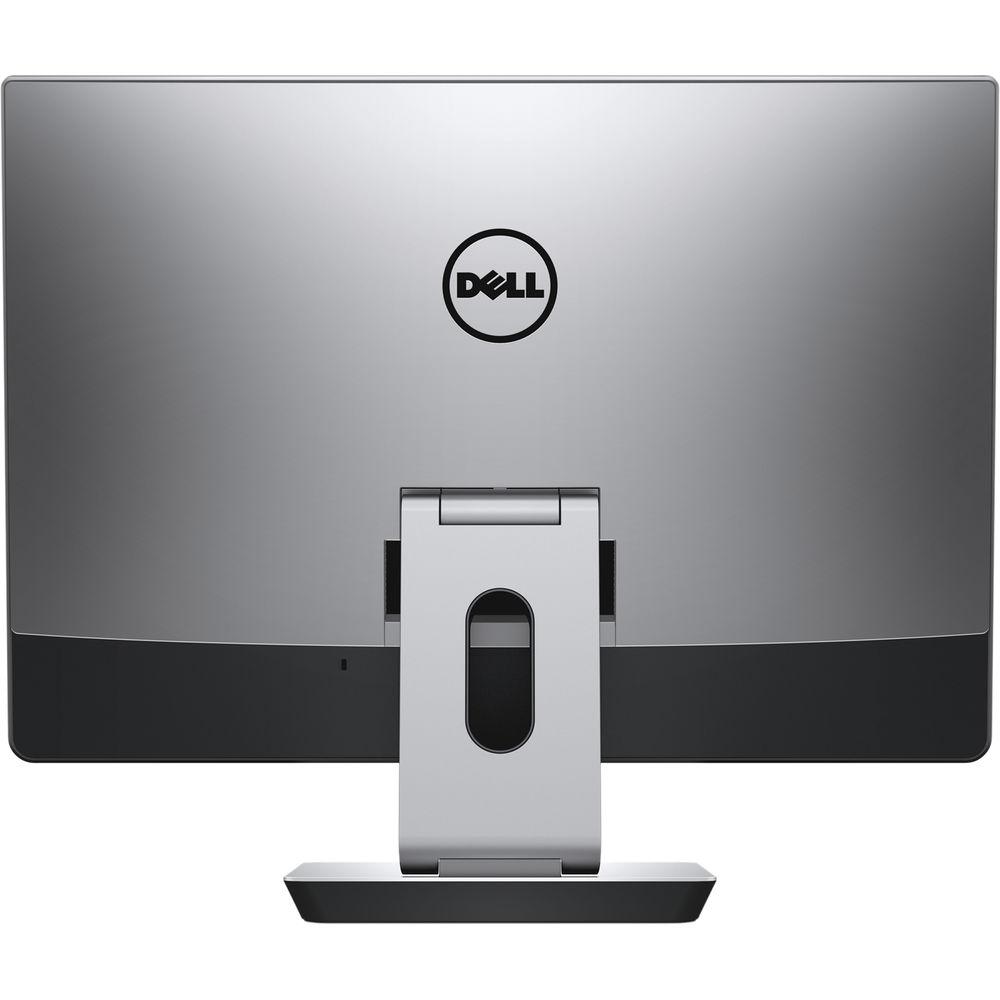

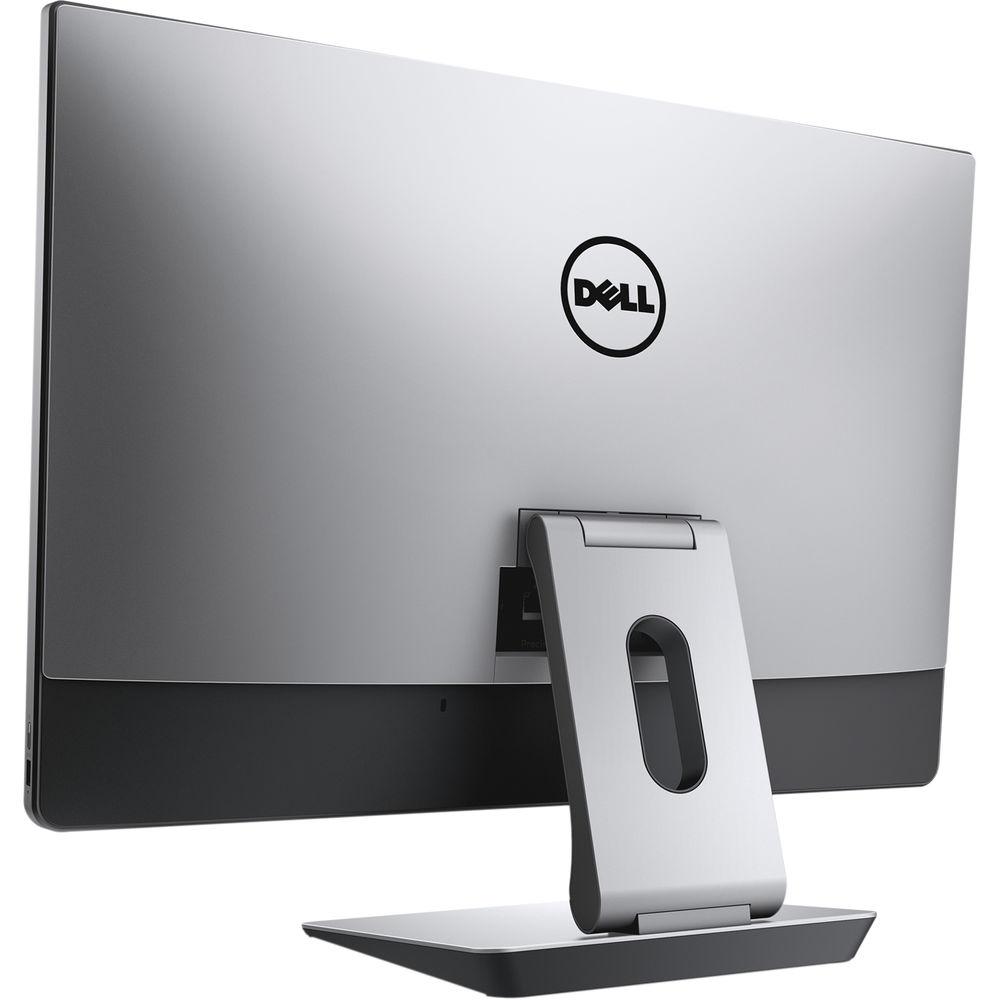

User Manual for Dell 27" Precision 5720 Multi-Touch All-in-One Desktop Computer Click to enlarge the picture
Contents of the user manual for the Dell 27" Precision 5720 Multi-Touch All-in-One
- Product category: All-In-One Desktop Computers Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell All-In-One Desktop Computers
 |
User manual for the Dell 27" Precision 5720 Multi-Touch All-in-One contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

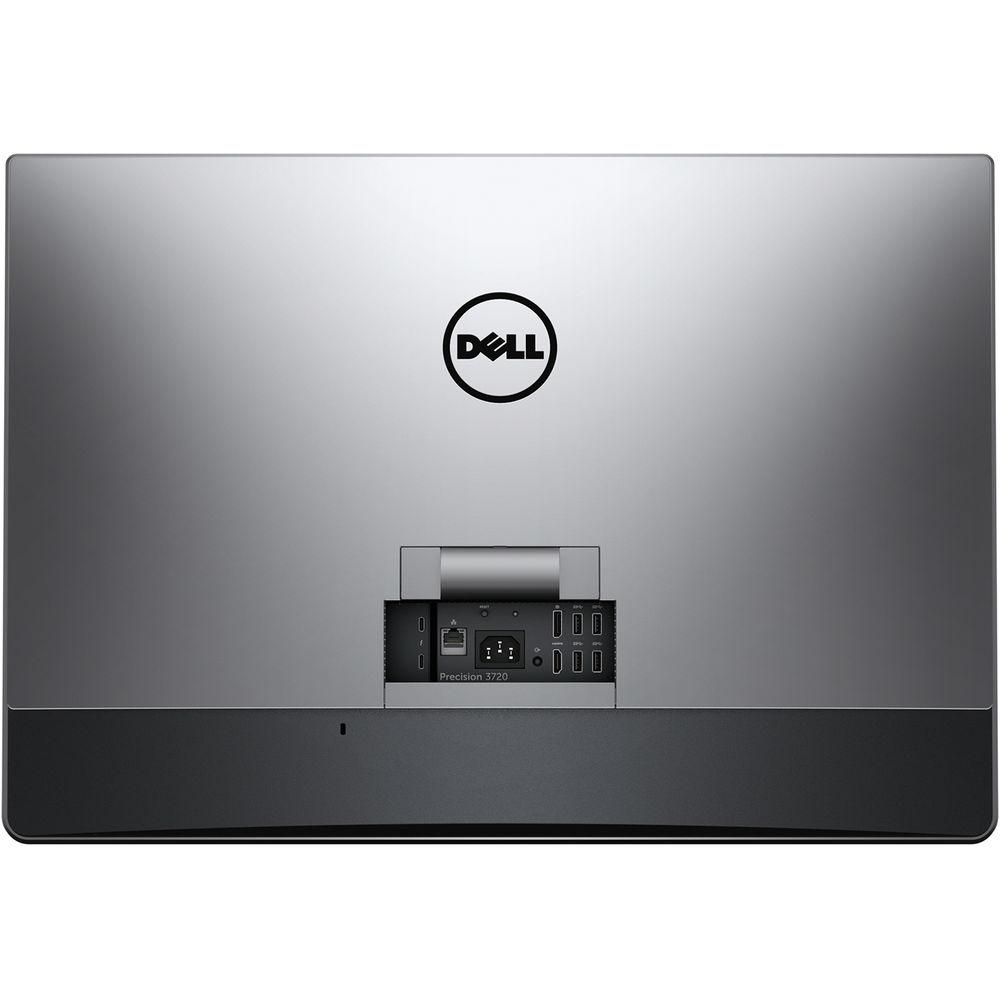

Product description 5 Essential Tips for Cleaning Your Gadgets Read More Designed for creators and power thinkers, the 27" Precision 5720 Multi-Touch All-in-One Desktop Computer from Dell features a 27" display with multi-touch functionality, allowing you to utilize the touch gestures and functions in Windows 10 to further improve accessibility and productivity. Furthermore, driven by a dedicated AMD Radeon Pro WX 7100 graphics card with 8GB of GDDR5 video memory, the screen has an Ultra HD 3840 x 2160 resolution that delivers crisp and clear pictures, as well as a refresh rate of 60 Hz and viewing angles of 85°. DisplayPort 1.2 and HDMI 1.4 outputs on the back of the chassis provide you the option to connect additional displays.
This system is powered by a 3.6 GHz Intel Core i7-7700 Quad-Core and 32GB of 2400 MHz DDR4 RAM that allows you to efficiently multitask as well as quickly access frequently used files and programs. For storage, it has both a 512GB PCIe M.2 SSD and a 1TB 7200 rpm SATA 2.5" hard drive for an overall storage capacity of 1.512TB. You can connect external storage options, optical drives, memory card readers, printers, keyboards, mice, and more using its two Thunderbolt 3 ports and five USB 3.0 Type-A ports, one of which has PowerShare technology. Additionally, you can take advantage of the SD/SDHC/SDXC card reader to expand your storage as well as transfer data between your mobile devices.

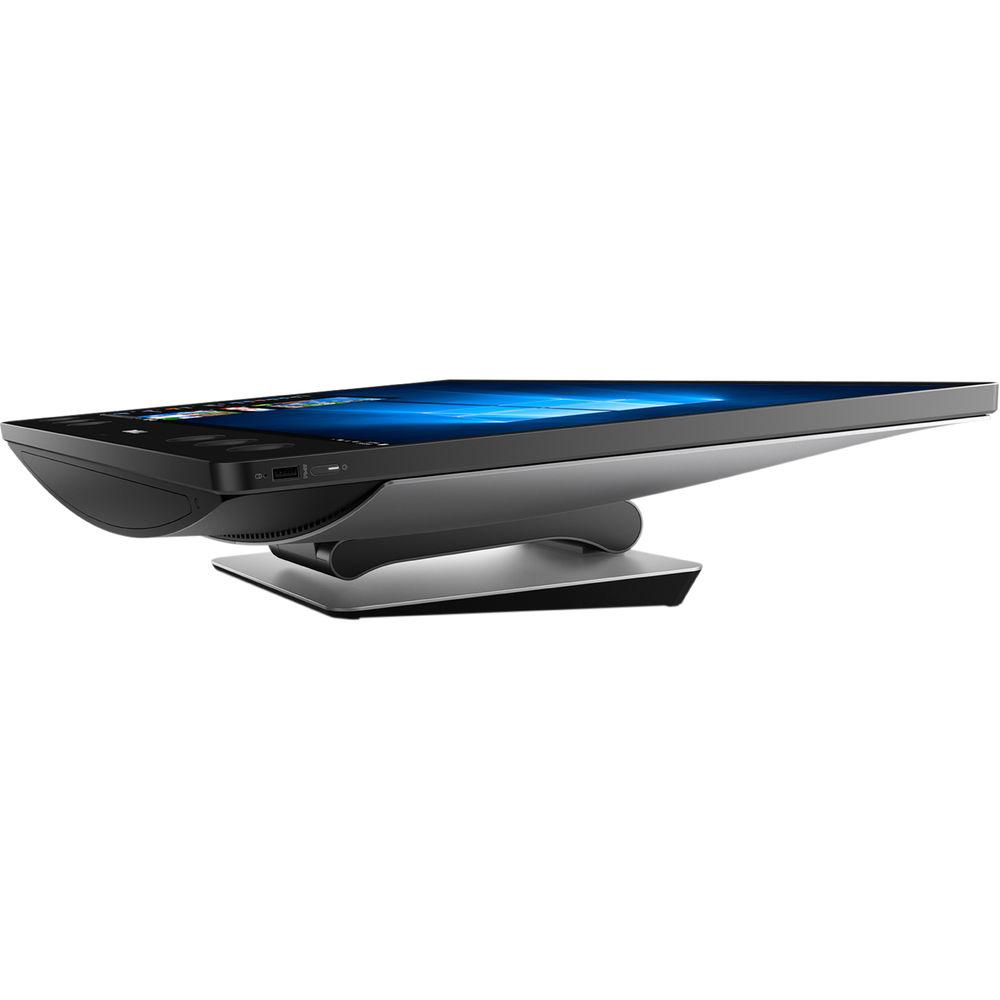

Connect to the internet via Wi-Fi 5 (802.11ac) or the Gigabit Ethernet jack for a more stable and reliable wired connection, while additional compatible wireless peripherals can be paired using Bluetooth 4.1. Other integrated features include a 720p webcam, integrated quad microphones, dual 10W speakers, a 3.5mm headphone jack, and a 3.5mm line output that can be reconfigured as a line input, microphone, or headphone jack. Once set up, you can tilt the screen to your viewing preference at angles from -5 to 60° using the included articulating stand. For additional convenience right out of the box, the 27" Precision 5720 also includes comes with a keyboard, mouse, and power cord. The operating system installed in this computer is Windows 10 Pro (64-bit). General Features - High-Powered Processing
- A 3.6 GHz Intel Core i7-7700 Quad-Core processor provides the power to maintain high performance and uninterrupted workflows, even when running demanding professional software applications.
- Uncompromised Graphics
- A dedicated AMD Radeon Pro WX 7100 graphics card has 8GB of GDDR5 memory and is engineered to keep pace with demanding, graphics-intensive tasks like 3D rendering. It also comes ISV-certified to run professional applications.
- Dell Precision Optimizer
- The Dell Precision Optimizer automatically tunes your workstation to run specific programs at faster speeds so you can maximize performance and unleash your technology's true potential.
- Ready for VR
- The Precision 5720 can be optimized for virtual reality consumption and creation, making it powerful enough to handle VR workloads.
- Certified for Smooth Performance
- The Precision 5720 comes ISV certified, a result of precise engineering and rigorous testing to optimize smooth performance and reliability while running applications you rely on.
- Protection
- Endpoint security solutions include comprehensive encryption, advanced authentication, and malware protection, allowing you to easily safeguard sensitive information. Error-correcting code (ECC) memory detects and corrects data corruption and helps prevent potential system crashes.
- Captivating Display
- A narrow border gives you more real estate to view your work in Ultra HD 4K resolution. And with support for up to three additional Ultra HD 4K displays at 60 Hz,
|
Upload User Manual
Have you got an user manual for the Dell 27" Precision 5720 Multi-Touch All-in-One Desktop Computer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell 5720 Specs | Operating System | Windows 10 Pro (64-Bit) | | | | Chipset | Intel C236 | | CPU Socket | LGA 1151 | | CPU | 3.6 GHz Intel Core i7-7700 Quad-Core | | Maximum Boost Speed | 4.2 GHz | | L3 Cache | 8 MB | | Memory Type | 2400 MHz DDR4 | | Total Installed Memory | 32 GB | | Memory Configuration | 4 x 8 GB (User-Replaceable) | | Maximum Memory Capacity | 64 GB | | Memory Slot Type | 260-Pin SO-DIMM | | Available Memory Slots | None | | Graphics Type | Dedicated | | GPU | AMD Radeon Pro WX 7100 with 8 GB GDDR5 VRAM | | | | Panel Type | Unspecified LCD | | Size | 27" | | Aspect Ratio | 16:9 | | Resolution | 3840 x 2160 | | Touchscreen | Yes | | Color Gamut | 100% Adobe RGB | | Refresh Rate | 60 Hz | | Viewing Angle (H x V) | 170 x 170° | | | | Total Drive Bays | 2 x 2.5" (Internal) | | 2.5" Slots | 1 x Height Unspecified (In Use)
1 x Height Unspecified (Available) | | SSD Slots | 1 x M.2 PCIe (In Use) | | Total Installed Capacity | 1.512 TB | | Solid State Storage | 1 x 512 GB M.2 PCIe | | Hard Disk Storage | 1 x 1 TB 2.5" SATA (7200 rpm) | | Optical Drive | None | | | | Ports | 5 x USB Type-A (USB 3.1 Gen 1) | | USB Type-C Ports | 2 x Thunderbolt 3 | | Display | 1 x HDMI 1.4
1 x DisplayPort 1.2 | | Audio | 1 x 1/8" / 3.5 mm Headphone Output
1 x 1/8" / 3.5 mm Line Output The audio line-out port can be configured to support audio line-in, microphone, and headphones | | Built-In Speakers | 8 | | Built-In Microphones | 4 | | Media Card Slots | 1 x SDXC | | | | Ethernet | 1 x RJ45 (Gigabit) | | Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) | | MU-MIMO Support | 2 x 2 | | Bluetooth | 4.1 | | Webcam | User-Facing: 720p | | | | Keyboard | 104-Key USB Chiclet Full-Size Keyboard with Number Pad | | Pointing Device | USB Mouse | | | | Security | Kensington Lock Slot | | Power Supply | 360 W | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 5 A | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 10 to 90% | | Dimensions | 24.6 x 17.1 x 3.2" / 624.84 x 434.34 x 81.28 mm | | Weight | 37.3 lb / 16.9 kg |
