User Manual for Dell Alienware AW3418DW 34" 21:9 Curved 120 Hz G-Sync IPS Gaming Monitor Click to enlarge the picture
Contents of the user manual for the Dell Alienware AW3418DW 34" 21:9 Curved
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell Alienware AW3418DW 34" 21:9 Curved contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

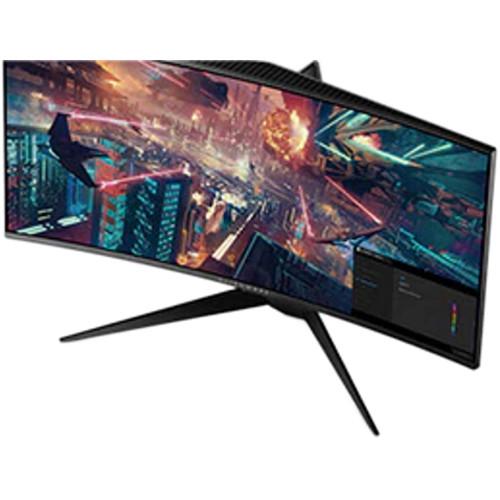

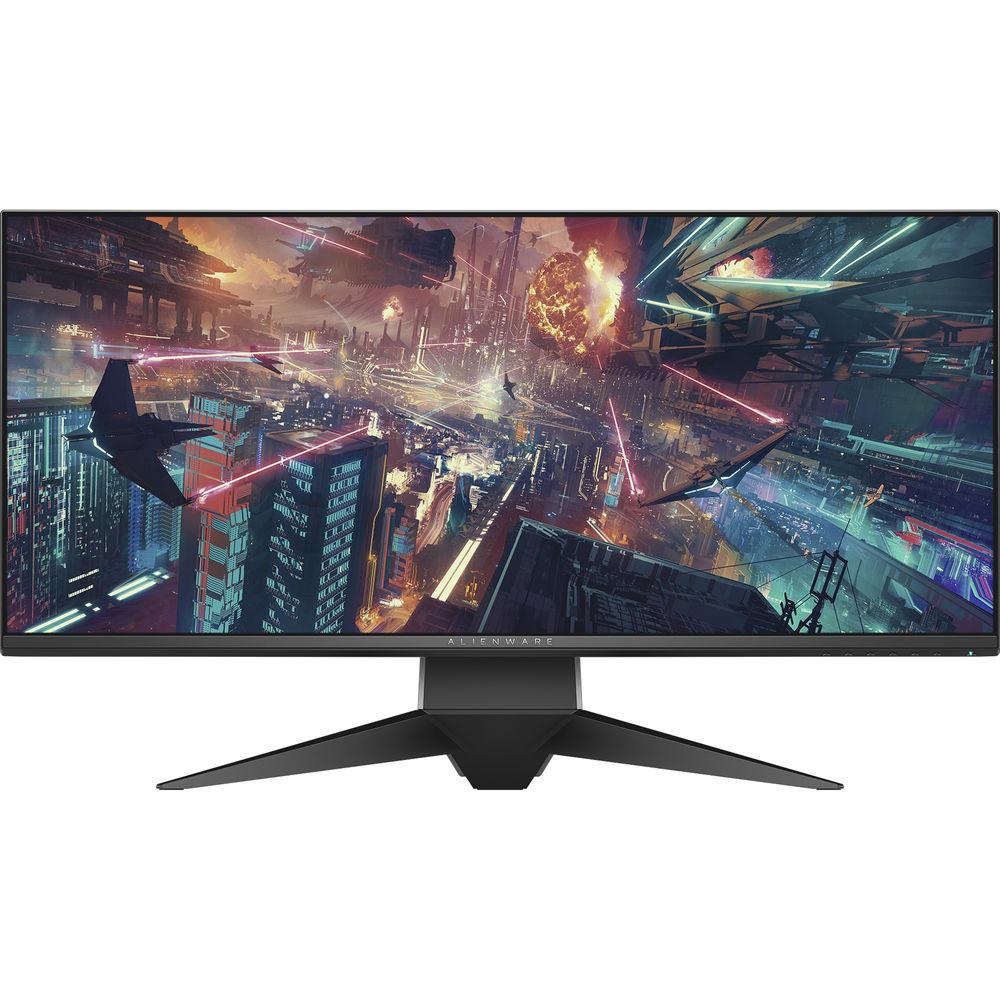

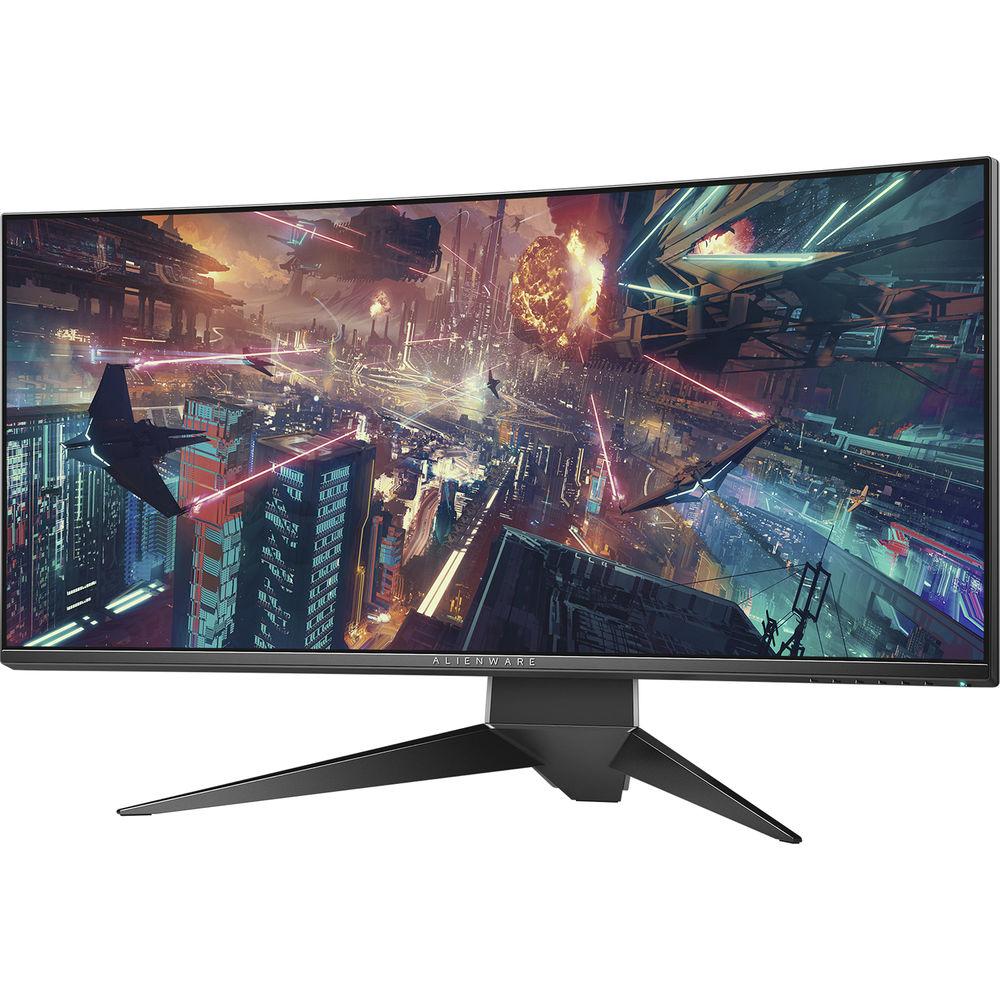

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The Alienware AW3418DW 34" 21:9 Curved 120 Hz G-Sync IPS Gaming Monitor from Dell features an expansive 34" IPS (In-Plane Switching) panel with a 1900R curvature that wraps around your field-of-view to place you directly in the middle of the action. It has a 3440 x 1440 WQHD resolution, a 1000:1 static contrast ratio, a 300 cd/m² brightness rating, and supports 16.7 million colors. Combined, these specs provide you with crisp and clear content reproduction with brighter bright colors and deeper blacks. Connect this display to your system via HDMI or DisplayPort and then tilt, swivel, and adjust its height to your viewing preference. Otherwise, you can install an optional mount, stand, or arm using the VESA mounting holes on the back. - NVIDIA G-Sync Technology
- NVIDIA G-Sync technology syncs the display's refresh rate with your graphics card's frame rate output to reduce screen tearing, stuttering, and ghosting.
- Responsive Gameplay and Rapid Refresh
- A display's response time measures how quickly a pixel changes color and its refresh rate is how often it changes the image on-screen. With a 4 ms response time and a 100 Hz (120 Hz overclocked) refresh rate, this display is ideal for fast-paced content such as driving games and First-Person-Shooters (FPS).
- Dynamic On-Screen Display
- Instead of using hardware buttons for display adjustments, this monitor supports an on-screen display, which includes customizable preset game modes and guide lines for a multi-monitor setup.
- Custom Lighting Effects
- This monitor is equipped with AlienFX, a fully customizable RGB dynamic lighting system, which can sync its colors to the in-game action. There are four lighting zones and you can create and download themes for over 145 games.
UPC: 884116278788 In the Box Dell Alienware AW3418DW 34" 21:9 Curved 120 Hz G-Sync IPS Gaming Monitor Stand Cable Cover DisplayPort Cable Mini-DisplayPort to DisplayPort Cable USB 3.0 Upstream Cable Power Cable Limited 3-Year Warranty User Manual PDF 3.3mbttxyufxfwwc Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell Alienware AW3418DW 34" 21:9 Curved 120 Hz G-Sync IPS Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell Alienware AW3418DW Specs | | | Size | 34" | | Screen Area | 31.41 x 13.18" / 79.78 x 33.48 cm | | Panel Type | IPS-Type LCD | | Curvature | 1900R | | Touchscreen | No | | Resolution | 3440 x 1440 | | Aspect Ratio | 21:9 | | Pixels Per Inch (ppi) | 109 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 300 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 120 Hz | | Adaptive Sync Technology | G-Sync | | Horizontal Frequency | 73 to 151 kHz | | Vertical Frequency | 30 to 100 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | Color Gamut | 82% CIE1976
73% CIE1931
99% sRGB | | Response Time | 4 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2325 x 0.2325 mm | | | | Connectivity | 1 x DisplayPort 1.2
1 x HDMI 1.4
1 x 3.5 mm Output
1 x USB Type-B (USB 3.1 Gen 1)
4 x USB Type-A (USB 3.1 Gen 1) | | Built-In Speakers | None | | | | Power Consumption | 60 W (Typical)
0.5 W (Standby) | | AC Input Power | 120 to 230 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10 to 80% | | | | Height Adjustment | 5.1" / 12.95 cm | | Rotation Adjustment | None | | Swivel Adjustment | 40° (-20 to 20°) | | Tilt Adjustment | -5 to 25° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 32.0 x 17.4 x 12.6" / 81.3 x 44.2 x 32.0 cm (With Stand)
32.0 x 14.3 x 4.8" / 81.3 x 36.3 x 12.2 cm (Without Stand) | | Weight | 26.1 lb / 11.84 kg (With Stand)
16 lb / 7.26 kg (Without Stand) | | | | Package Weight | 42.8 lb | | Box Dimensions (LxWxH) | 36.5 x 25.5 x 17.5" |
