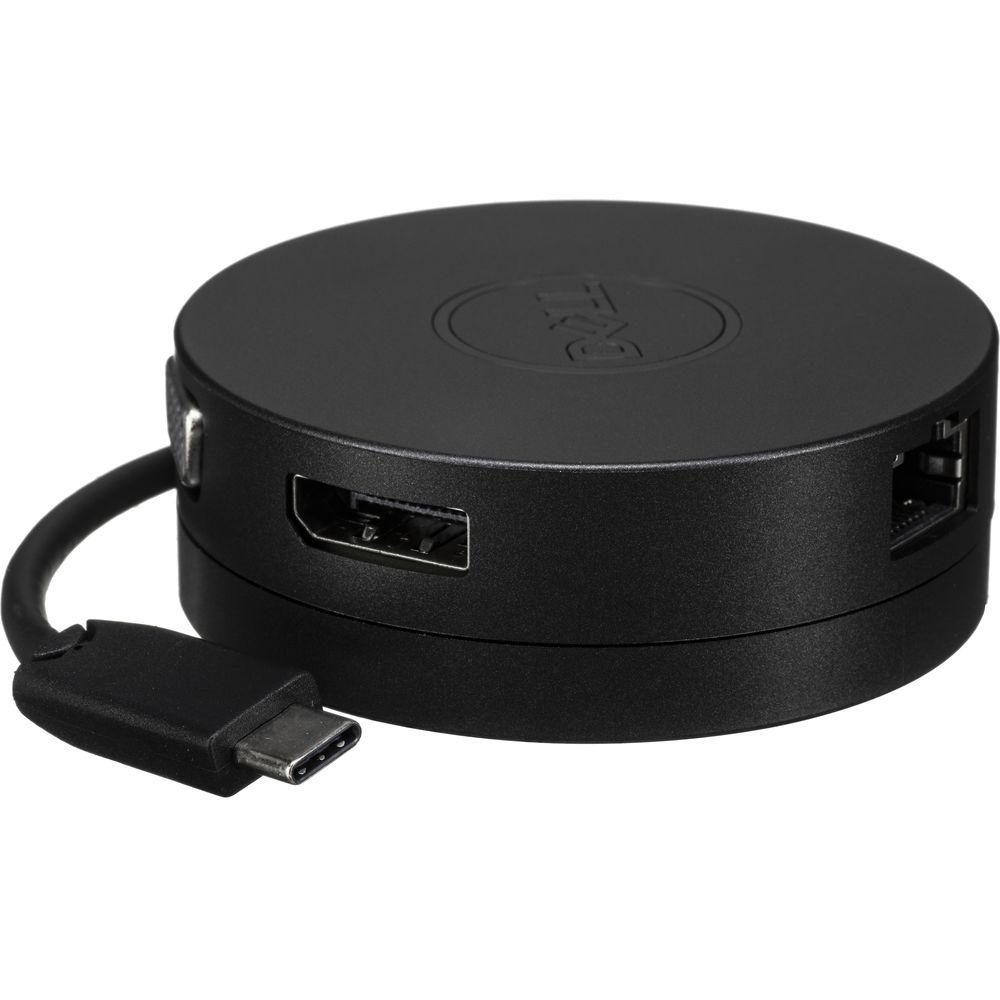

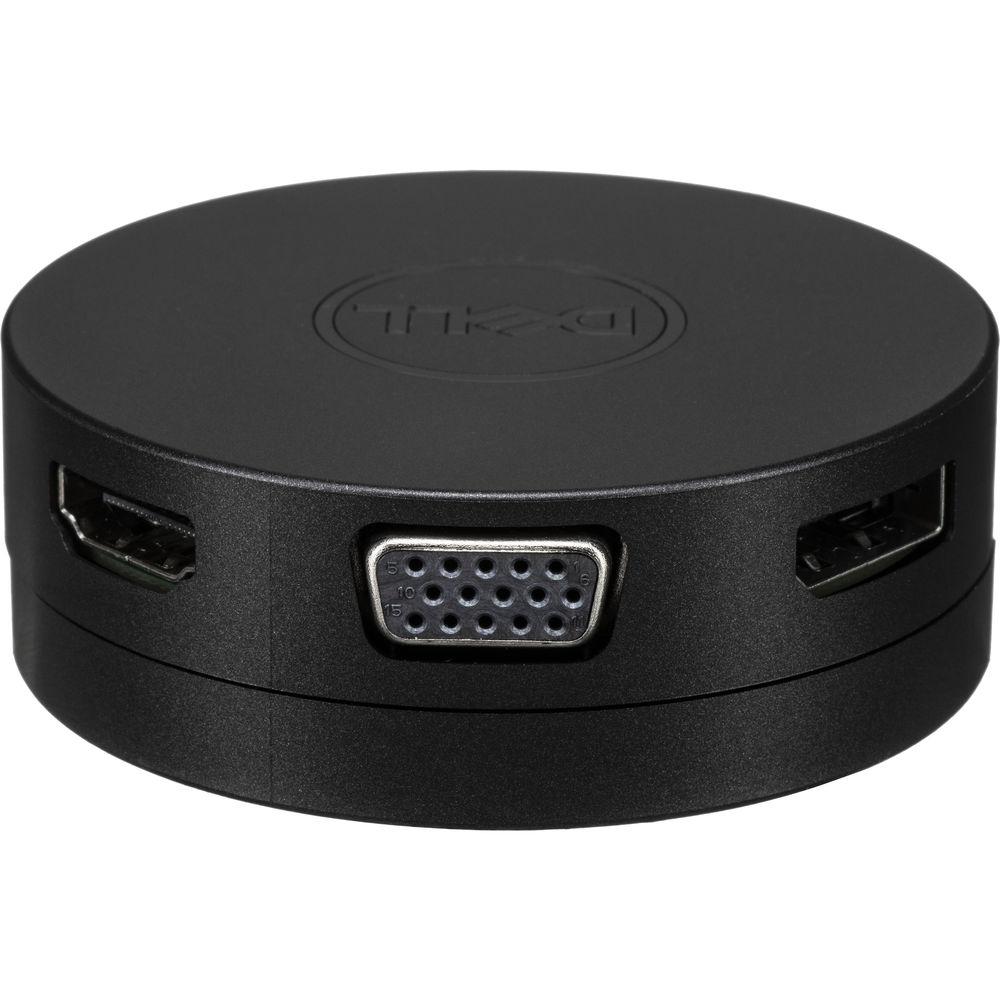

Product description Connected your supported Mac or Windows PC to a 4K display, flash drives, peripherals, and more with the DA300 USB Type-C Mobile Adapter from Dell. This round, portable, and bus-powered adapter features an integrated and retractable 4.7" USB Type-C cable. The DA300's USB Type-C and USB Type-A ports support the USB 3.1 Gen 2 standard, and are capable of data transfer rates up to 10 Gb/s. The adapter's video connections include HDMI, DisplayPort, and VGA. Video resolution up to 4K at 60 Hz is supported. The DA300 also comes equipped with a single Gigabit Ethernet port. - 4K Resolution at 60 Hz and USB 10 Gb/s Data Transfer Rate
- Connect a supported computer to a high-resolution display thanks to the USB Type-C Mobile Adapter's ability to support 4K resolution up to 60 Hz. Simply plug in your system to a monitor or projector via DisplayPort or HDMI 2.0. Using legacy video ports is supported with the adapter's VGA port. The USB Type-C and USB Type-A downstream ports let you connect other supported peripherals and enjoy file transfers with up to 10 Gb/s data transfer speeds when the adapter is connected to a Thunderbolt or 15W USB Type-C (DisplayPort Alt-mode) port.
- Innovative Design
- The small, round adapter fits neatly in a bag, while the concealed cable can be extended or retracted by rotating the top and bottom cover of the adapter. The longer coaxial cable offers flexibility to connect to various form factors including clamshells, 2-in-1s, and detachables.
- Plug and Play
- No installation of external drivers is necessary. Pair your adapter with Dell systems to enjoy features such as MAC address passthrough, PXE boot, and wake-on-LAN. It works with most operating systems, including Windows and macOS.
- System Requirements
- macOS
Microsoft Windows 10 / 8.1 / 8 / 7 - Compatibility
- Latitude 5280
Latitude 5480
Latitude 5580
XPS 9365 2-in-1
Precision 5520
Latitude 7280
Precision 3520
Latitude 7480
Precision 7520
Latitude 5289 2-in-1
Latitude 7285 2-in-1
Latitude 7380
Latitude 7389 2-in-1
Precision 7720
Inspiron 15 5000 Series (5570)
Latitude 7490
Latitude 7390
Latitude 5490
Latitude 5590
Latitude 5290
Latitude 7290
Inspiron 13 7000 Series (7373)
Inspiron 15 7000 Series (7573)
Inspiron 17 5000 Series (5770)
Inspiron 13 7000 Series (7370)
Inspiron 15 7000 Series (7570)
XPS 13 9370
Latitude 5290 2-in-1
Latitude 3490
Latitude 3390 2-in-1
Latitude 3590
Chromebook 5190
XPS 15 (9575)
XPS 15 (9560)
Vostro 15 (7570) UPC: 884116288527 In the Box Dell DA300 USB Type-C Mobile Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell DA300 USB Type-C Mobile Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell DA300 Specs | | | USB | 1 x USB 3.1 Gen 2 Type-A
1 x USB 3.1 Gen 2 Type-C | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | Display | 1 x HDMI
1 x VGA
1 x DisplayPort | | | | System Connection | 1 x USB 3.1 Gen 2 Type-C Male | | Connection Type | Integrated Cable | | | | Power Source | Bus Powered | | Power Port | USB Type-C | | | | Cable Length | 4.7" / 119.38 mm | | Dimensions | 2.8 x 2.7 x 1" / 71.12 x 68.58 x 25.4 mm | | Weight | 2.8 oz / 79 g | | | | Package Weight | 0.355 lb | | Box Dimensions (LxWxH) | 5.1 x 3.4 x 1.5" |
