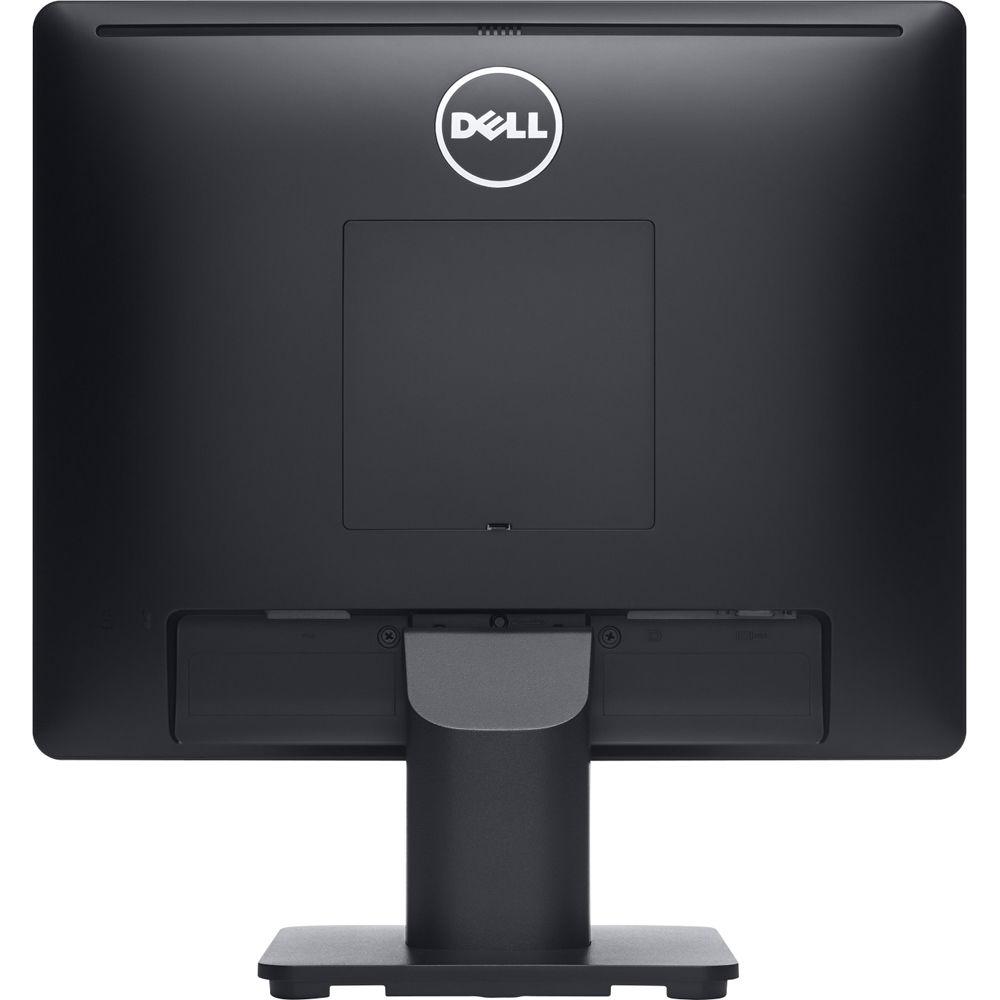

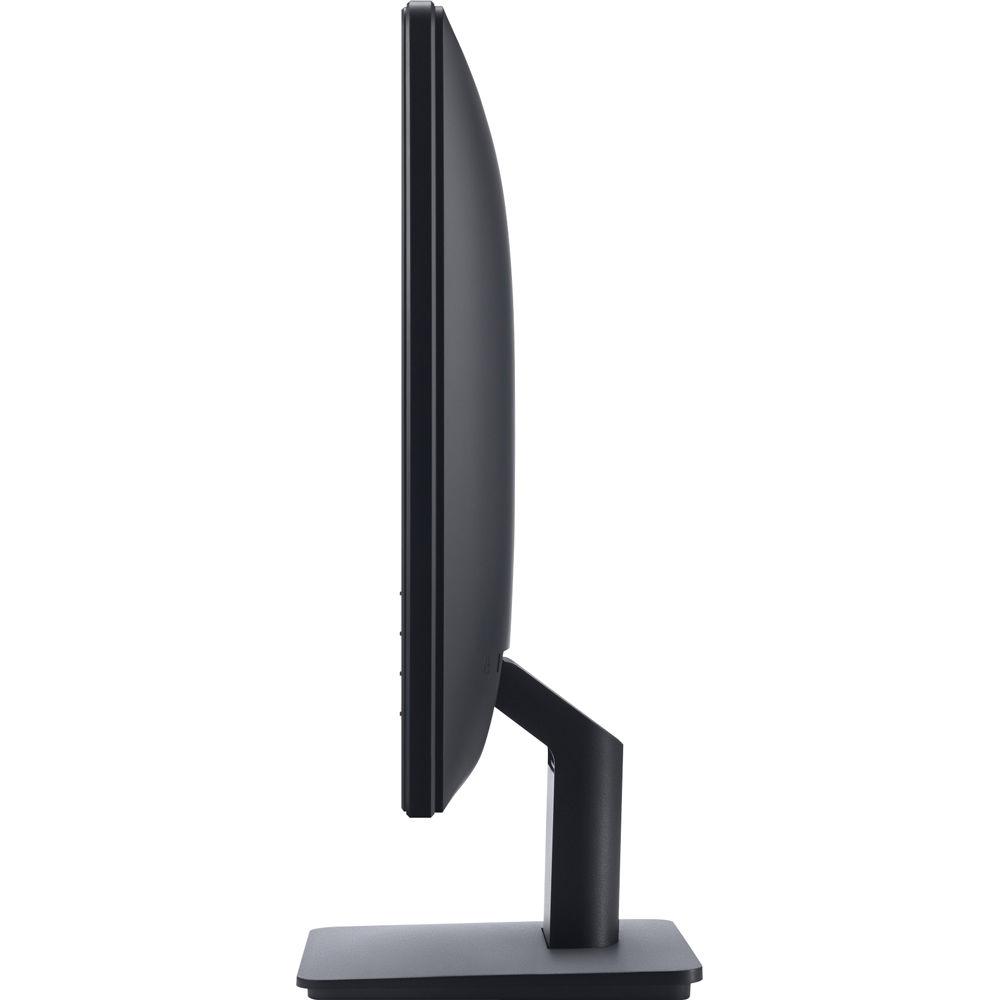

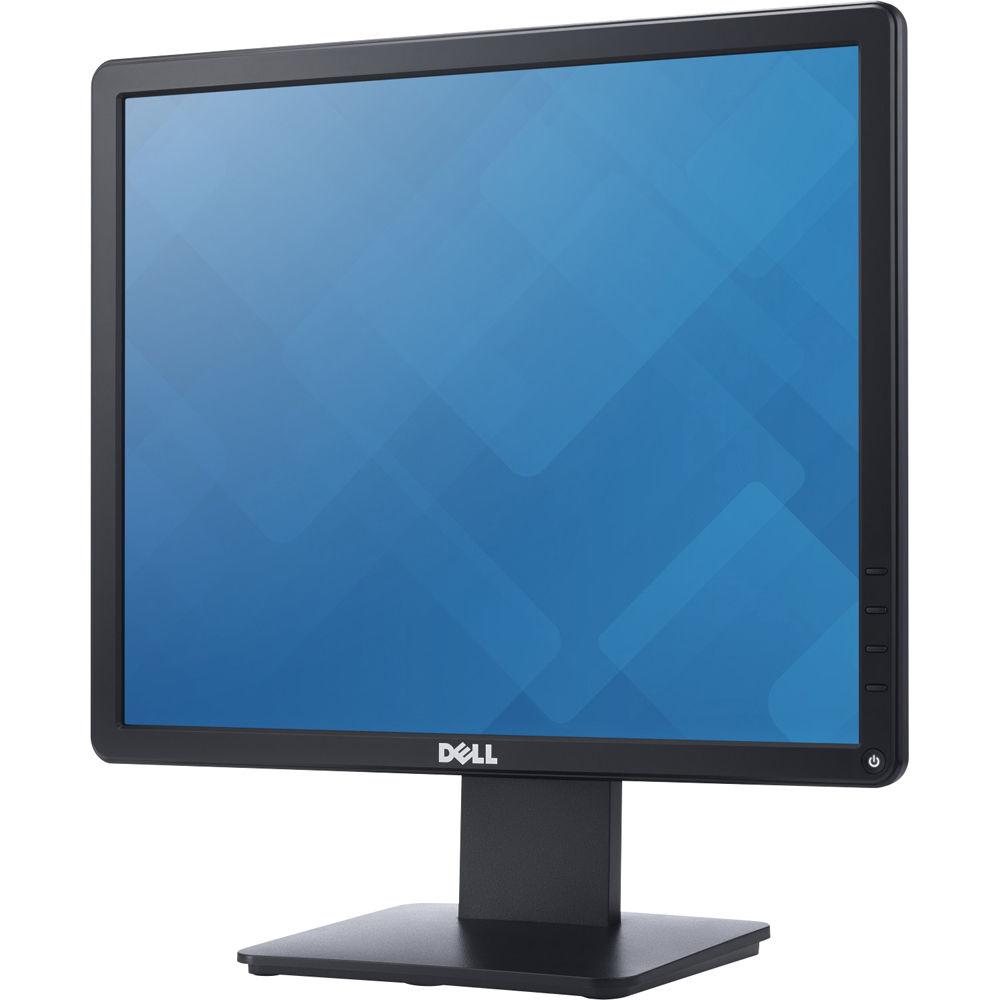

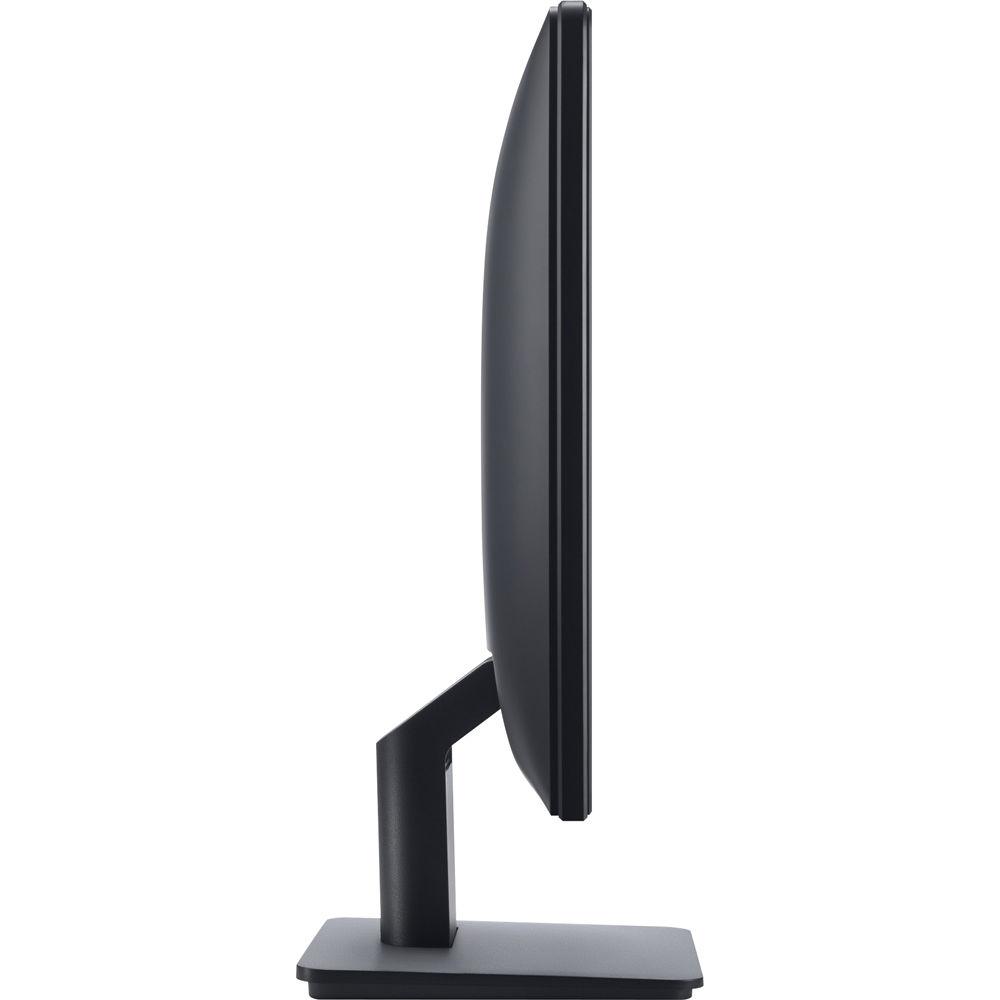

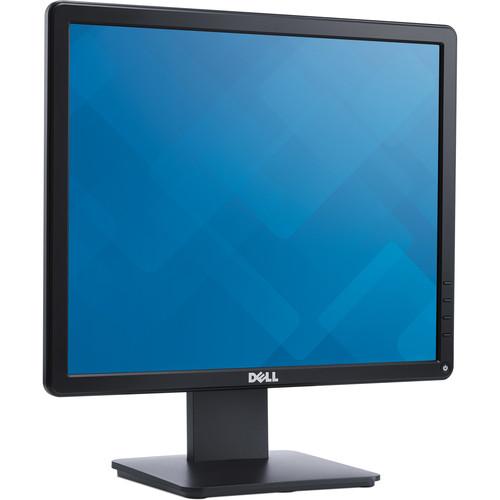

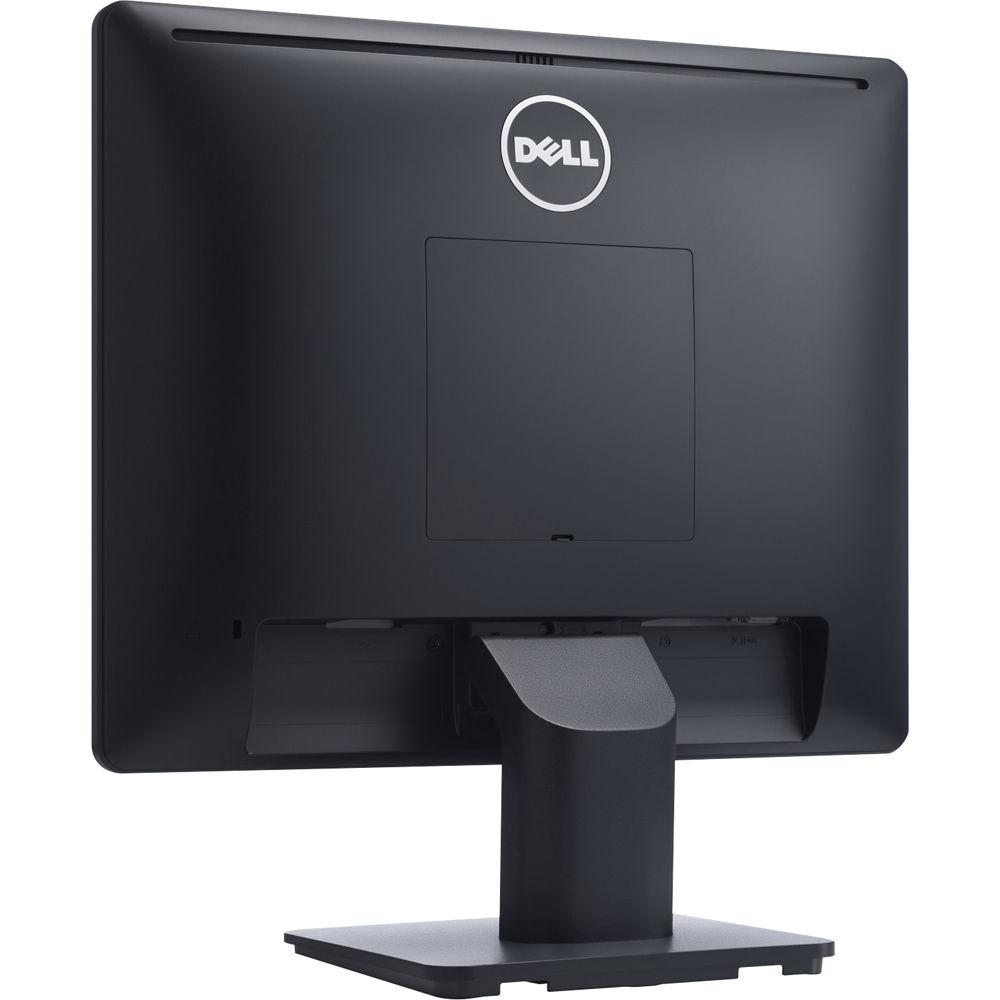

User Manual for Dell E1715S 17" LED Backlit 5:4 LCD Monitor Click to enlarge the picture
Contents of the user manual for the Dell E1715S 17" LED Backlit 5:4
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell E1715S 17" LED Backlit 5:4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

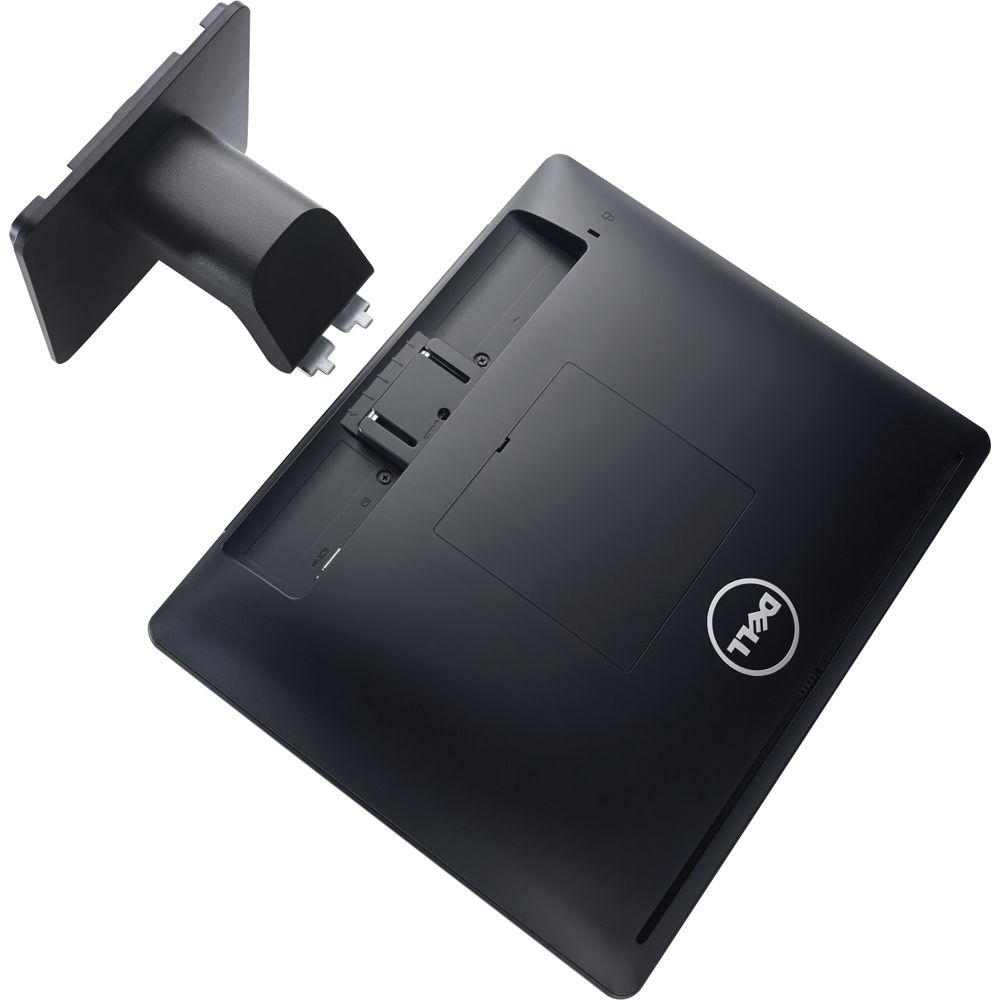

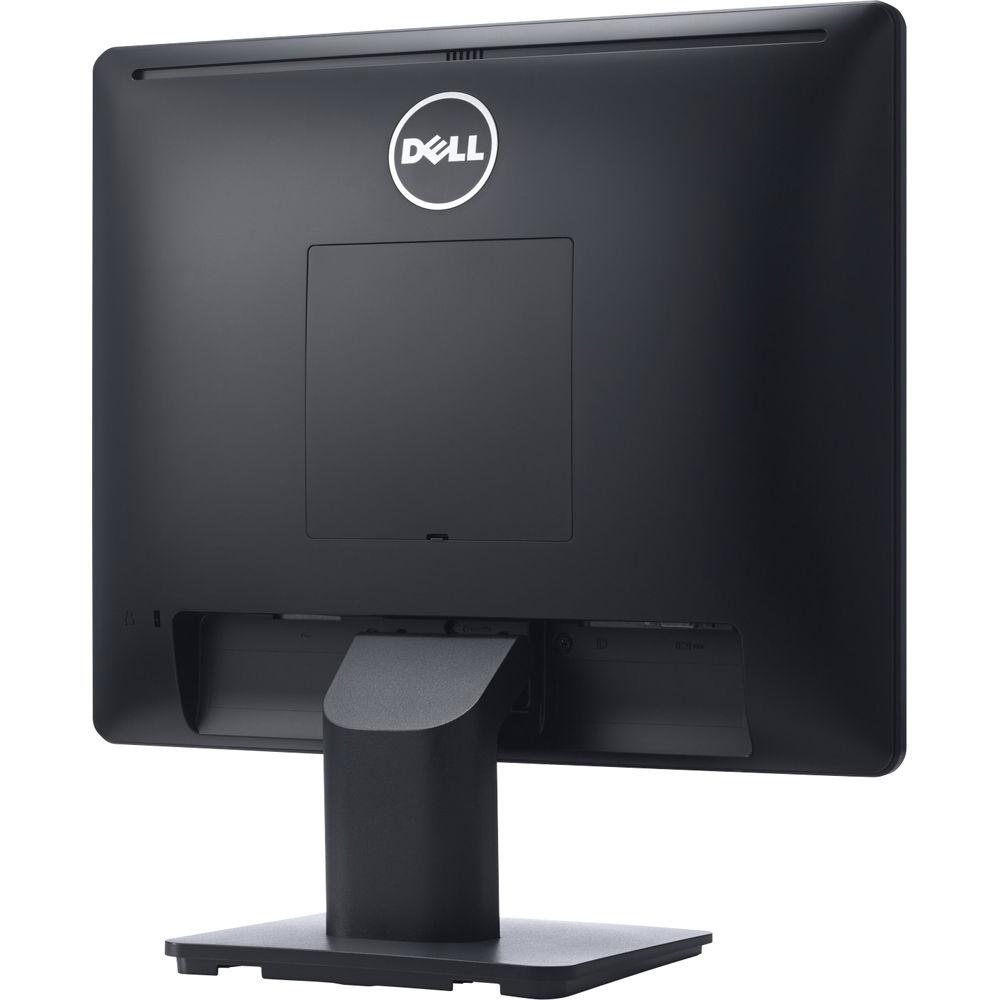

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The E1715S 17" LED Backlit 5:4 LCD Monitor from Dell features a 5:4 aspect ratio designed to fit into spaces many widescreen monitors can't and with a 1280 x 1024 resolution and 5 ms response time it still provides a crisp, clear picture. In addition to the fast response time and improved resolution, this monitor comes equipped with a 1,000:1 contrast ratio, 250 cd/m² brightness rating, and both VGA and DisplayPort connectors. Simply attach the monitor to the includes stand or mount it to the wall to take advantage of the 170° horizontal and 160° vertical viewing angles as well as support for up to 16.7 million colors. - Compact Design
- This compact, 5:4 aspect ratio monitor can fit into smaller spaces while still maintaining compatibility with software requiring a 5:4 display ratio.
- Enhanced Clarity
- The Dell 17 Monitor - E1715S features an enhanced 1280 x 1024 HD resolution, a fast 5 ms response time and 85% color gamut.

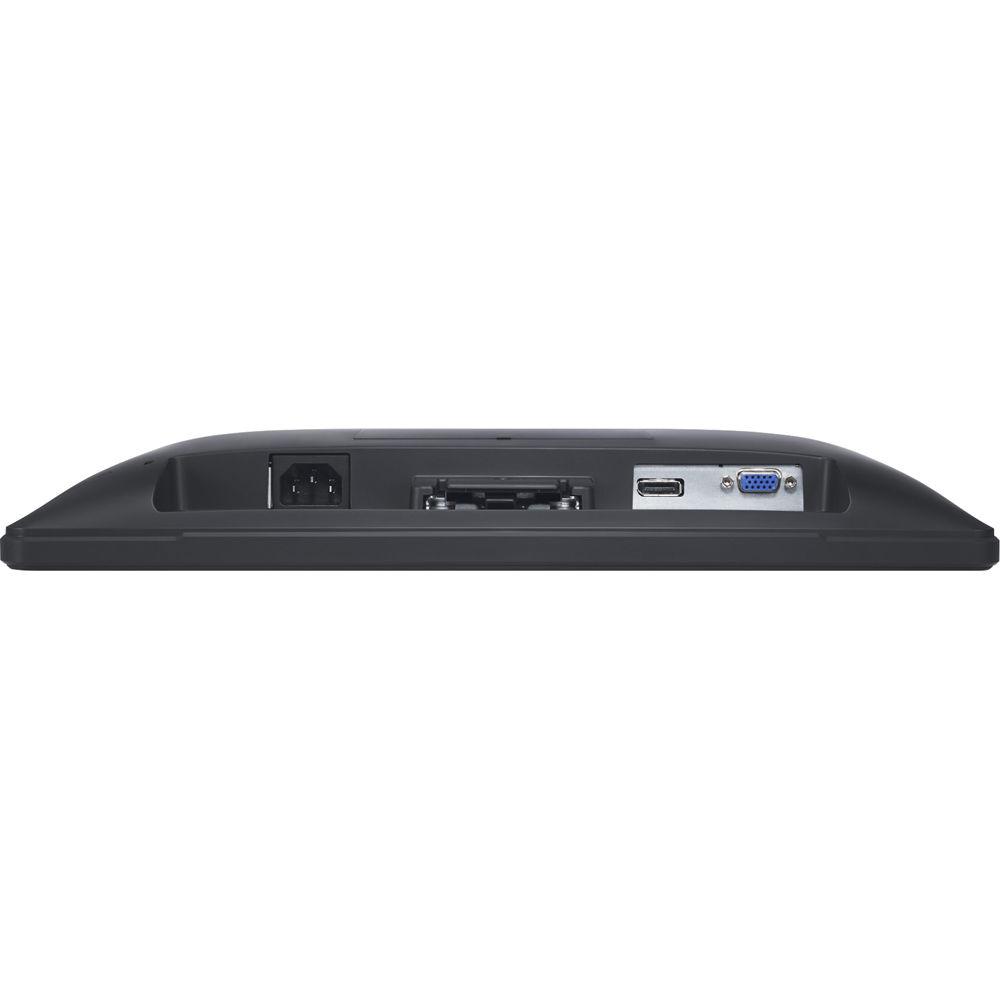

- Simple Connections

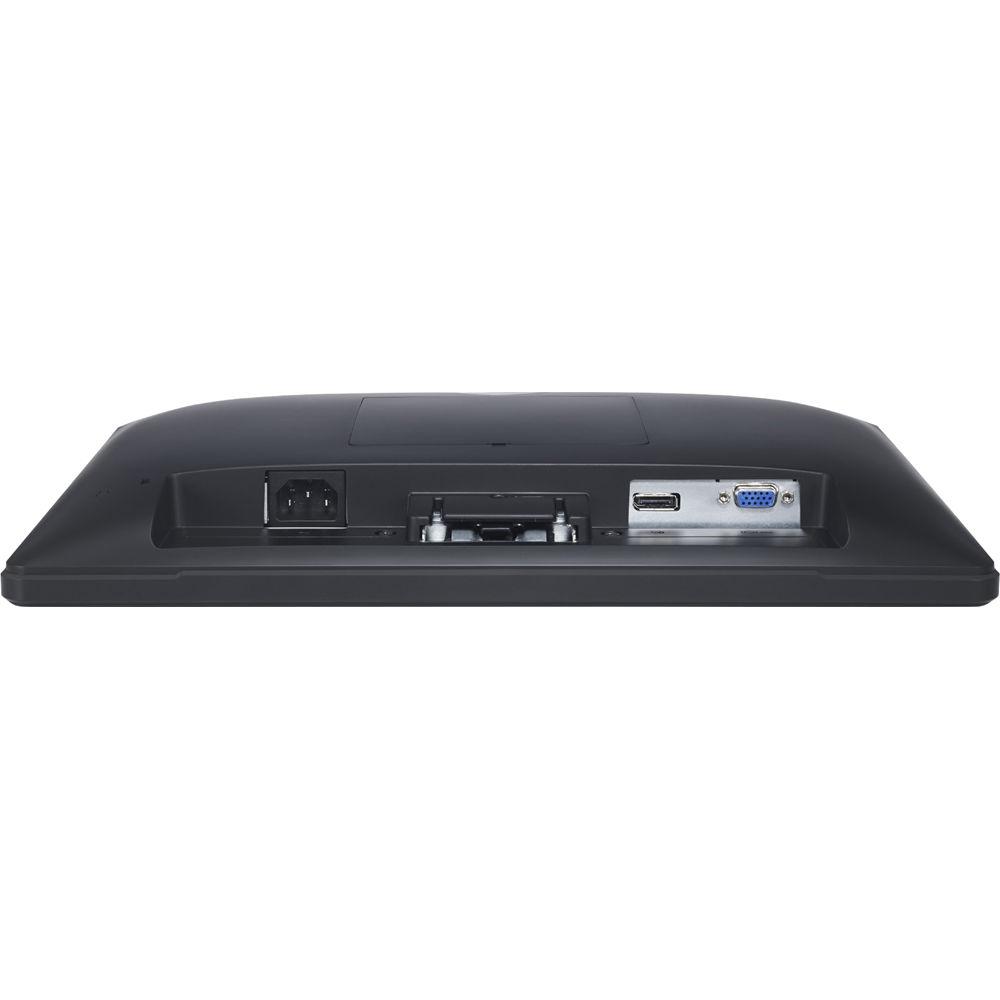

- Simplify connections to laptop and desktop PCs with VGA and DisplayPort connectors.
- Tilt Adjustment
- Tilt the screen up to 5.5° forward or 22° backward for optimal viewing comfort.
- Energy Efficient
- • LED backlighting provides greater efficiency than older fluorescent backlights
• PowerNap automatically puts your monitor into sleep mode when it's not in use
• The E1715S draws less than 0.5 W of current in standby mode
• Low power consumption of 11 watts in typical operational mode
• Energy ratings include EPEAT Gold, ENERGY STAR, TCO Certified Displays and CEL UPC: 884116137863 In the Box Dell E1715S 17" LED Backlit 5:4 LCD Monitor Stand Power Cable VESA Screw Cover VGA Cable Limited 3-Year Warranty User Manual PDF 8.6mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell E1715S 17" LED Backlit 5:4 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell E1715S Specs | | | Size | 17" | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1280 x 1024 | | Aspect Ratio | 5:4 | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 5 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.264 x 0.264 mm | | | | Connectivity | 1 x DisplayPort Input
1 x VGA | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 90% | | Operating Altitude | 0 to 16,404' / 0 to 5000 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 15.3 x 14.7 x 6.5" / 39.0 x 37.5 x 16.6 mm (With Stand)
12.1 x 14.7 x 1.8" / 30.7 x 37.5 x 4.7 mm (Without Stand) | | Weight | 4.9 lb / 2.2 kg (Without Stand) | | | | Package Weight | 8.2 lb | | Box Dimensions (LxWxH) | 18.0 x 15.0 x 6.0" |
