User Manual for Dell E1916HV 19" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the Dell E1916HV 19" 16:9 LCD Monitor
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell E1916HV 19" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

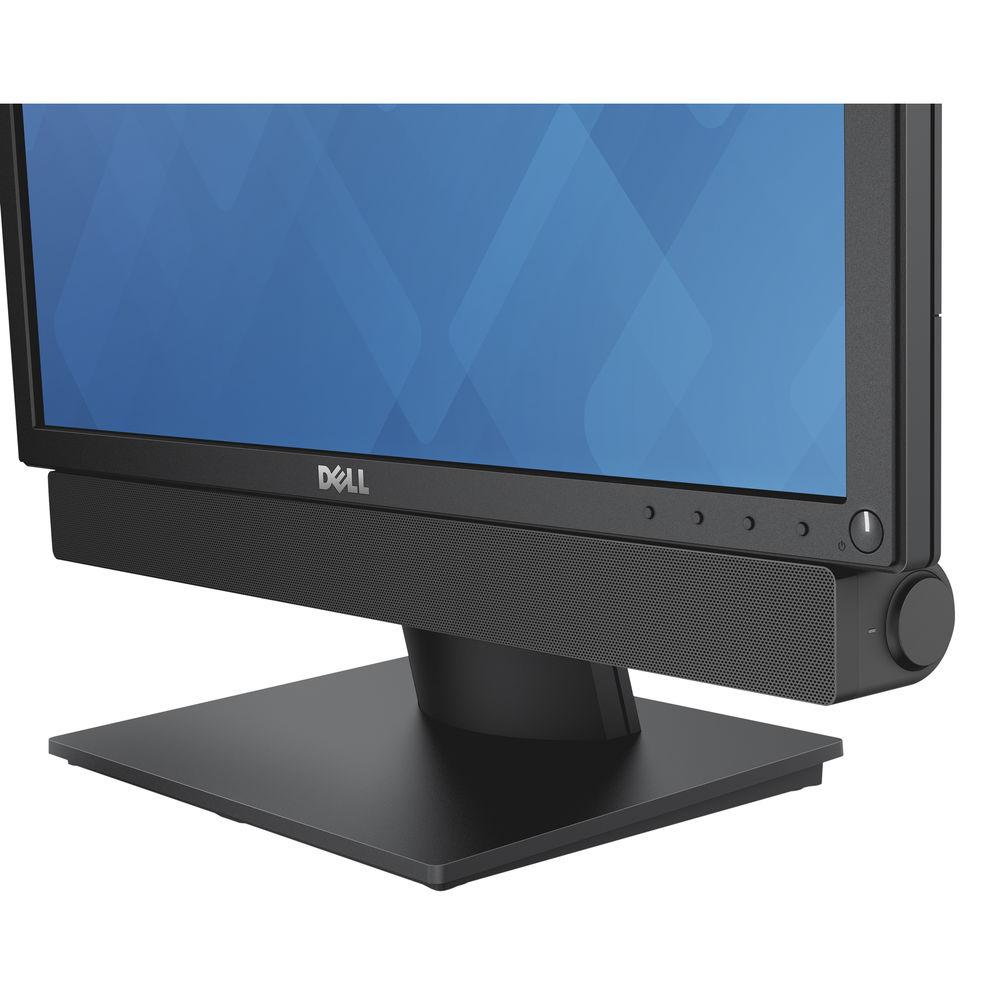

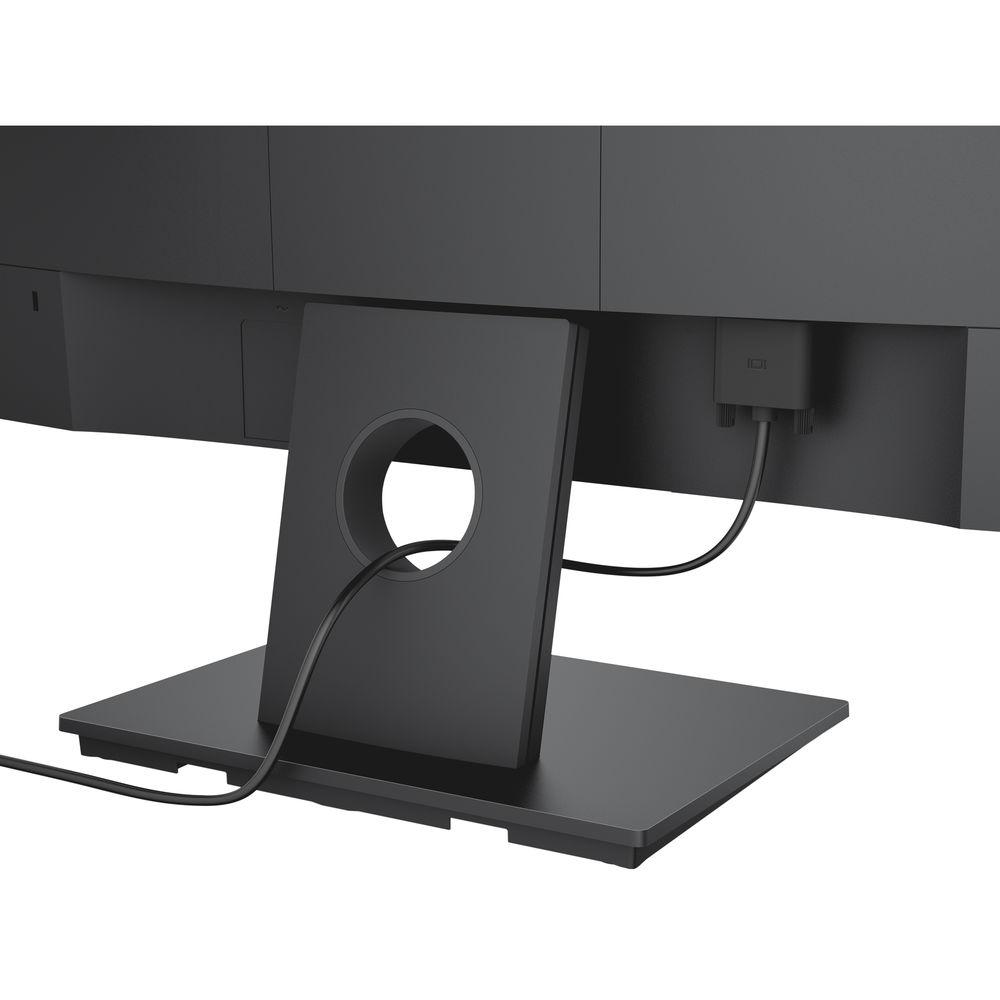

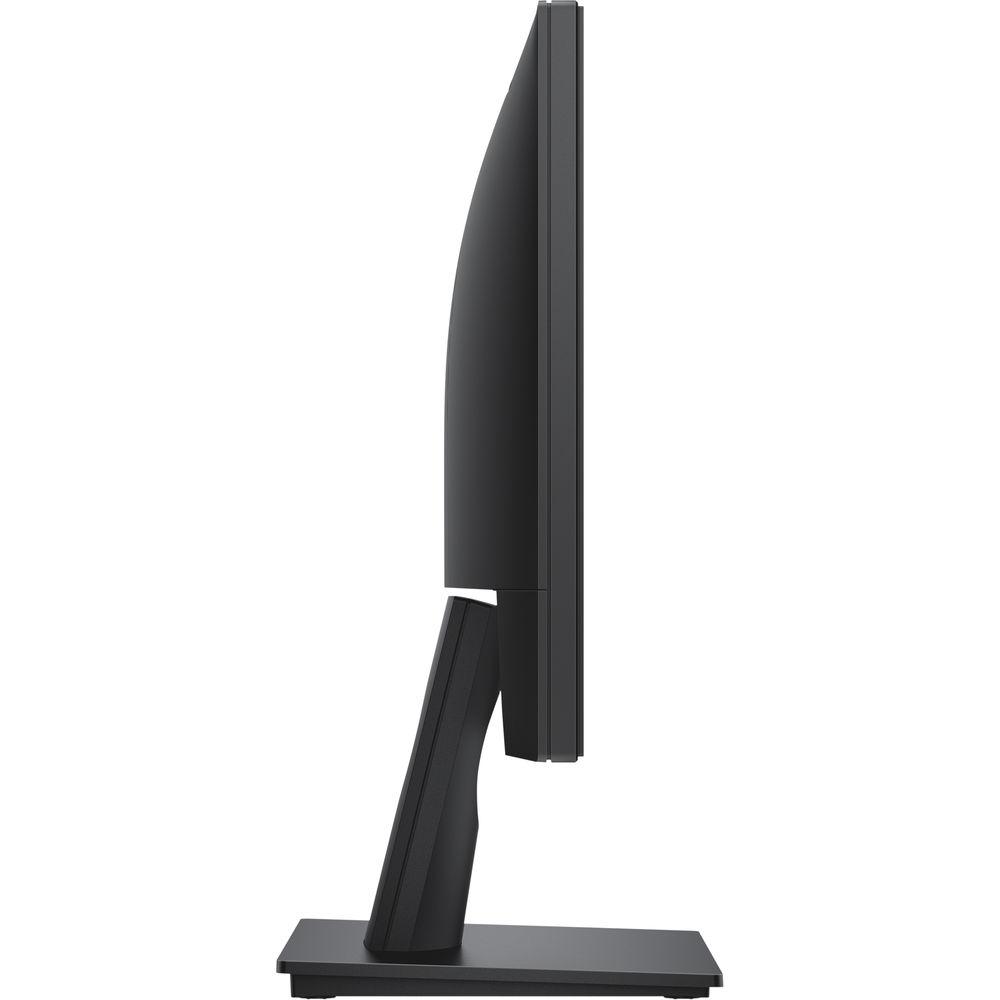

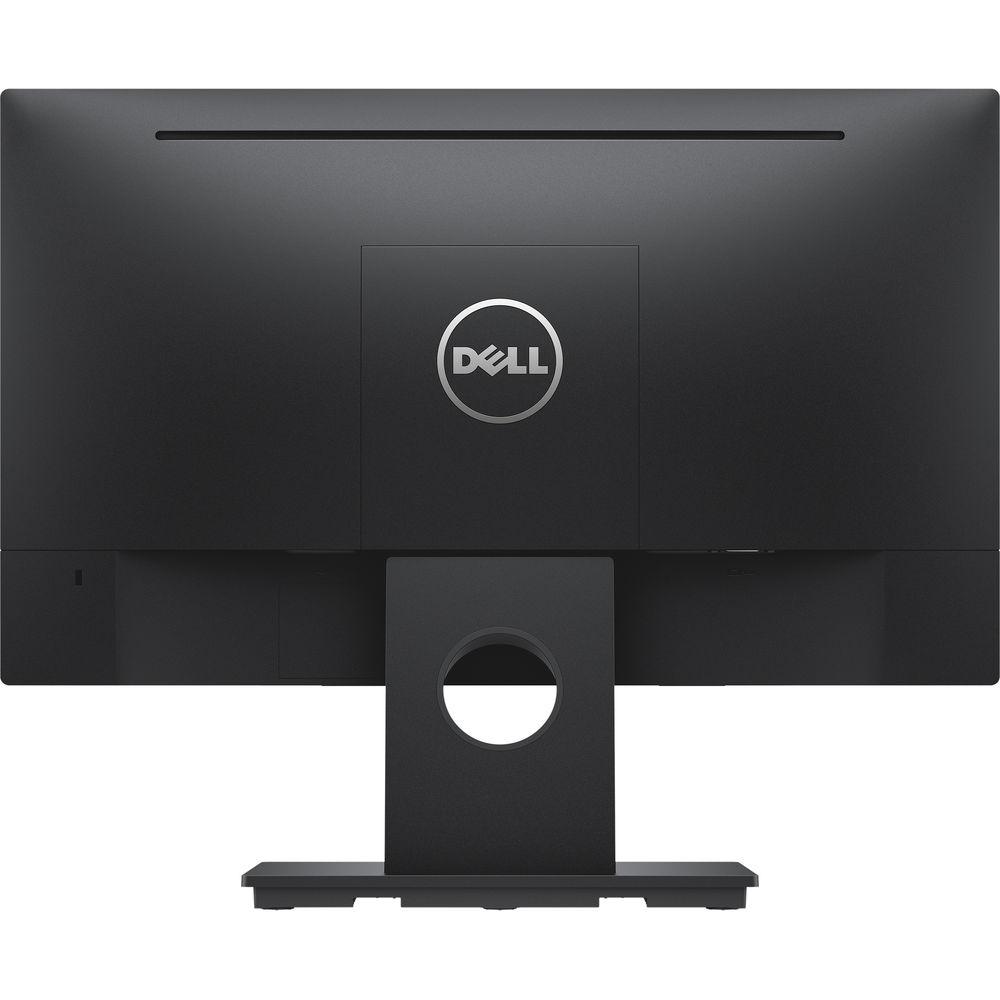

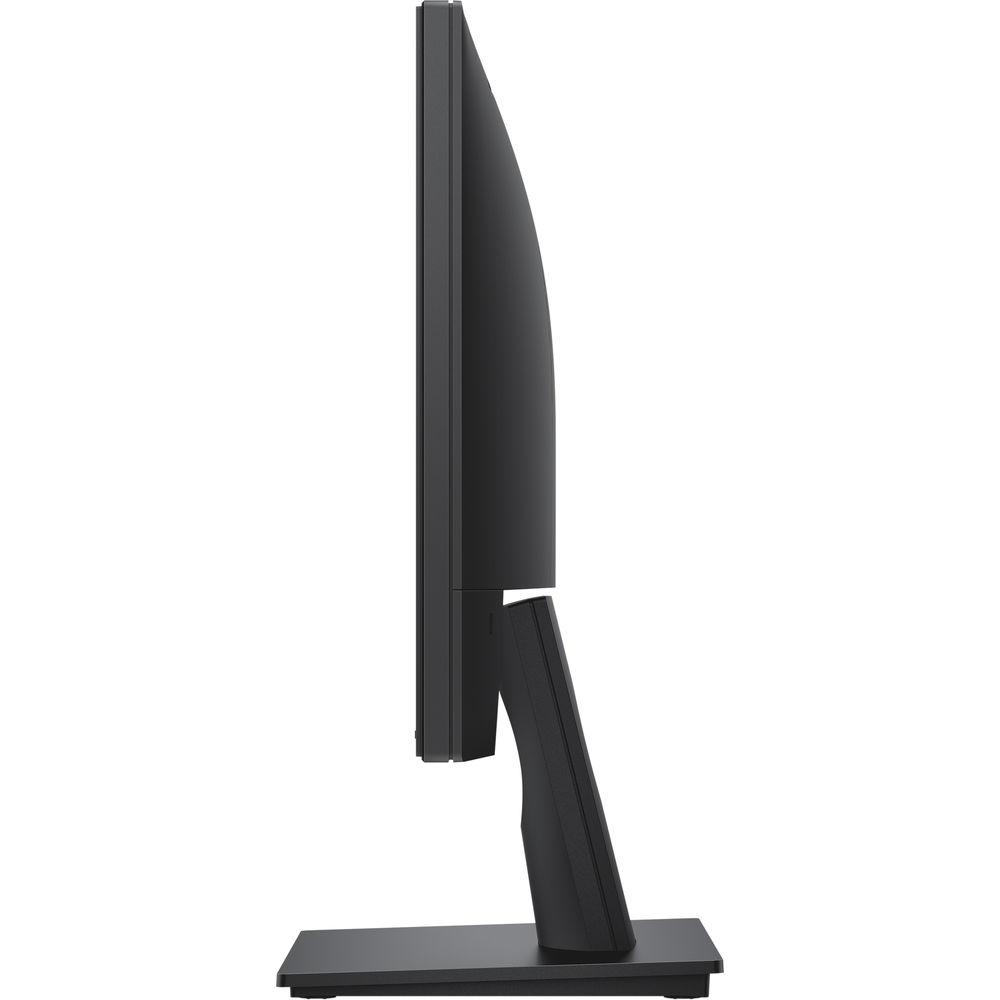

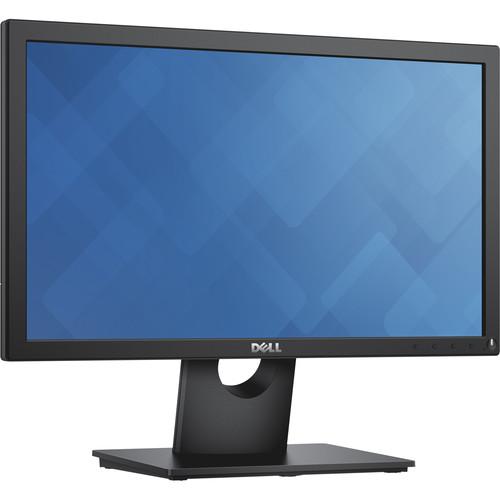

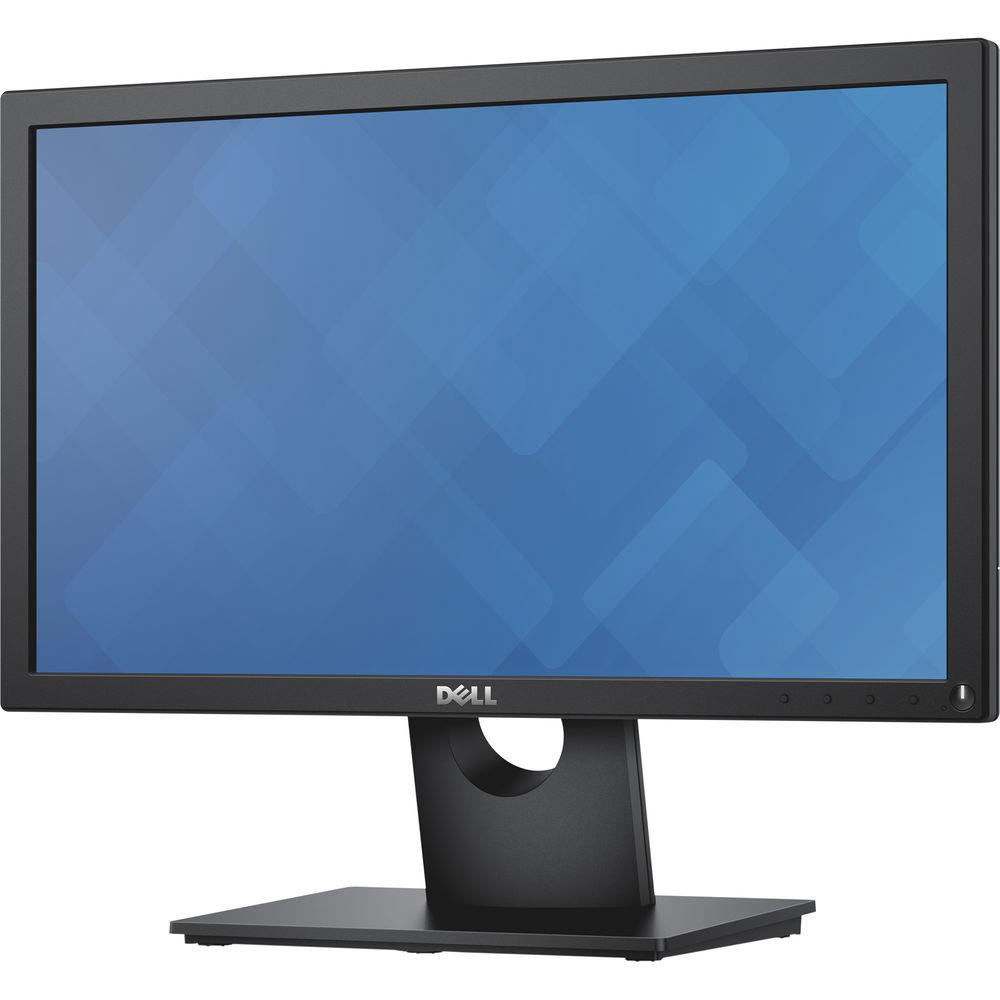

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a single VGA input, the E1916HV 19" 16:9 LCD Monitor from Dell can be used with a variety of computers, including legacy computers with only VGA connectivity. Once configured, viewers can take advantage of a 1366 x 768 resolution, a 200 cd/m² brightness rating, a 600:1 contrast ratio, and support for up to 16.7 million colors. In addition to the enhanced display quality offered by this Dell monitor, the display can also be tilted from -5 to 21 degrees when using the included stand or mounted to the wall using a VESA compatible wall mount for an optimal viewing experience. -
- Enjoy easy compatibility with legacy computers via VGA connectivity
- Create AIO-like simplicity in deployment by mounting a Dell Wyse thin client or Dell Optiplex Micro computer directly to available rear VESA mount area
- Suit your viewing preference with this monitor's tilt feature
- Conserve power with Power Nap, a feature found in Dell Display Manager
UPC: 884116186496 In the Box Dell E1916HV 19" 16:9 LCD Monitor Stand (Riser and Base) VESA Trim Cover VGA Cable Power Cable Limited 3-Year Warranty User Manual PDF 4.6mb More info from Dell Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell E1916HV 19" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell E1916HV Specs | | | Size | 18.5" | | Screen Area | 16.13 x 9.07" / 40.97 x 23.04 cm | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1366 x 768 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 84 ppi | | Maximum Brightness | 200 cd/m2 | | Contrast Ratio | 600:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 85% CIE1976 | | Response Time | 5 ms | | Viewing Angle | Horizontal: 90°
Vertical: 65° | | Dot Pitch | 0.30 x 0.30 mm | | | | Connectivity | 1 x VGA | | Built-In Speakers | None | | | | Power Consumption | 14 W (Typical)
13.3 W (Eco)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.0 A | | | | Certifications | ENERGY STAR, EPEAT Silver, RoHS, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 17.5 x 14.1 x 6.6" / 44.5 x 35.8 x 16.8 cm | | Weight | 4.98 lb / 2.26 kg (Without Stand)
6.61 lb / 3.00 kg (With Stand) | | | | Package Weight | 8.0 lb | | Box Dimensions (LxWxH) | 20.5 x 12.9 x 5.3" |
