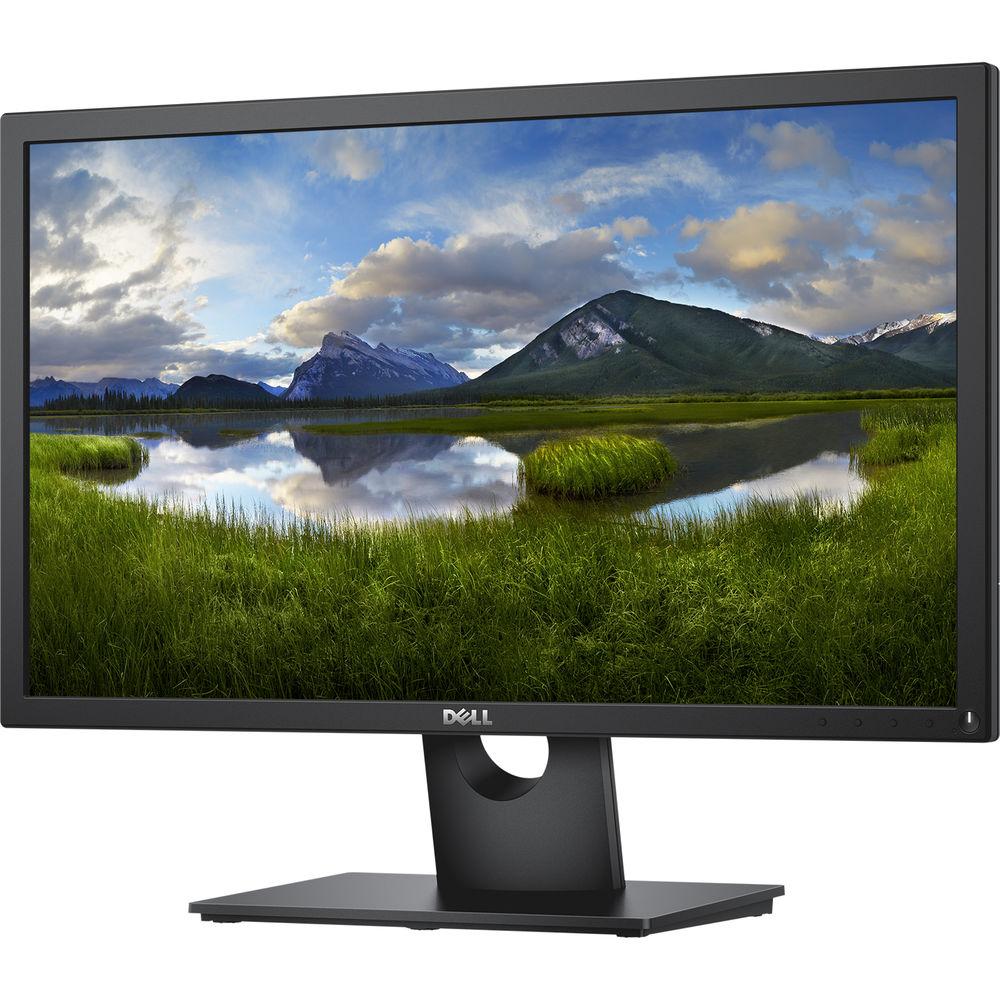

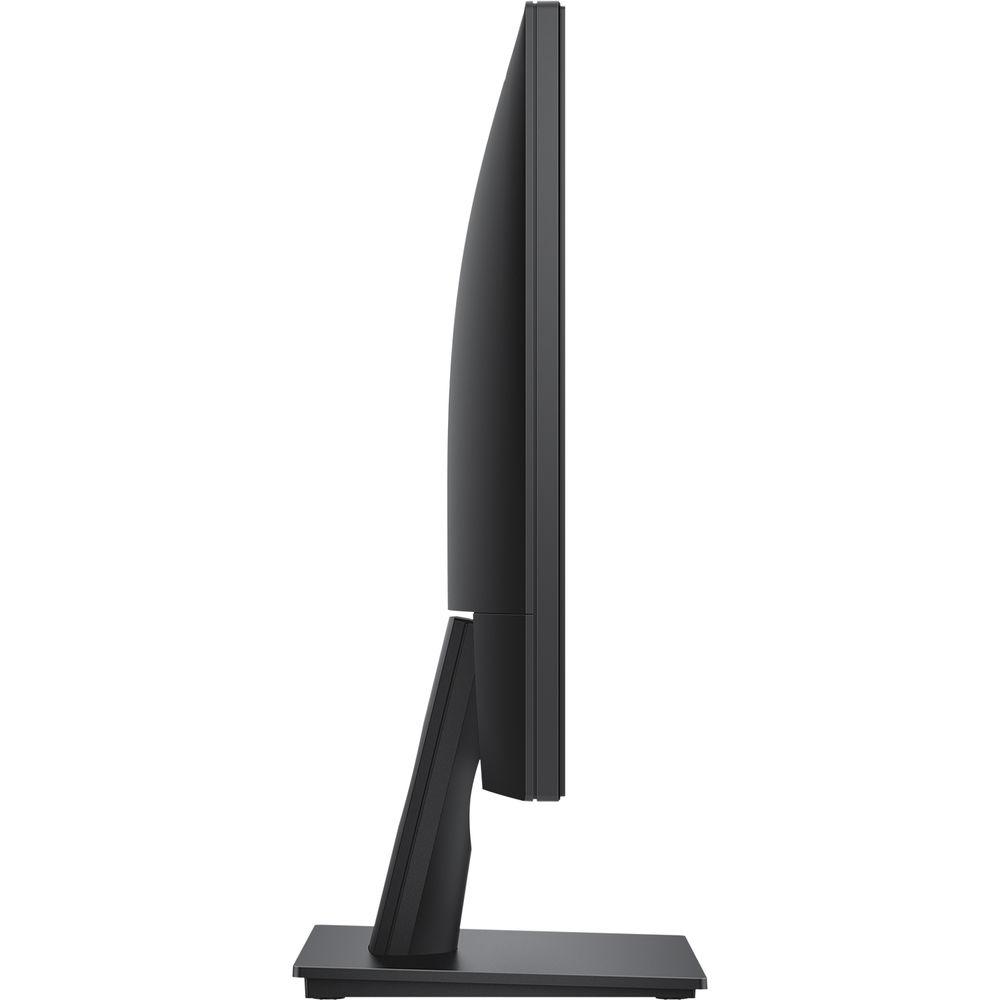

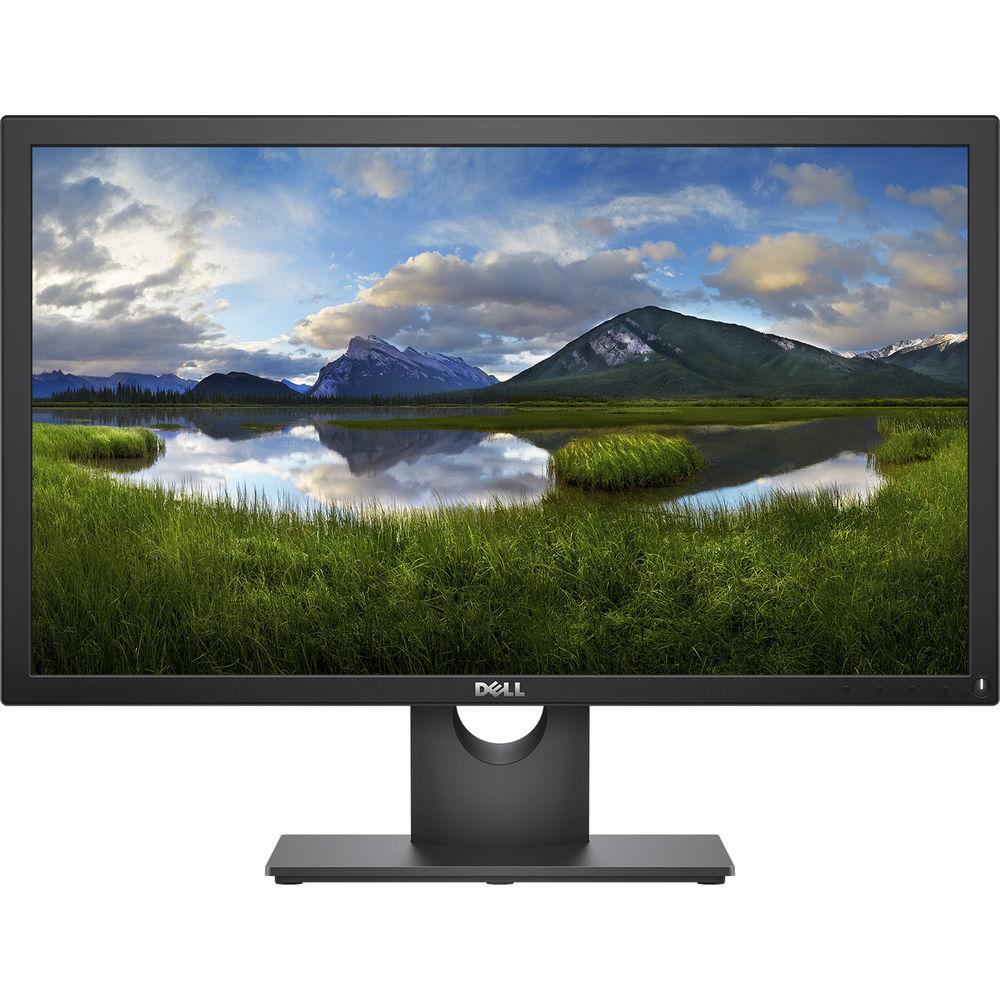

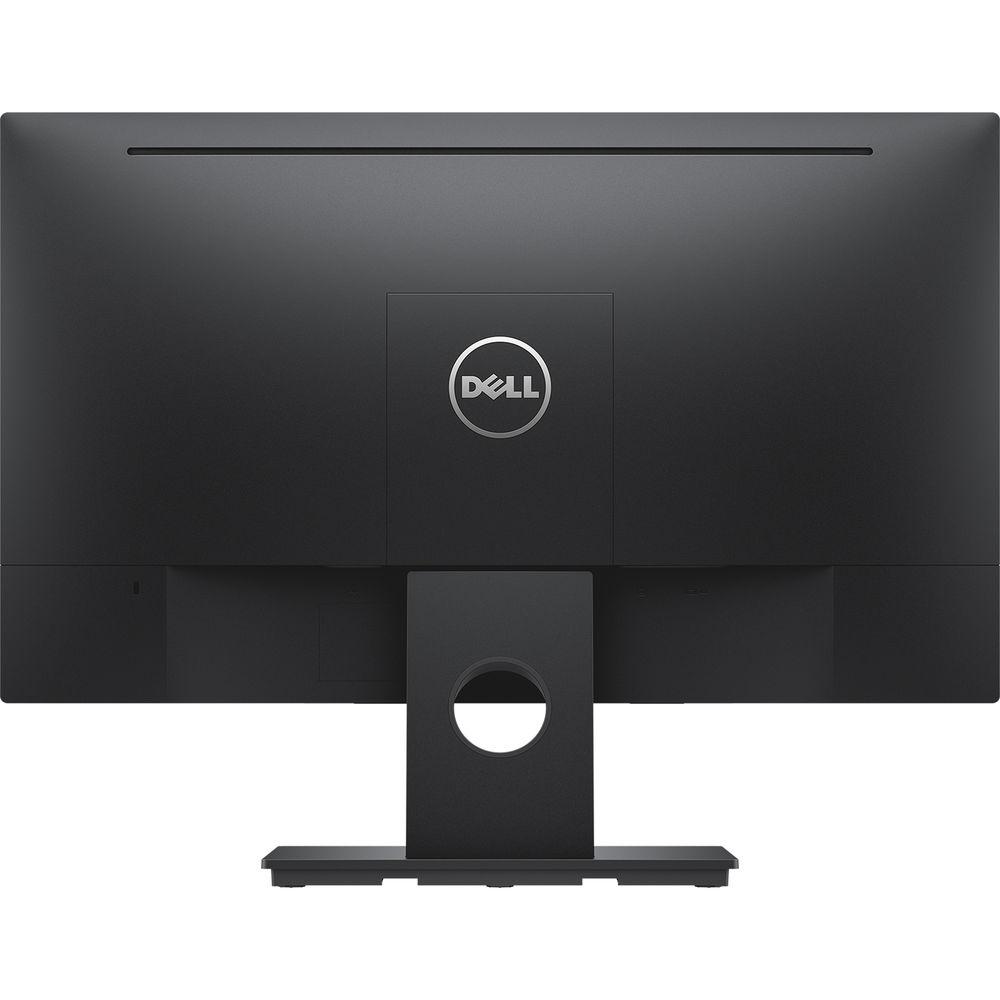

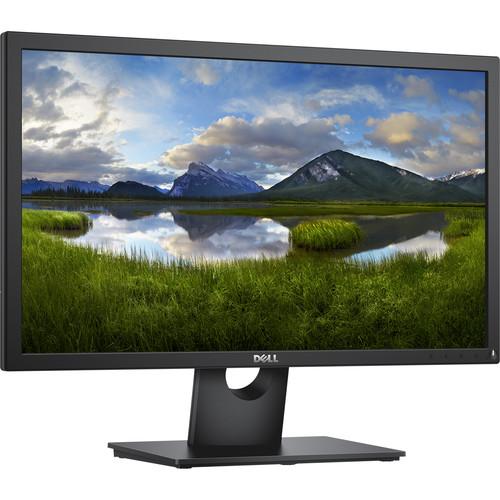

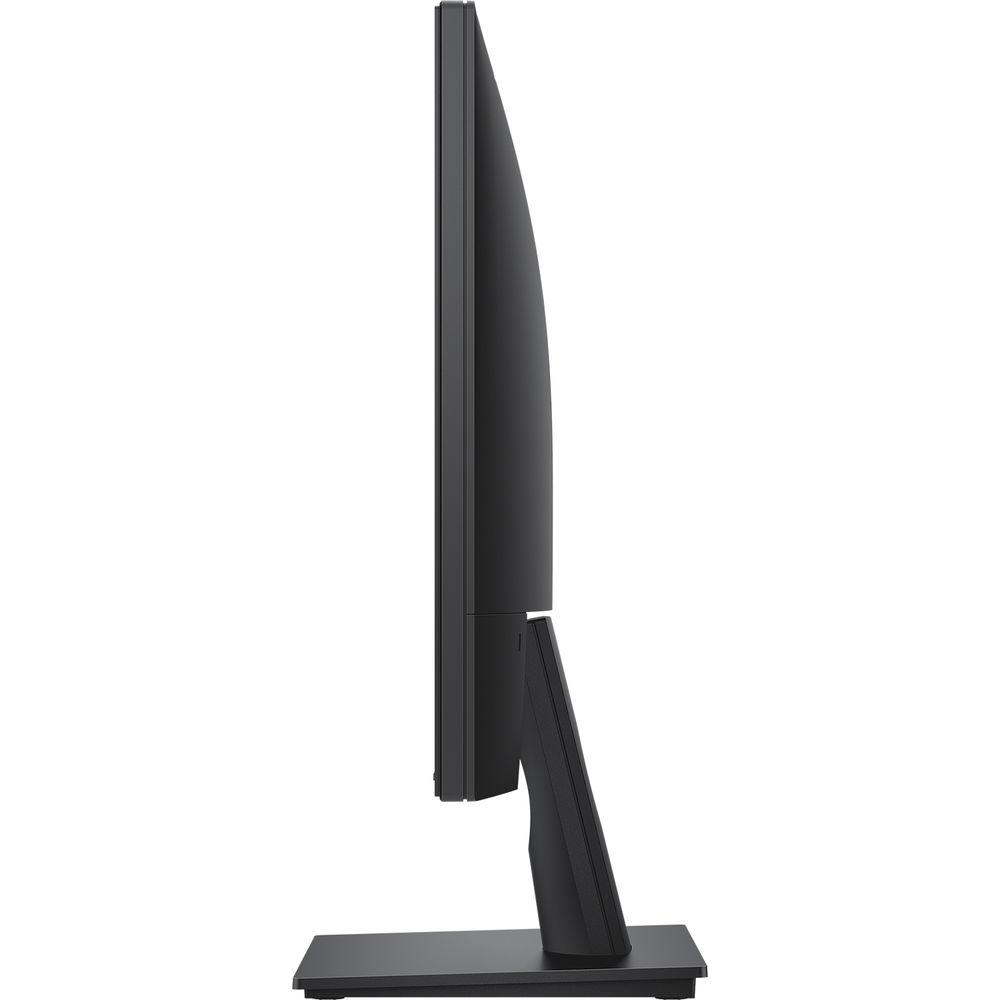

User Manual for Dell E2318HR 23" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell E2318HR 23" 16:9 IPS Monitor
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell E2318HR 23" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a 1920 x 1080 resolution, the E2318HR 23" LED-Backlit Flat Panel LCD Monitor from Dell provides a crisp, clear picture that is great for viewing videos, documents, web pages, and much more. In addition to the Full HD resolution, this monitor also features a 1000:1 contrast ratio and support for up to 16.7 million colors, ensuring that your photos and documents are displayed with notable clarity, contrast, and accuracy. The 5 ms response time ensures you receive reduced ghosting and blur when viewing videos. The 178° horizontal and vertical viewing angles reduce distortion when you're looking at the display from various positions. On the back of the monitor, you will find both VGA and HDMI connectors to easily connect the E2318HR to a variety of computer configurations. - 1920 x 1080 Full HD resolution
- Full-screen support for lower resolutions
- Tilt adjustment capability
- Removable pedestal and VESA 100mm mounting holes for flexible mounting solutions
- Plug-and-play capability if supported by your system
- OSD (On-Screen Display) adjustments for ease of set-up and screen optimization
- Software and documentation media includes an INF (Information File), ICM (Image Color Matching File), and product documentation
- ComfortView feature is designed to reduce the amount of blue light emitted from the monitor to optimize eye comfort
- Dell display manager software
- Asset management capability
- Energy gauge shows the energy level being consumed by the monitor in real time
- Optimize eye comfort with a flicker-free screen
UPC: 884116271208 In the Box Dell E2318HR 23" 16:9 IPS Monitor Stand Riser Stand Base VESA Screw Cover Power Cable HDMI Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell E2318HR 23" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell E2318HR Specs | | | Size | 23" | | Screen Area | 20.04 x 11.26" / 50.9 x 28.6 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 96 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 Hz | | Vertical Frequency | 50 to 75 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 85% CIE1976
72% CIE1931 | | Response Time | 5 ms (GtG)
8 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.2652 x 0.2652 mm | | Backlight Lifespan | 30,000 Hours | | | | Connectivity | 1 x HDMI 1.4 Input
1 x VGA Input | | HDCP Support | No | | Built-In Speakers | None | | | | Power Consumption | 25 W (Maximum)
20 W (Typical)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 90% | | Operating Altitude | 16,404' / 4999 m | | Storage Altitude | 40,000' / 12,192 m | | Certifications | ENERGY STAR, EPEAT GOLD, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 21.5 x 16.3 x 7.1" / 54.5 x 41.5 x 18.0 cm (With Stand)
21.5 x 11.9 x 2.1" / 54.5 x 30.2 x 5.3 cm (Without Stand) | | Weight | 8.60 lb / 3.9 kg (With Stand)
7.05 lb / 3.2 kg (Without Stand) | | | | Package Weight | 12.3 lb | | Box Dimensions (LxWxH) | 23.5 x 14.7 x 5.4" |
