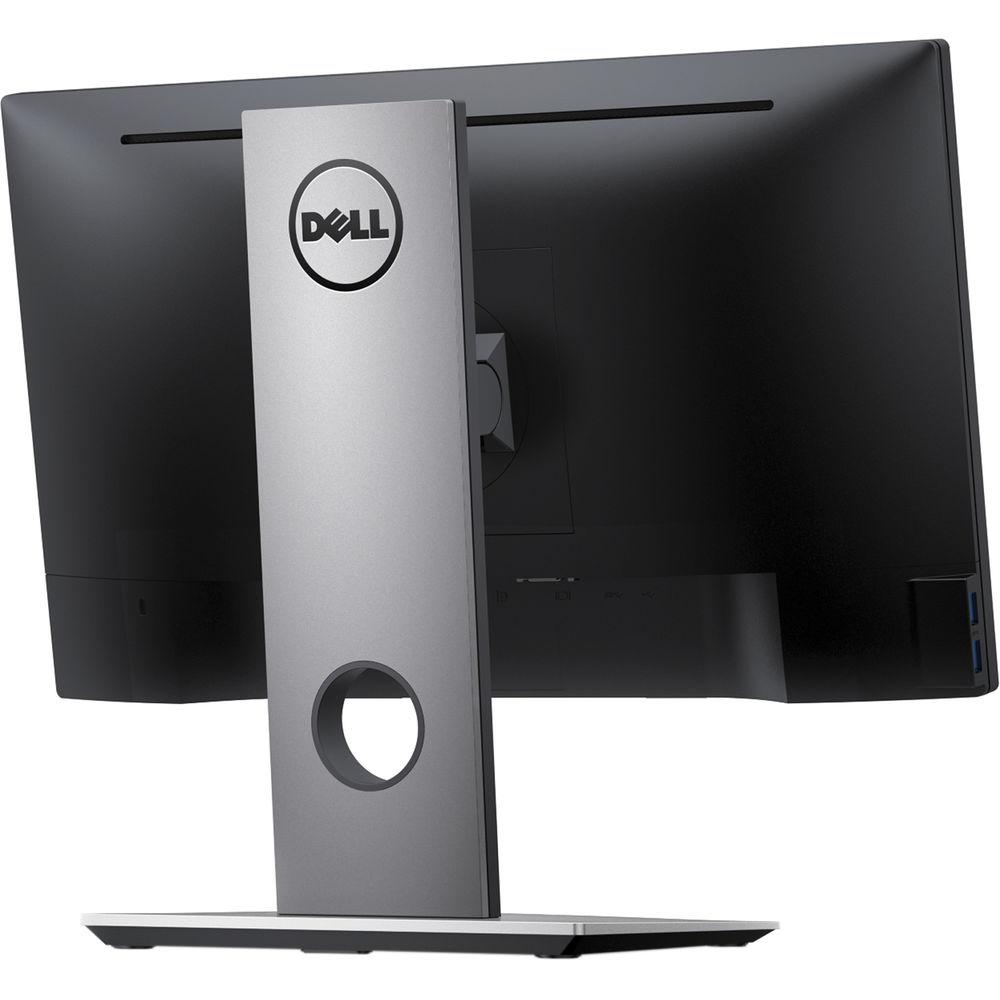

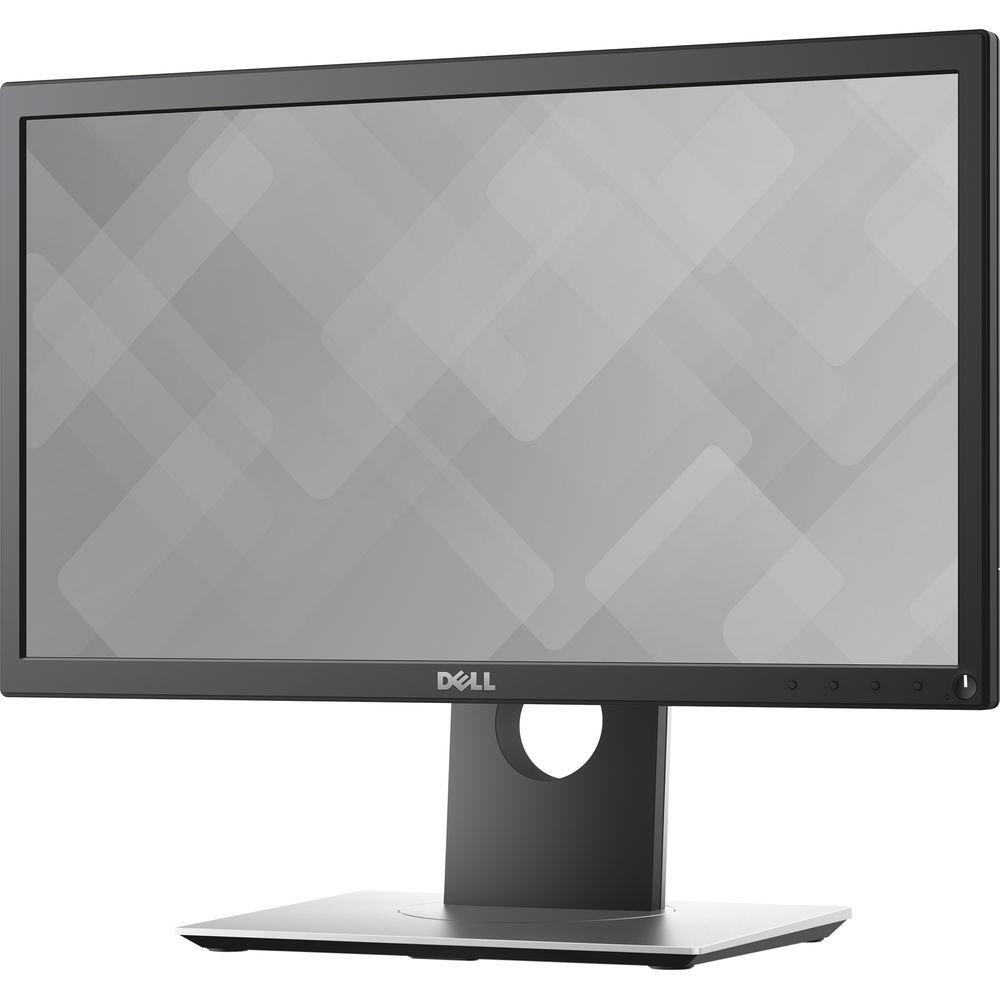

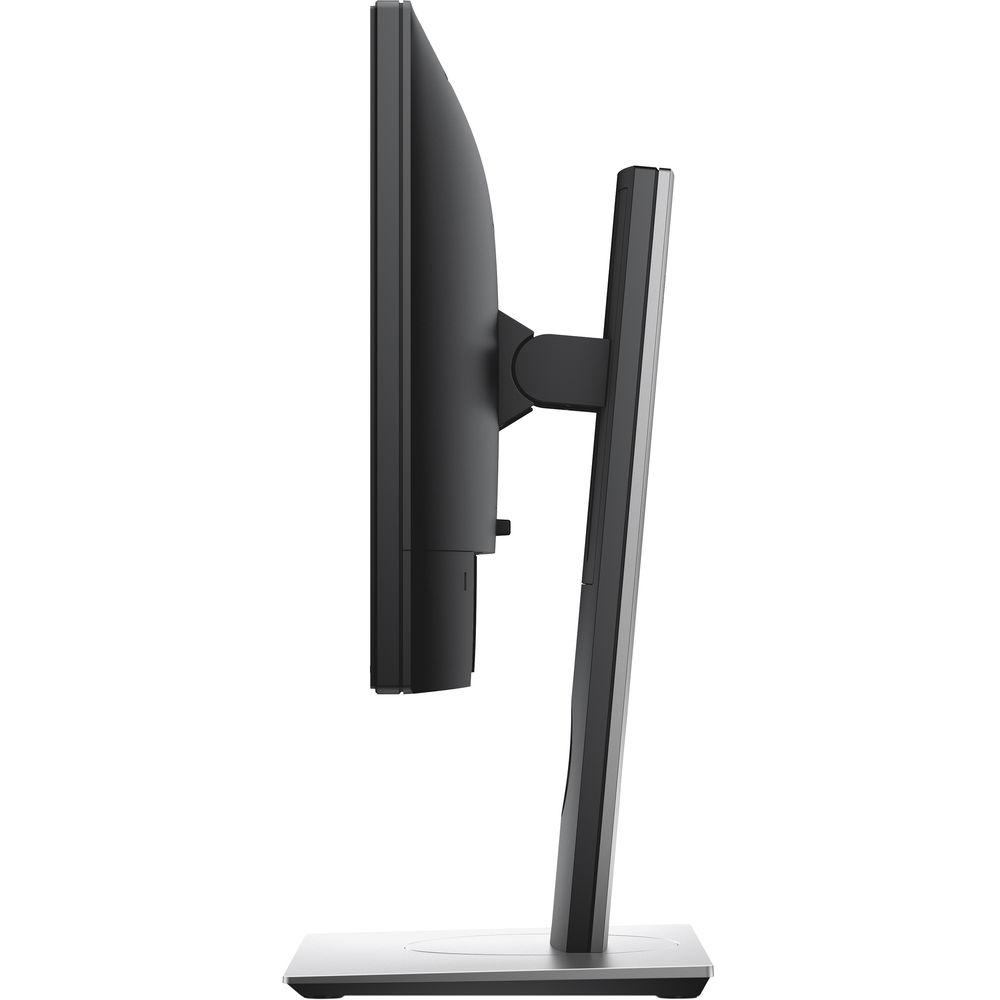

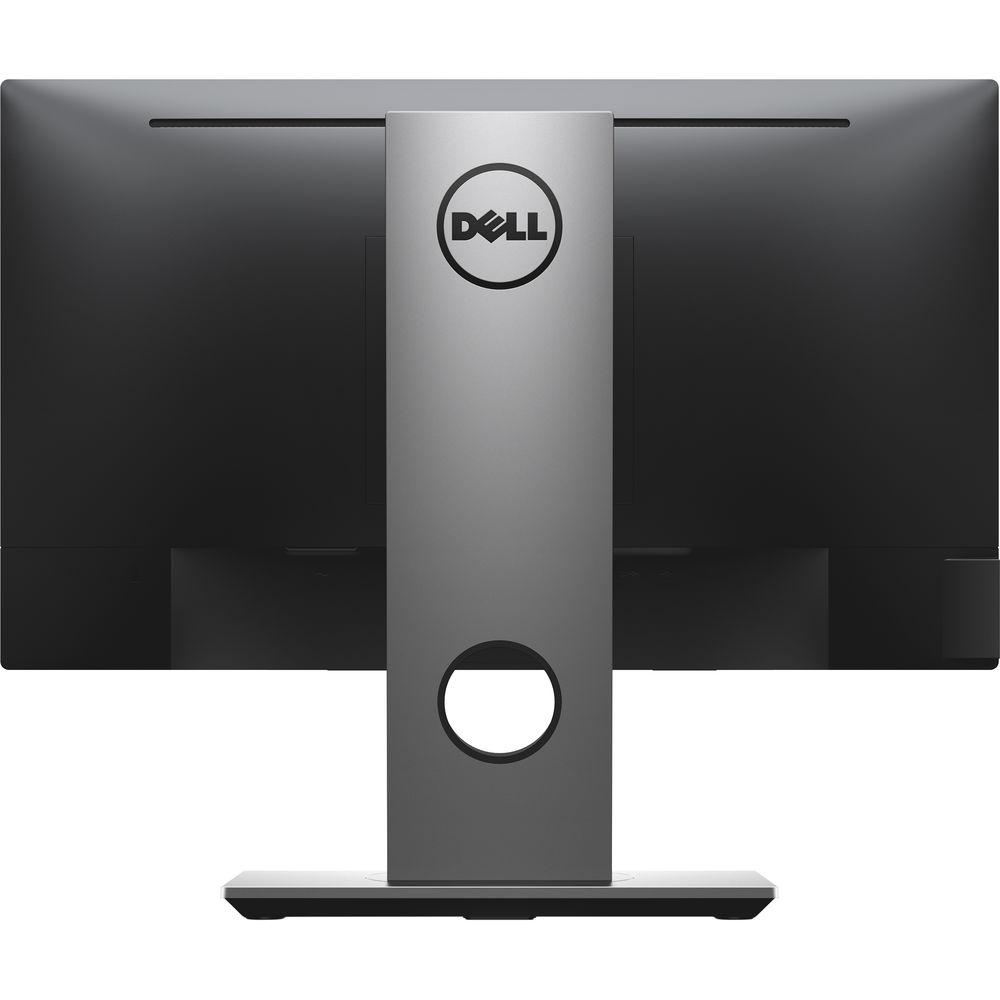

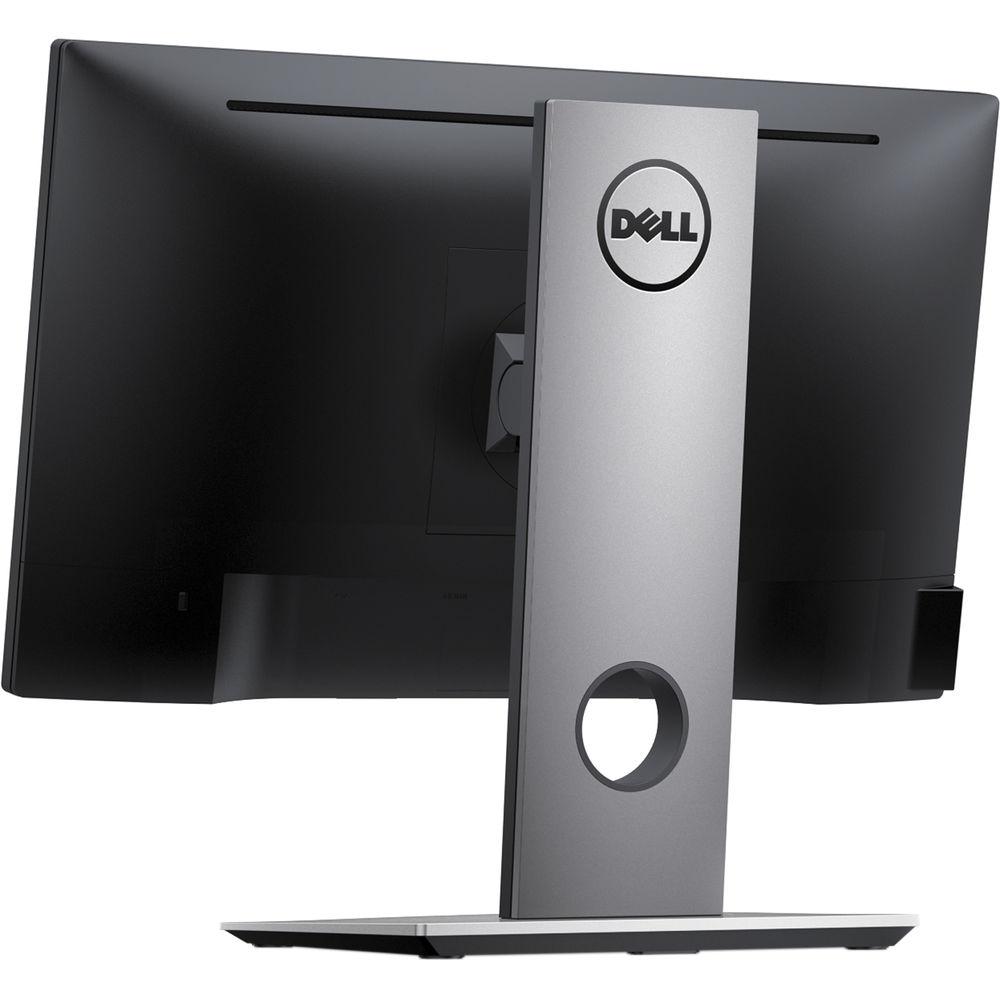

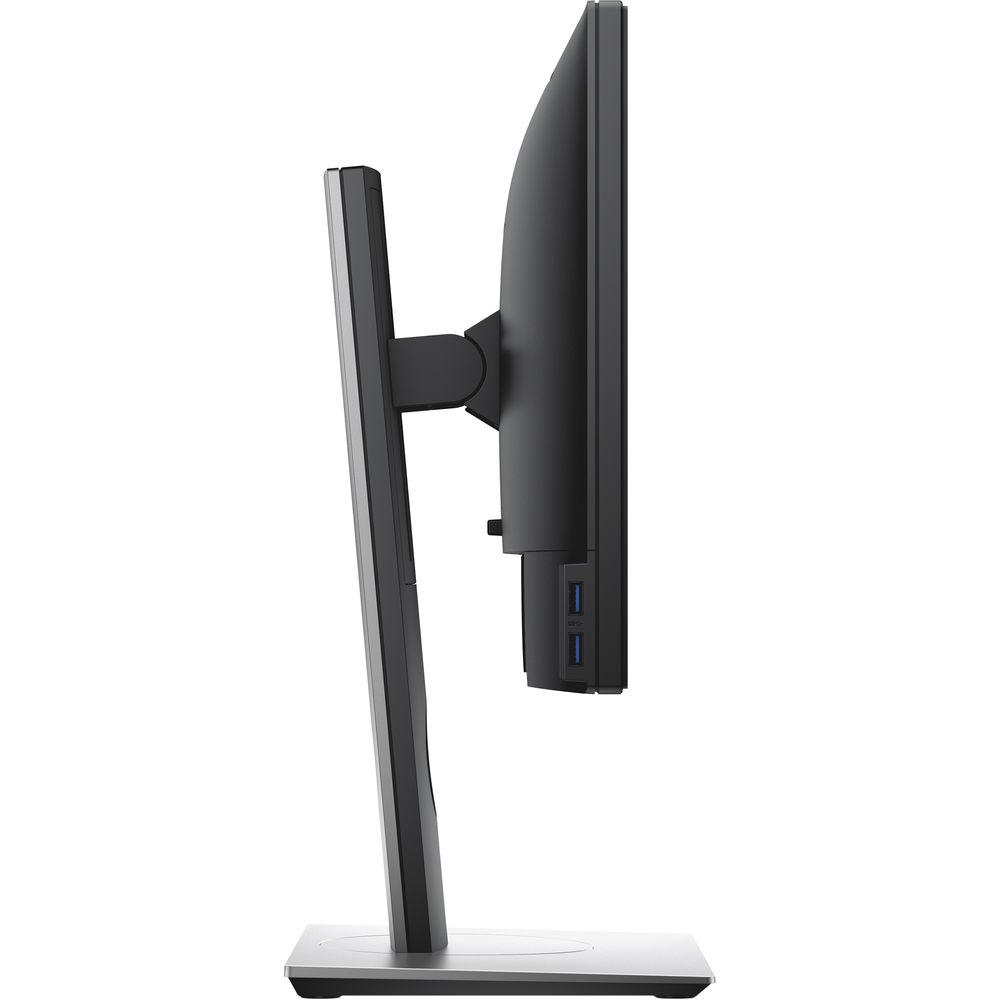

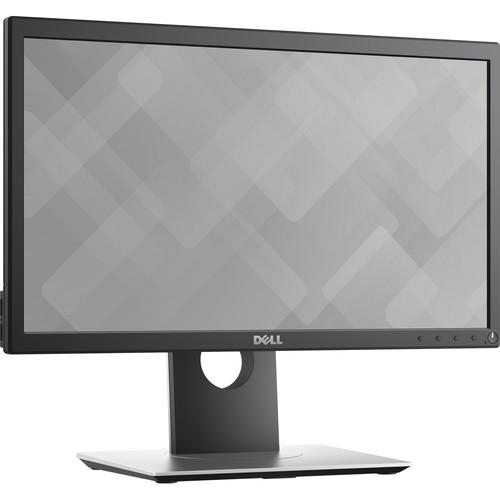

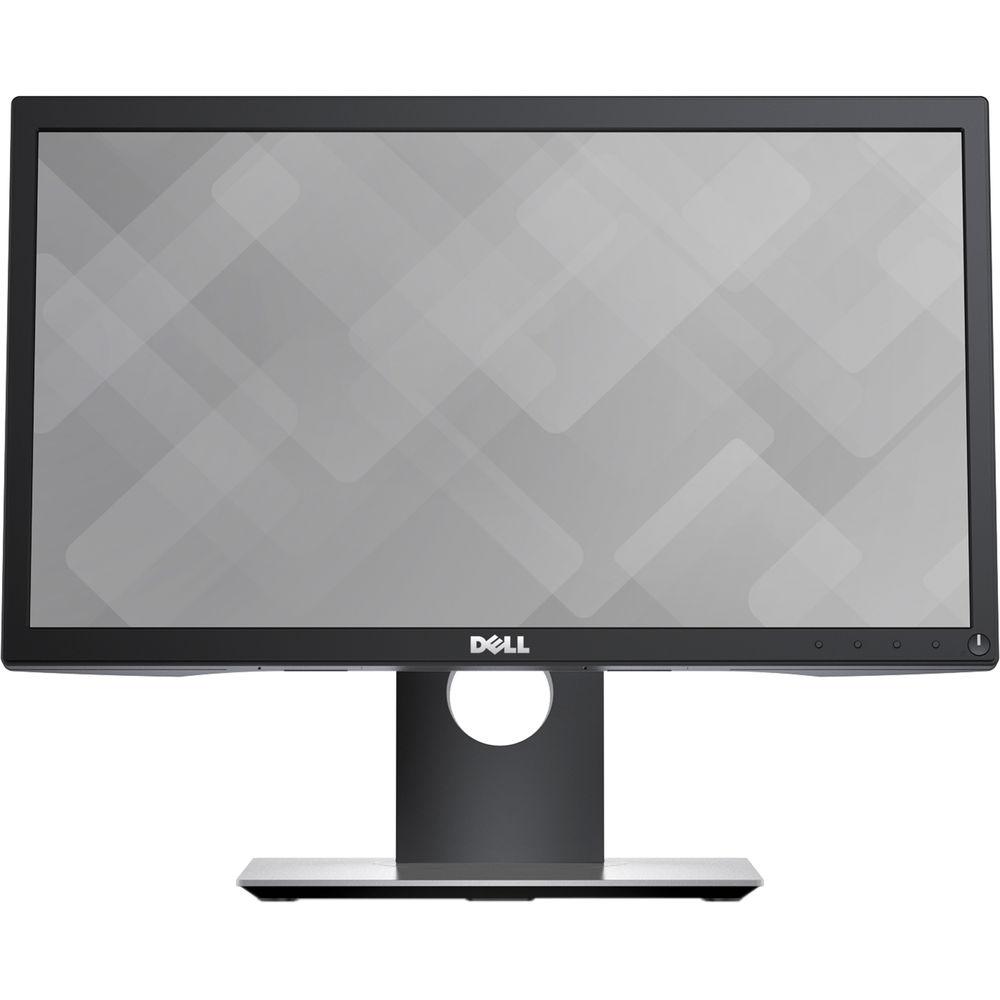

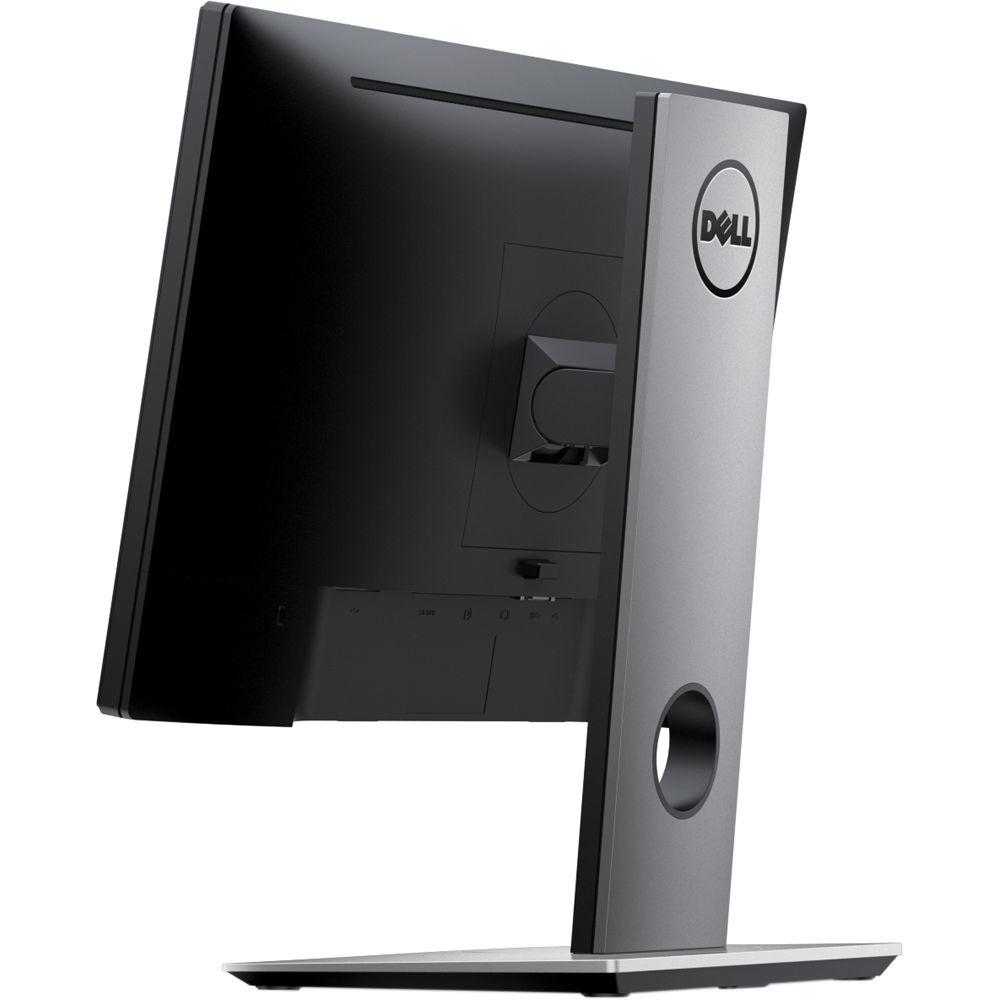

User Manual for Dell P2018H 20" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the Dell P2018H 20" 16:9 LCD Monitor
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell P2018H 20" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a 1600 x 900 resolution, the P2018H 20" 16:9 LCD Monitor from Dell offers enhanced picture quality. In addition to the enhanced resolution, this Dell display features a 16:9 widescreen aspect ratio, support for 16.7 million colors, a 250 cd/m² brightness rating, and a 1000:1 contrast ratio. Connect this display to your system via DisplayPort, HDMI, or VGA and additional peripherals and devices with its built-in USB ports. After installing the stand, pivot, tilt, swivel, and adjust its height to your viewing preference. Otherwise, you can install an alternate stand or mount using its 100 x 100mm VESA mounting holes on the back. - 19.5" screen with 1600 x 900 resolution, support for 16.7 million colors, and a contrast ratio of 1000:1
- Designed for comfort and convenience with an enhanced viewing experience
- Adjust your monitor to your desired angle, height, and position
- Slim borders create a smoother and less obstructed visual experience when working across multiple monitors
- Multiple connectivity ports on the bottom and side of the monitor allow you to easily connect to various devices
- TUV certified flicker-free screen with ComfortView feature that reduces harmful blue light emissions for a comfortable viewing experience
- Create custom color settings for your applications and access presets
- PowerNap feature turns off the display while you're away to save energy
UPC: 884116285359 In the Box Dell P2018H 20" 16:9 LCD Monitor Stand Base Power Cable VGA Cable DisplayPort Cable USB 3.0 Upstream Cable Limited 3-Year Warranty User Manual PDF 5.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell P2018H 20" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell 20 Monitor: P2018H Specs | | | Size | 19.5" | | Screen Area | 17.08 x 9.30" / 43.39 x 23.63 cm | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1600 x 900 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 94 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 84% CIE1976
72% CIE1931 | | Response Time | 5 ms | | Viewing Angle | Vertical: 160°
Horizontal: 170° | | | | Connectivity | 1 x DisplayPort 1.2
1 x HDMI 1.4
1 x VGA
1 x USB Type-B (USB 3.1 Gen 1)
4 x USB Type-A (USB 3.1 Gen 1) | | Built-In Speakers | None | | | | Power Consumption | 42 W (Maximum)
14 W (Typical)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A | | | | Certifications | ENERGY STAR, EPEAT GOLD, TCO Certified, as per Manufacturer | | | | Height Adjustment | 5.12" / 13 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 45° | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 18.2 x 13.3 x 7.1" / 46.2 x 33.9 x 18.0 cm (With Stand)
18.2 x 10.7 x 2.0" / 46.2 x 27.3 x 5.0 cm (Without Stand) | | Weight | 5.29 lb / 2.40 kg (Without Stand) | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 20.0 x 14.0 x 7.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 93 owners. Add your rating and experience with the product.
