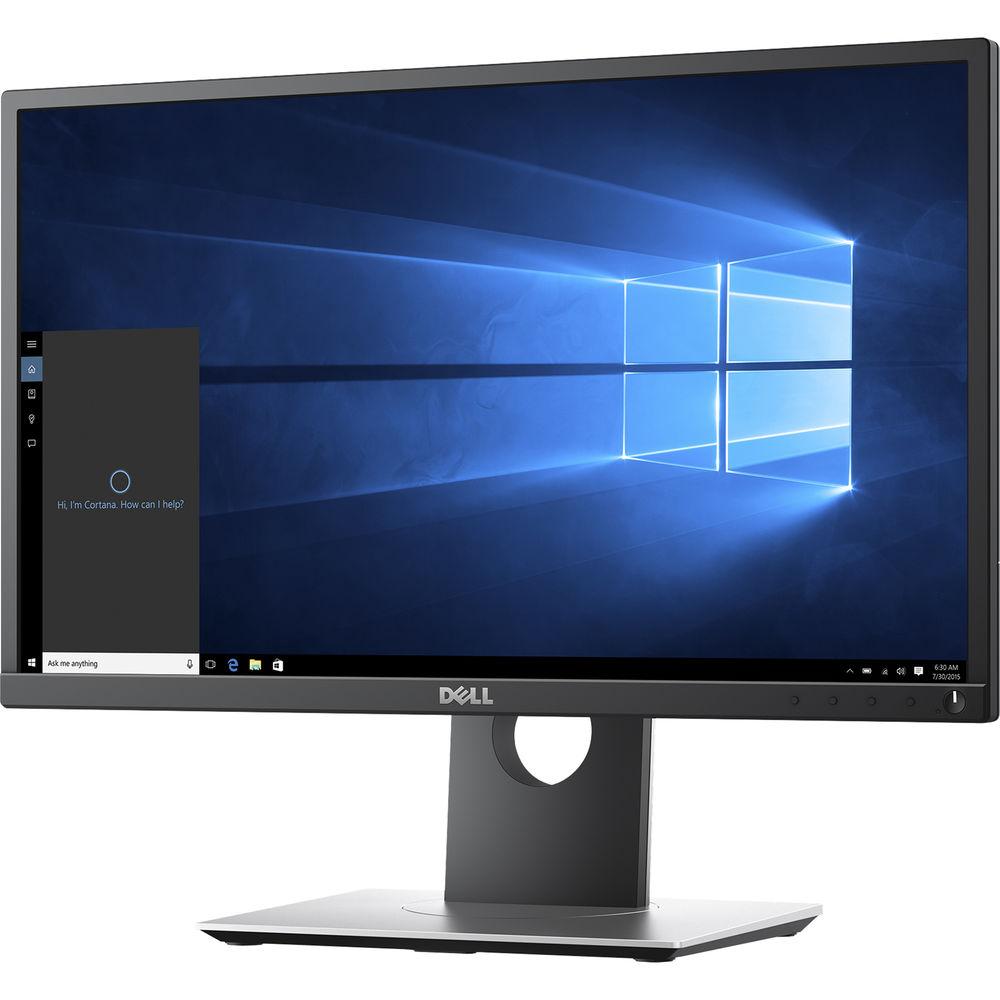

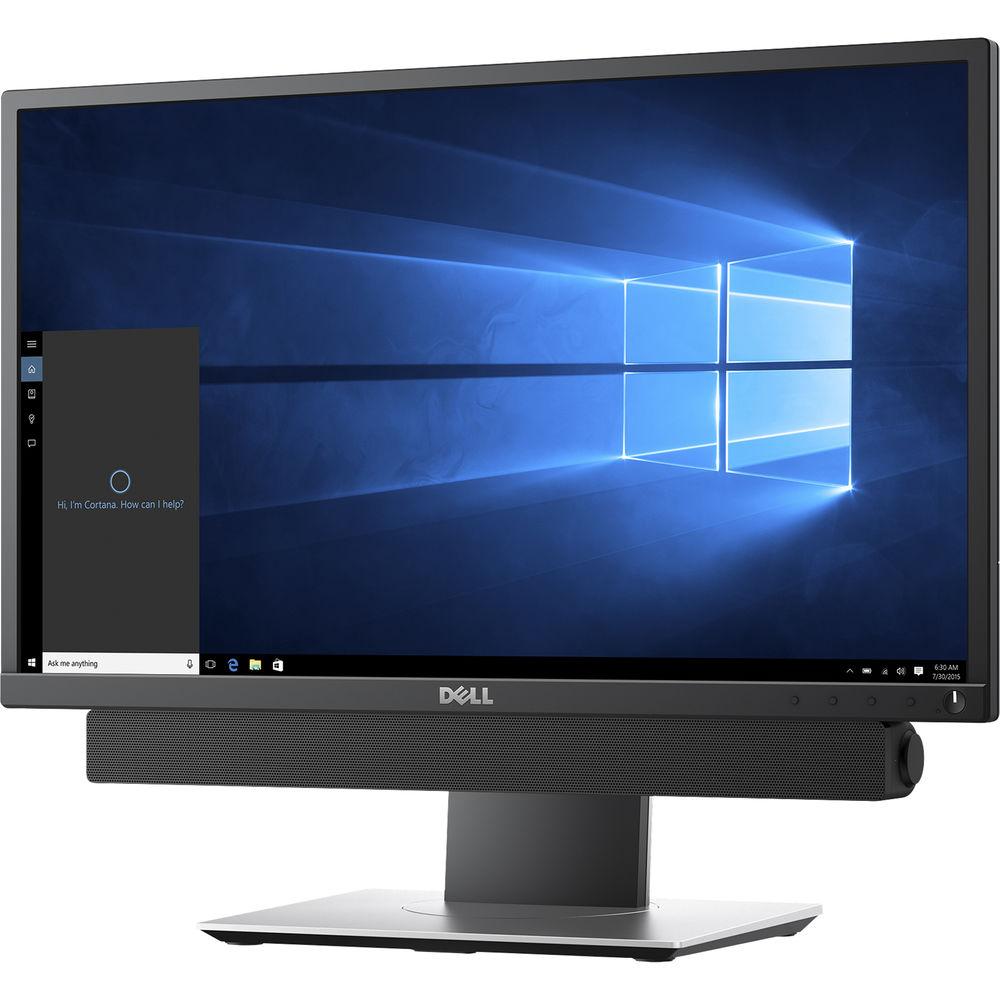

User Manual for Dell P2217H 22" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell P2217H 22" 16:9 IPS Monitor
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell P2217H 22" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

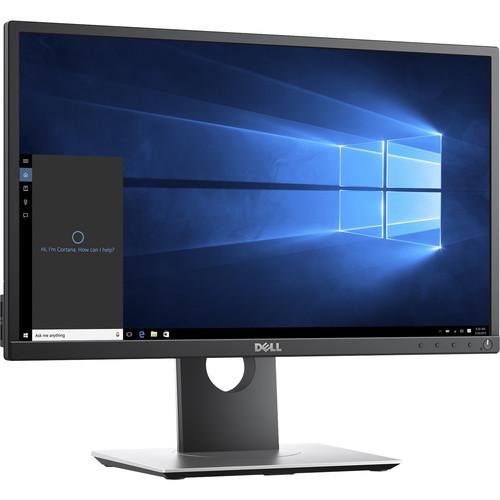

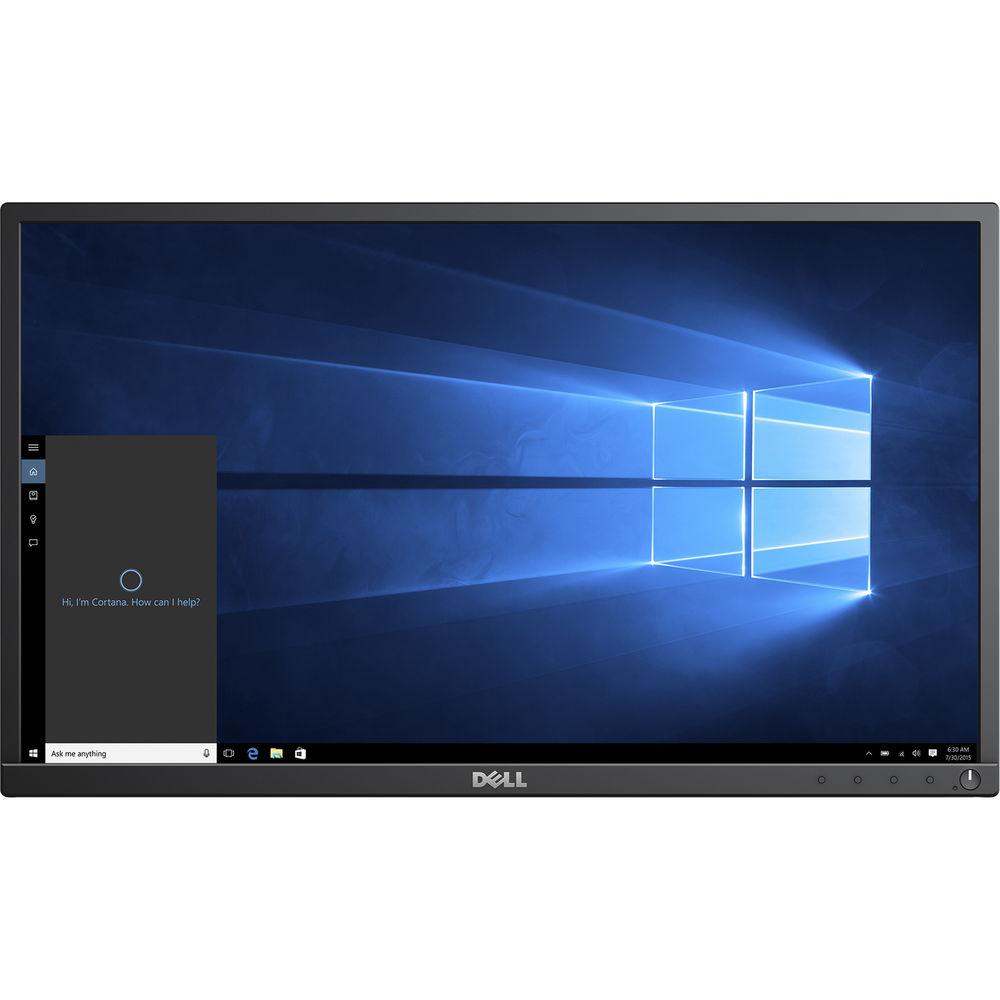

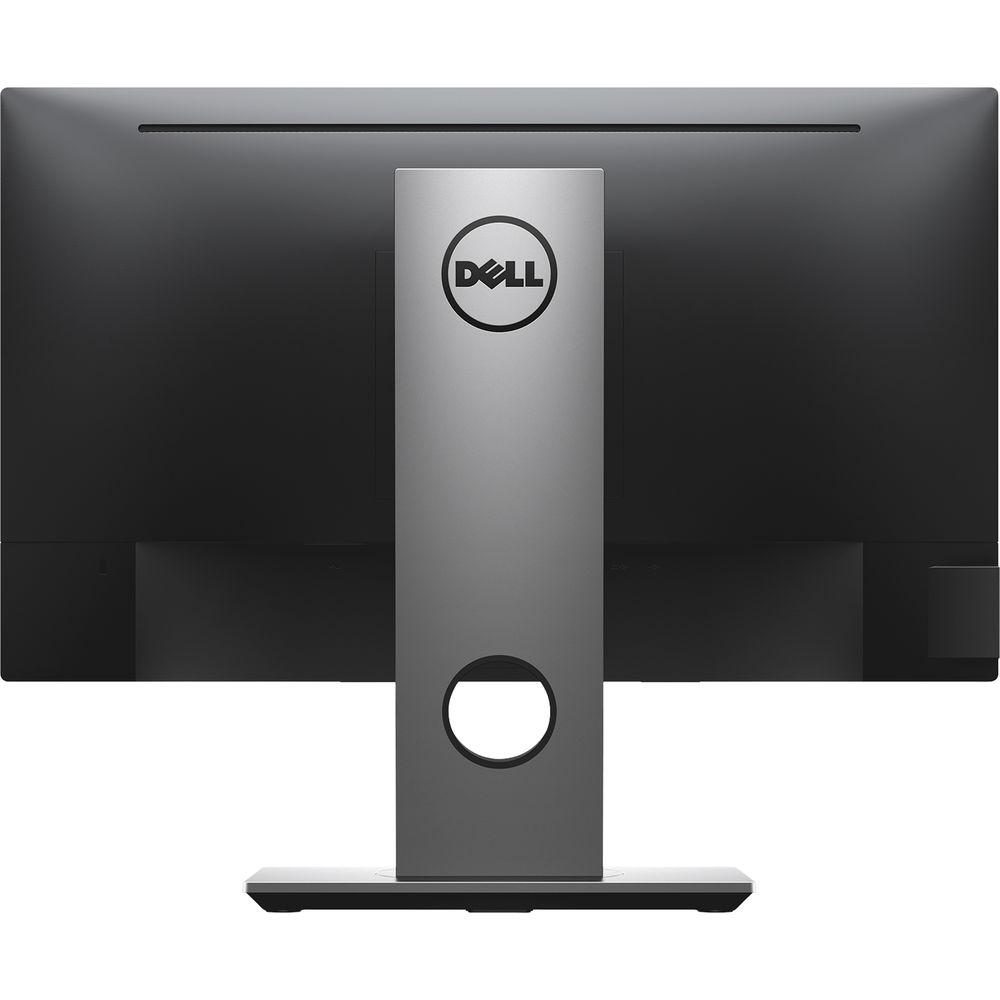

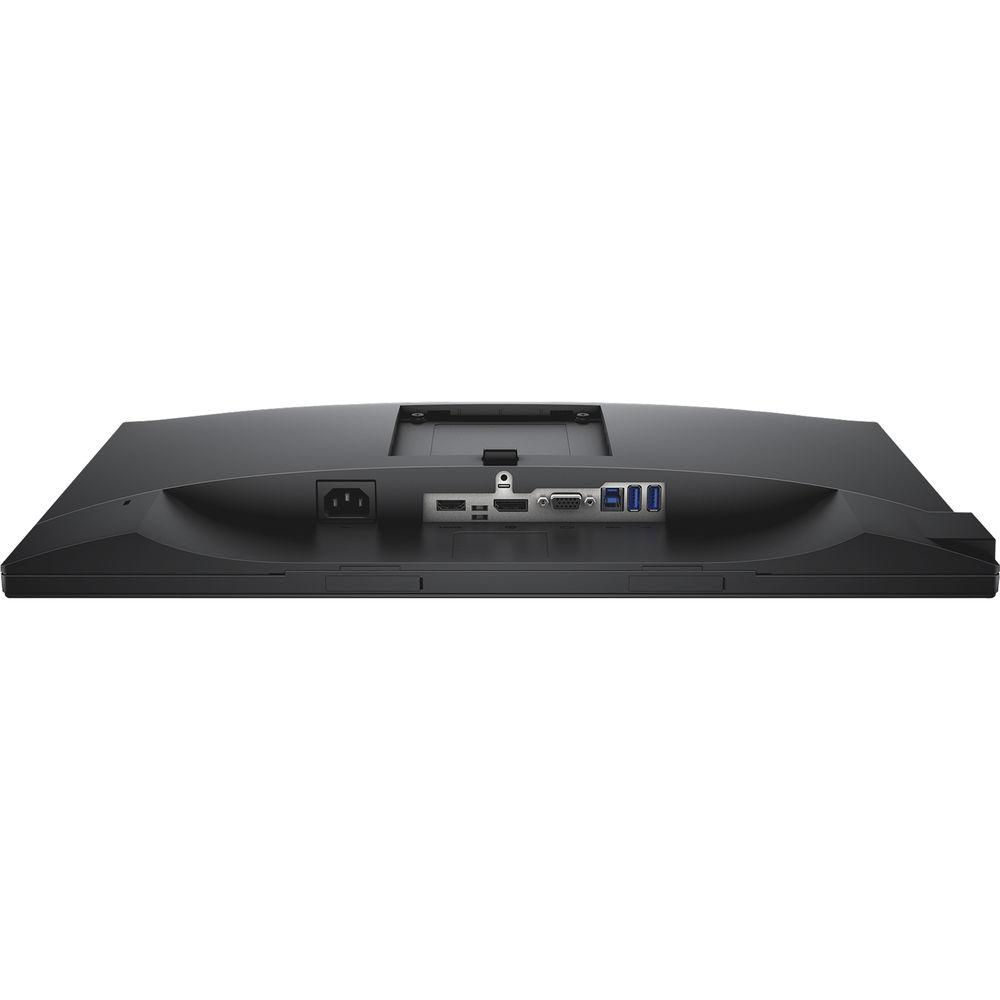

Product description Dell IPS Computer Monitors: More Screens, Fewer Problems Read More The P2217H 22" 16:9 IPS Monitor from Dell is constructed with an In-Plane Switching (IPS) panel, which provides you with wide 178° viewing angles and vivid colors. It has a 1920 x 1080 Full HD resolution and a 16:9 aspect ratio for crisp and clear HD content. Furthermore, it supports 16.7 million colors, has a 250 cd/m² brightness rating, and a 1,000:1 static contrast ratio that delivers darker blacks and brighter bright colors for a more immersive viewing experience. Connect this display to your system via DisplayPort, HDMI, or VGA and additional peripherals and devices with its built-in USB ports. After installing the stand, pivot, tilt, swivel, and adjust its height to your viewing preference. Otherwise, you can install an alternate stand or mount using its 100 x 100mm VESA mounting holes on the back. - Dell ComfortView
- Dell's ComfortView reduces harmful blue light emissions and prevents flickering for a comfortable viewing experience.
- Auto Mode and PowerNap
- Create custom color settings for your applications and access presets. With PowerNap, the display will automatically turn off while you're away to save energy.

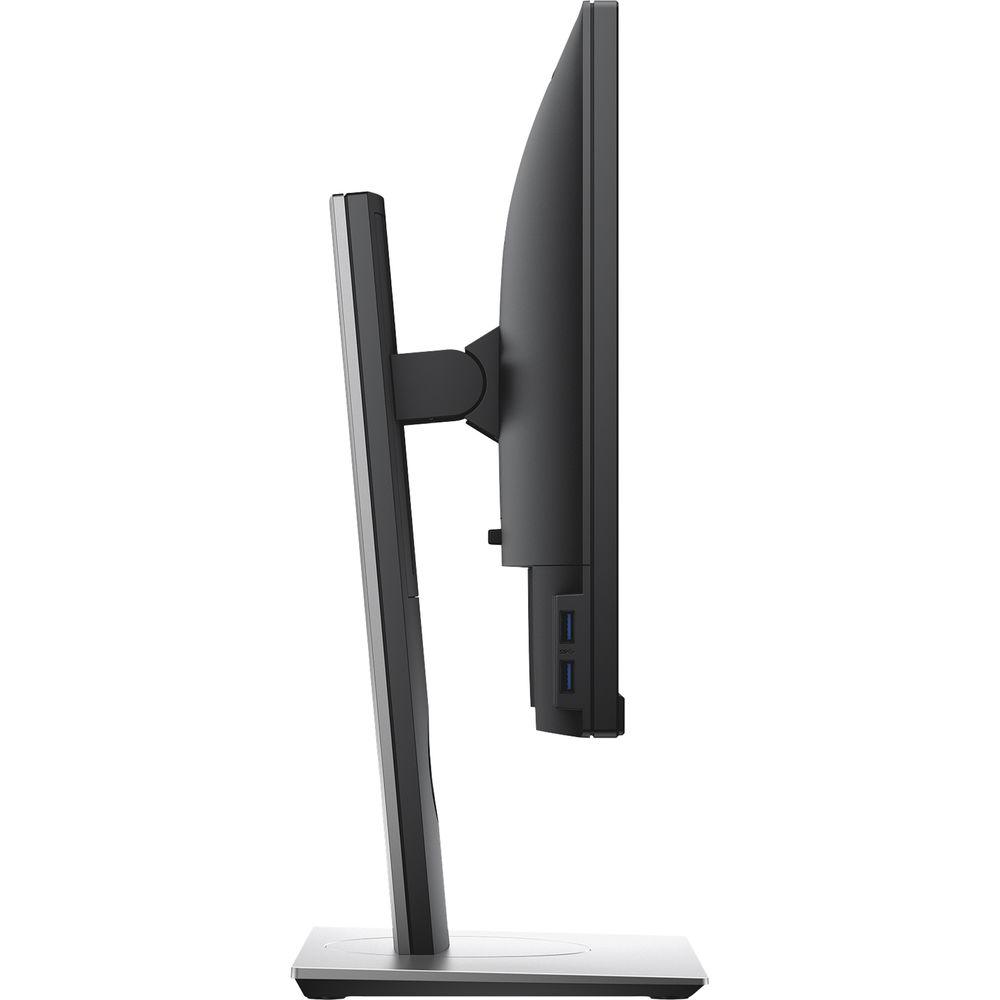

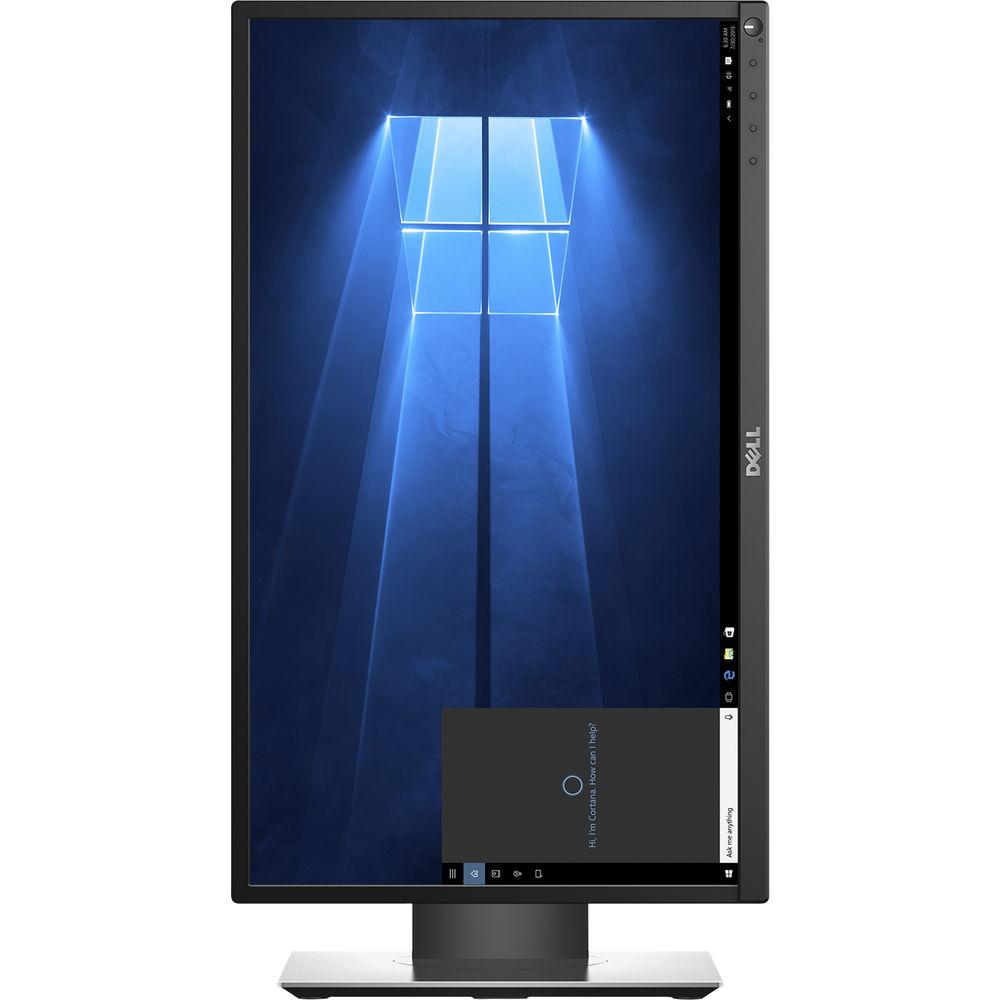

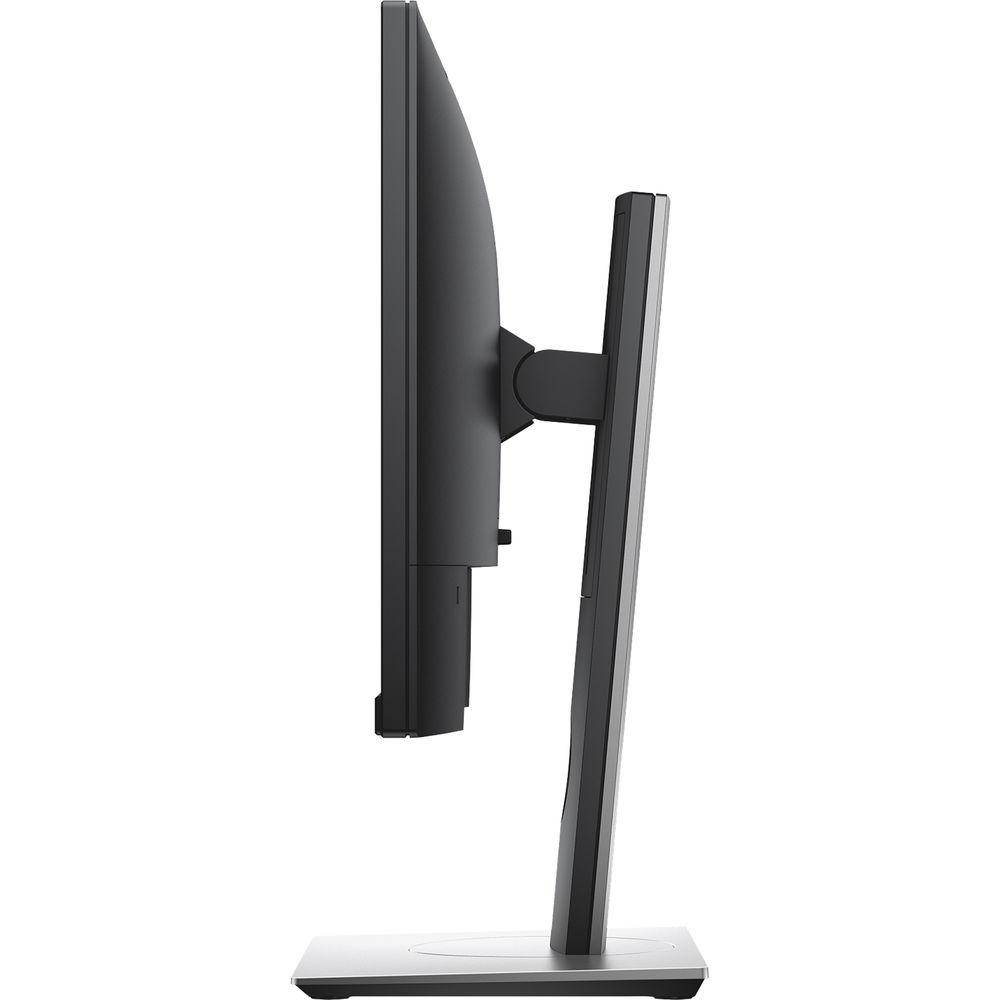

- Versatile Stand
- Pivot, tilt, swivel, and adjust the height of the monitor to your viewing preference.
- Premium Panel Guarantee
- The Dell Premium Panel Guarantee allows a free panel replacement during the Limited Hardware Warranty period even if only one bright pixel is found. Dell displays also come with Advanced Exchange service.
UPC: 884116230670 In the Box Dell P2217H 22" 16:9 IPS Monitor DisplayPort Cable VGA Cable USB 3.0 Upstream Cable Power Cable Limited 3-Year Warranty 10 Factors to Consider When Selecting A Monitor for Video Editing Mary Latvis 03/04/2019 More from Manufacturer More info from Dell Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell P2217H 22" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell P2217H Specs | | | Size | 21.5" | | Screen Area | 18.7 x 10.5" / 47.6 x 26.8 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 102 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 4,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 82% CIE1976
72% CIE1931 | | Response Time | 6 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.248 x 0.248 mm | | | | Connectivity | 1 x USB Input
2 x USB Type-A 2.0 Output
2 x USB Type-A (USB 3.1 Gen 1) Output
1 x DisplayPort 1.2 Input
1 x HDMI 1.4
1 x VGA | | | | Power Consumption | 37 W (Maximum)
17 W (Typical)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 80% | | Storage Humidity | 5 to 90% | | Operating Altitude | 0 to 16,400' / 0 to 4999 m | | Storage Altitude | 0 to 40,000' / 0 to 12,192 m | | Certifications | ENERGY STAR, EPEAT GOLD, RoHS, TCO Certified, as per Manufacturer | | | | Height Adjustment | 5.1" / 13 cm | | Rotation Adjustment | 90° (0 to 90°) | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 19.6 x 14.0 x 7.1" / 50.0 x 35.4 x 18.0 mm (With Stand)
19.6 x 11.7 x 2.0" / 50.0 x 29.7 x 5.0 mm (Without Stand) | | Weight | 6.2 lb / 2.8 kg (Without Stand) | | | | Package Weight | 14.5 lb | | Box Dimensions (LxWxH) | 20.0 x 14.0 x 6.0" |
