User Manual for Dell P2319H 23" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell P2319H 23" 16:9 IPS Monitor
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell P2319H 23" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More rvsafebfduas The P2319H 23" 16:9 IPS Monitor from Dell is built with an In-Plane Switching panel that provides you with vivid colors and wide viewing angles. Specs-wise, it has a 1920 x 1080 Full HD resolution, a 1000:1 static contrast ratio, a 250 cd/m² brightness rating, and support for up to 16.7 million colors. With these combined, the P2319H can offer crisp, clear details as well as consistent, rich colors. Moreover, it has plenty of connectivity options including DisplayPort, HDMI, and VGA. Once connected, it can be adjusted a variety of ways to best fit your viewing preference thanks to its stand. Otherwise, you can install your own VESA mount, stand, or arm using the mounting holes on the back. For your convenience, this monitor also has a built-in USB 3.0 and USB 2.0 hub that you can use to connect USB devices and peripherals - ComfortView
- ComfortView reduces blue light emissions and flickering to reduce eyestrain and fatigue over extended viewing sessions.
UPC: 884116305538 In the Box Dell P2319H 23" 16:9 IPS Monitor Power Cable USB Cable DisplayPort Cable Limited 3-Year Warranty User Manual PDF 5.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell P2319H 23" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell P2319H Specs | | | Size | 23" | | Screen Area | 20.05 x 11.28" / 509.18 x 286.42 mm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 96 ppi | | Finish | Matte | | Hardness Rating | 3H | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 83 kHz | | Vertical Frequency | 50 to 76 Hz | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 72% CIE1931 | | Response Time | 8 ms
5 ms (GtG) | | Viewing Angle | Horizontal: 178°

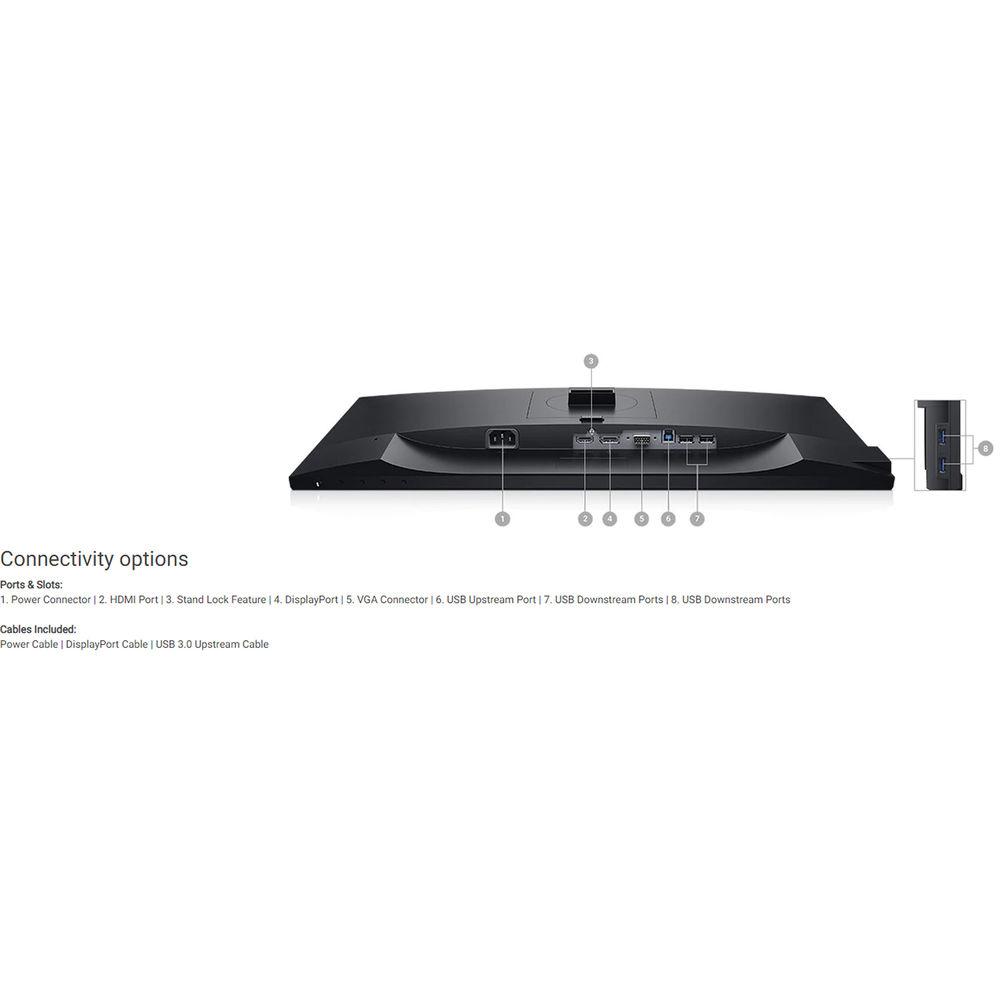

Vertical: 178° | | Dot Pitch | 0.265 x 0.265 mm | | | | Connectivity | 1 x DisplayPort 1.2
1 x HDMI 1.4
1 x VGA
1 x USB Type-B (USB 3.1 Gen 1)
2 x USB Type-A (USB 3.1 Gen 1)
2 x USB Type-A (USB 2.0) | | Built-In Speakers | None | | | | Power Consumption | 16 W (Typical)
40 W (Maximum) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.5 A | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 20 to 80% | | Operating Altitude | 16,404' / 5000 m | | | | Height Adjustment | 5.12" / 130 mm | | Rotation Adjustment | 180° (-90 to 90°) | | Swivel Adjustment | 90° (-45 to 45°) | | Tilt Adjustment | -5 to 21° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 20.5 x 13.8 x 6.5" / 520.7 x 350.5 x 165.1 mm (With Stand)
20.5 x 12.3 x 1.6" / 520.7 x 312.4 x 40.6 mm (Without Stand) | | Weight | 7.19 lb / 3.26 kg (Without Stand) | | | | Package Weight | 14.95 lb | | Box Dimensions (LxWxH) | 22.5 x 14.0 x 6.8" |
