User Manual for Dell P2418D 23.8" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Dell P2418D 23.8" 16:9 IPS Monitor
- Product category: Computer Monitors Dell
- Brand: Dell
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Dell Computer Monitors
 |
User manual for the Dell P2418D 23.8" 16:9 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Dell product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Dell user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Dell product will considerably shorten its lifespan!
|

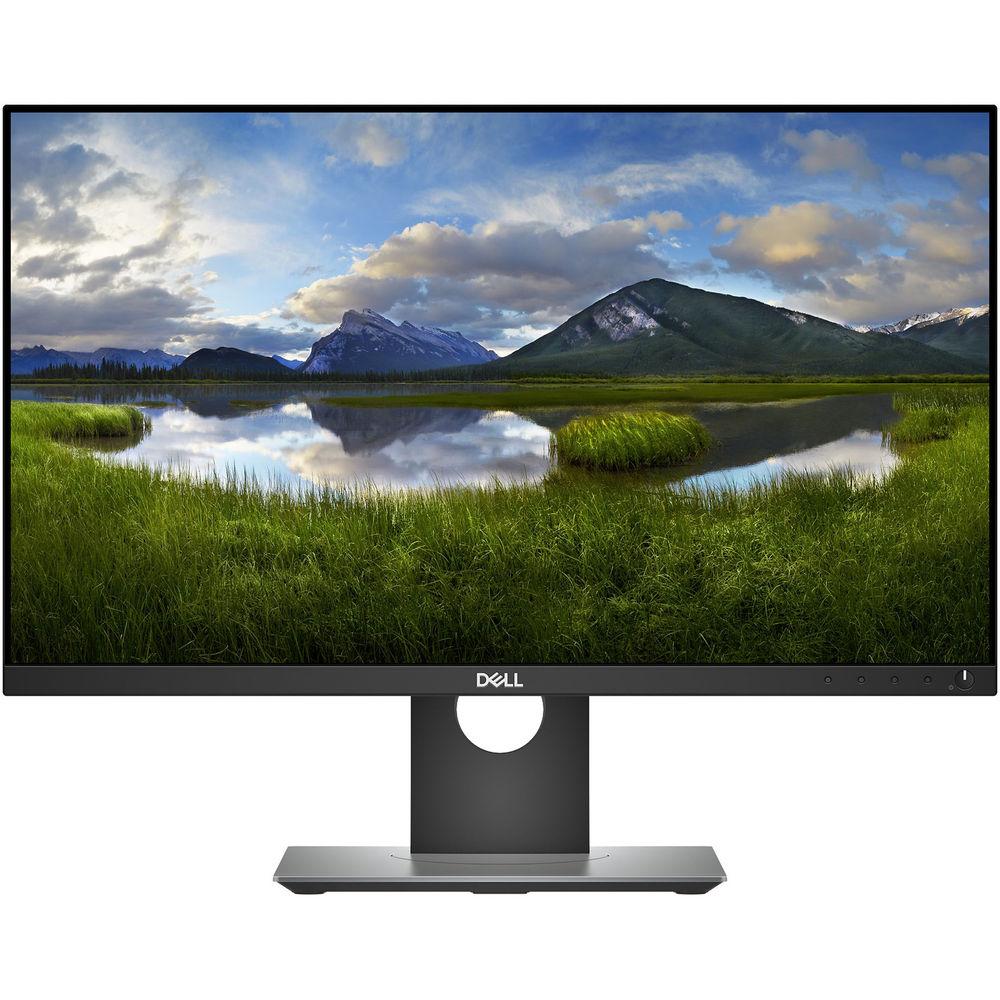

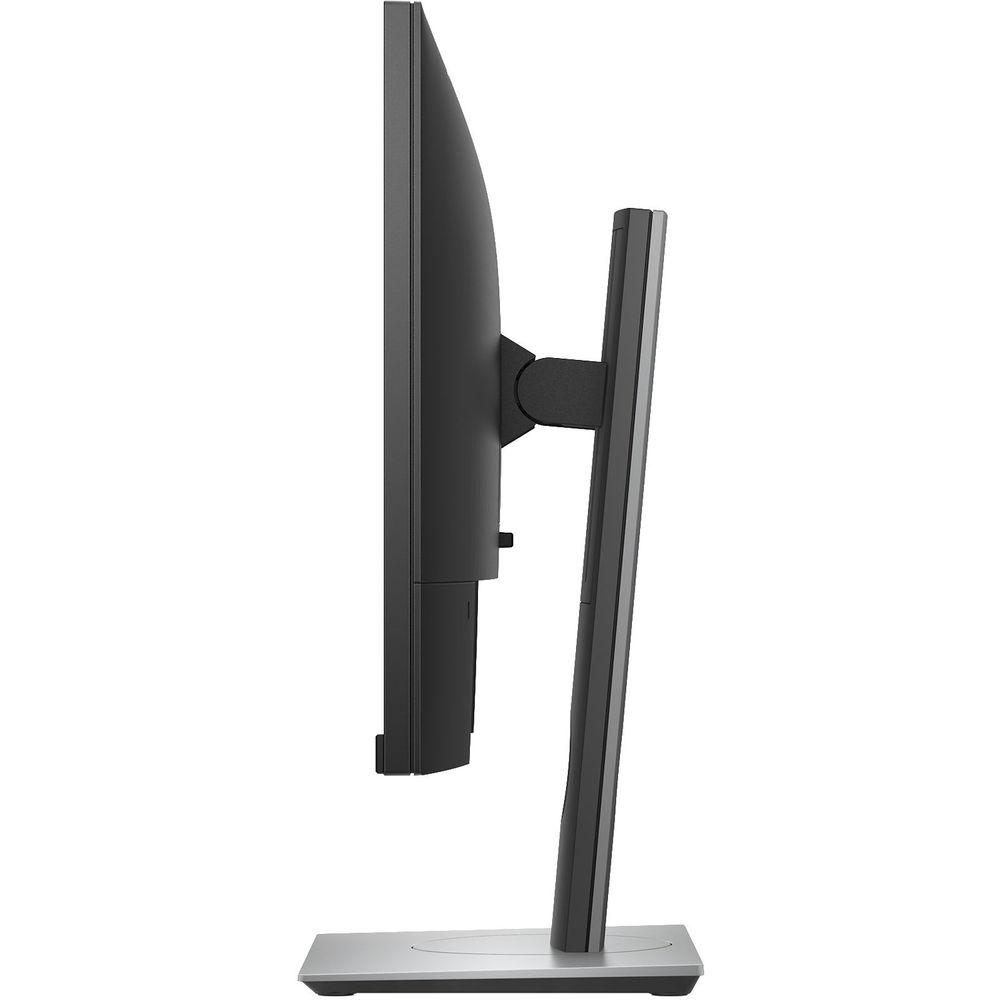

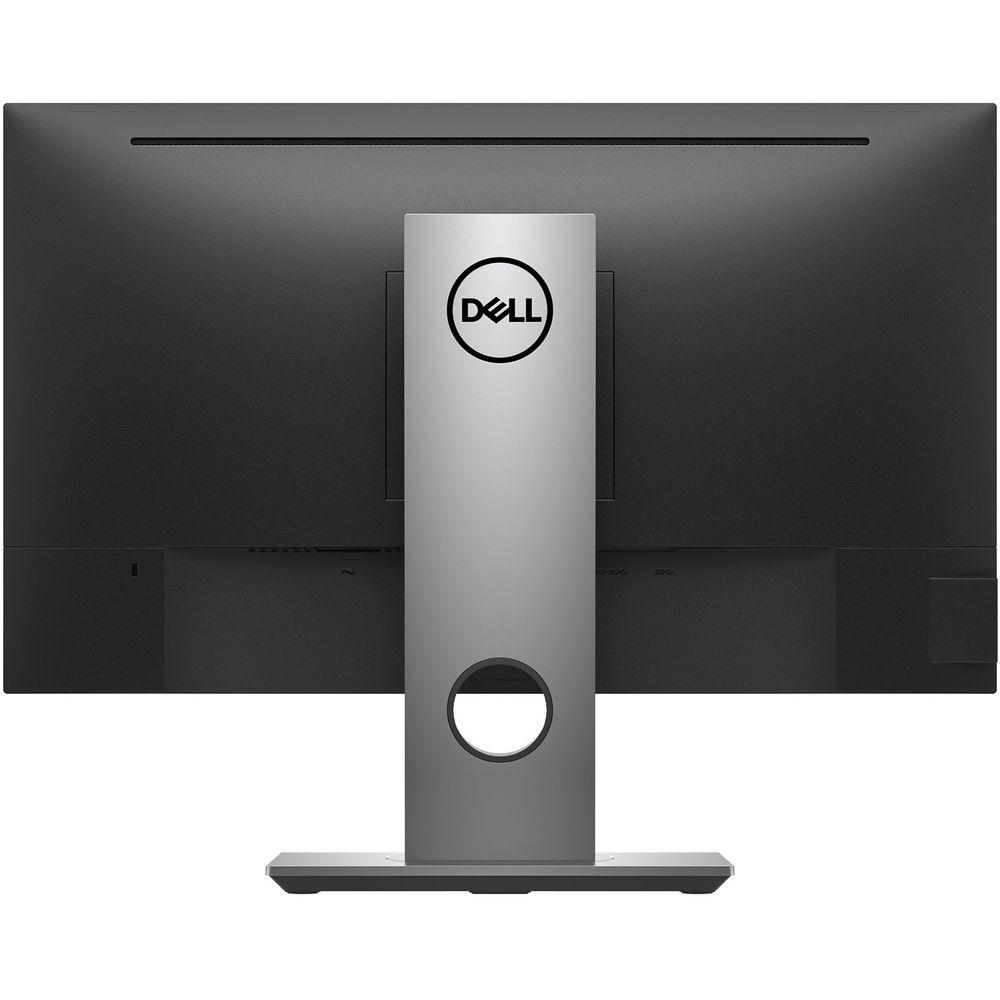

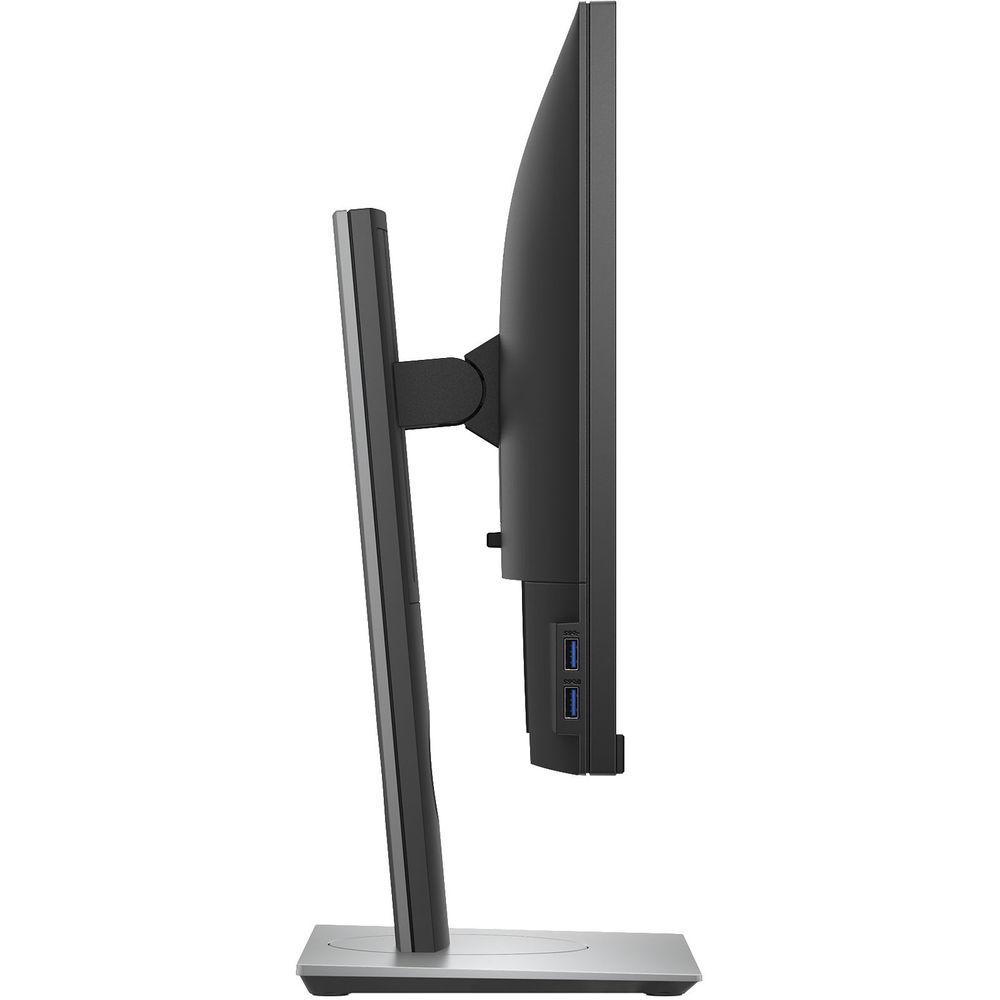

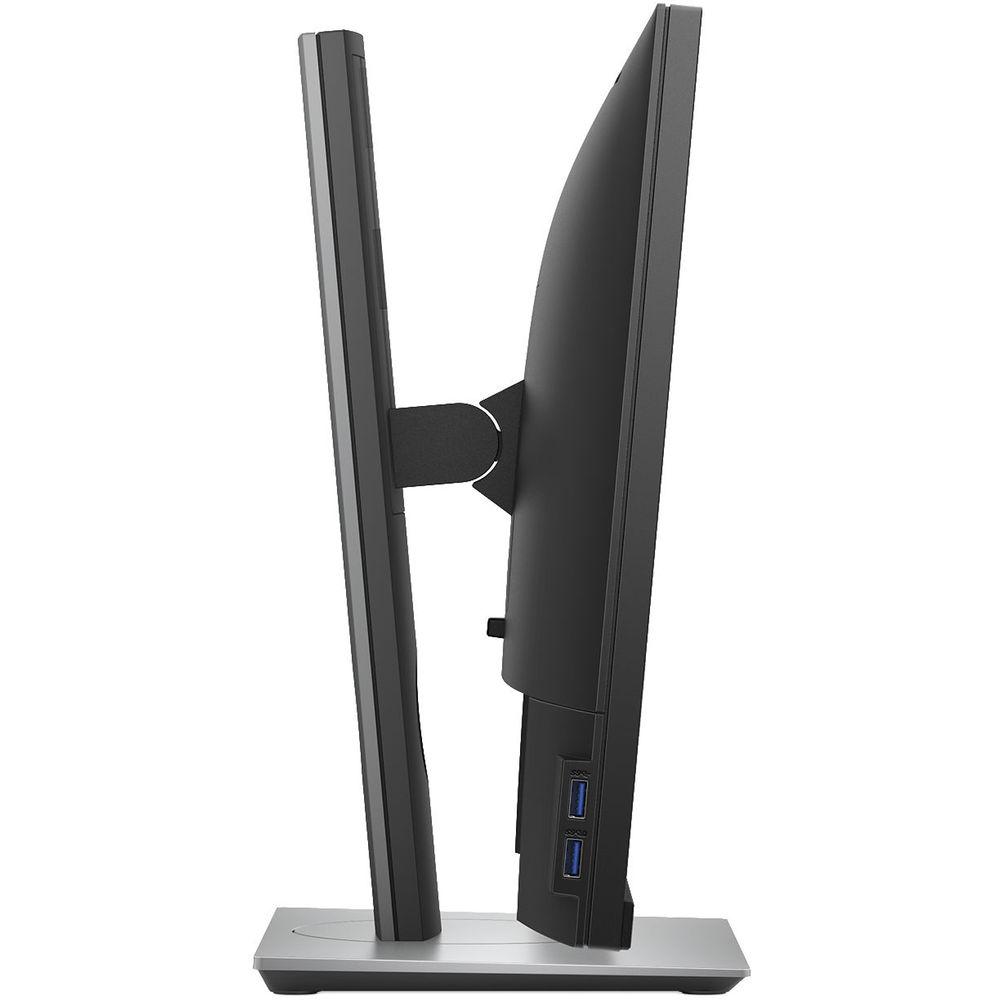

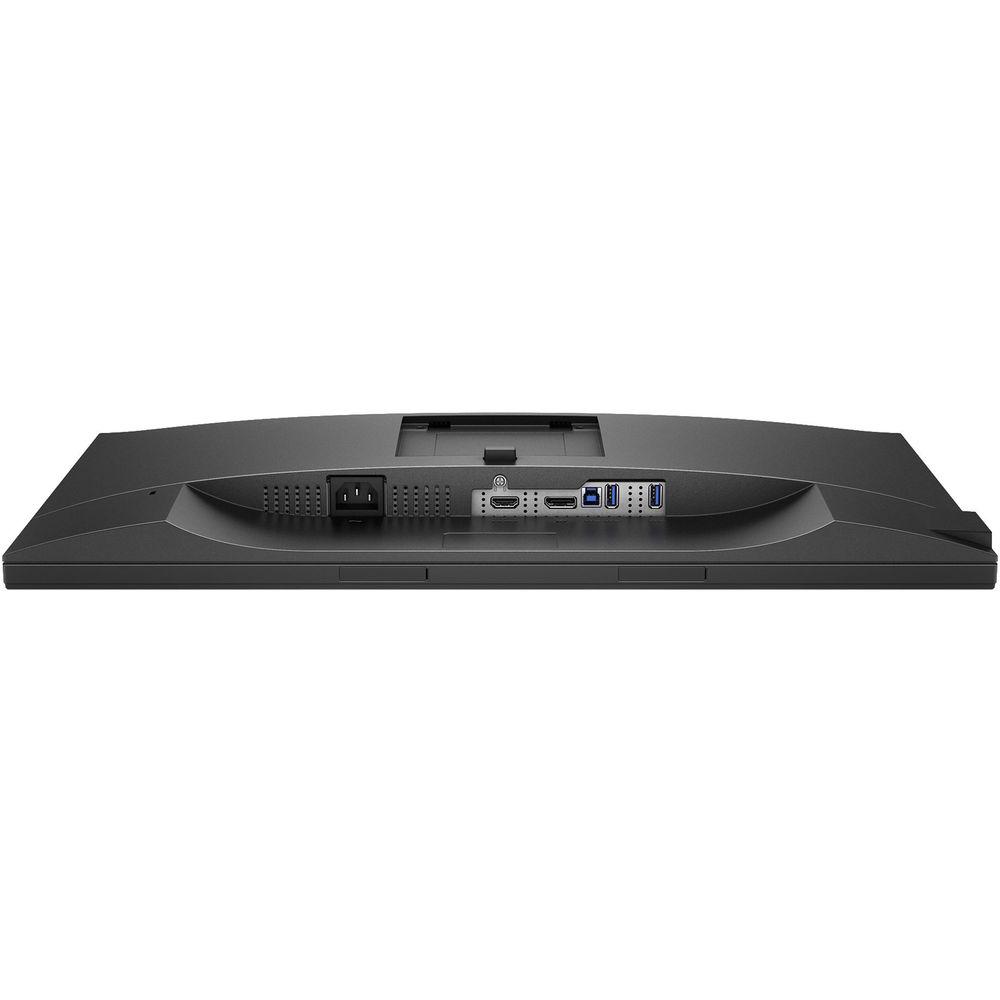

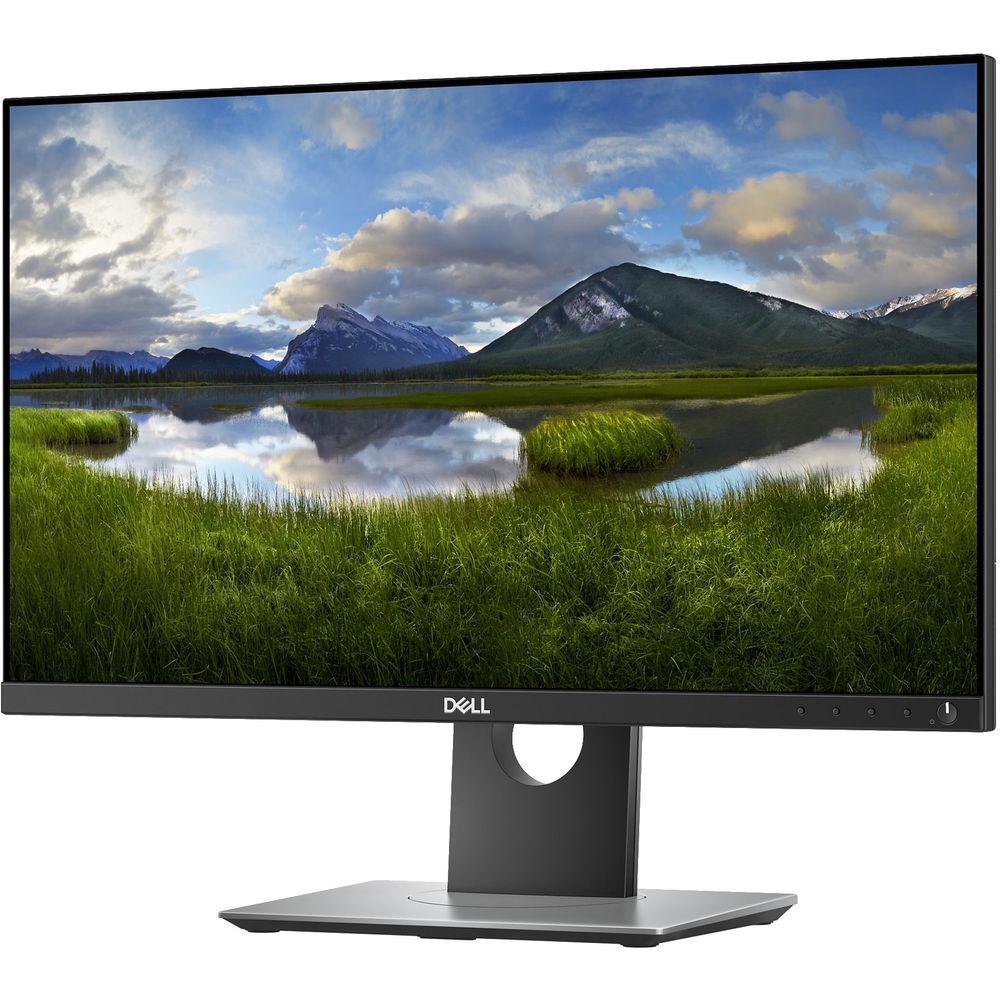

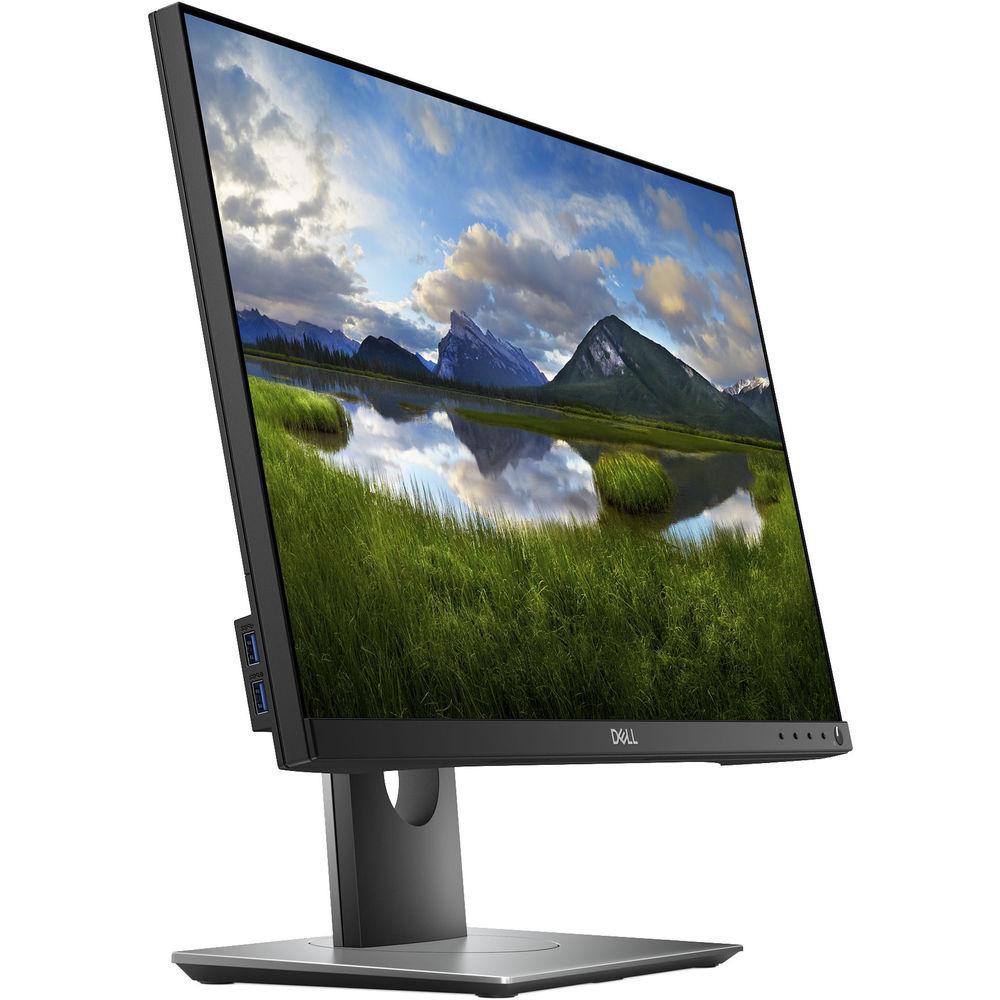

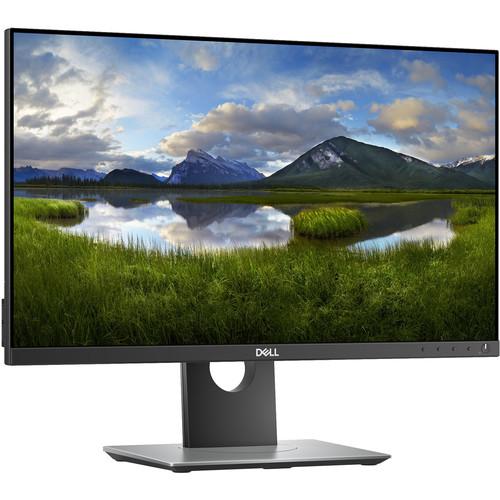

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More The Dell P2418D 23.8" 16:9 IPS Monitor is built with an IPS (In-Plane Switching) panel that provides you with wide 178° viewing angles and 99% sRGB coverage for vivid colors. Its 2560 x 1440 QHD resolution offers crisp and clear content reproduction and a fast 8 ms response time ensures images transition smoothly. Furthermore, a 300 cd/m² brightness rating and a 1000:1 static contrast ratio offer darker blacks and brighter bright colors for a more immersive viewing experience. Connect this display to your system via DisplayPort or HDMI and adjust the stand to fit your viewing preference. Otherwise, you can install an optional stand, mount, or arm using the VESA mounting holes on the back. For your convenience, it has a built-in 4-port USB hub with two ports on the side and two on the bottom so you can easily plug in peripherals and mobile device - Dell Premium Panel Guarantee
- Dell Premium Panel Guarantee provides you with a free panel replacement during the Limited Warranty period, even if only one bright pixel is found.
- Dell Advanced Exchange Service
- The 3-year Advanced Exchange service ensures that the replacement panel will be shipped to you the next business day so you can continue working without interruptions.
- Additional Features
-
- Built-in cable management
- Compatible with the Dell Display Manager
- Compatible with optional soundbar (AE515 and AC511)
UPC: 884116283980 In the Box Dell P2418D 23.8" 16:9 IPS Monitor DisplayPort Cable USB Cable Power Cable Limited 3-Year Warranty User Manual PDF 5.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Dell P2418D 23.8" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDell P2418D Specs | Diagonal Viewing Size | 23.8" (60.33 cm) | | Preset Display Area (H x V) | 20.7 x 11.64 " (52.57 x 29.57 cm) | | Panel Type | In-Plane Switching | | Display Screen Coating | Anti-glare with 3H hardness | | Maximum Resolution | 2560 x 1440 at 60 Hz | | Border width | 6.6 mm (Top/Left/Right)
18.4 mm (Bottom) | | Viewing Angle (H/V) | 178°/178° | | Pixel Pitch (H x V) | 0.205 x 0.205 mm | | Pixel per Inch | 123 | | Static Contrast Ratio | 1000:1 | | Aspect Ratio | 16:9 | | Backlight Technology | White LED edge-light system | | Brightness | 300 cd/m² | | Response Time (GtG) | Normal: 8 ms
Fast: 5 ms | | Color Gamut | 99% sRGB | | Color Depth | 16.7 Million colors | | USB | 1 x USB 3.0 (upstream)
4 x USB 3.0 Type-A (downstream) | | Connectivity | 1 x DisplayPort 1.2

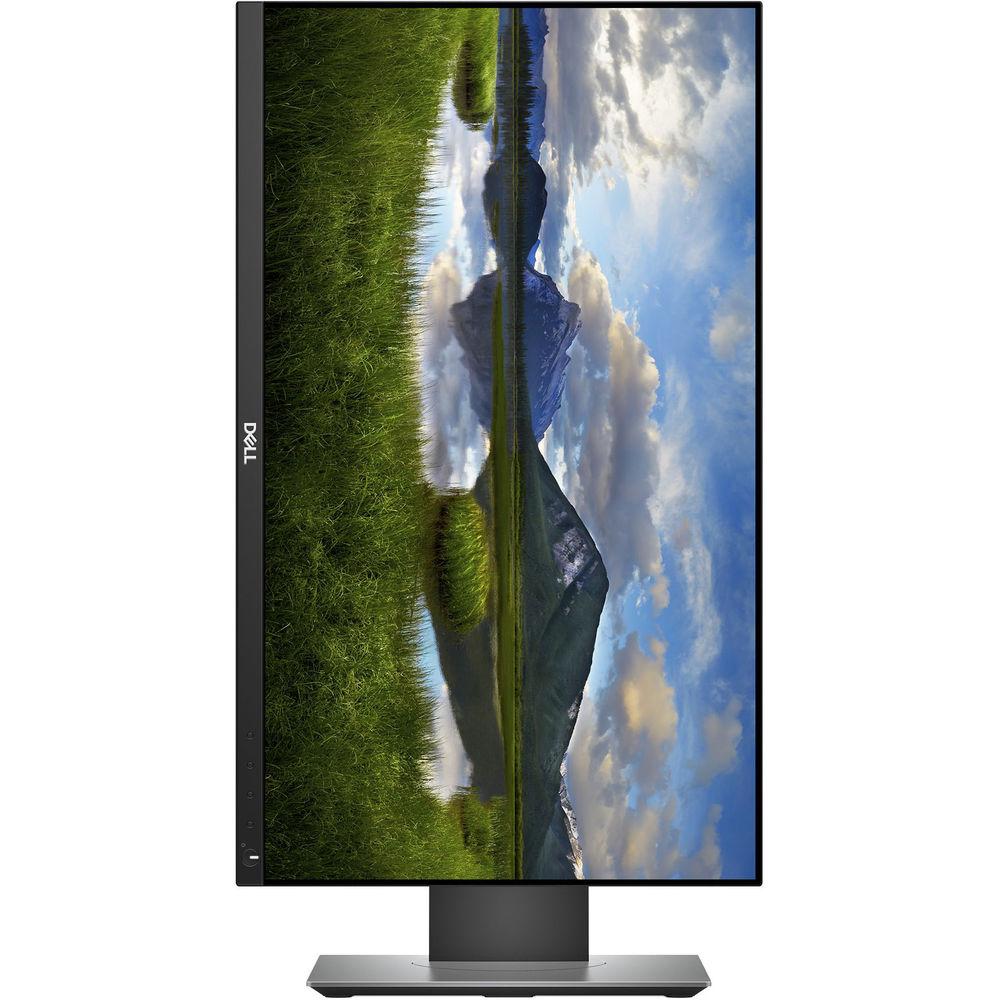

1 x HDMI 1.4 | | | | VESA Compatibility | 100 x 100 mm | | Height Adjustment | 5.12" (13 cm) | | Tilt | -5 to 21° | | Swivel | ±45° | | Pivot | 90° clockwise | | | | Power Supply | 100 to 240 VAC / 50 or 60 Hz (
